Slogging Ring Spanner

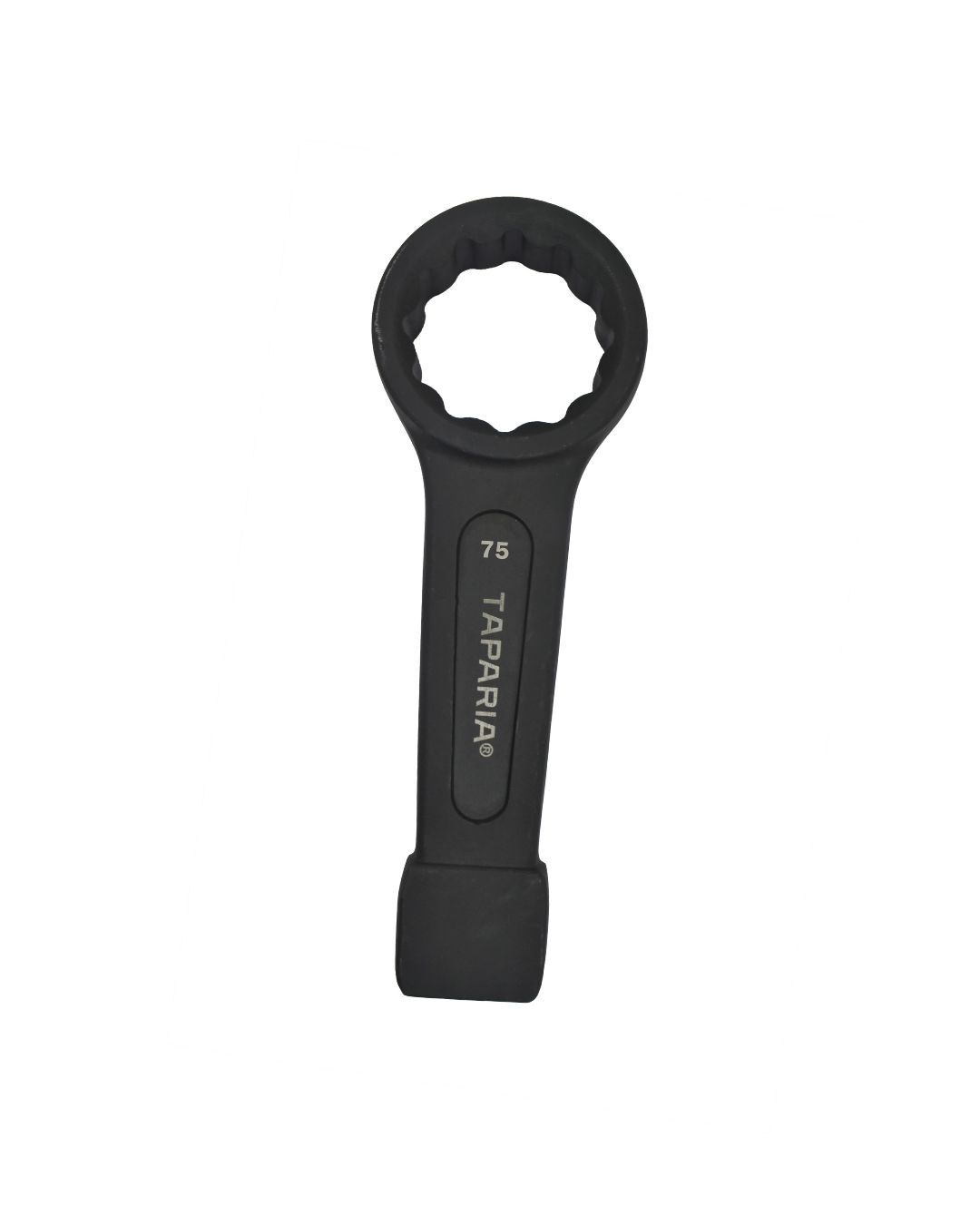

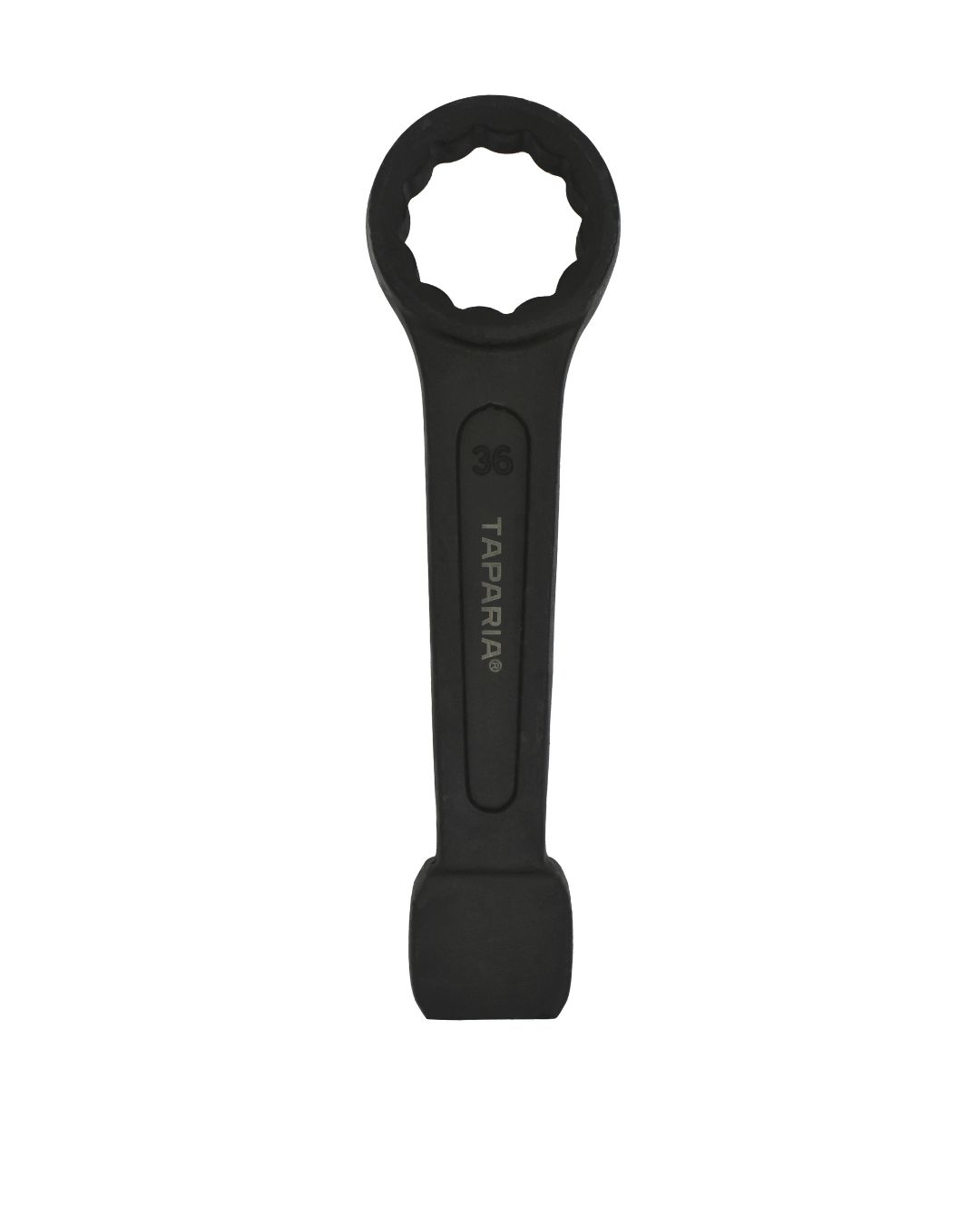

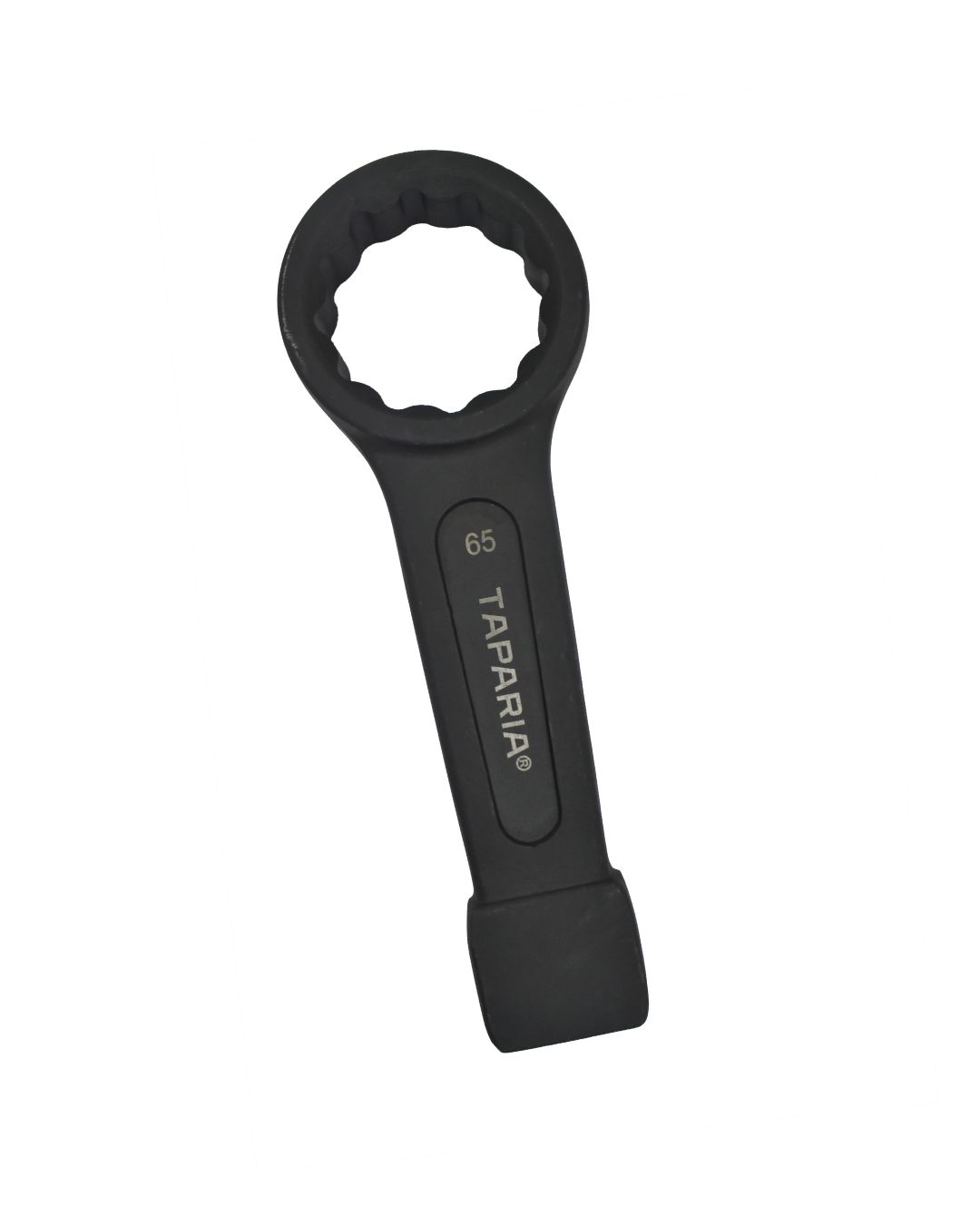

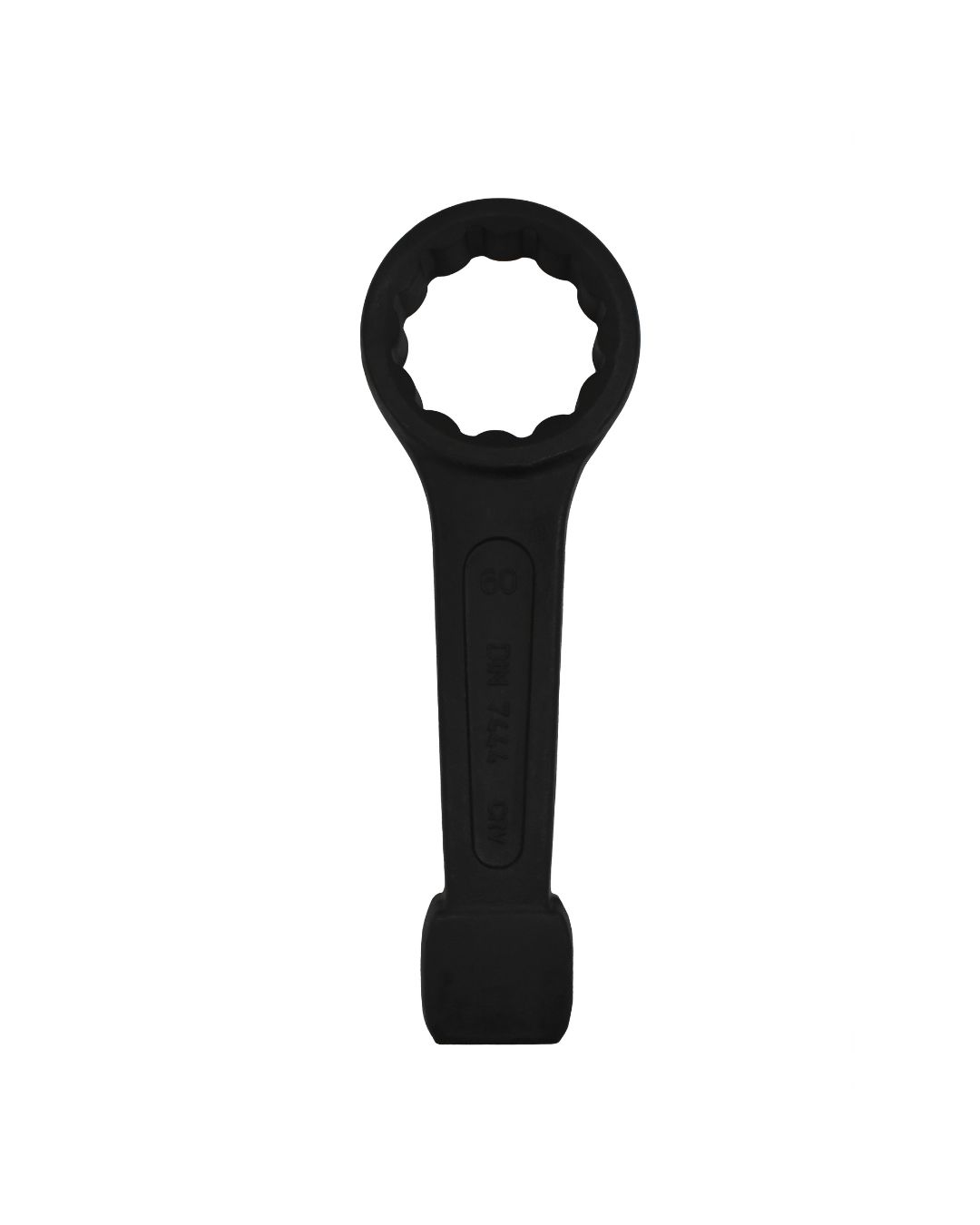

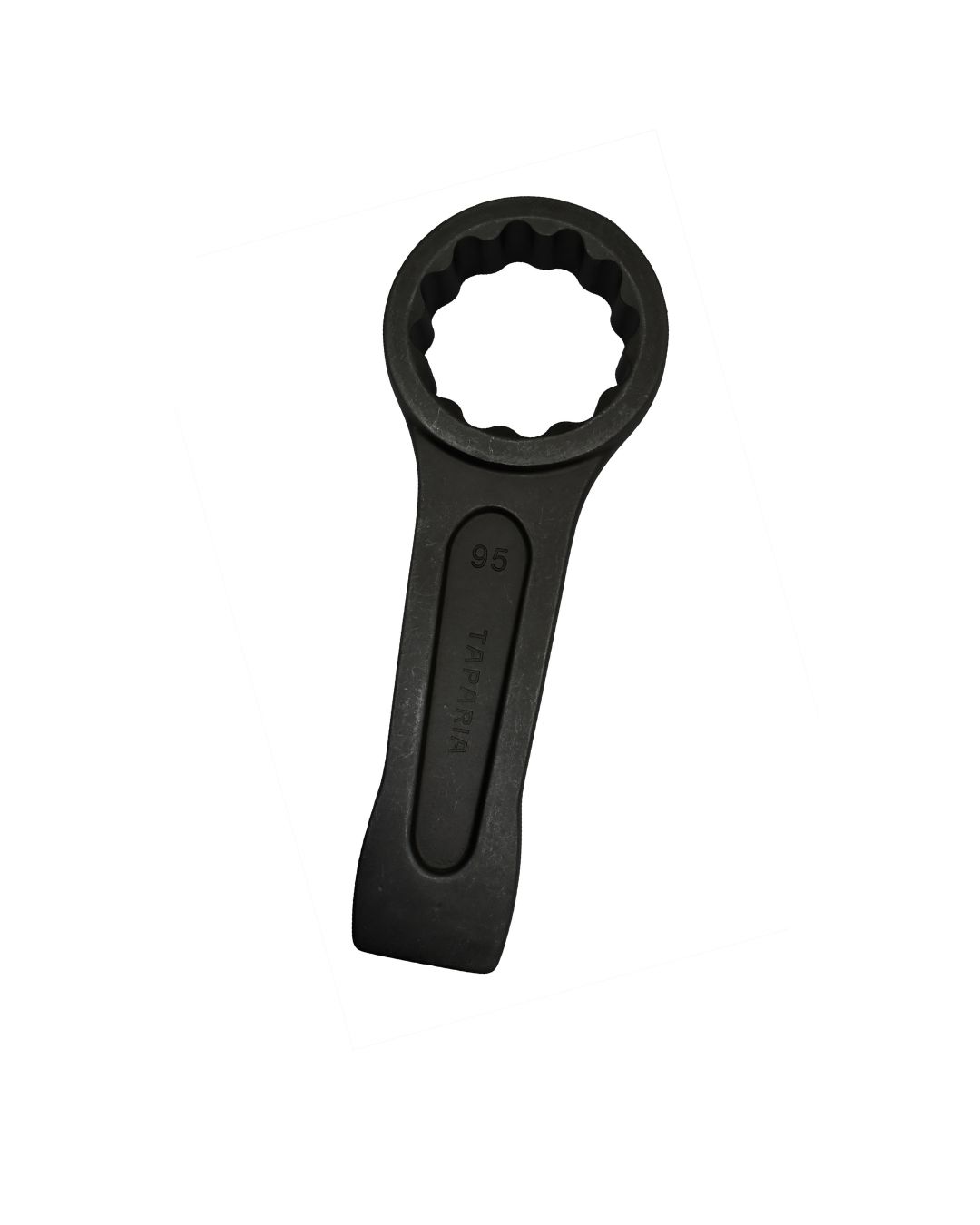

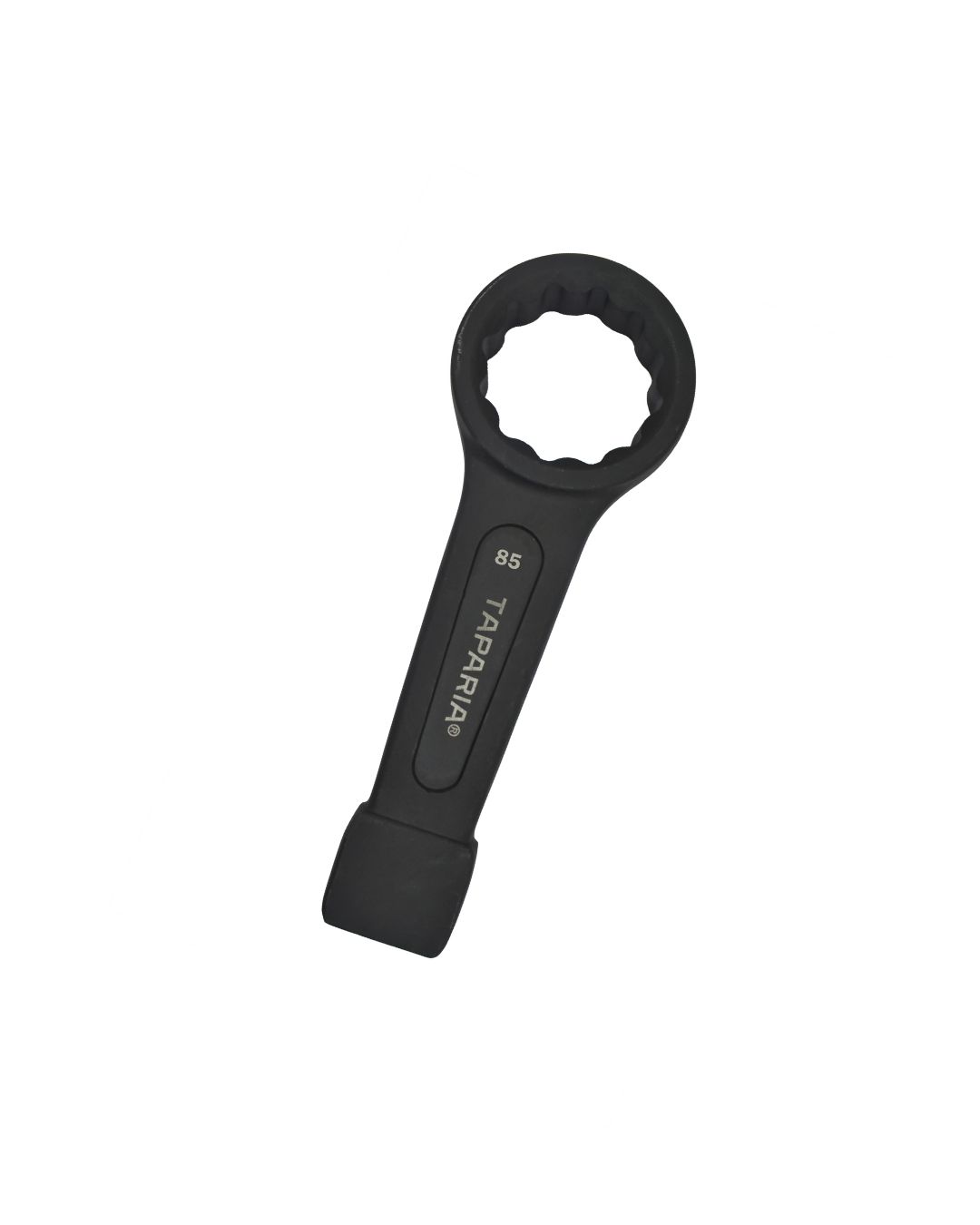

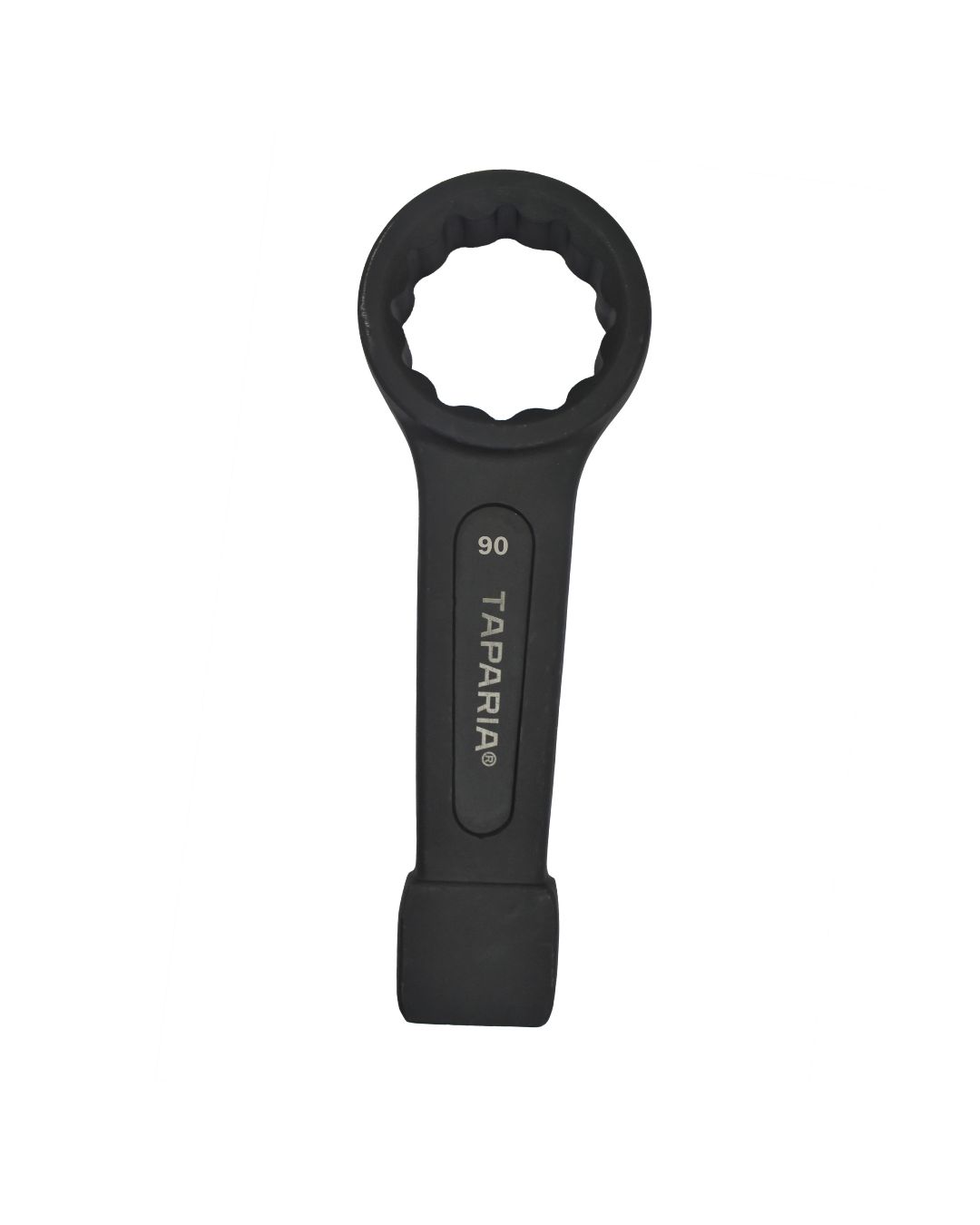

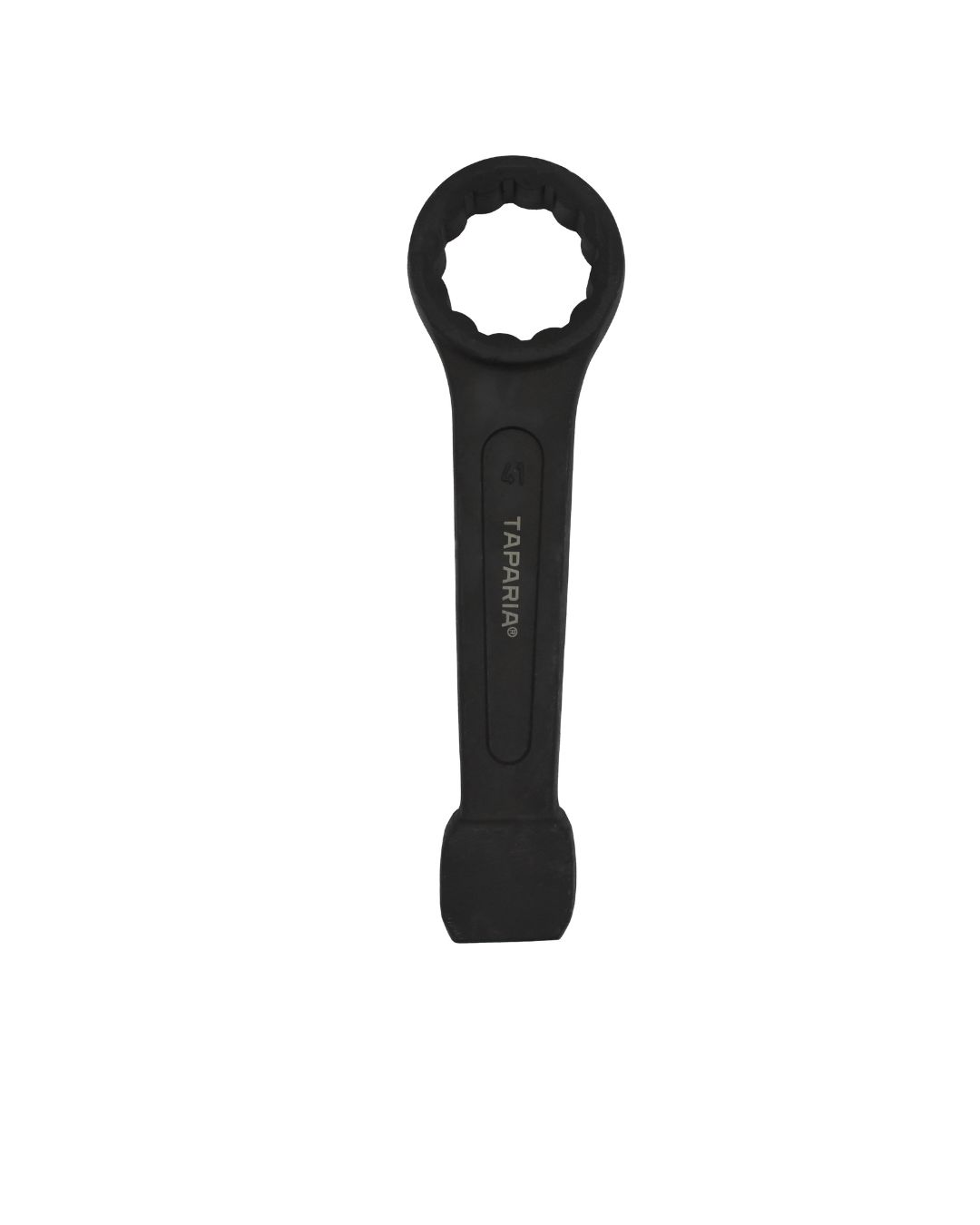

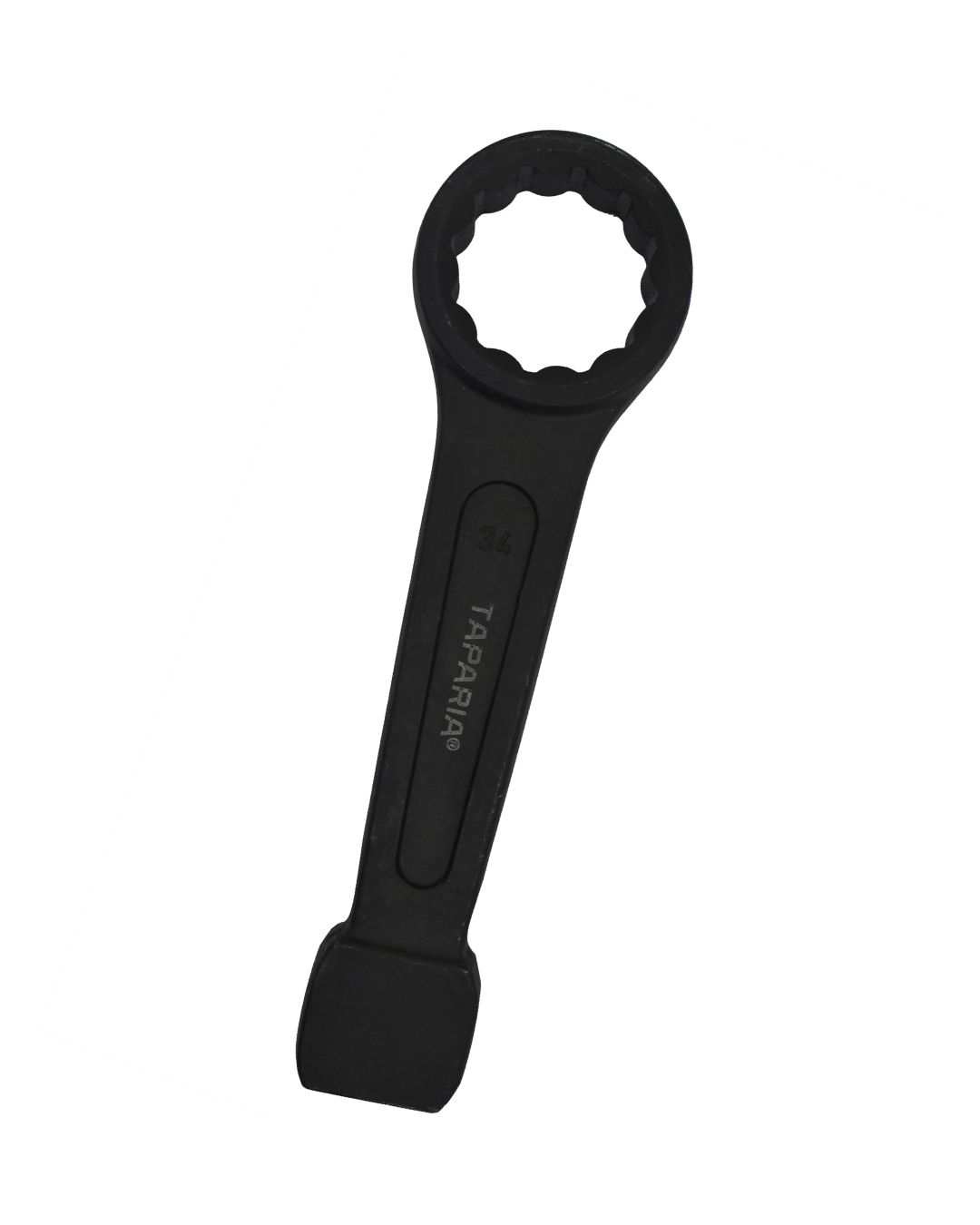

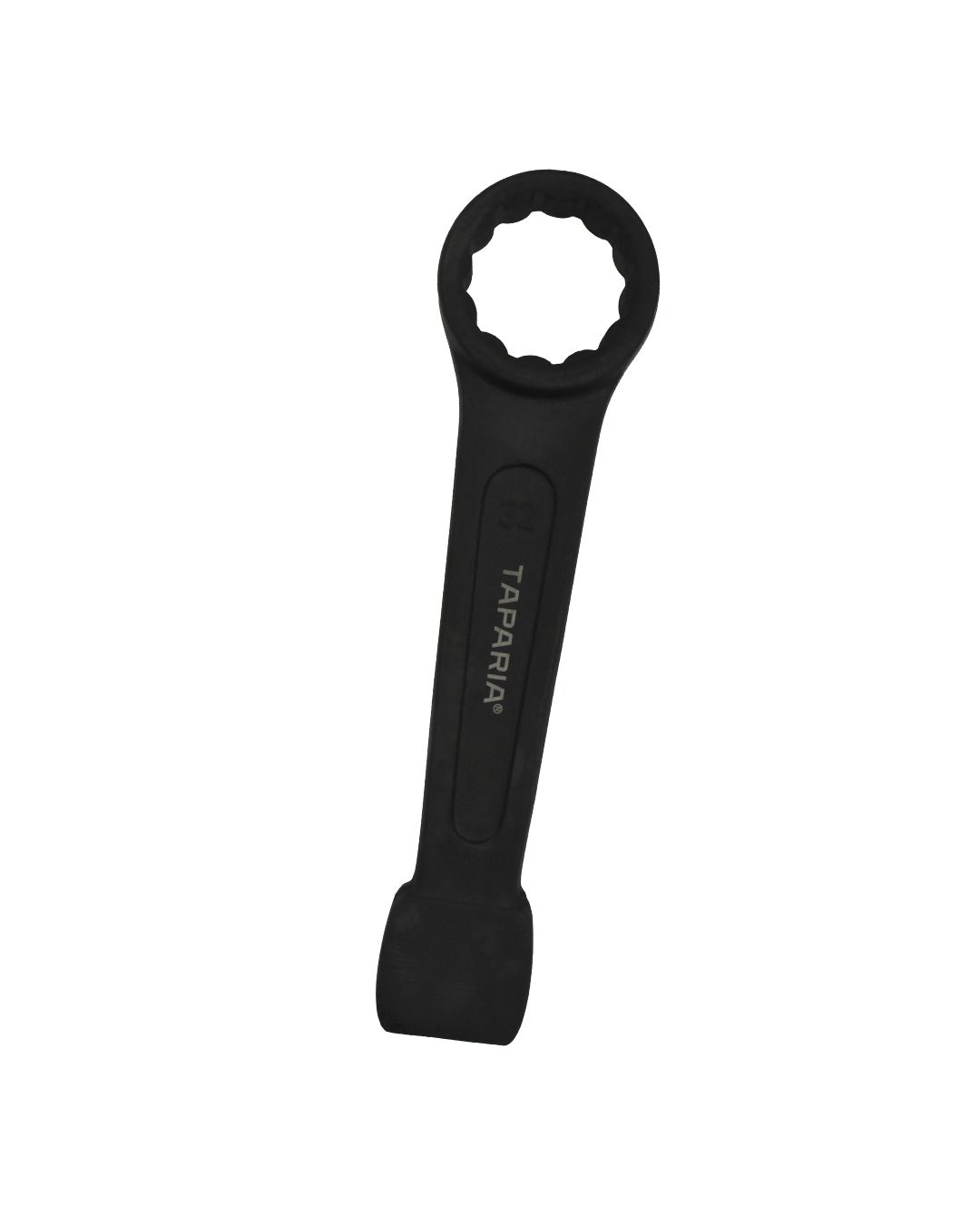

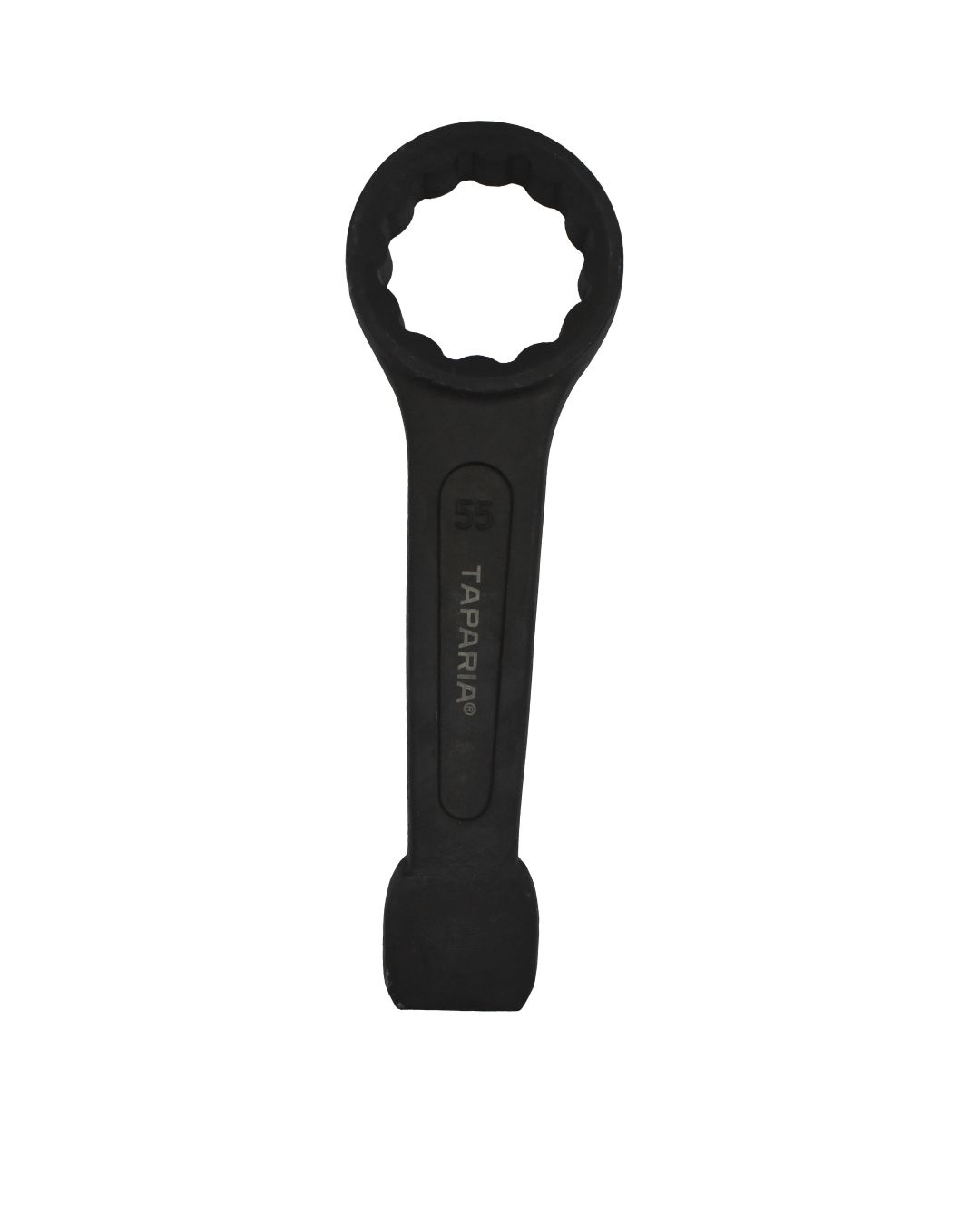

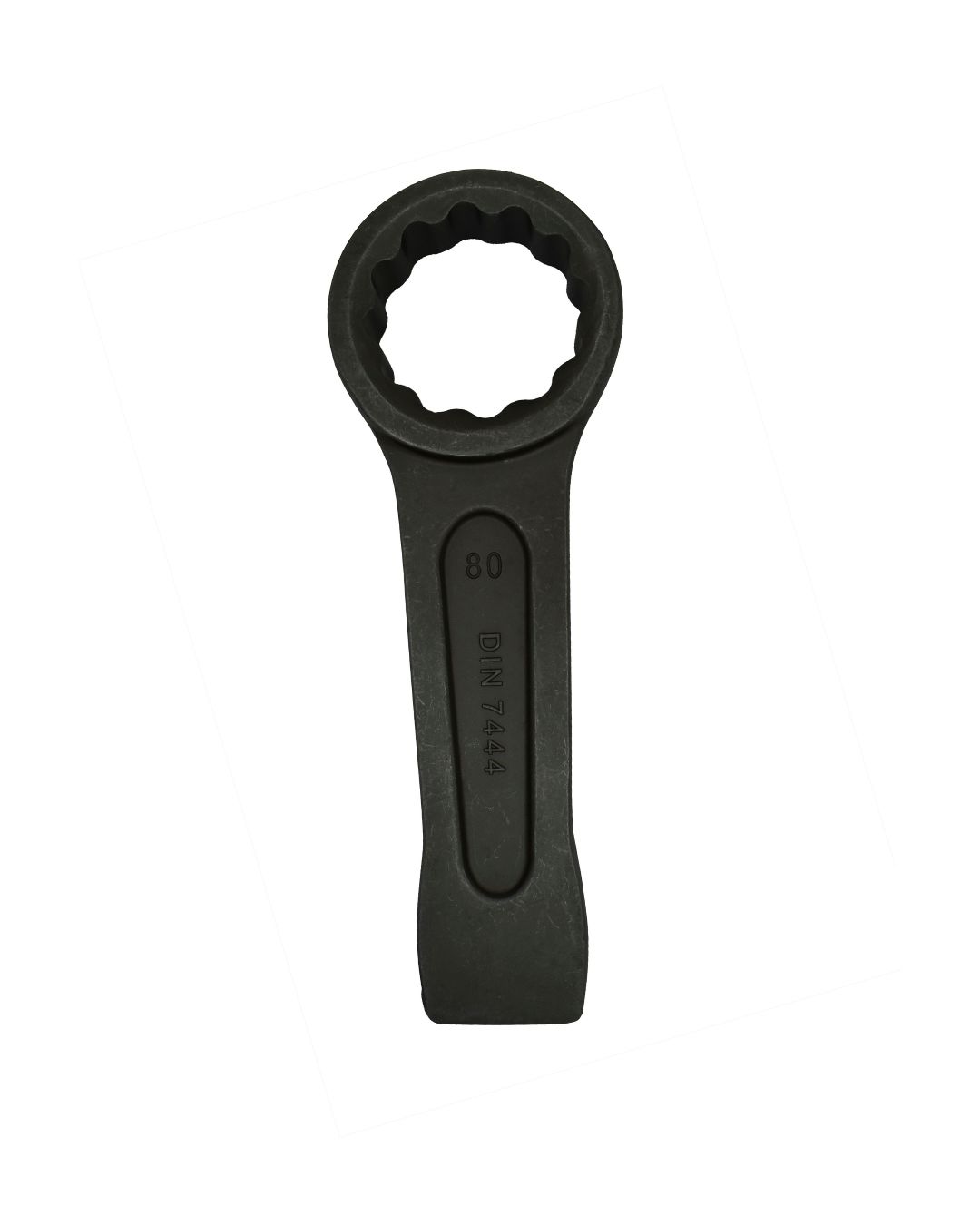

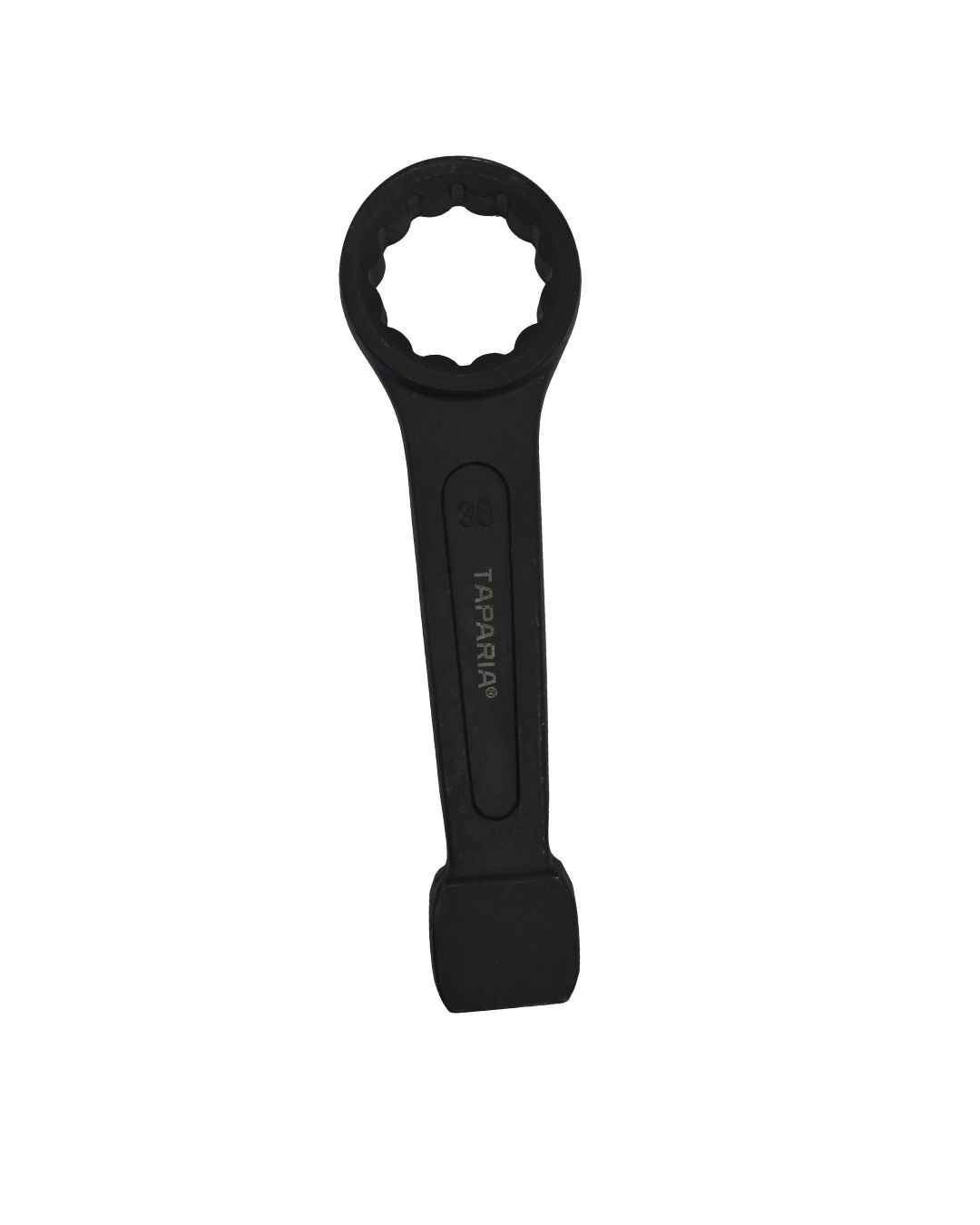

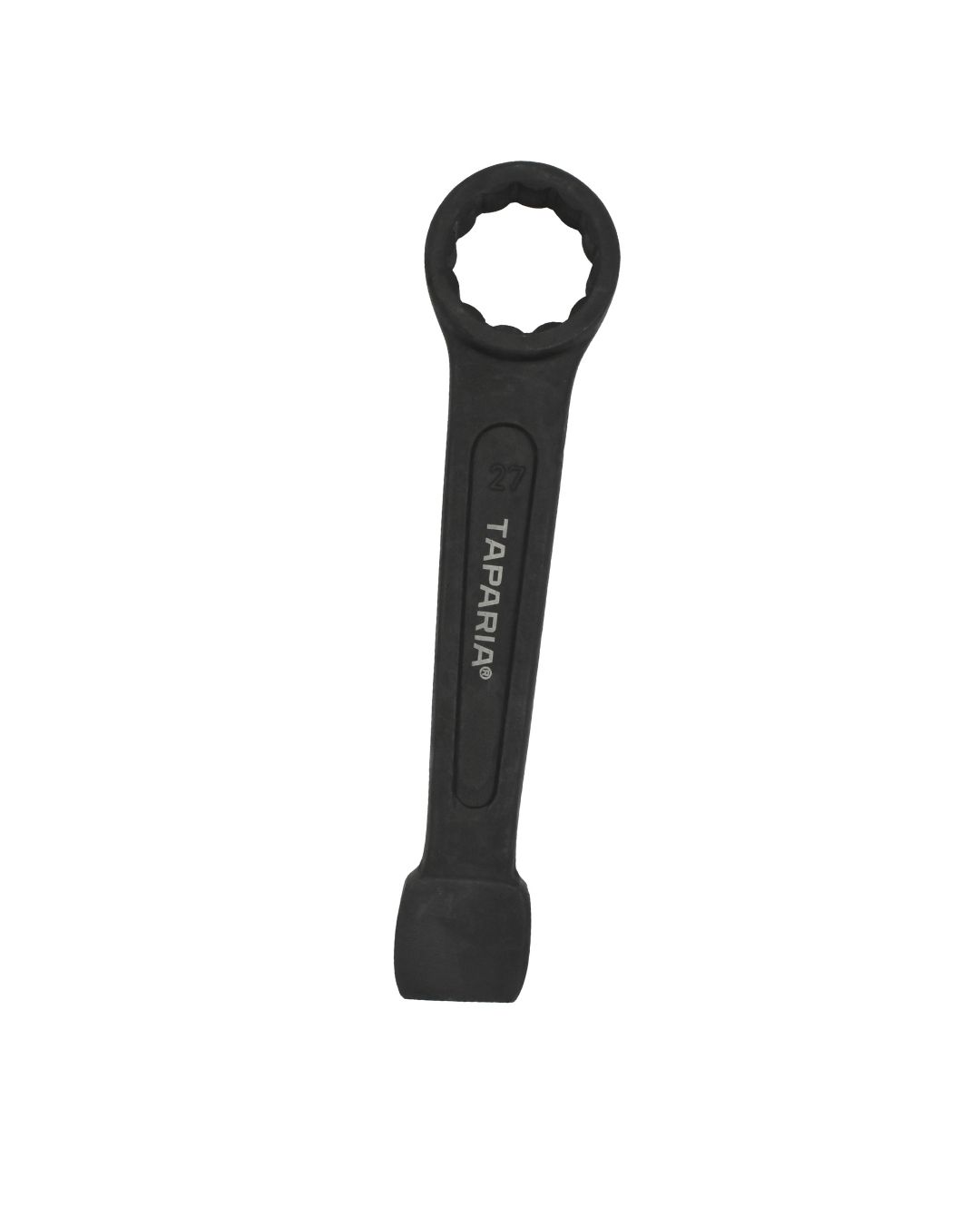

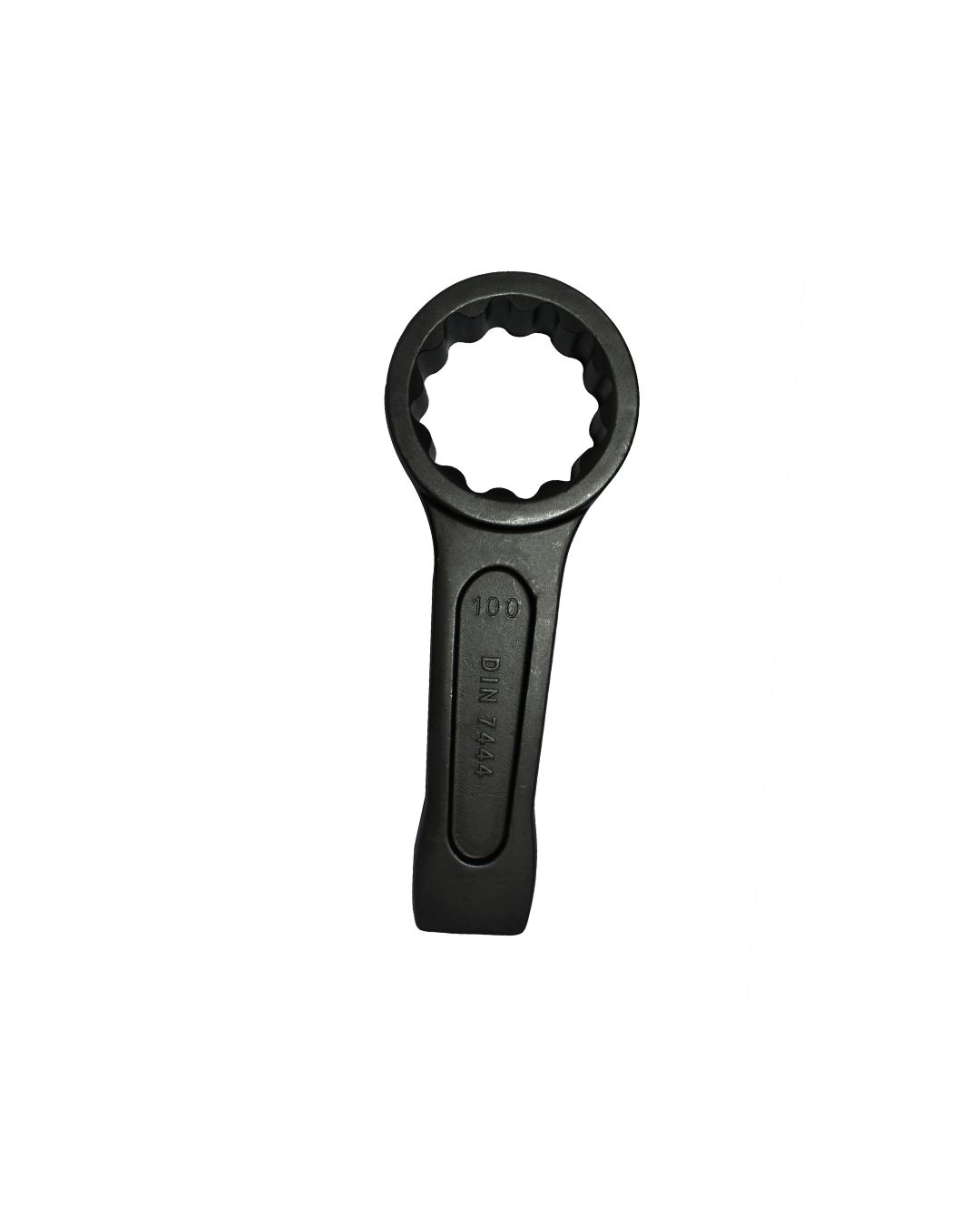

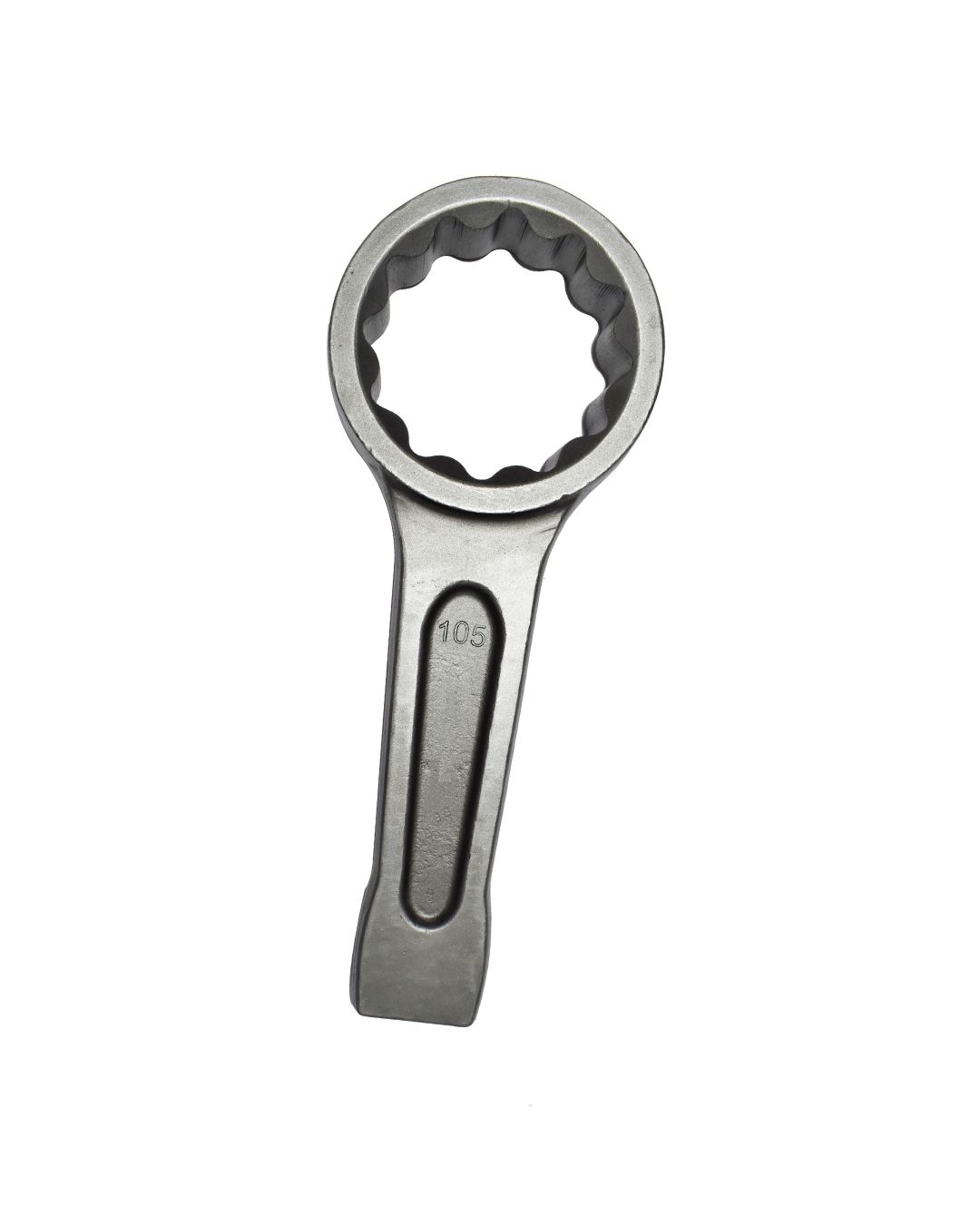

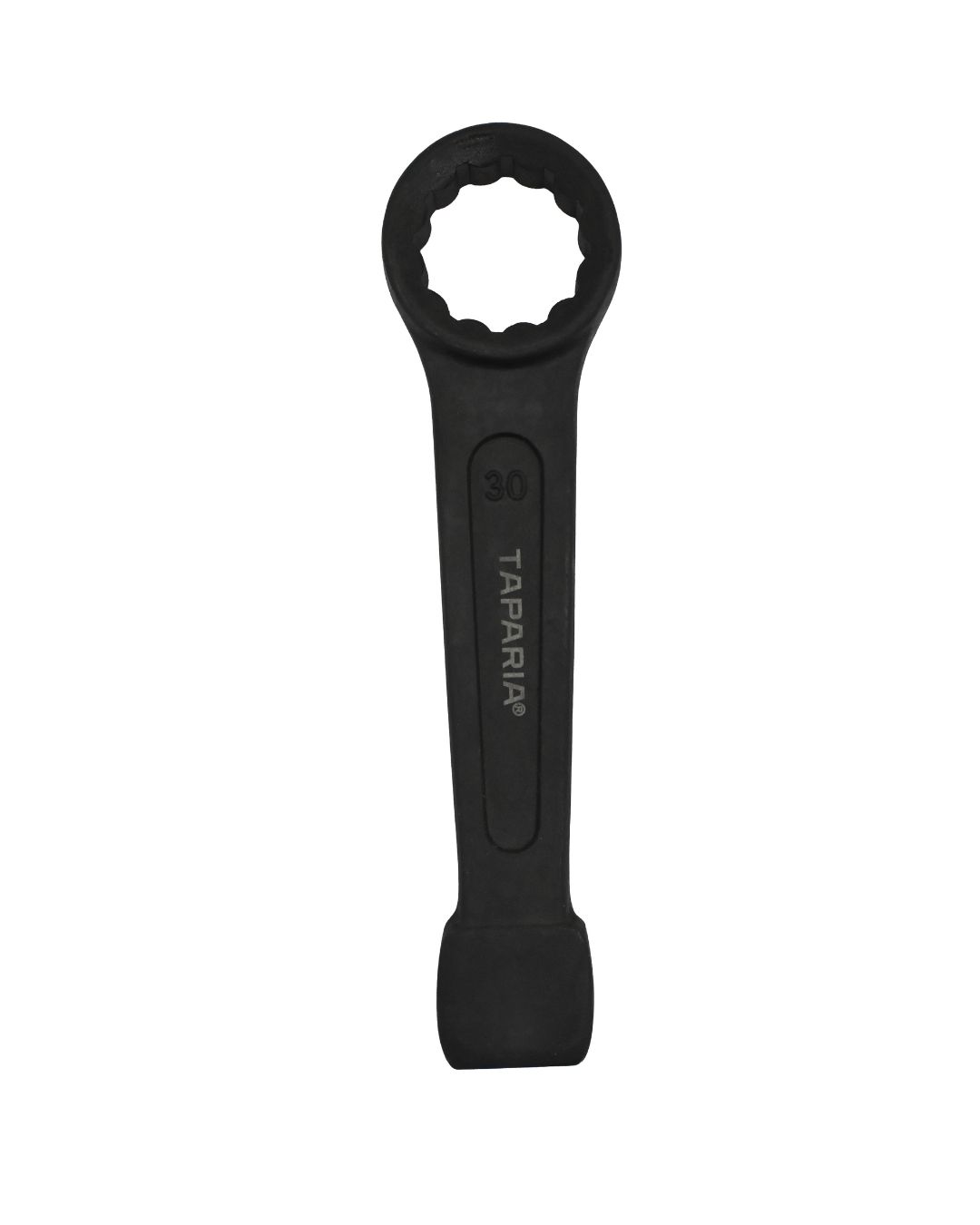

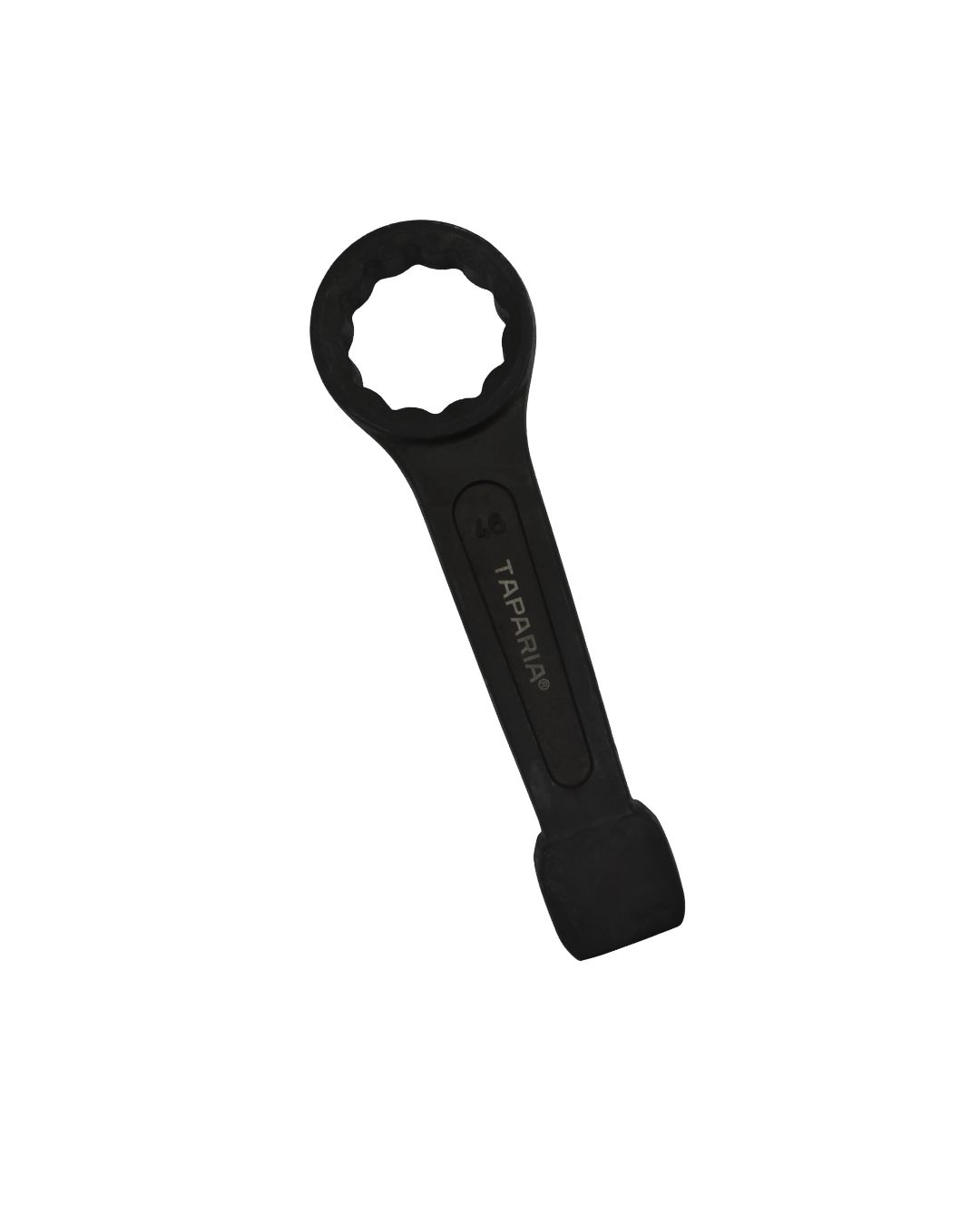

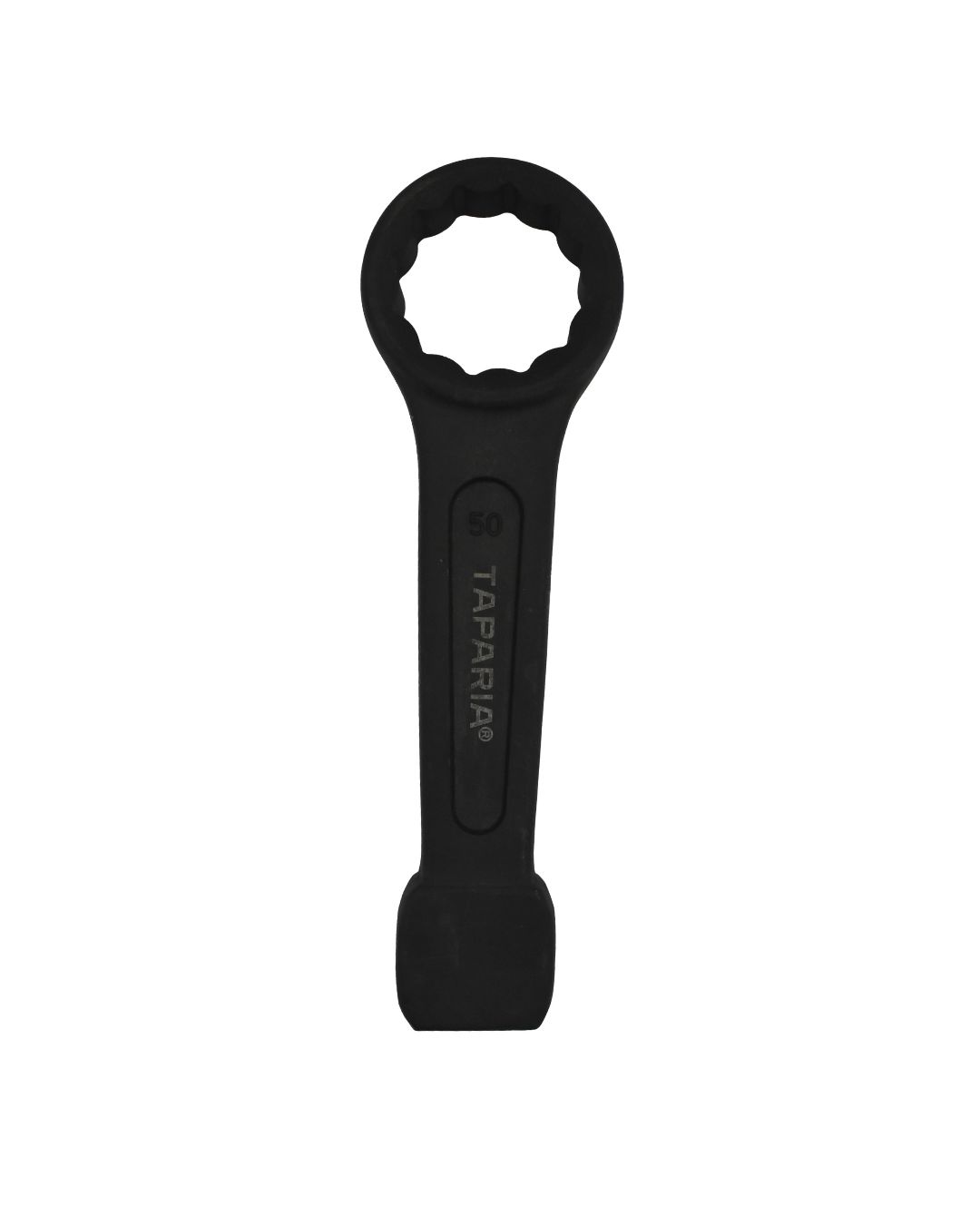

SLOGGING RING WRENCH

Drop forged from high-grade Chrome Vanadium steel.

Scientifically heat-treated to give maximum strength and wear resistance.

Thoroughly rust / corrosion protected with sand blast & black phosphate finish.

Straight & offset handle, Short and strong profiled handle and striking ends for heavy-duty operations in shipyards, railways, heavy industries etc.

Available in Open Jaw and Ring patterns in different sizes as,

A) Open ended spanners :- SSO 27 to SSO 150

B) Ring Spanners :

1. Straight handle : SSR 27 to SSR 160

2. Offset with box handle : SSROB 32 to SSROB 115

3. Offset with round handle : SSROR 24 to SSROR 105

Minimum Torque Values in Kg.m

· TAPARIA slogging wrenches generally Conform to I.S. 4508-1992 & 4509-1992.

Flat Sizes	Minimum Torque values (in Kg.m) (open jaw)	Minimum Torque values (in Kg.m) (ring)
24 mm	--------	46
27 mm	41	61
30 mm	55	78
32 mm	66	90
34 mm	81	104
36 mm	91	119
38 mm	101	135
41 mm	118	161
46 mm	148	211
50 mm	175	256
55 mm	212	320
60 mm	252	392
65 mm	290	410
70 mm	343	475
75 mm	394	550
80 mm	448	630
85 mm	506	710
90 mm	567	800
95 mm	632	850
100 mm	700	1296
105 mm	772	1453
110 mm	847	1620
115 mm	925	1798
120 mm	1008	1986
125 mm	1093	2185
130 mm	1183	2395
135 mm	1275	2616
140 mm	1372	2849
145 mm	1471	3093
150 mm	1575	3348
155 mm	-------	3615
160 mm	--------	3894
