Product Overview

COMBINATION SPANNER SETS

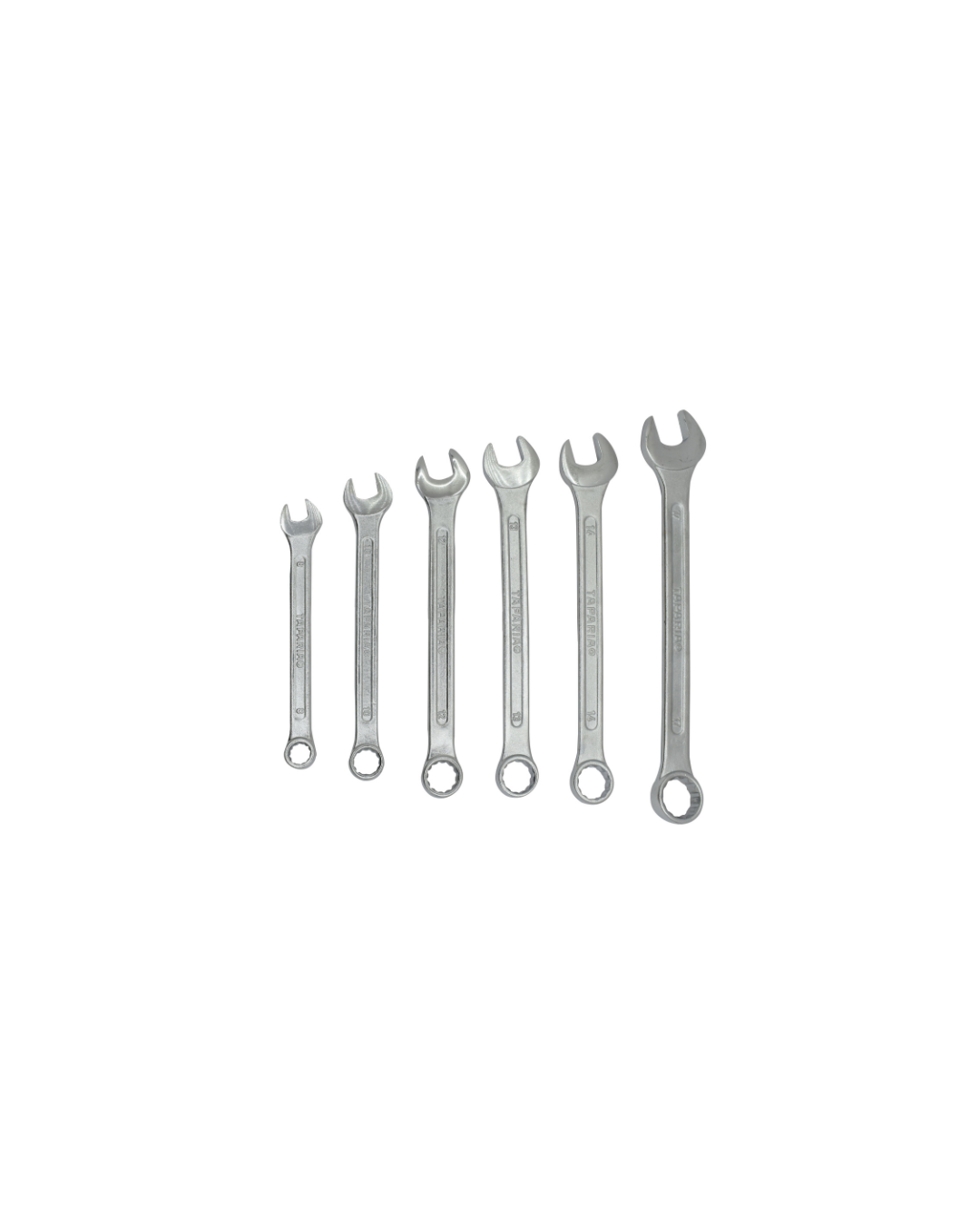

CSS 68,10,12,13,14,17

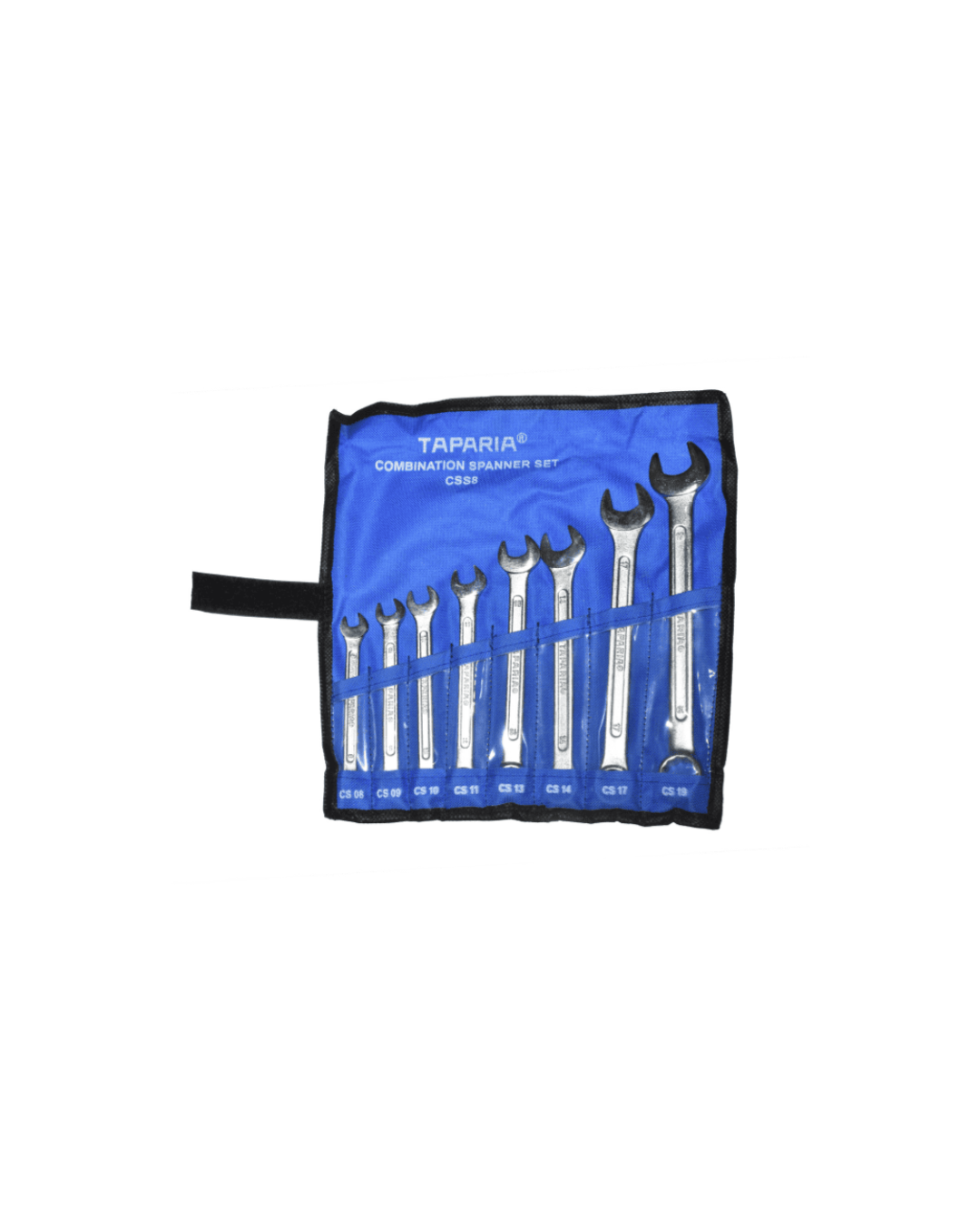

CSS 88,10,12,13,14,17,19

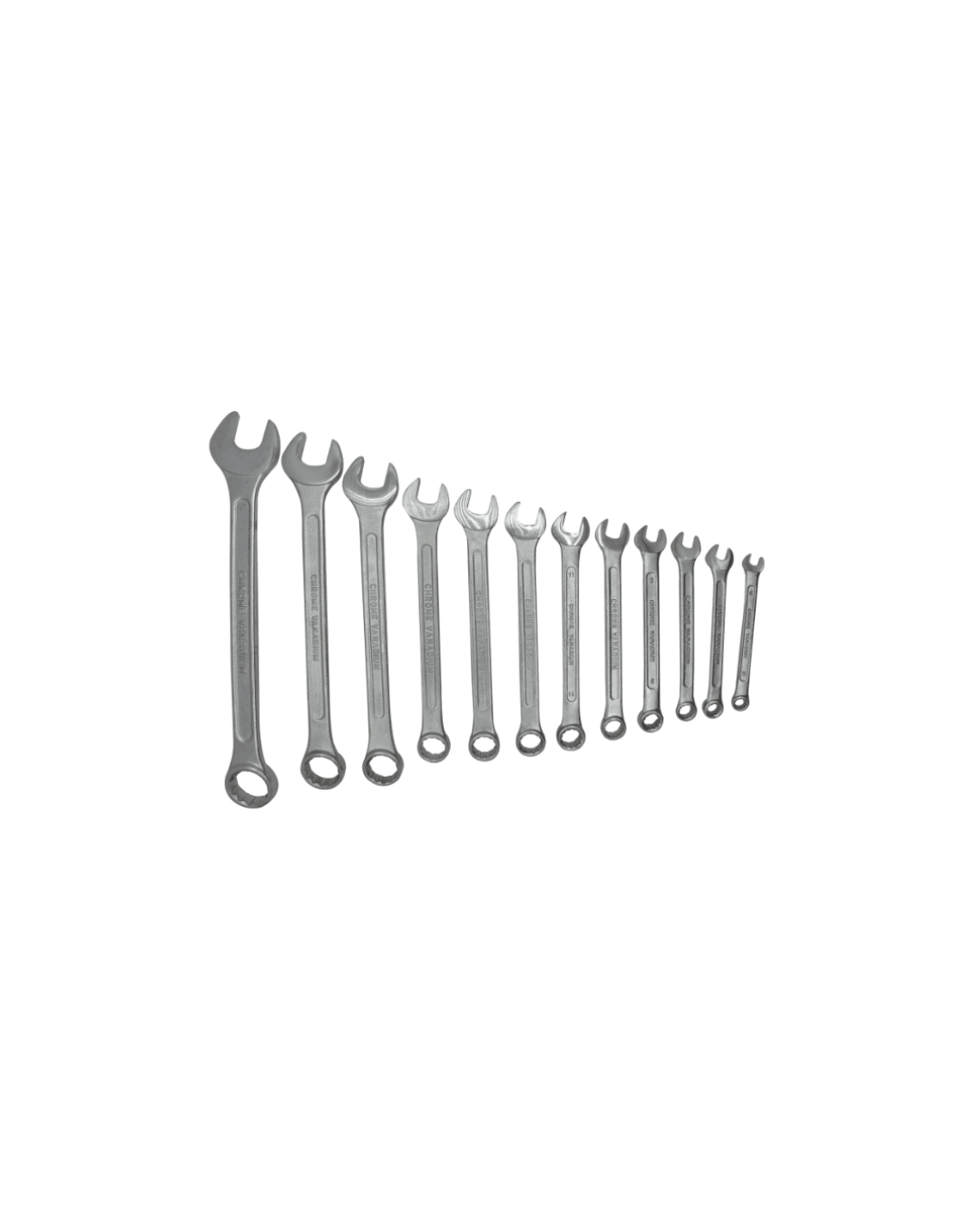

CSS 128,10,12,13,14,17,19,22

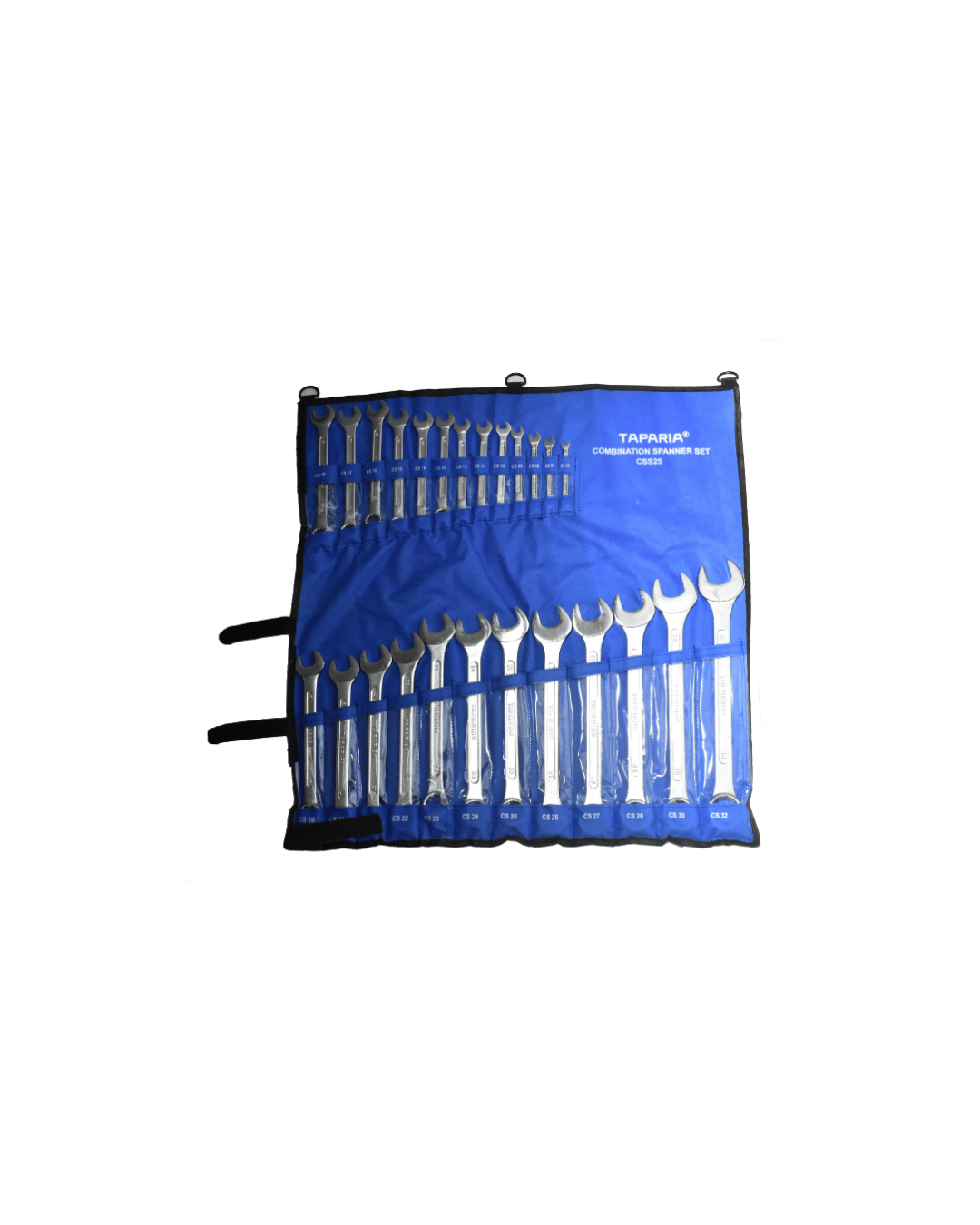

CSS 258,10,12,13,14,17,18,19,20,21,22,23,24,25,26,27,28,30,32

Special Features


Salient Features

  • Drop forged from suitable high grade Chrome- Vanadium steel.
  • Scientifically heat treated to give maximum strength and wear resistance.
  • Slightly rounded shank -sand blasted –fit snugly in the hand and gives comfortable grip.
  • Good accessibility in confined spaces due to slim and practical design.
  • Head angle at open end is 15 0 which permits use in confined spaces.
  • Clearly marked –facilitates choice of right size.
  • I-section design of handle and heads combines strength with low weight.
  • Thoroughly corrosion protected with Nickel-Chrome finish.

Available in different sizes.i.e A/F 6 To A/F 50 mm.


Minimum Torque Value in Kg.m:

Product Size

         Torque Value in Kg.m ( Open End )

Torque Value in Kg.m (Ring End)
CS6
0.61.8
CS7
0.92
2.57
CS8
1.35
3.51
CS9
1.87
4.62
CS10
2.52
5.92
CS11
3.26
7.41
CS12
4.19
9.08
CS13
5.24
10.9
CS14
6.47
13.04
CS15
7.84
15.29
CS16
15.08
26.6
CS17
10.91
20.48
CS18
13.04
23.44
CS19
15.09
26.6
CS20
17.53
28.95
COMBINATION SPANNERS

Minimum Torque Value in Kg.m:

Product Size Torque Value in Kg.m ( Open End )
Torque Value in Kg.m (Ring End )
CS2122.93
37.51
CS22
2642
CS23
29.3
46
CS24
32.850.6
CS25
36.6
55.5
CS26
40.7
60.6
CS27
45
66
CS28
54.677.5
CS30
65.5
90.1
CS32
76.2
96.8
CS33
81
104
CS34
85.7
111.13
CS35
91
119
CS36
101
135
CS38
112
151.89
CS40
118
161
CS41
123.4
170.26
CS42
135.5
189.84
CS44
148
202
CS46
161.2
232.71
CS50
175
256

TAPARIA combination spanners generally Conform to I.S. 6389-1998
