| PRODUCT NO | A | B | C | D | CUTTING CAPACITY DIAMETER MAX. | WEIGHT GRAMS |

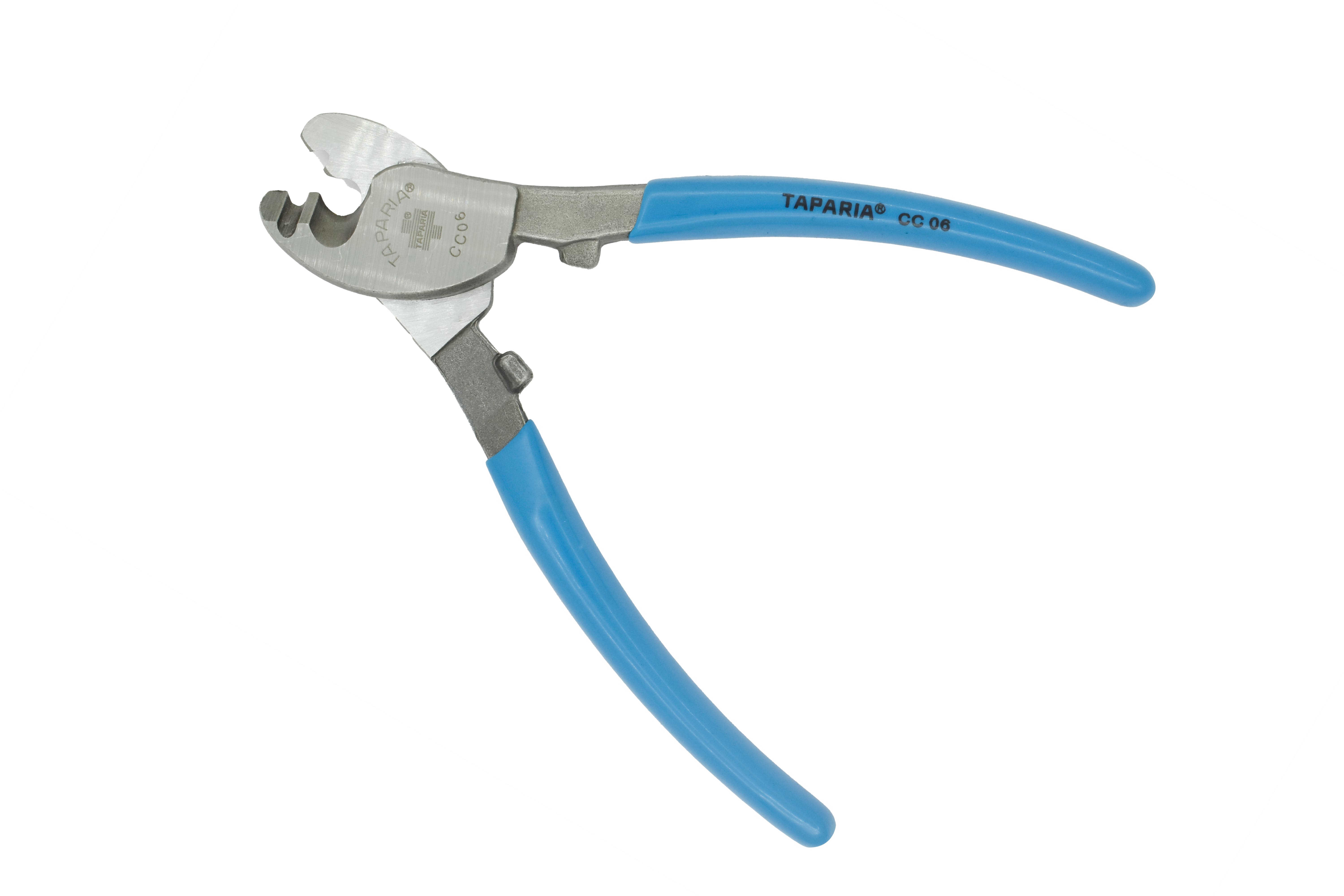

| C 06 | 160 | 20 | 26 | 10 | 9 MM | 950 |
| CC 08 | 210 | 22 | 29 | 13 | 10 MM | 1500 |
| CC 10 | 240 | 30 | 34 | 15 | 15MM | 1850 |
| CC 18 | 460 | 32 | 58 | 16 | 22 MM | 3300 |
| CC 24 | 600 | 35 | 64 | 17 | 26 MM | 2079 |

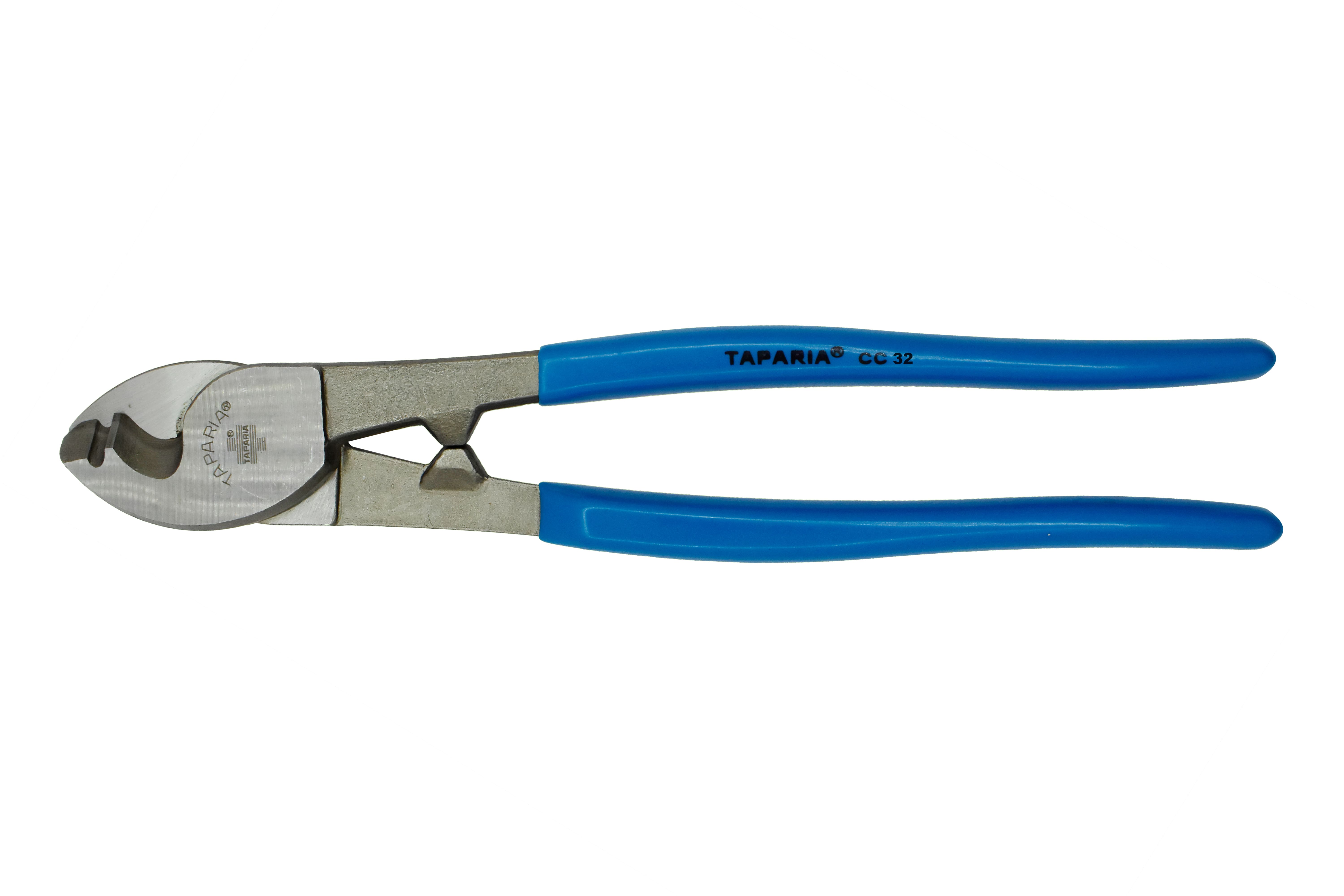

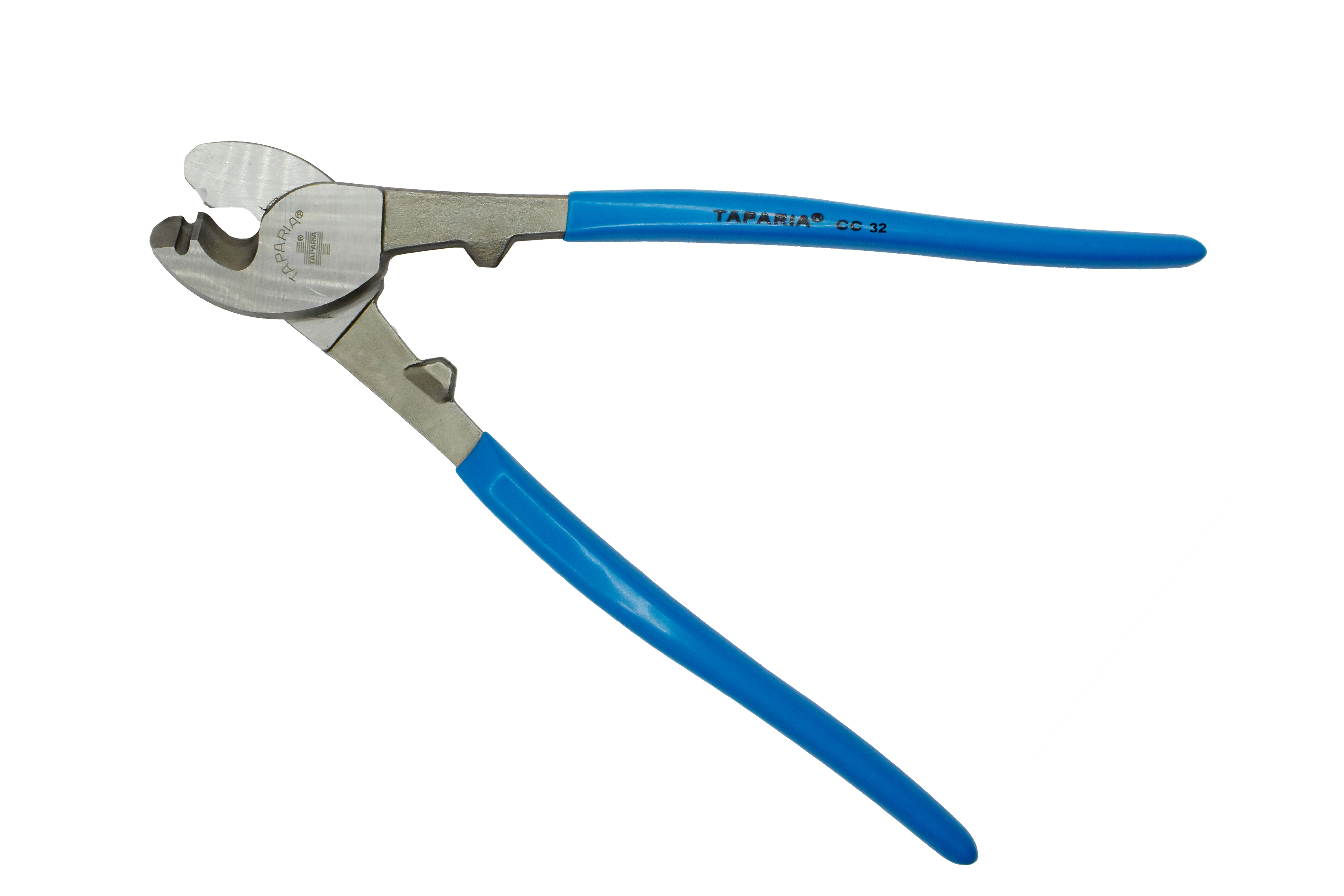

| CC 32 | 800 | 55 | 72 | 20 | 40 MM | 4910 |
Drop forged from high grade carbon steel
Differential Hardened cutting edges gives long lasting cutting performance.
Scientifically heat treated body and Rivet enables toughness and reduces chances of Play after prolong use.
The cutting edges are sharp and precision machined to appropriate angle to cut the cables with ease.
Dip coated sleeves provide cushioning grip.

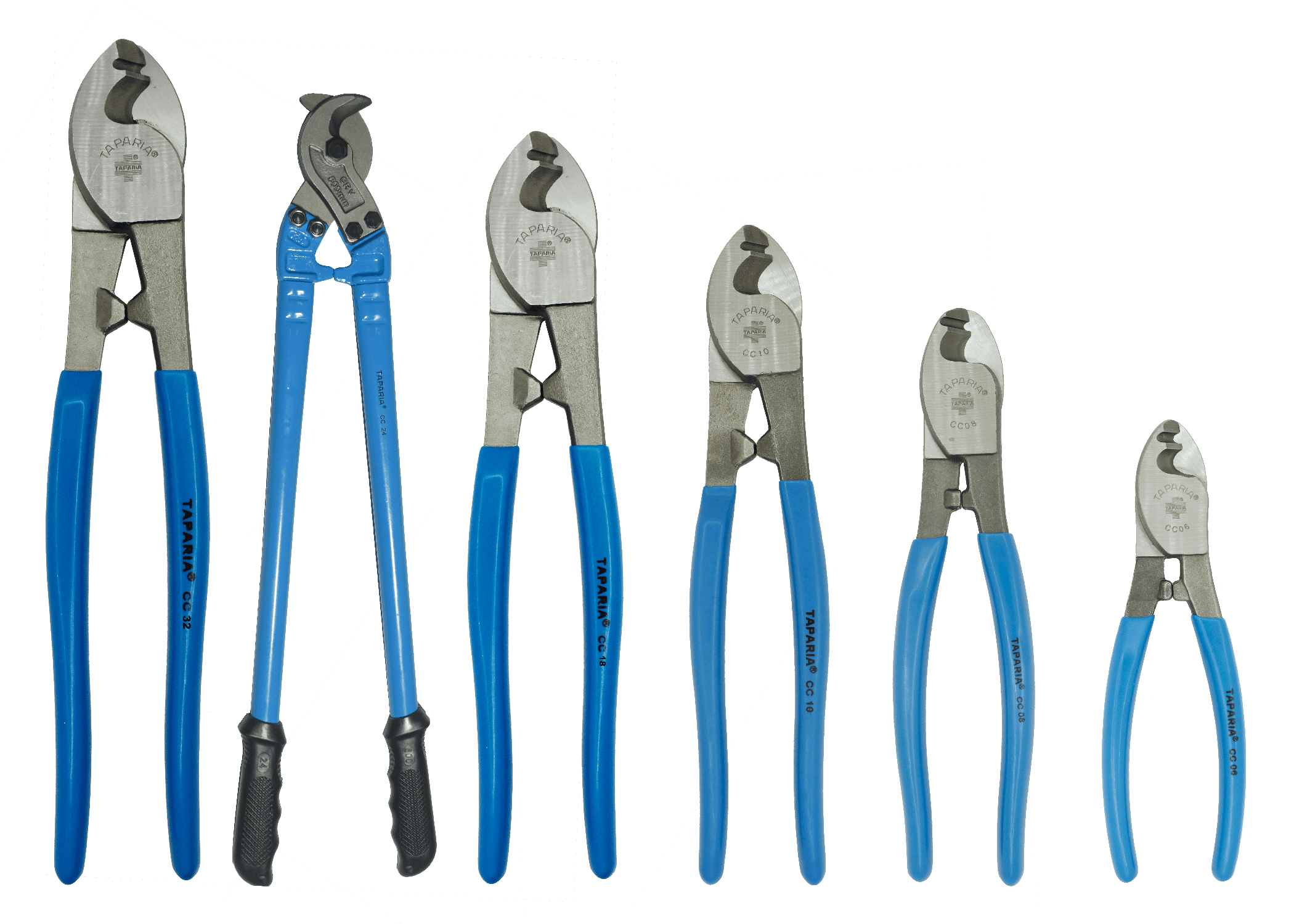

Available in 150mm, 200mm & 250mm, 450mm, 600mm & 800mm sizes.
| Product No | Size | Max Cutting Capacity [O.D. with PVC Sleeve] |
| CC 06 | 160 mm | 9.00 mm |
| CC 08 | 210 mm | 10.00 mm |
| CC 10 | 240 mm | 15.00 mm |
| CCS 10 | 240 mm | 15.00 mm |
| CC 18 | 460 mm | 24.00 mm |
| CC 24 | 600 mm | 27.00 mm |
| CC 32 | 800 mm | 40.00 mm |
