| PRODUCT NO. | A | B | ØD | Ød | WEIGHT GRAMS |
| 1884 | 100 | 26.5 | 7 | 3 | 30 |
| 1984 | 100 | 33 | 8.5 | 4 | 50 |
| 1985 | 125 | 40 | 10.5 | 5 | 85 |
| 1986 | 150 | 50 | 10.5 | 5 | 100 |
| 1004 | 100 | 38 | 8.5 | 3 | 30 |
| Product No | Size | Point dia in mm |
| 1884 | 100 | 4 |
| 1984 | 100 | 4 |
| 1985 | 125 | 5 |
| 1986 | 150 | 5 |
| 1004 | 100 | flat |

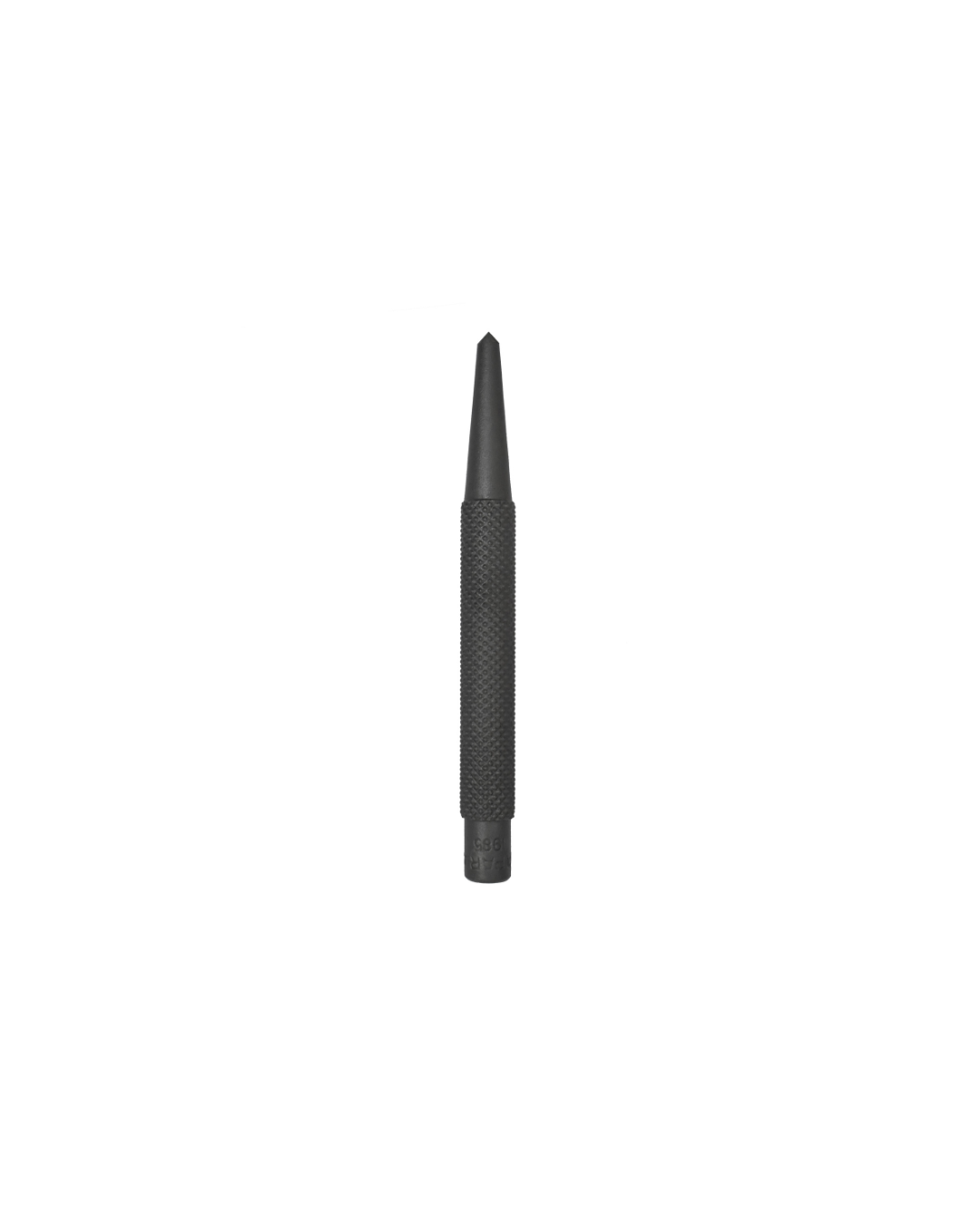

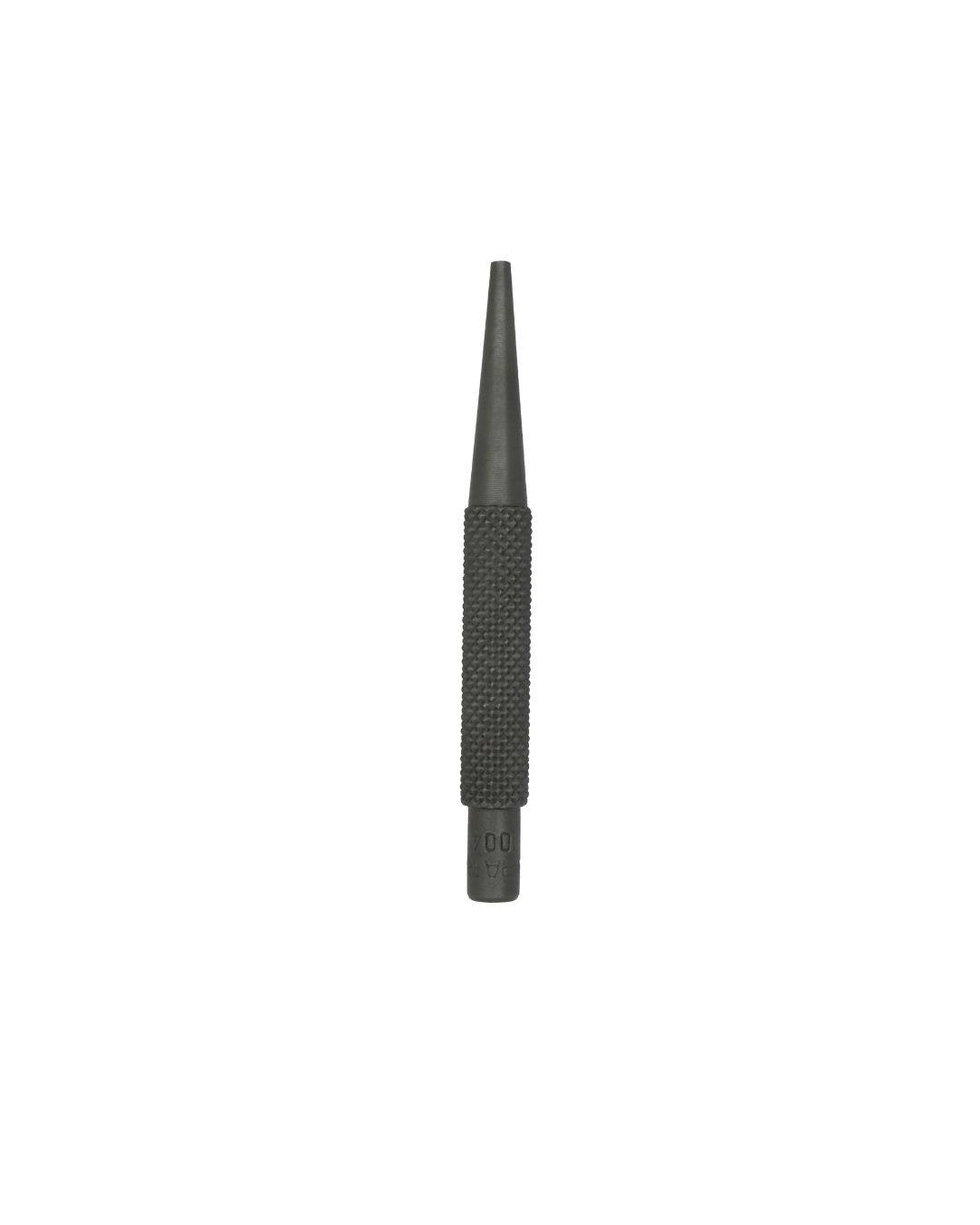

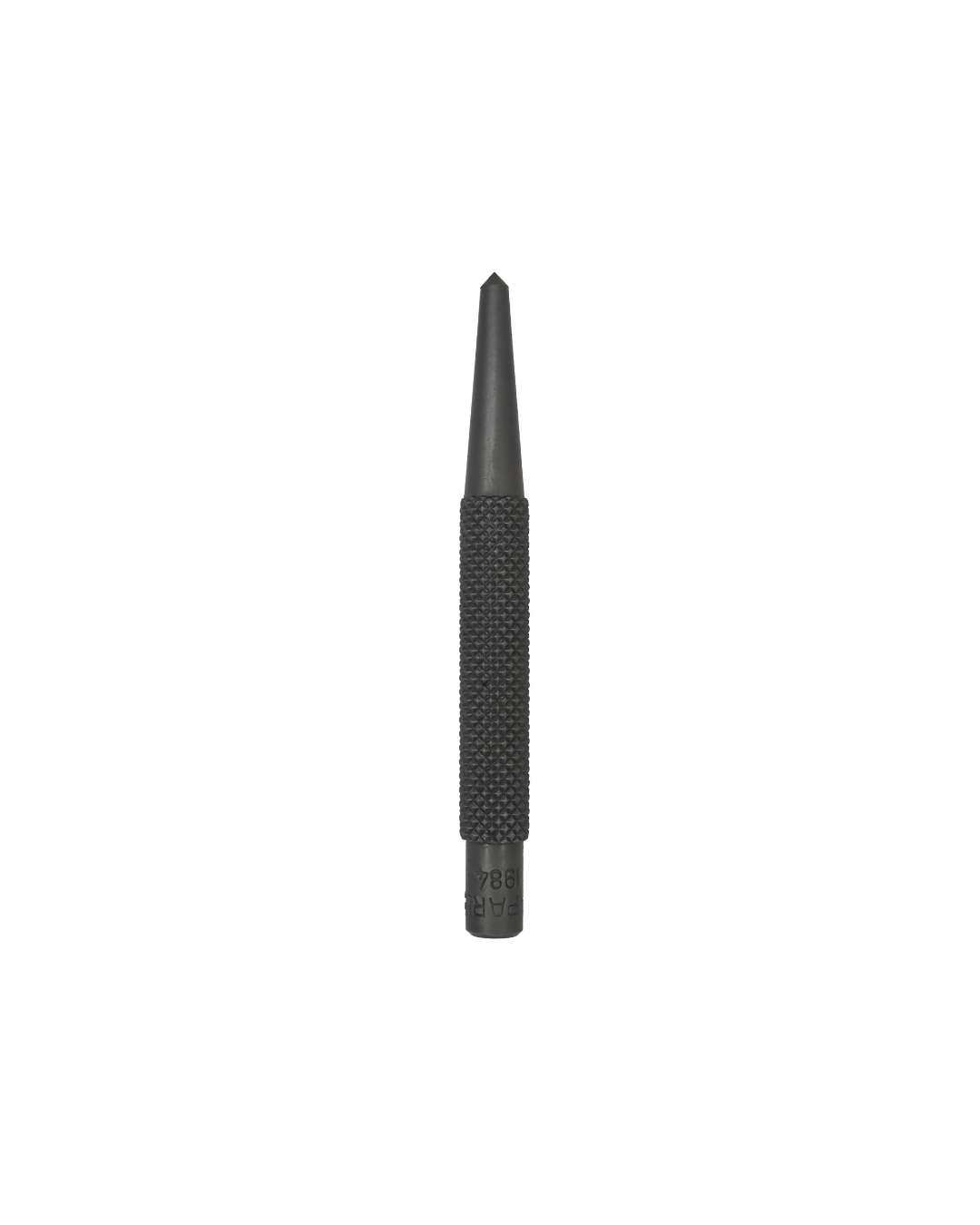

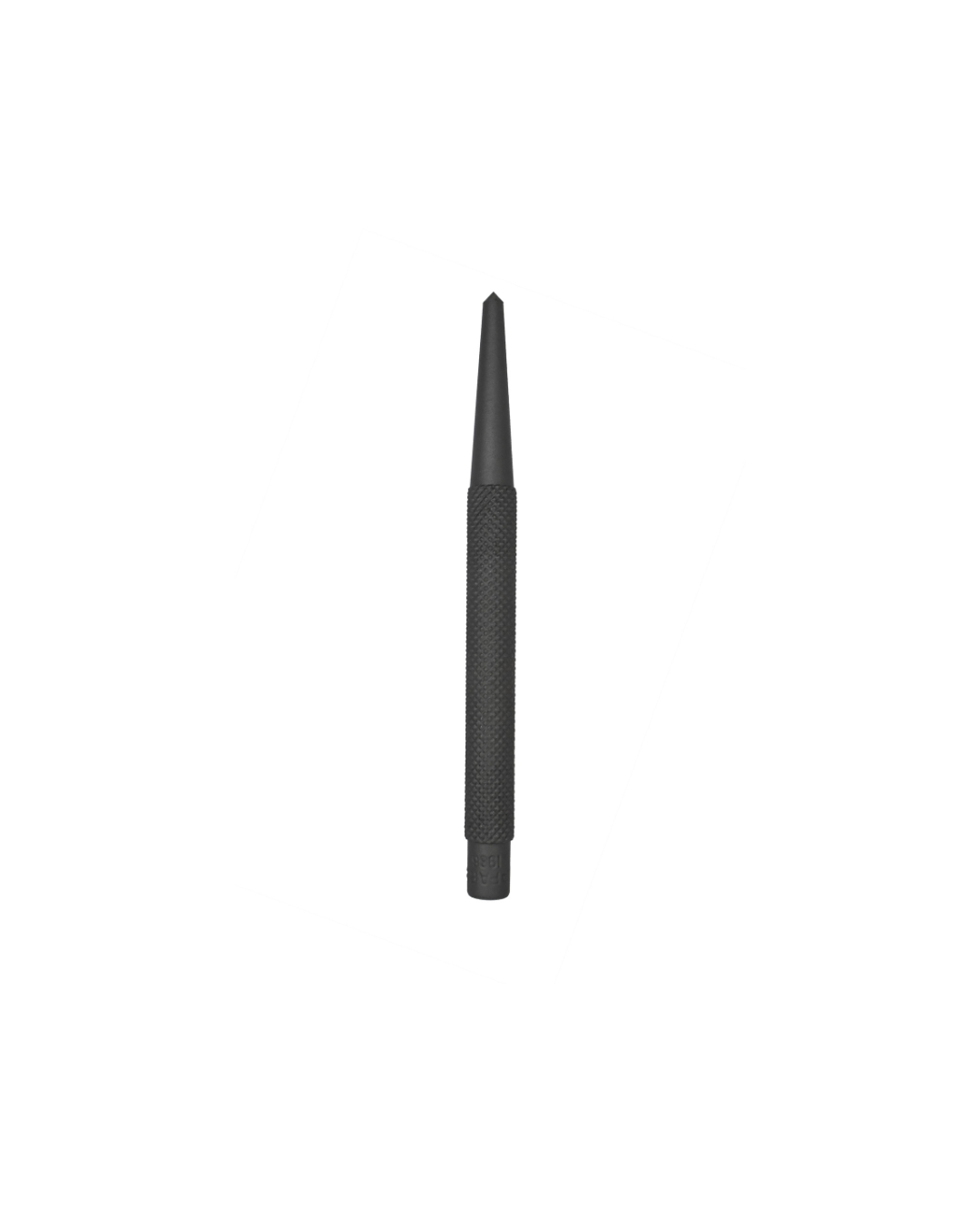

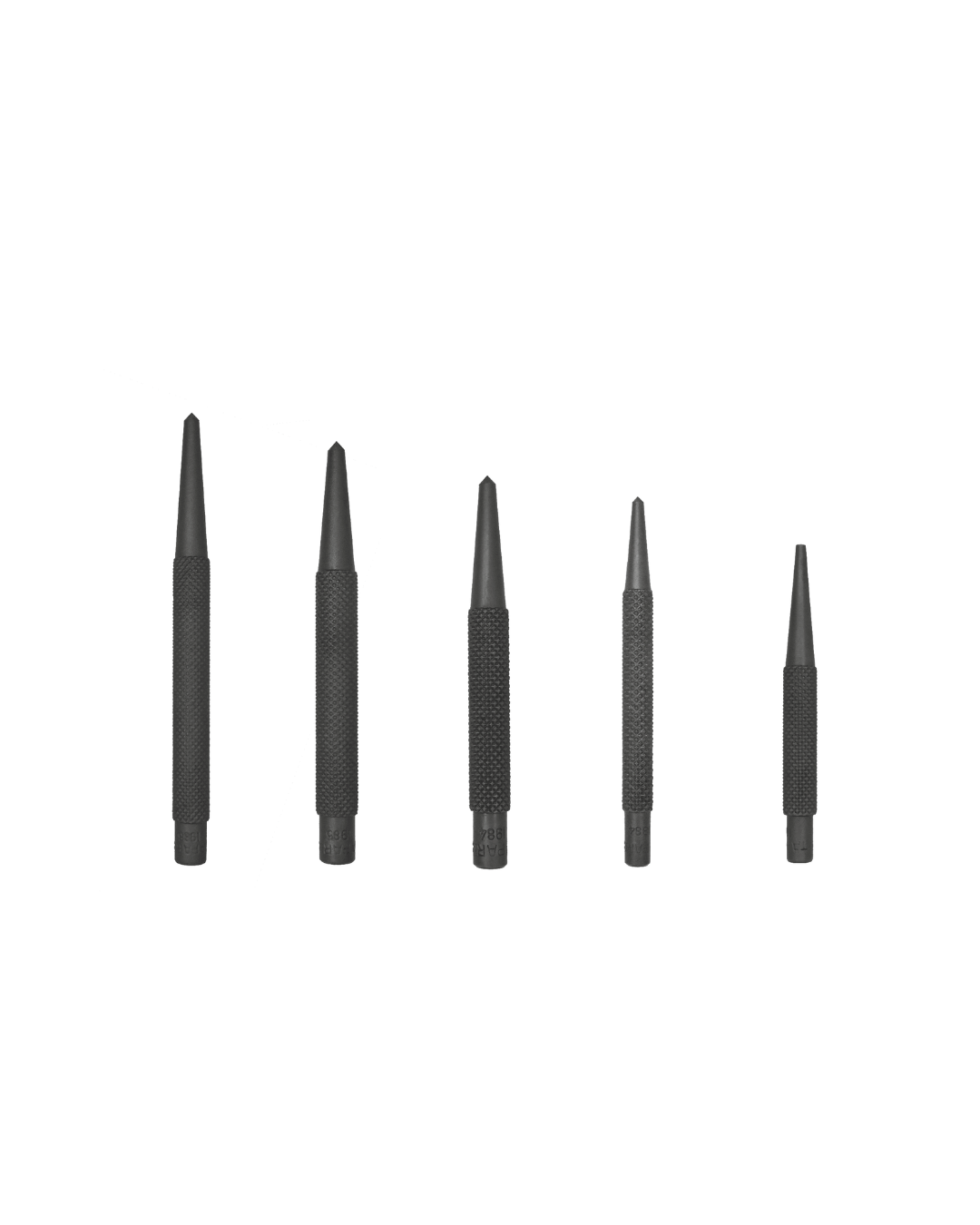

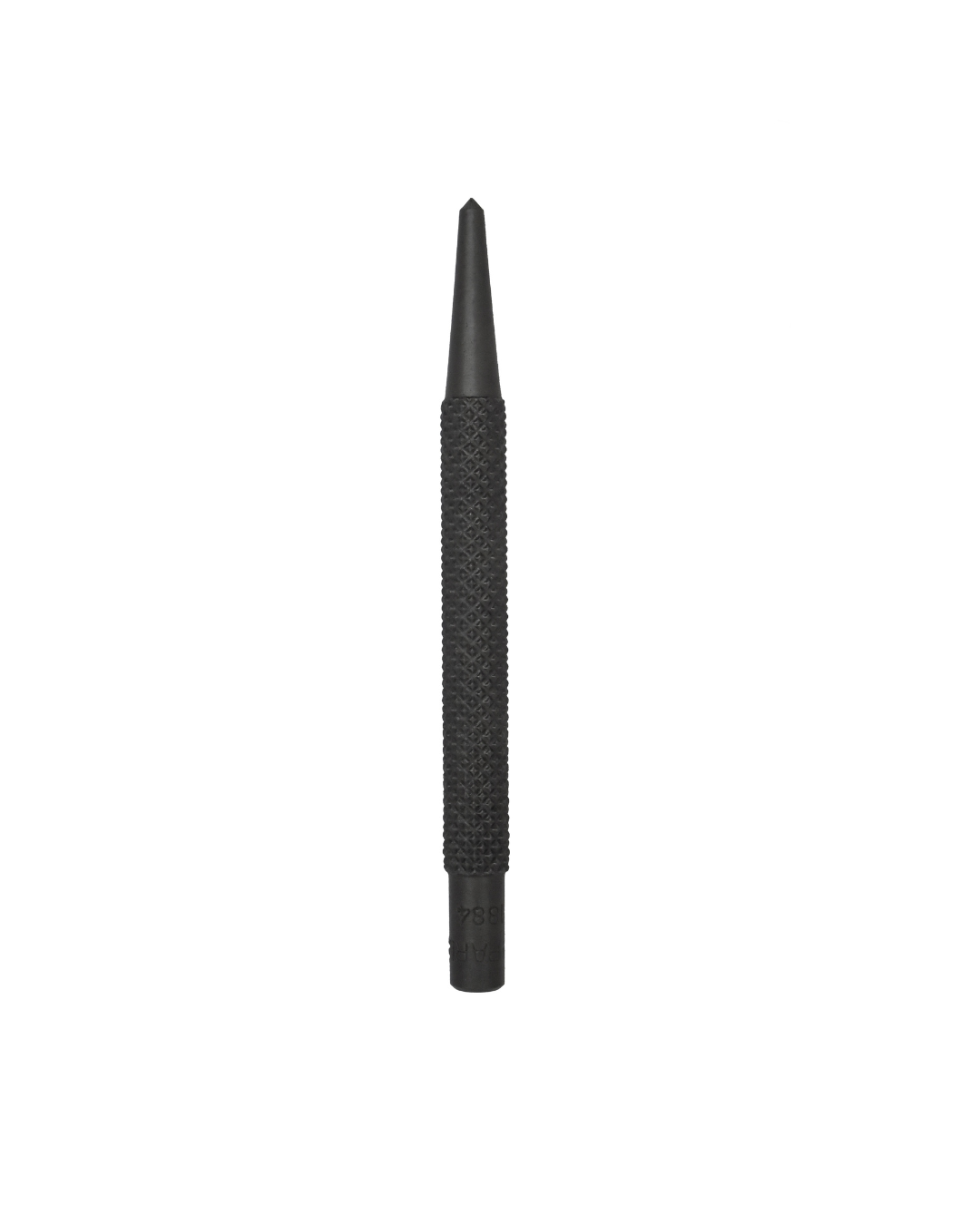

TAPARIA Center Punches generally Conform to I.S. 7177-1974
