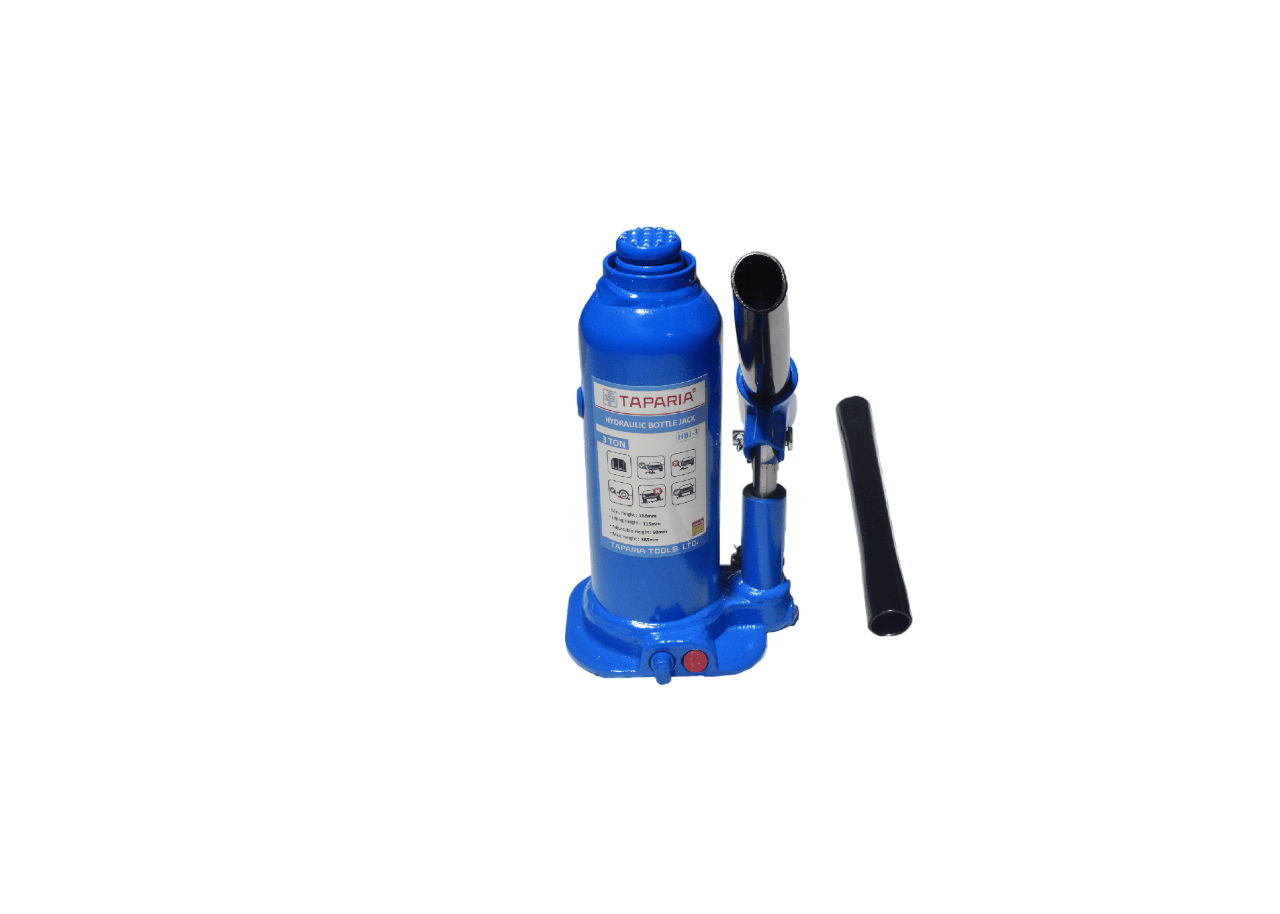

Hydraulic Bottle Jack

Hydraulic Bottle Jack

DOWNLOAD CATALOGUE

Product Overview

Hydraulic Bottle Jack

PRODUCT NO.	FIGURE NO.	CAPACITY IN TONNES	L X W BASE SIZE	H TOTAL HEIGHT	H1 HYDRAULIC LIFT	H2 CLOSED HEIGHT	S SCREW EXTENSION	ØD1 RAM DIA	ØD2 RAM DIA	WEIGHT (KG)
HBJ 2	1	2	82X5.5	338	112	178	48	22	48	2.08
HBJ 3		3	94X5	363	115	188	60	28	60	2.82
HBJ 5		5	100X6	402	125	207	70	32	70	3.72
HBJ 8		8	110X6	447	145	222	80	35	75	4.70
HBJ 10		10	110X6	447	145	222	80	35	75	4.70
HBJ 12		12	120X6	457	150	227	80	43	85	6.00
HBJ 16		16	125X7	457	150	227	80	48	96	6.97
HBJ 20		20	135X7.5	445	150	235	60	53	110	8.78

PROD NO	CAPACITY IN TONNES	L x W BASE SIZE	H TOTAL HEIGHT	H1 HYDRAULIC LIFT	H2 CLOSED HEIGHT	ØD1 RAM DIA	ØD2 BODY DIA	WEIGHT (KG)
HBJ 32	32	185x26	420	160	260	69	140	17.8
HBJ 50	50	207x24	450	170	280	85	155	25.8

Special Features

Salient Features

Bottle jack is made from high grade steel.

Bottle jack is a vertical hydraulic jack.

Compact and rigid design which occupies less space and easy to handle.

Superior hydraulic fluid is used.

Sturdy steel base structure to avoid fluid leakages

it works in all weather conditions.

Bottle jacks are powder coated to prevent corrosion

Vide application in automobile garages / work stations, cars, trucks and industries etc.

Available in following capacity,

Product No	Capacity in Ton
HBJ 2	2
HBJ 3	3
HBJ 5	5
HBJ 8	8
HBJ 10	10
HBJ 12	12
HBJ 16	16
HBJ 20	20
HBJ 32	32
HBJ 50	50
