| PRODUCT NO | FIGURE NO | A/F | A/C | O/A | O/B | C | L | WEIGHT GRAMS |
| E10 | 1 | 7.3 | 9.5 | 13.4 | 21.8 | 17.2 | 38.2 | 51 |
| E11 | 1 | 7.3 | 10.2 | 14.0 | 21.8 | 17.2 | 38.2 | 51 |
| E12 | 1 | 8.3 | 11.2 | 15.2 | 21.8 | 17.2 | 38.2 | 51 |
| E14 | 1 | 9.5 | 13.2 | 16.4 | 21.8 | 17.2 | 38.2 | 51 |
| E16 | 1 | 11.0 | 14.8 | 19.0 | 21.8 | 17.2 | 38.2 | 57 |
| E18 | 2 | 12.4 | 16.7 | - | 21.8- | - | 38.2 | 63 |
| E20 | 2 | 13.7 | 18.6 | - | 23.7 | - | 38.2 | 79 |
| E22 | 2 | 15.0 | 20.2 | - | 25.7 | - | 38.2 | 97 |
| E24 | 2 | 16.3 | 22.1 | - | 27.6 | - | 38.2 | 115 |

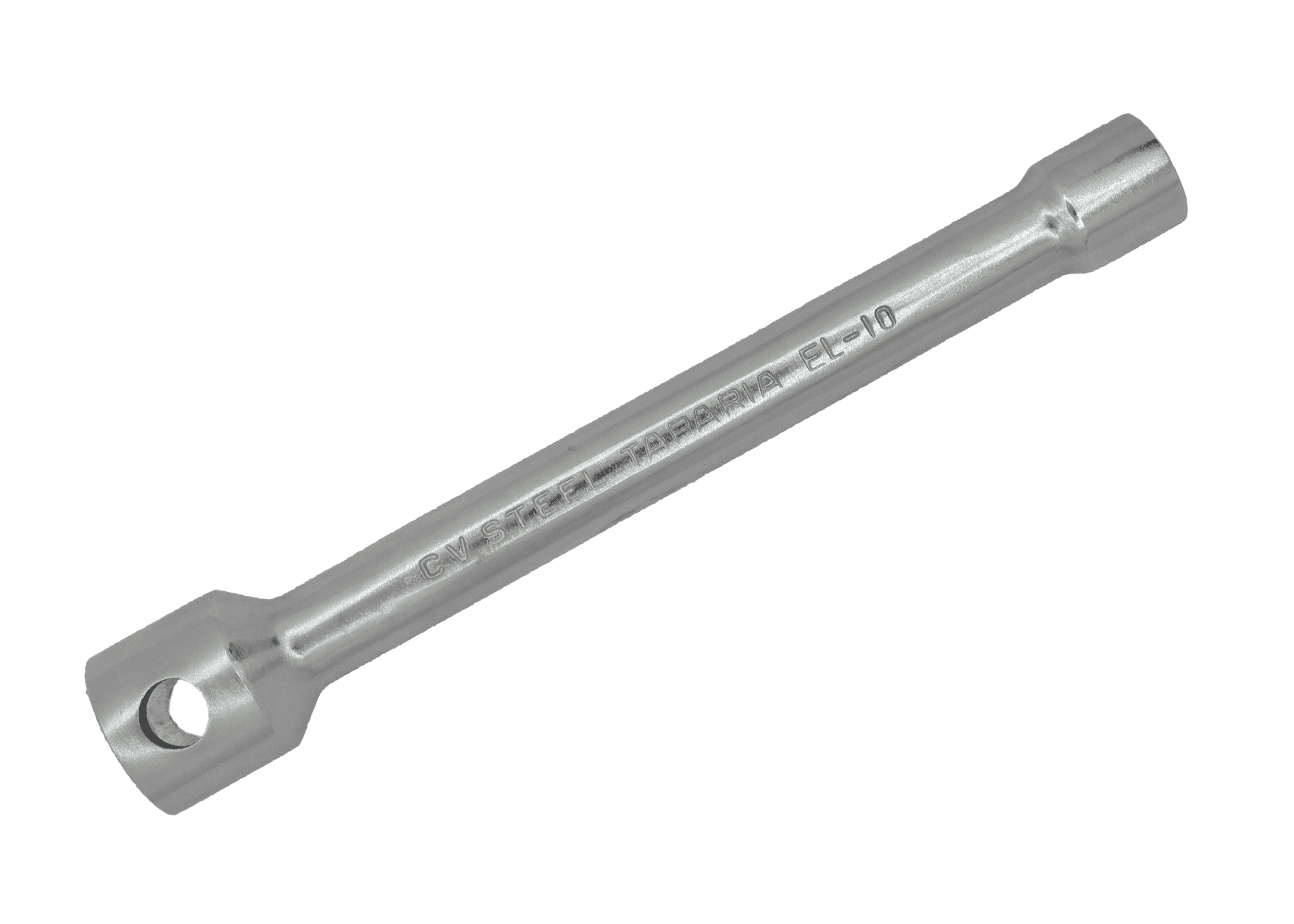

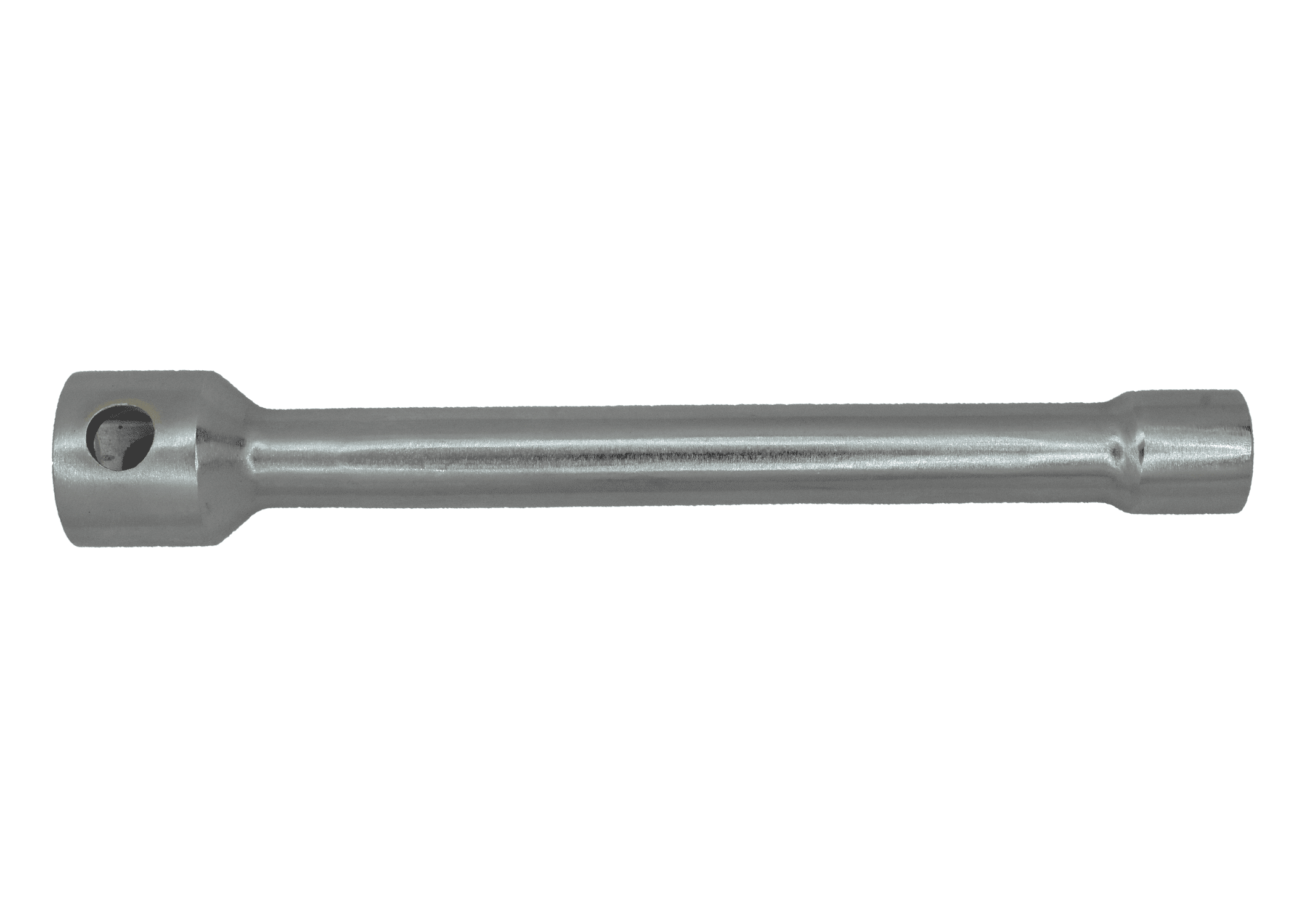

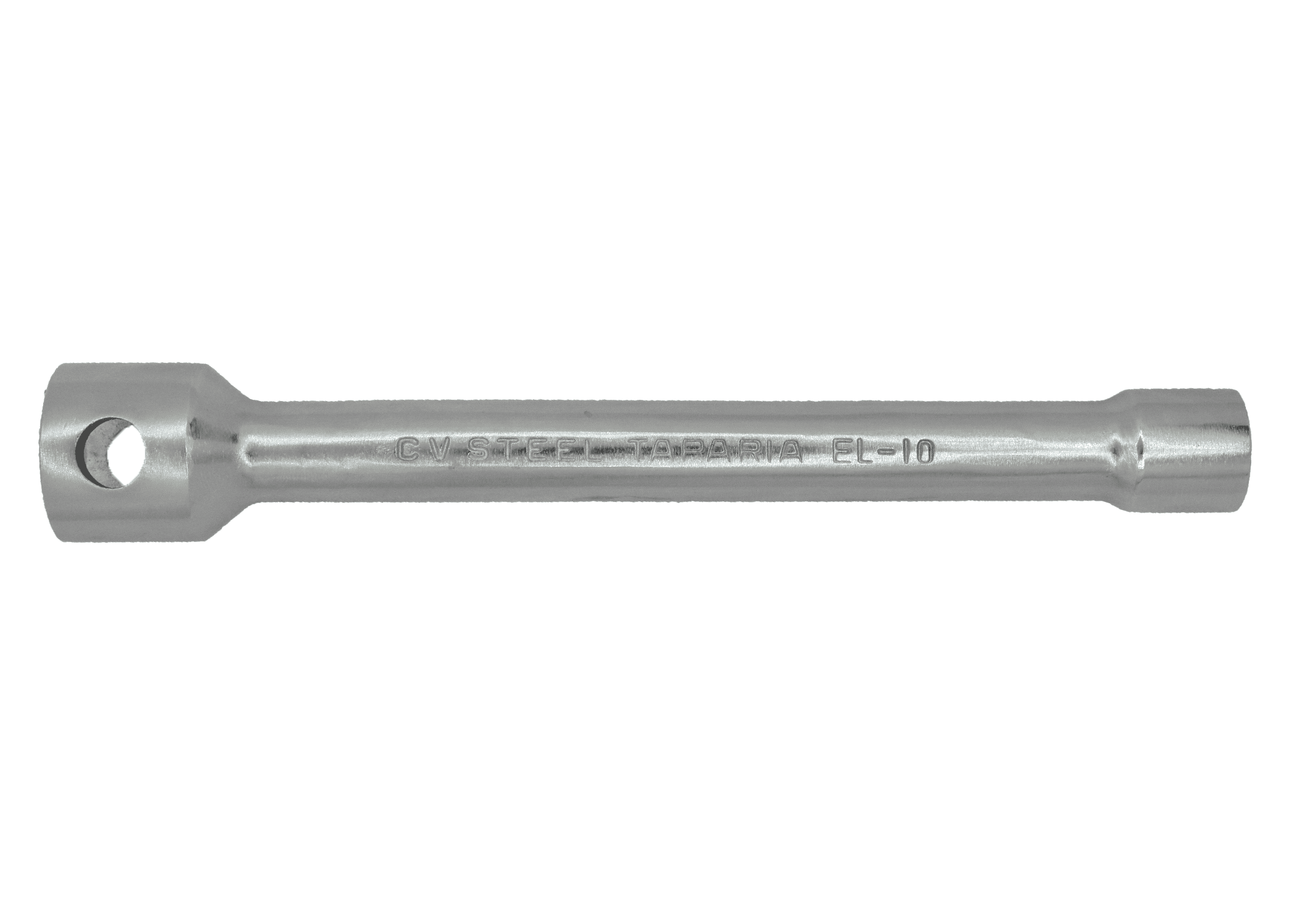

1/2 - Extra Long Socket
Sockets are forged from high grade Chrome Vanadium steel & Impact sockets from Cr-Mo steel.
Socket bits are made from High grade alloy steel.
Scientifically heat treated Sockets & Bits to give maximum strength and wear resistance.
Special rubber ring in spark plug socket to prevent damage of plug.
Extra-long design of spark plug socket for easy operation without any damage to plug.
Bit is press fitted in sockets adequately.
Special flower type profile drive in E sockets.
Nickel Chrome plating & phosphate finish to enable rust prevention and good looks.
Socket bits are specially coated and oiled for rust prevention.
Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive with E socket, hexagonal / Bi-hexagonal patterns in different sizes.
| Bit Sockets are available in | available in |
| Hex | 3, 4, 5, 6, 7, 8, 10, 12, 14, 17 mm. |
| Torx | T10, T20, T25, T30, T40, T45, T50, T55, T60 & T70. |
| Philips | Tip No 1, 2 & 3. |
| Flat | 4, 5.5 & 7 mm. |
| Pozy | PZ1, PZ2 & PZ3. |
Minimum Torque Value in Kg.m for Spark plug
| A/F | Torque Value in Kg.m |
| 16 mm | 38.4 |
| 21 mm | 58 |
TAPARIA sockets generally Conform to I.S. 7381 - 1986 & 7993 - 1988.
