| PRODUCT NO | FIG NO | A/F MIN | A/F MAX | ΓA | ΓB | L | WEIGHT GRAMS | |
| C19 | 1 | 19.06 | 19.36 | 50 | 27 | 32 | 20 | 145 |
| C21 | 1 | 21.06 | 21.36 | 50 | 31 | 32 | 19 | 156 |
| C22 | 1 | 22.06 | 22.36 | 50 | 33 | 36 | 20 | 220 |
| C24 | 1 | 24.06 | 24.36 | 50 | 35 | 36 | 19.5 | 215 |
| C26 | 2 | 26.08 | 26.48 | 50 | 37 | 36 | 32 | 202 |
| C27 | 2 | 27.08 | 27.48 | 52 | 37 | 36 | 32 | 230 |
| C28 | 2 | 28.08 | 28.48 | 52 | 39.5 | 36 | 32.5 | 245 |
| C29 | 2 | 29.08 | 29.48 | 52 | 40 | 36 | 32 | 235 |
| C1-1/8S | - | - | - | - | - | - | - | - |
| C30 | 2 | 30.08 | 30.48 | 52 | 42 | 38 | 30 | 260 |
| C32 | 2 | 32.08 | 32.48 | 54 | 44 | 38 | 33.5 | 310 |
| C33 | 2 | 33.08 | 33.48 | 54 | 46 | 38 | 34 | 340 |
| C34 | 2 | 34.10 | 34.60 | 56 | 46 | 38 | 35.5 | 320 |
| C35 | 2 | 35.10 | 35.60 | 56 | 48 | 42 | 33 | 360 |
| C36 | 2 | 36.10 | 36.60 | 57 | 50 | 42 | 35.5 | 410 |
| C38 | 2 | 38.10 | 38.60 | 58 | 52 | 44 | 36.5 | 480 |
| C41 | 2 | 41.10 | 41.60 | 63 | 56 | 44 | 40.5 | 565 |
| C42 | 2 | 42.10 | 42.60 | 63 | 57.5 | 44 | 40.5 | 534 |
| C46 | 2 | 46.10 | 46.60 | 68 | 67 | 44 | 42.5 | 675 |
| C50 | 2 | 50.10 | 50.60 | 72 | 68 | 44 | 41 | 784 |
| C55 | 2 | 55.12 | 55.72 | 75 | 74.5 | 48 | 46.5 | 952 |
| C60 | 2 | 60.12 | 60.72 | 77 | 80 | 48 | 48.5 | 1125 |
| C65 | 2 | 65.12 | 65.72 | 85 | 87 | 60 | 57.5 | 1602 |
| C70 | 2 | 70.12 | 70.72 | 85 | 91.5 | 60 | 57.5 | 1624 |

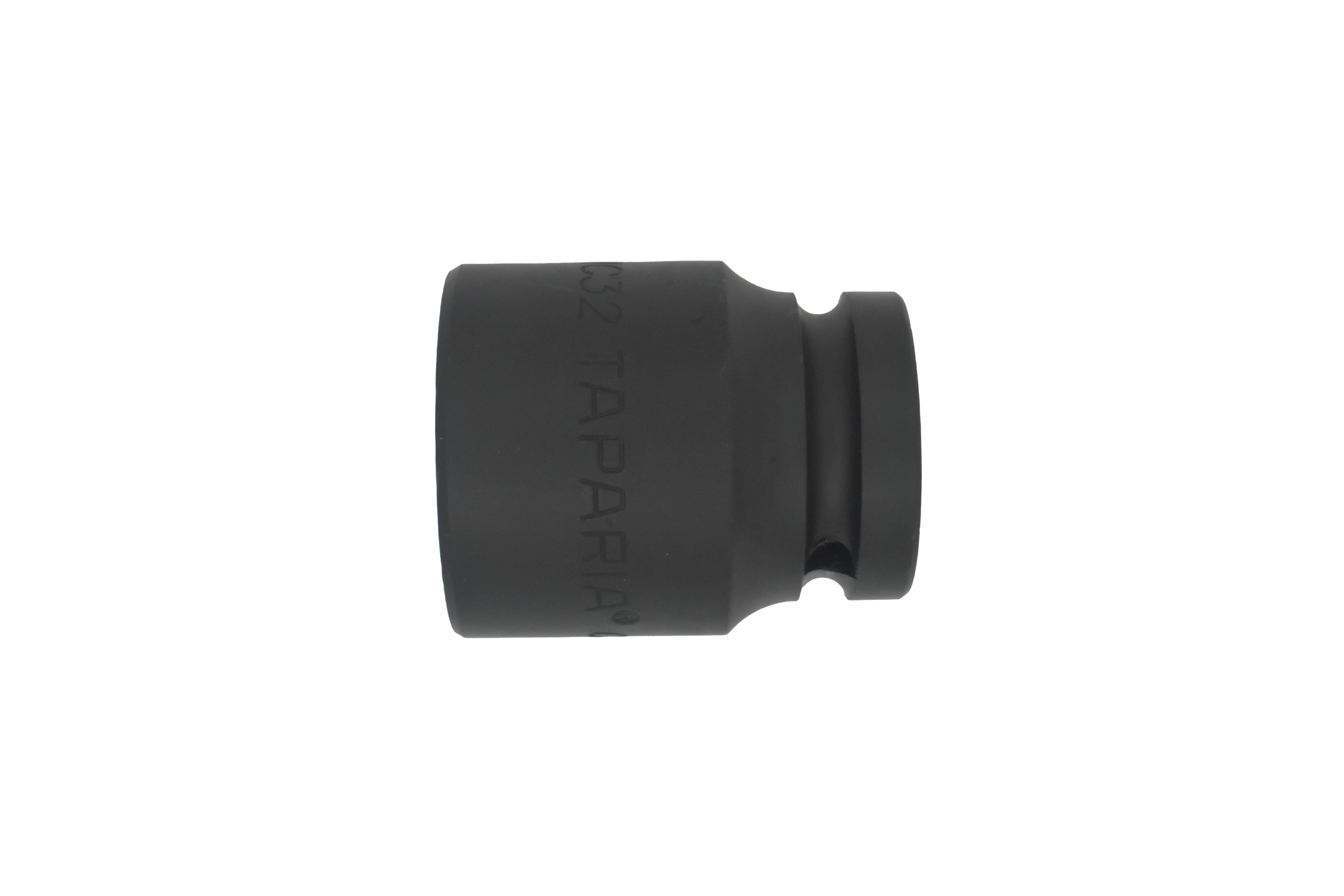

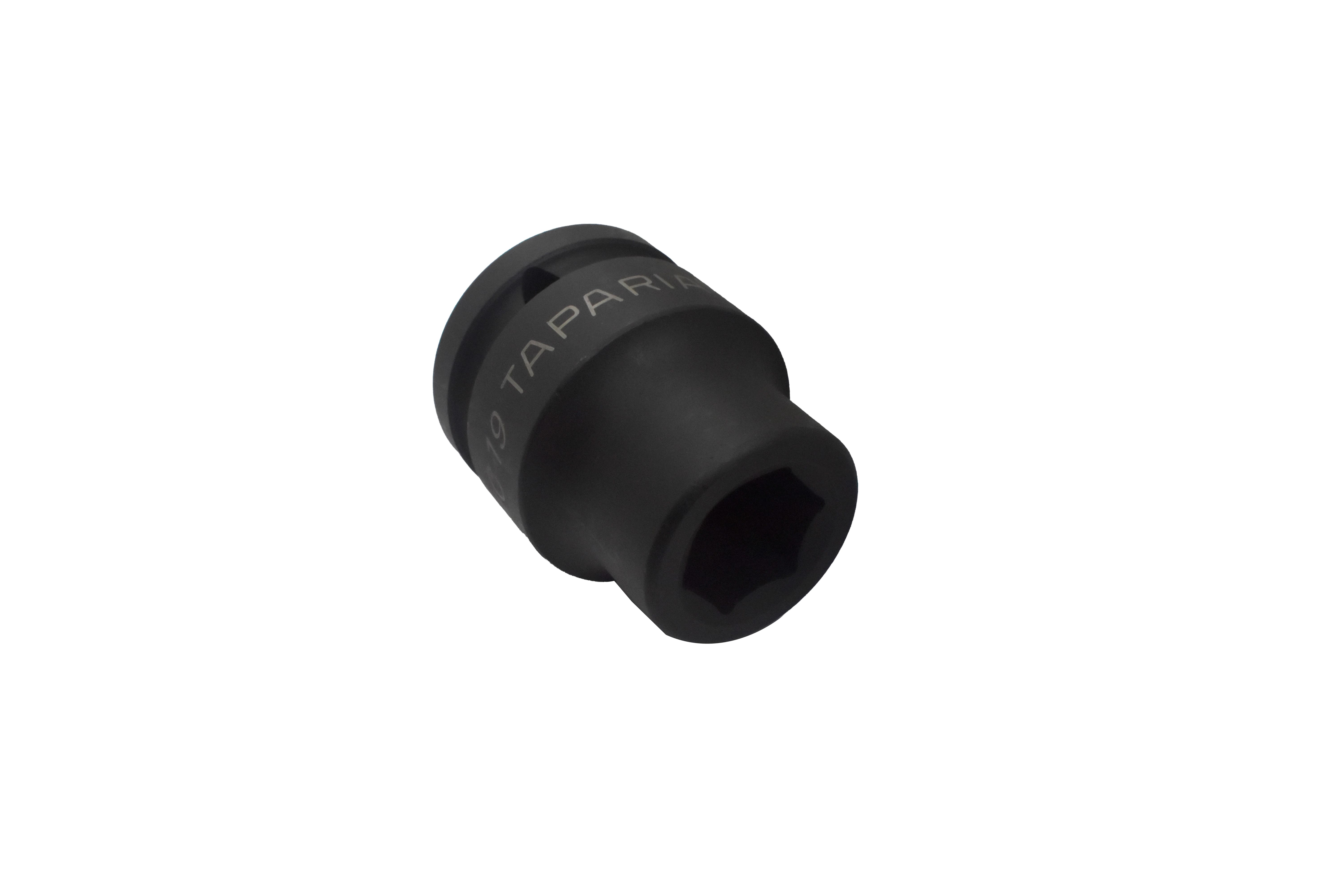

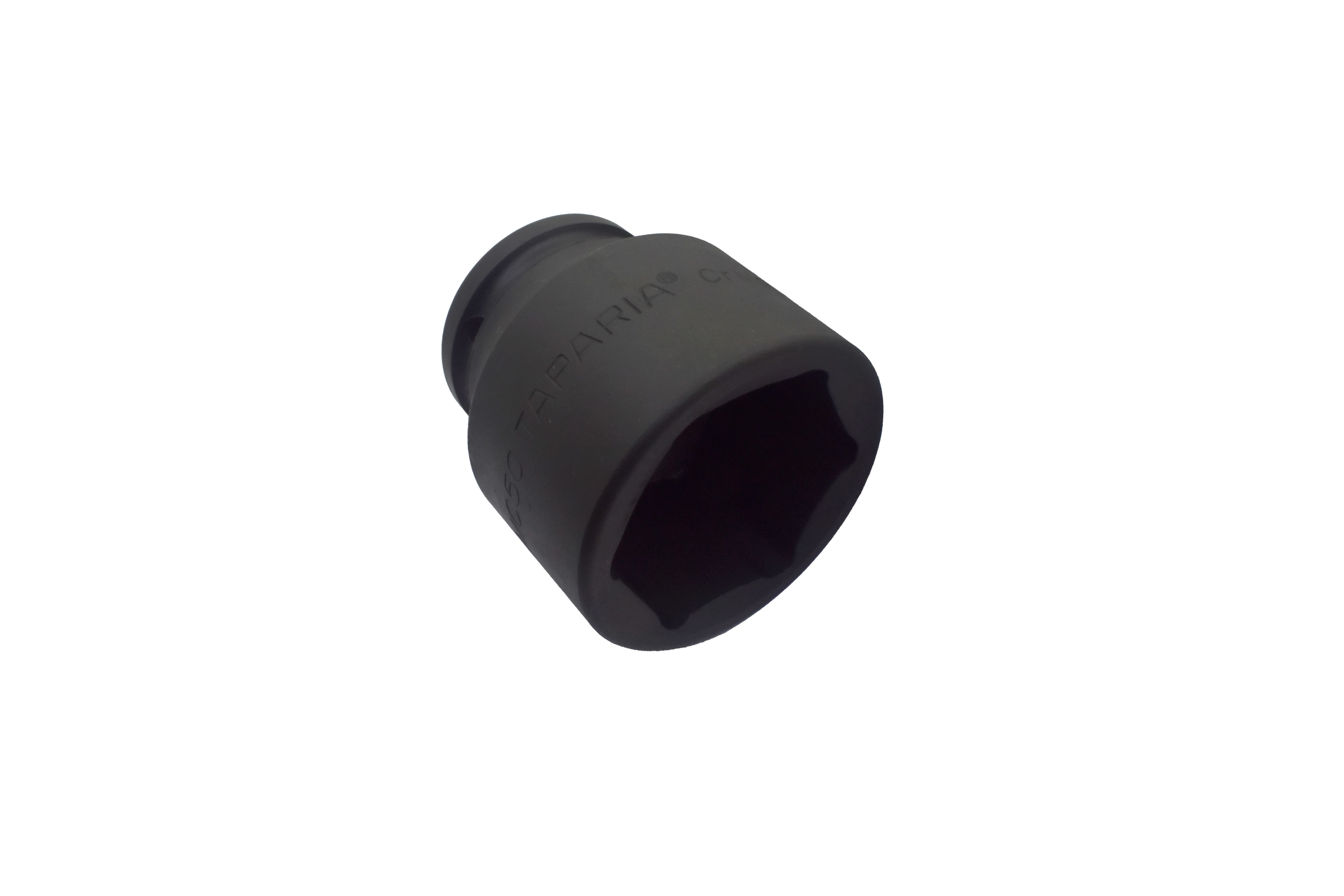

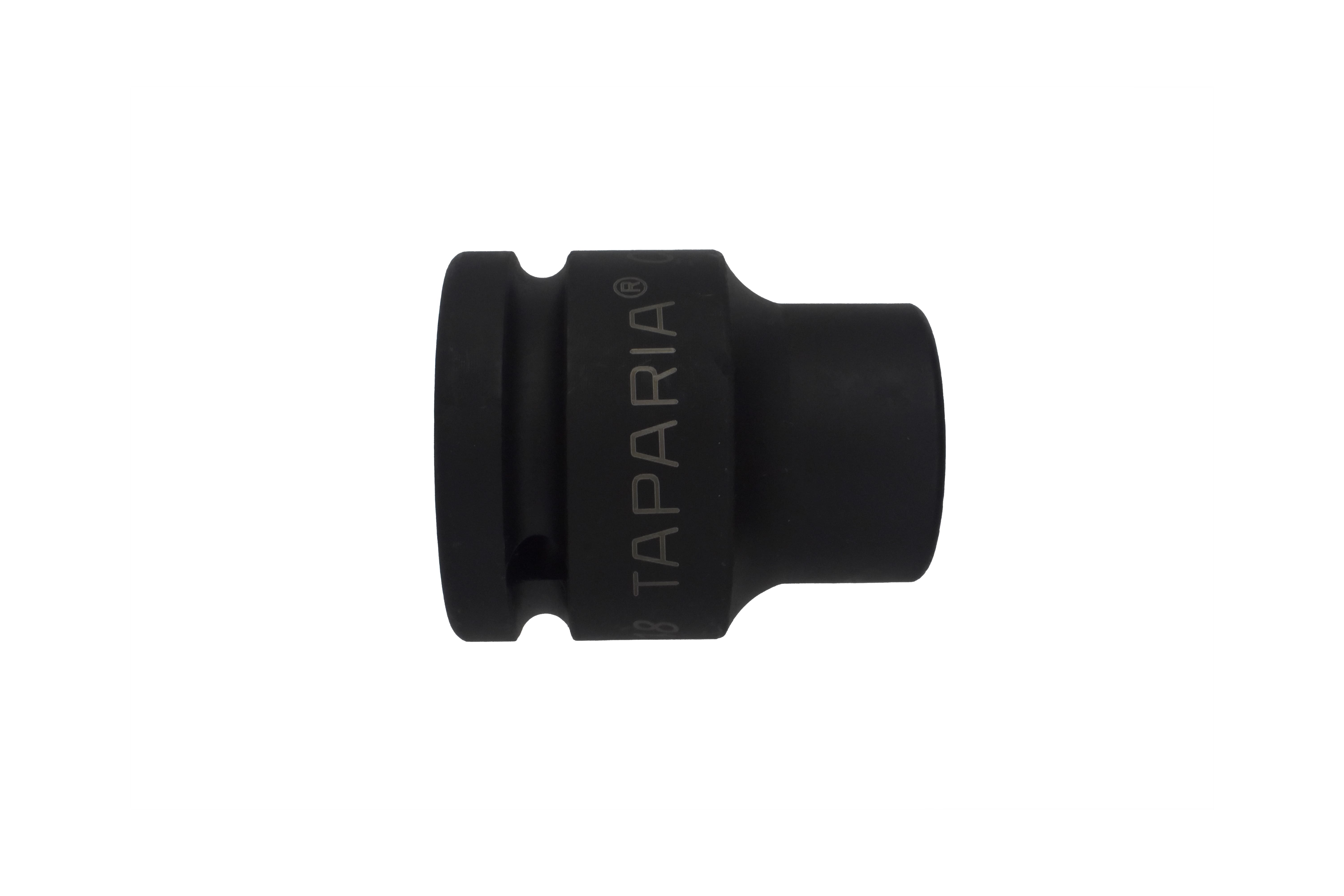

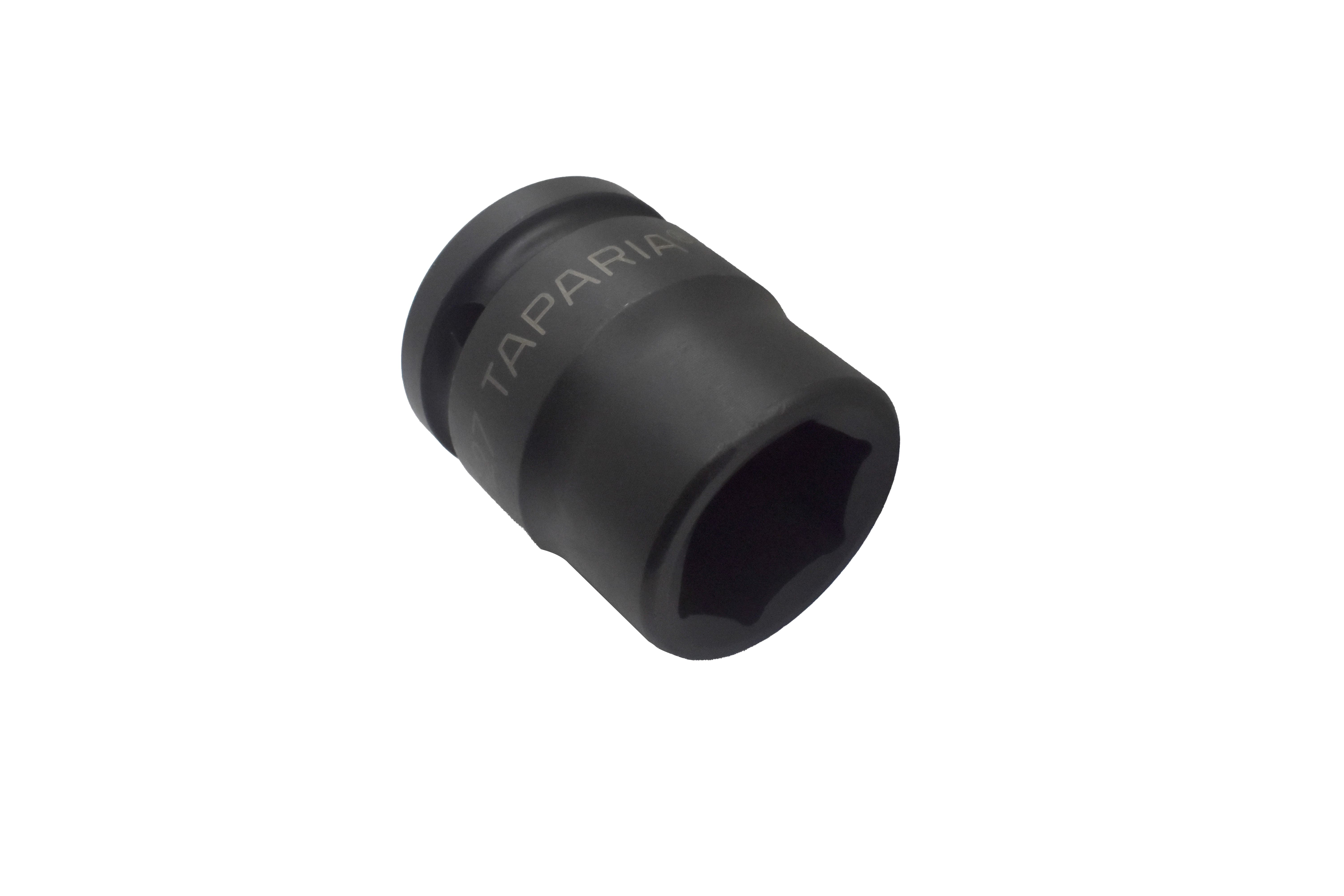

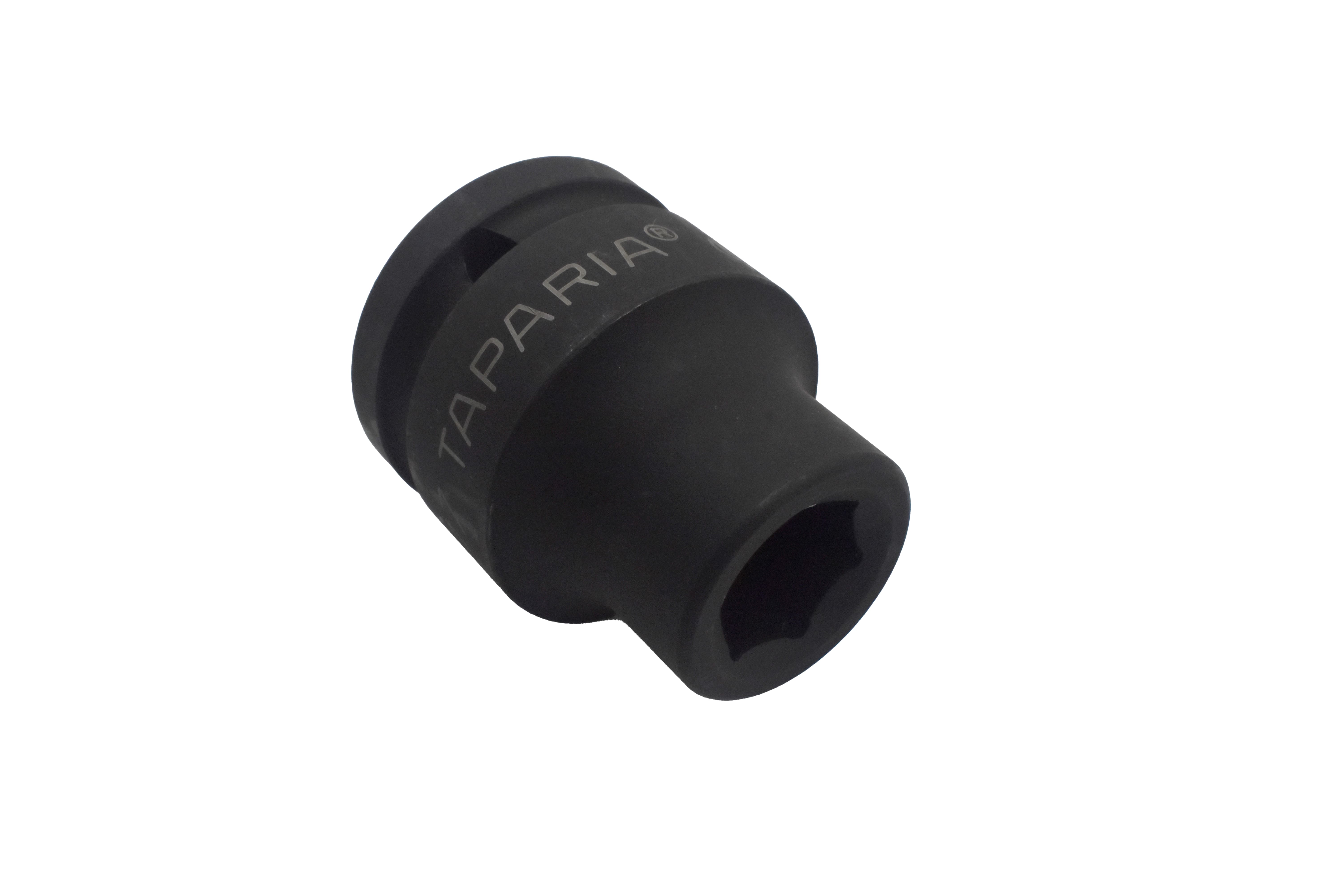

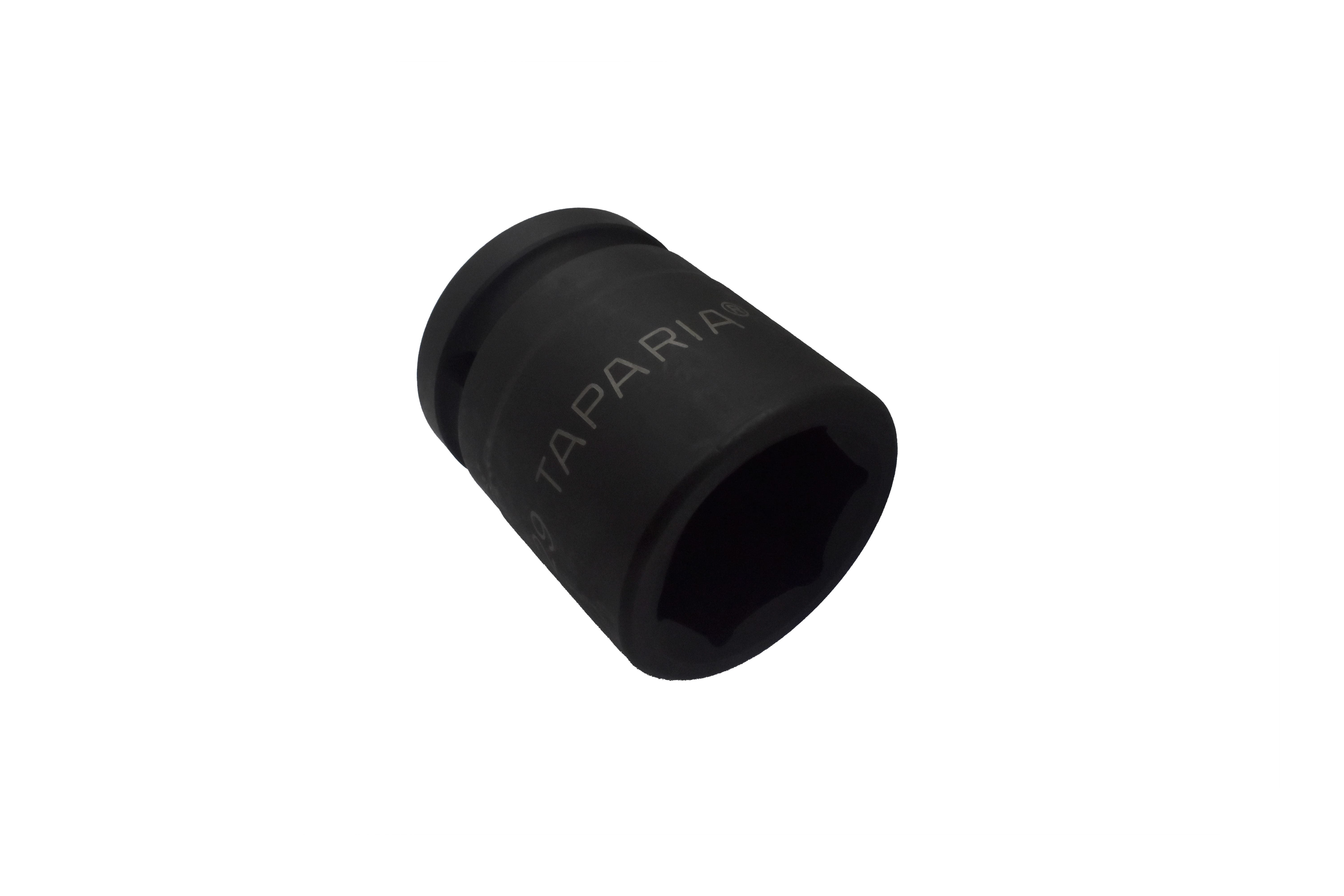

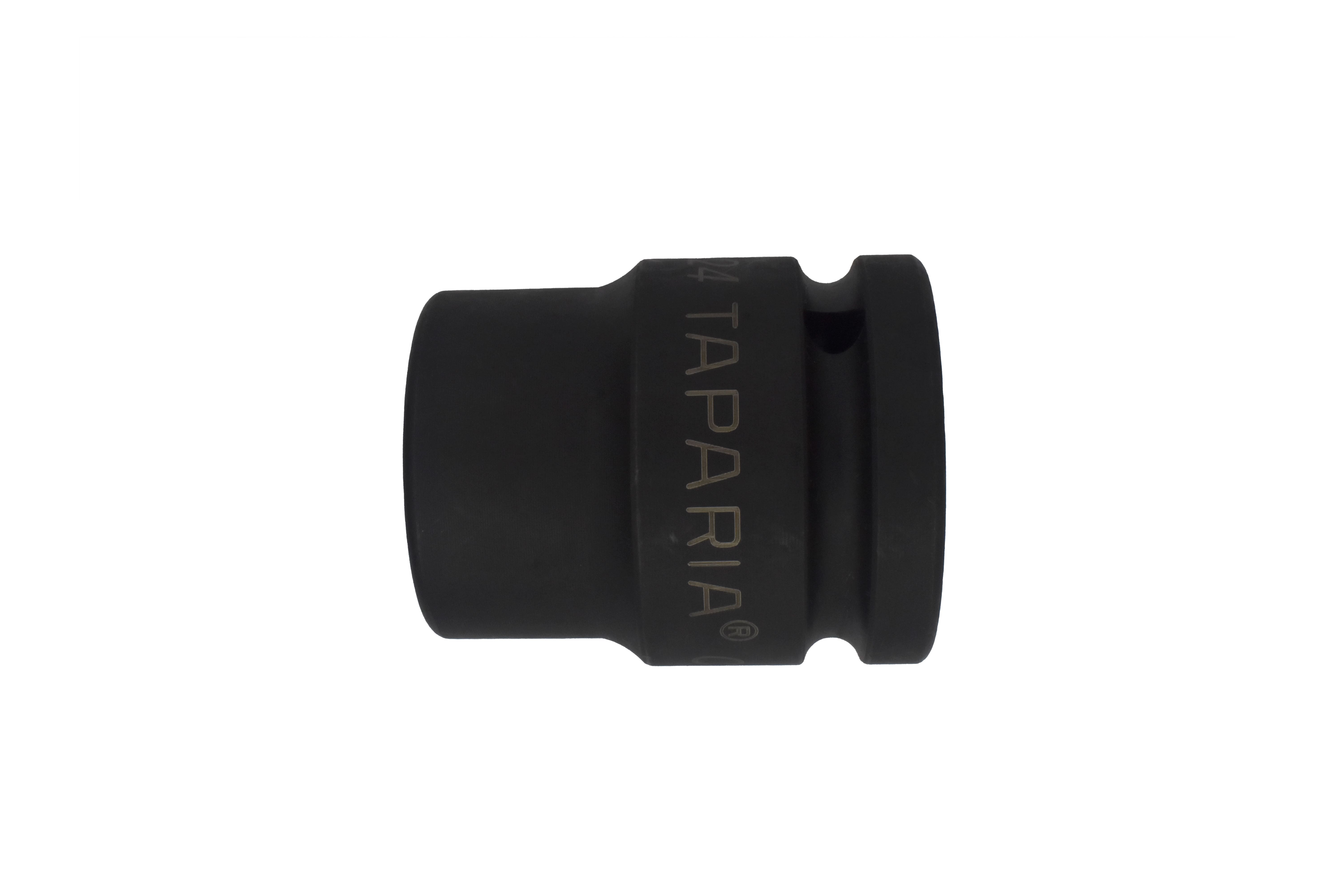

3/4 Drive - Regular Socket

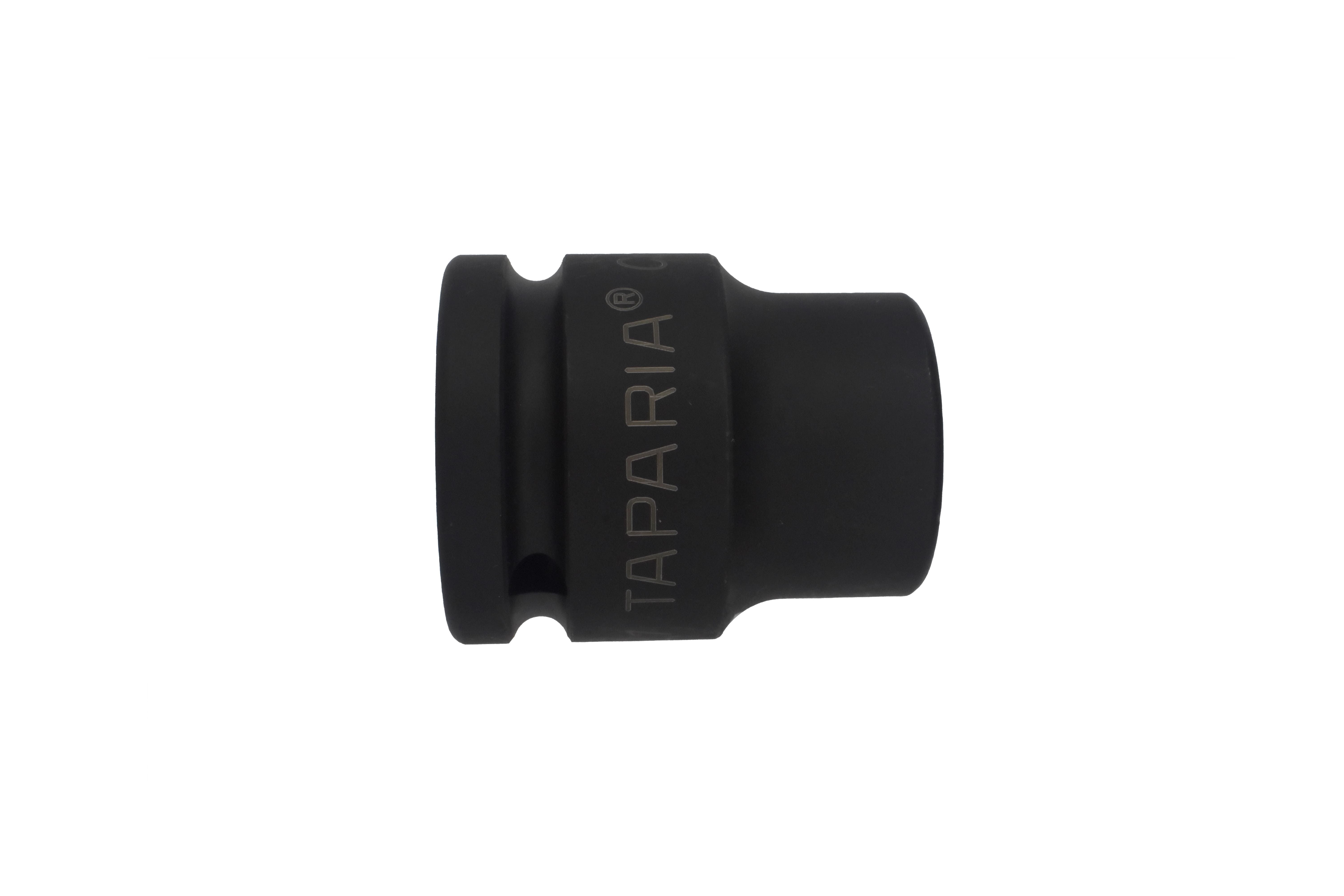

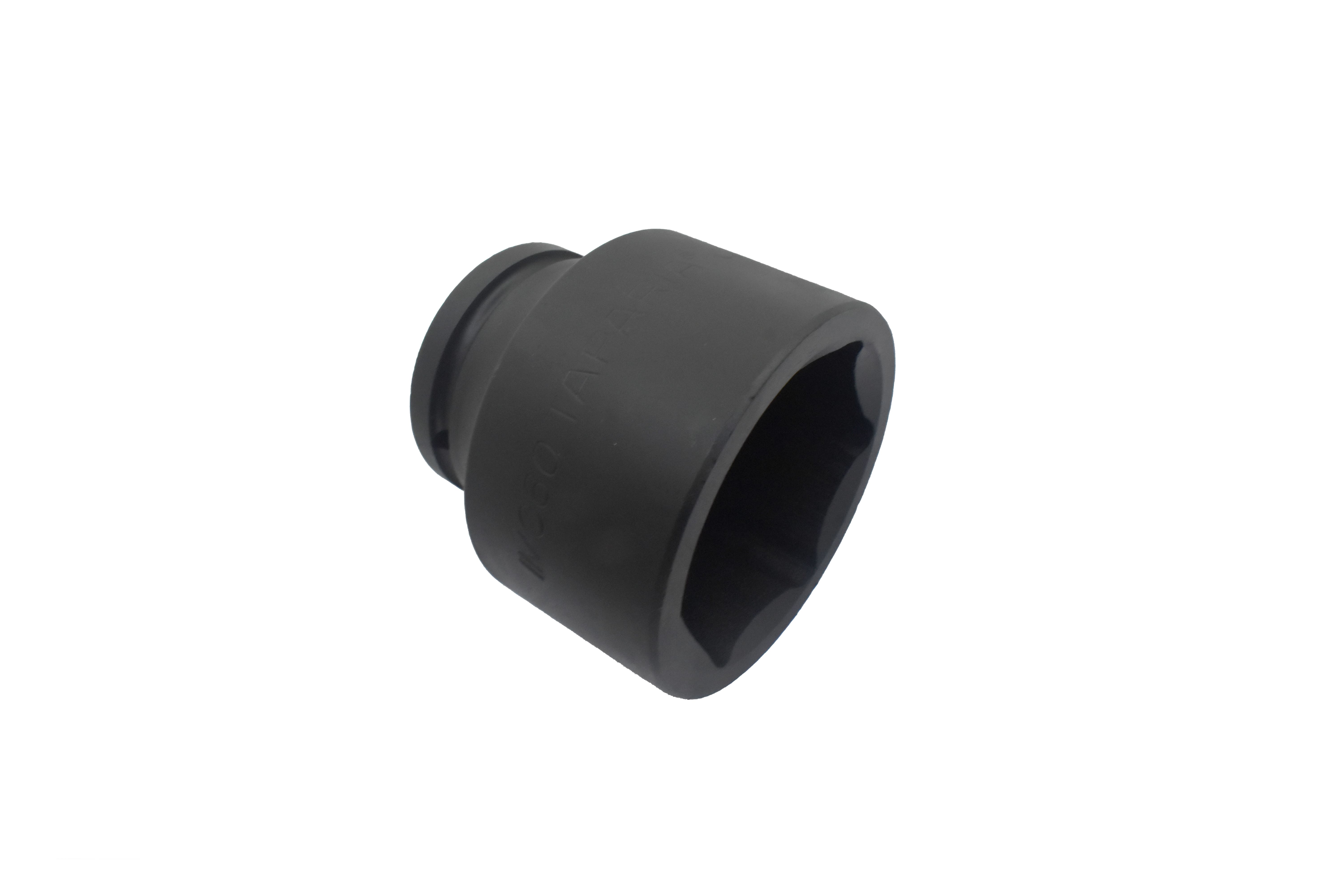

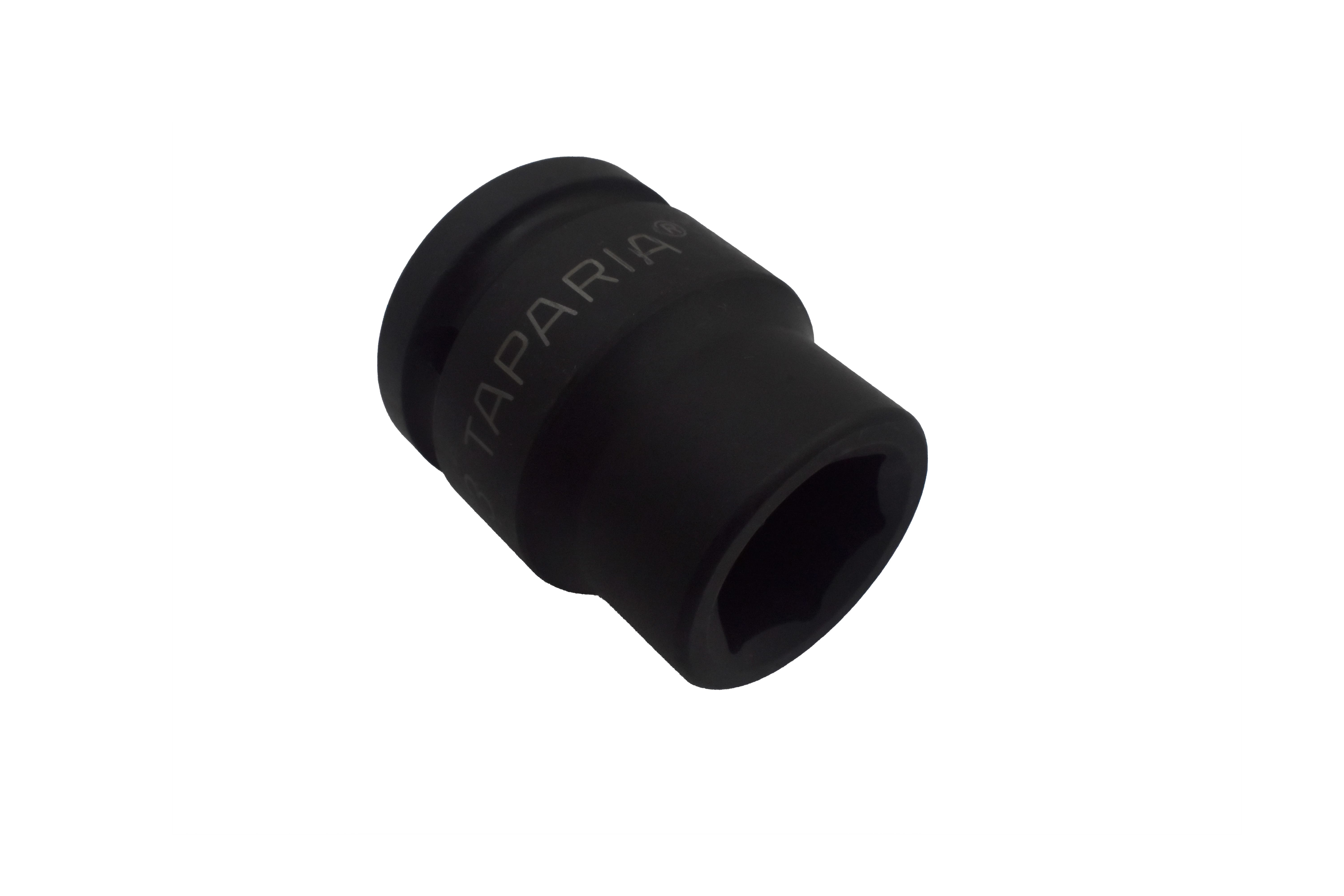

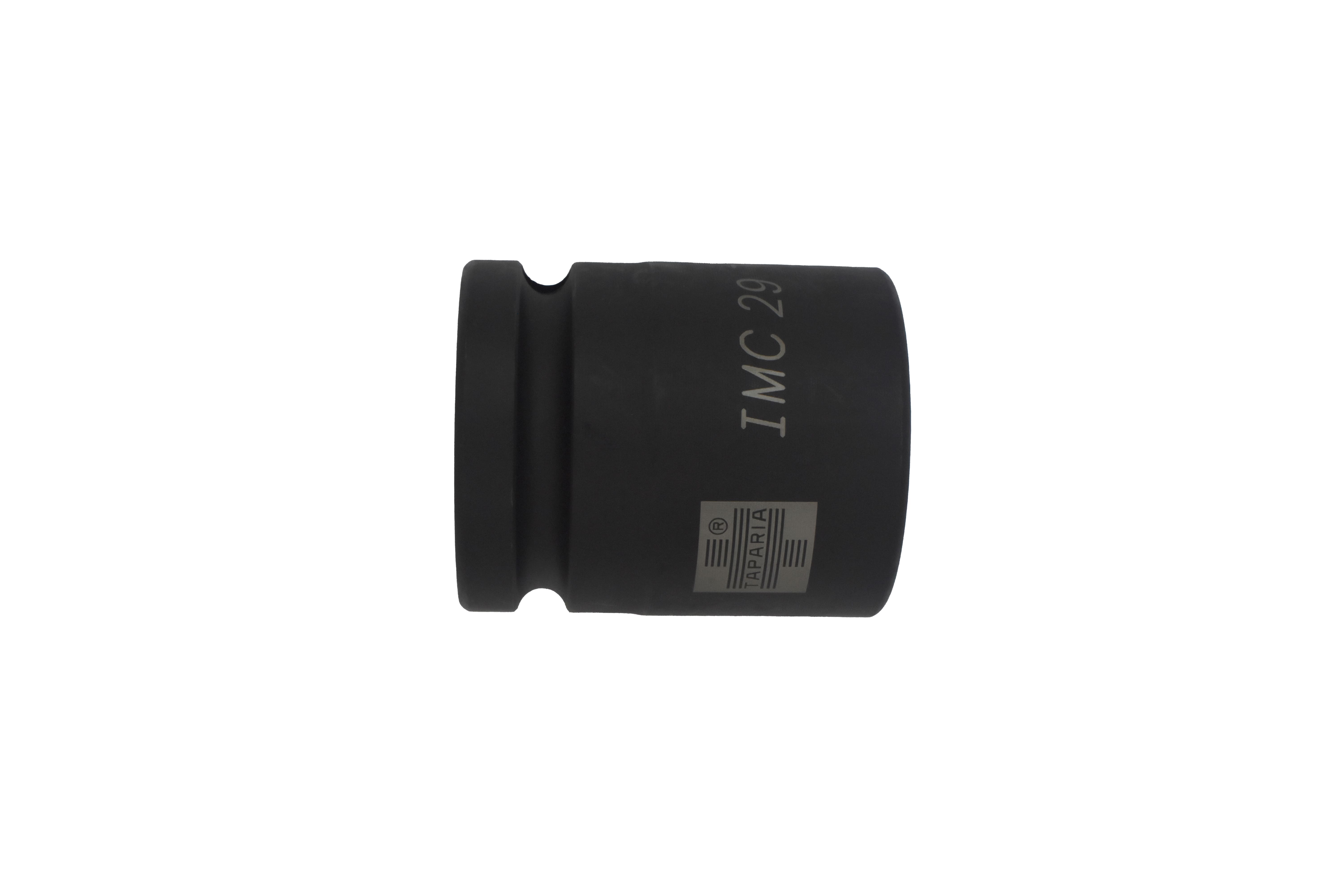

Sockets are forged from high grade Chrome Vanadium steel & Impact sockets from Cr-Mo steel.
Socket bits are made from High grade alloy steel.
Scientifically heat treated Sockets & Bits to give maximum strength and wear resistance.
Special rubber ring in spark plug socket to prevent damage of plug.
Extra-long design of spark plug socket for easy operation without any damage to plug.
Bit is press fitted in sockets adequately.
Special flower type profile drive in E sockets.
Nickel Chrome plating & phosphate finish to enable rust prevention and good looks.
Socket bits are specially coated and oiled for rust prevention.

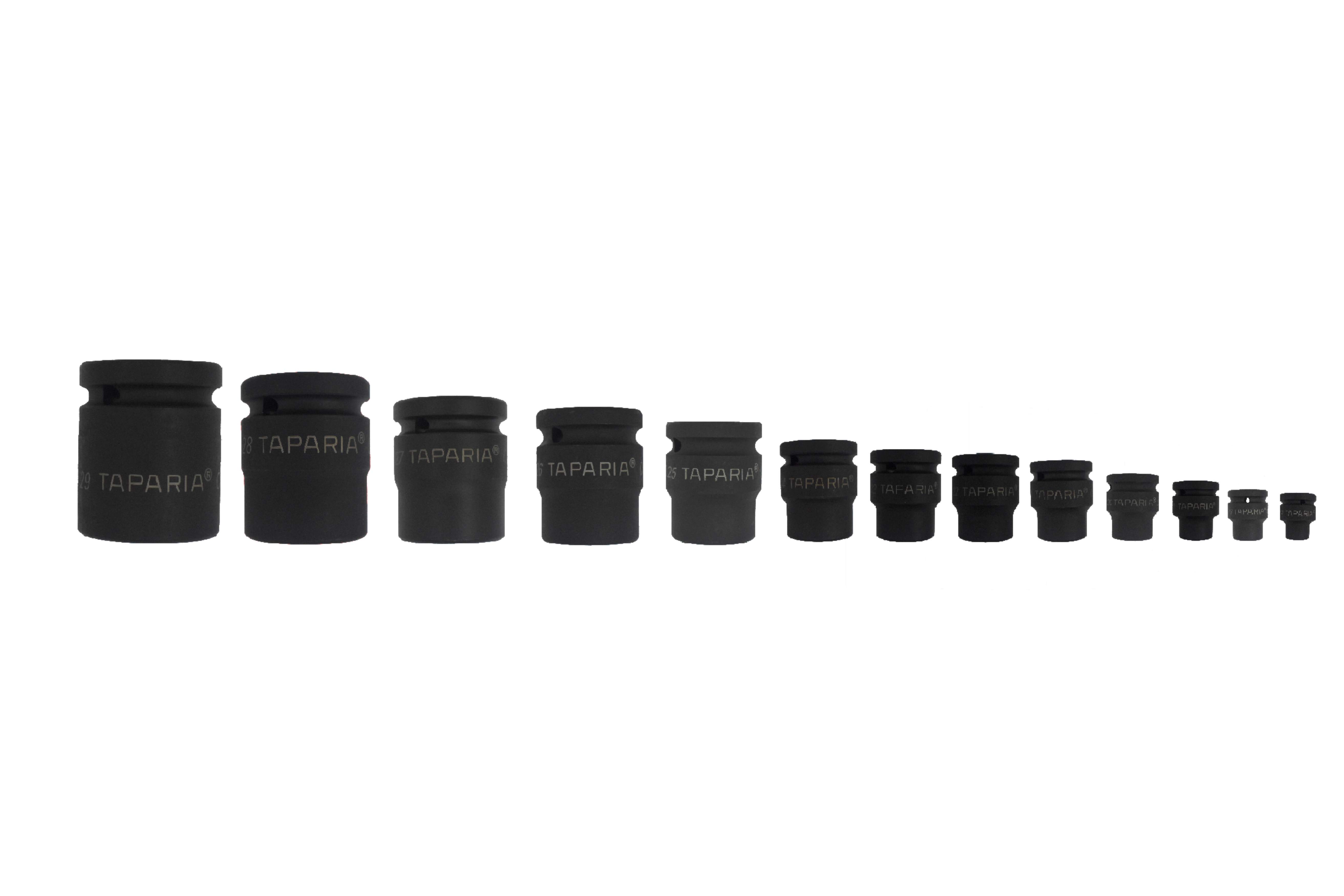

Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive with E socket, hexagonal / Bi-hexagonal patterns in different sizes.
| Bit Sockets are available in | available in |
| Hex | 3, 4, 5, 6, 7, 8, 10, 12, 14, 17 mm. |
| Torx | T10, T20, T25, T30, T40, T45, T50, T55, T60 & T70. |
| Philips | Tip No 1, 2 & 3. |
| Flat | 4, 5.5 & 7 mm. |
| Pozy | PZ1, PZ2 & PZ3. |
Minimum Torque Value in Kg.m for Spark plug
| A/F | Torque Value in Kg.m |
| 16 mm | 38.4 |
| 21 mm | 58 |
TAPARIA sockets generally Conform to I.S. 7381 - 1986 & 7993 - 1988.
