| PRODUCT NO | A/F | L | ØD | ØE | ØF | WEIGHT GRAMS |

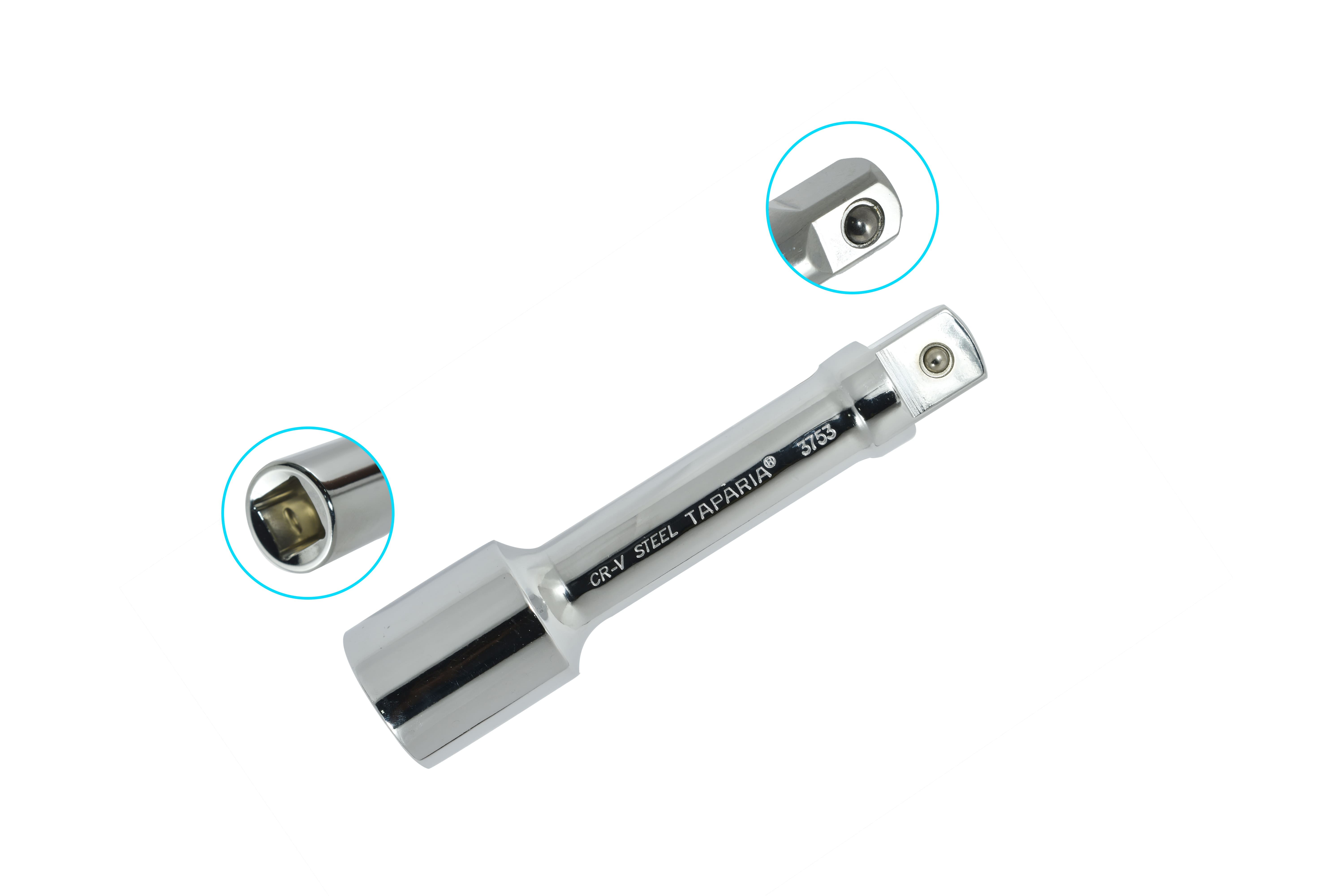

| 3733 | 25.2 | 630 | 49 | 33.8 | 25.0 | 3205 |
1/4 DRIVE Socket Acc
Made from high grade Chrome Vanadium steel.
Scientifically heat-treated to give maximum strength and wear resistance.
Thoroughly corrosion protected with Nickel – Chrome plating finish.
Precision-machined Square drives with well-mushroomed balls for comfort and sufficient locking in socket grooves.
Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive pattern in different types and sizes.
Minimum Torque Value in Kg.m:
| Acc. | 6.3 mm / Square Dive | 9..5 mm / Square Dive | 12.7 mm / Square Dive | 19 mm / Square Dive | 24.4 mm / Square Dive | 6.3 mm / Torque Value in Kg.m | 9.5 mm / Torque Value in Kg.m | 12.7 mm / Torque Value in Kg.m | 19 mm / Torque Value in Kg.m | 25.4 mm / Torque Value in Kg.m |
| Flexible Handle | √ | √ | √ | √ | - | 6.32 | 20.59 | 52.19 | - | - |
| Universal Joints | √ | √ | √ | √ | - | 3.46 | 11.41 | 28.95 | 79.92 | - |
| Speeder Brace | - | - | √ | - | - | - | - | 55.96 | - | - |

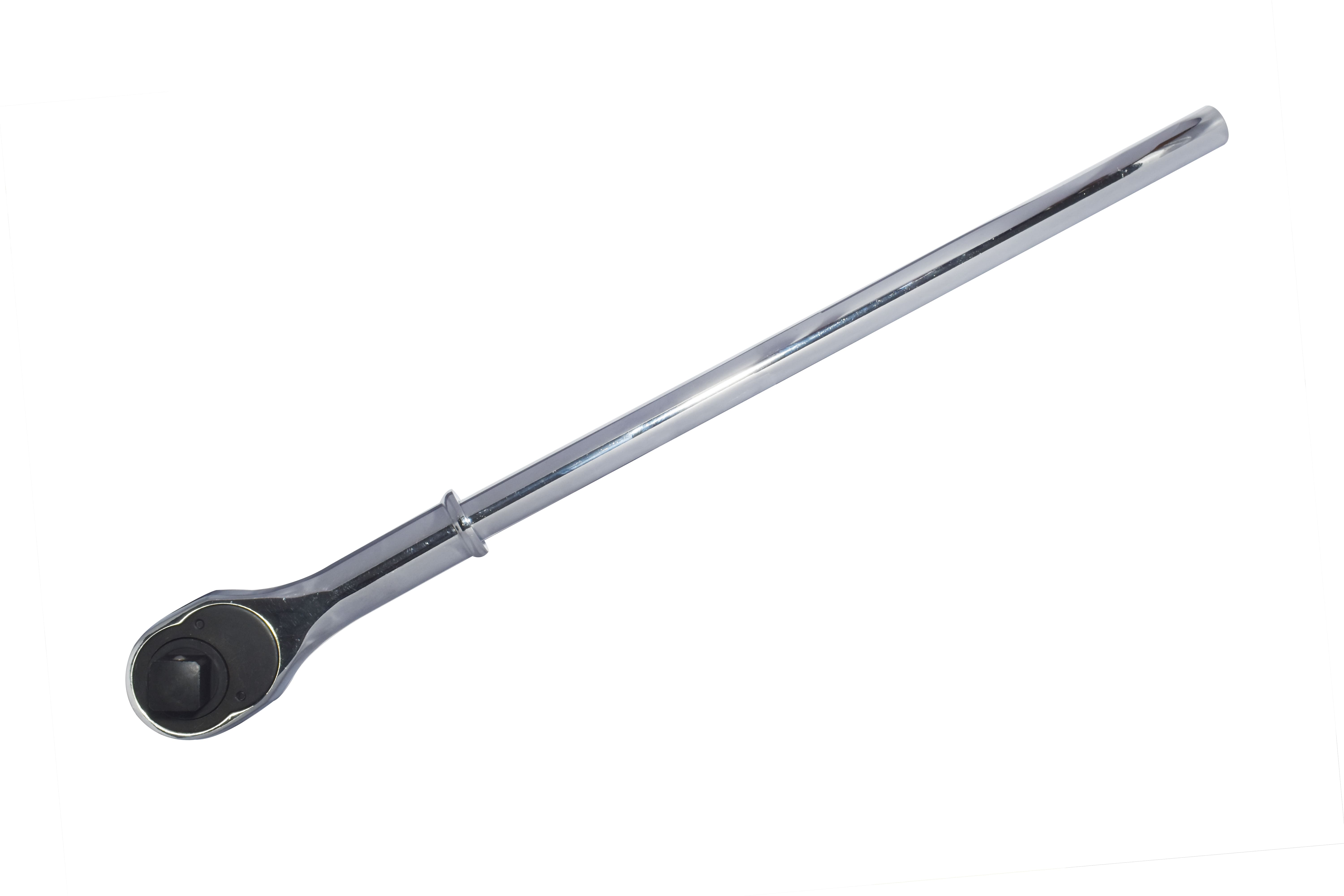

| Ratchet Handle | √ | √ | √ | - | √ | 6.32 | 20.59 | 52.19 | 143.93 | 256.37 |
| Off-Set handle | - | - | √ | √ | - | - | - | 52.19 | 143.93 | - |
| T-Handle | √ | √ | √ | √ | √ | 5.6 | 18.34 | 46.38 | 127.93 | 227.9 |
| Angle Handle | - | - | √ | √ | - | - | - | 52.2 | 143.9 | - |
| Extension Bars | √ | √ | √ | √ | √ | 6.32 | 20.59 | 52.19 | 143.93 | 256.37 |

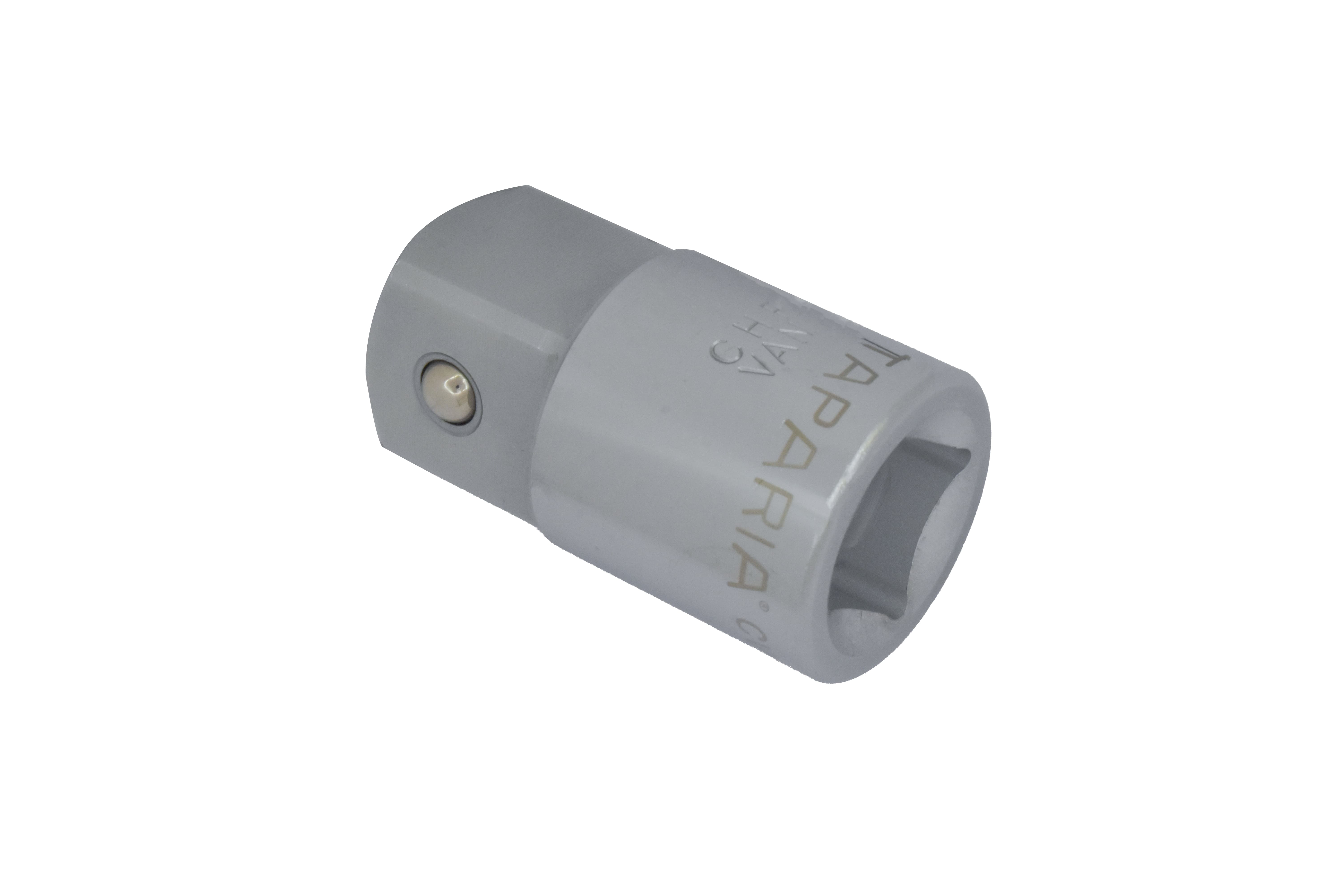

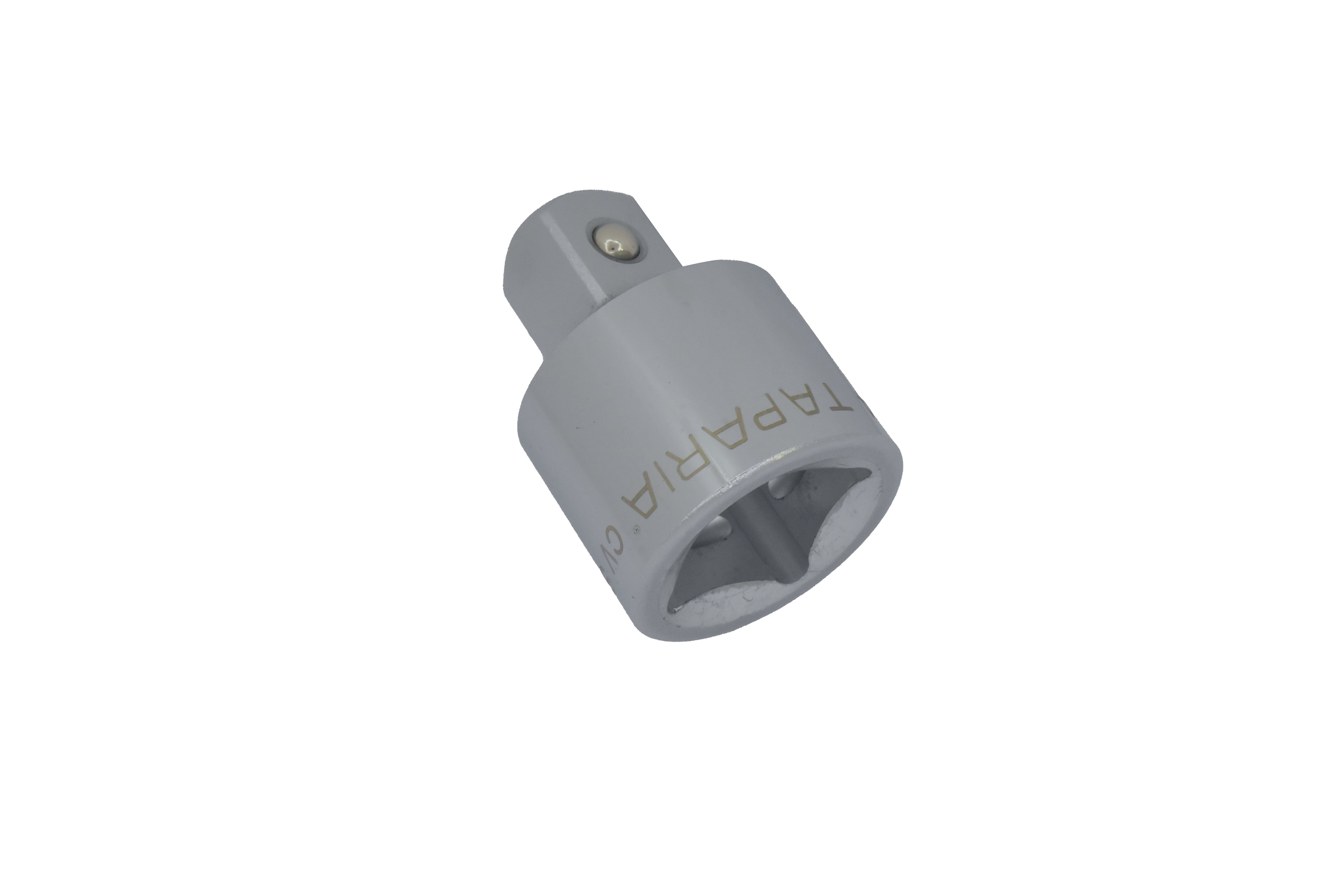

| Adapters | - | √ | √ | √ | √ | - | 20.6 | 52.2 | 143.9 | 143.9 |
TAPARIA socket accessories generally Conform to I.S. 7975 Part II, IS 7991-1991
