Black Tip Phillips Screw Drivers
Product Overview

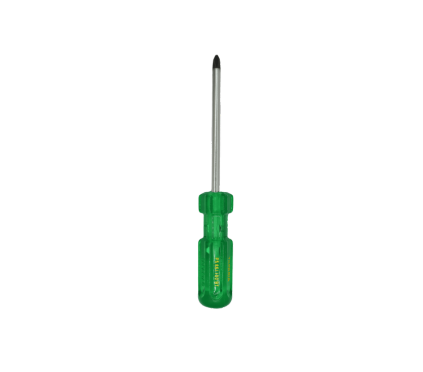

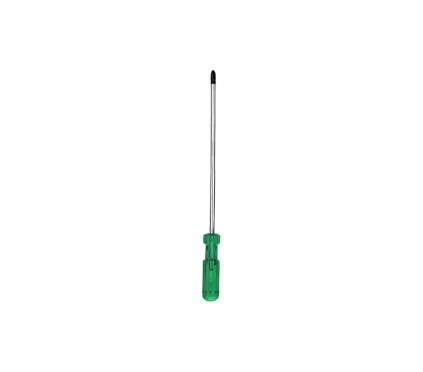

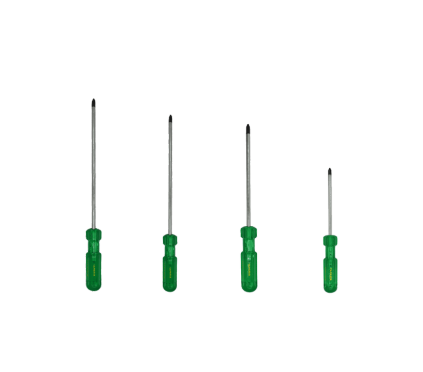

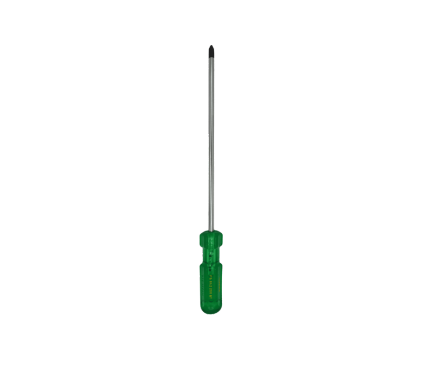

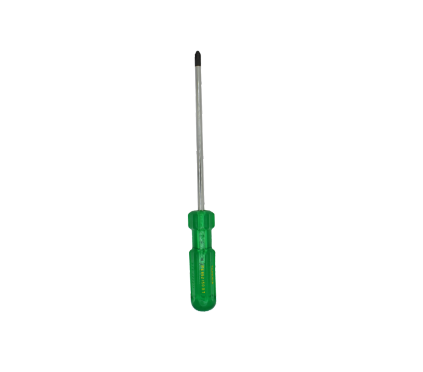

BLACK TIP PHILLIPS SCREW DRIVERS
| PRODUCT
NO. | PHILLIPS
TIP NO | A | B | ØC | Weight
grames |
| P5 861 100 BT | 1 | 186 | 100 | 5 | 55 |
| P6 862 150 BT | 2 | 248 | 150 | 6 | 60 |
| P6 862 200 BT | 2 | 298 | 200 | 6 | 110 |
| P8 863 250 BT | 3 | 355 | 250 | 8 | 165 |
Special Features
Salient Features
- The blade is made from high grade Silico – Manganese steel.
- Scientifically heat treated blade gives maximum strength & wear resistance.
- The tip is precision – ground to ensures firm grip in the screw slot.
- The blade tip is magnetized to lift small screws from confined spaces or to hold the screw in position.
- The handle is made from high grade special Plastic to enable high strength and durability.
- The handle is precisely designed to give comfortable grip even at higher torque.
- The specially designed steel cap and blade assembly facilitates the striking screw driver for hammering without damaging the handle.
- In electrician pattern, PVC insulation on blade protects from electric shock & withstands for high voltage insulation test at 2000 V DC.
- Available in different patterns viz. Engineer’s, Electrician’s, Stubby, Phillips, Poker, Striking, Torx, Hexagon etc., Two-in-One (Black Tip) – Regular & Stubby.
Minimum Torque Value in Kg.m:
Flat Tip
| Tip Width in mm | Tip Thickness in mm | Torque Value in Kgm |
| 1.6 | 0.4 | 0.03 |
| 2.3 | 0.4 | 0.04 |
| 3 | 0.4 | 0.05 |
| 3 | 0.5 | 0.08 |
| 3.5 | 0.5 | 0.09 |
| 4 | 0.6 | 0.15 |
| 4.3. | 0.6 | 0.16 |
| 5 | 0.6 | 0.18 |
| 6 | 0.6 | 0.21 |
| 5 | 0.8 | 0.32 |
| 6 | 0.8 | 0.39 |
| 8 | 1 | 0.8 |
| 8 | 1.2 | 1.17 |
| 10 | 1.2 | 1.46 |
| 10 | 1.5 | 2.29 |
| 13 | 1.9 | 4.78 |
Philips Tip
| Tip No | Torque Value in Kgm |
| PH -00 | 0.05* |
| PH-0 | 0.14 |
| PH-1 | 0.38 |
| PH-2 | 1.04 |
| PH-3 | 3.9 |
| PH - 4 | 5.9 |
TAPARIA Screwdrivers are generally Conform to I.S.844-1979
