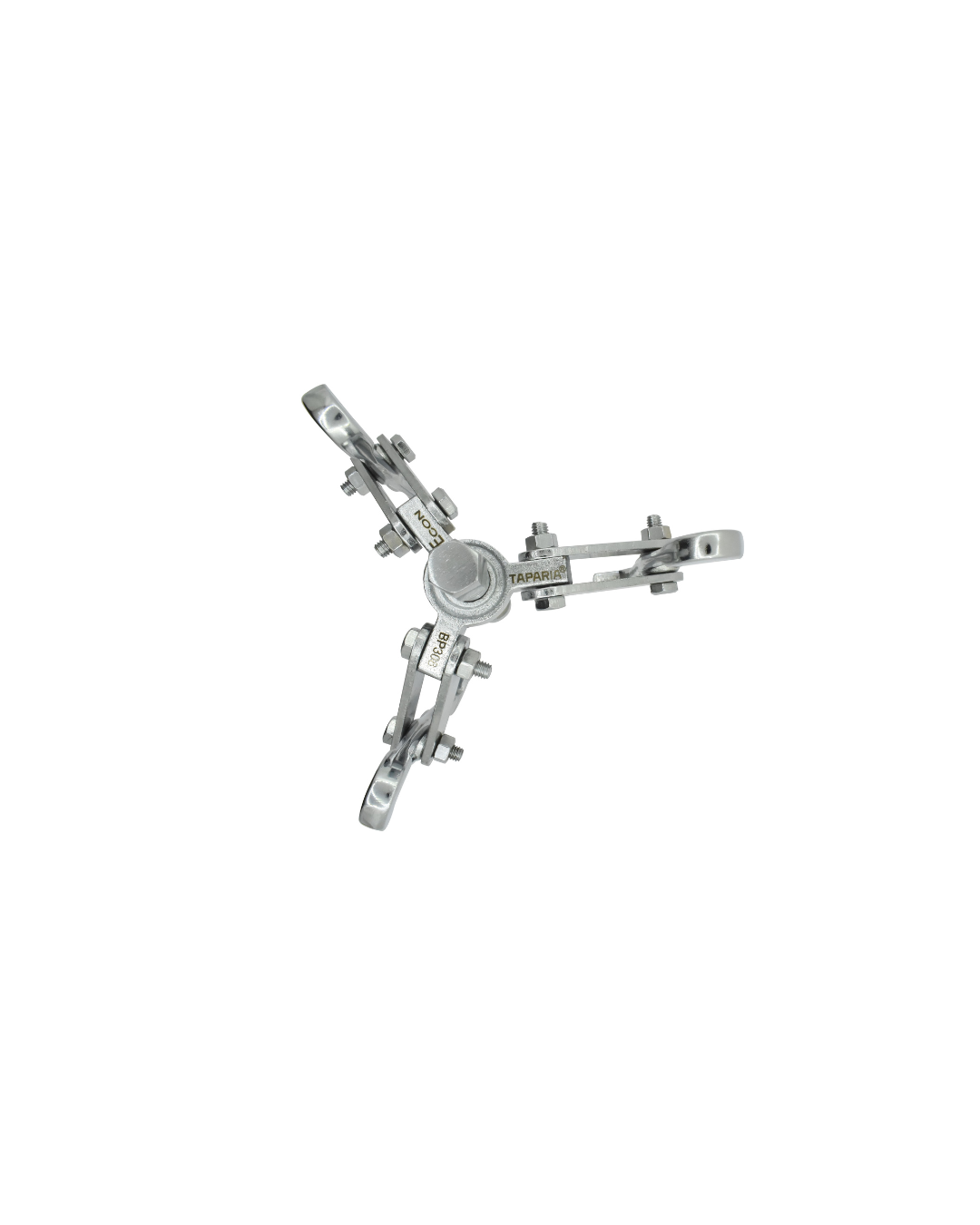

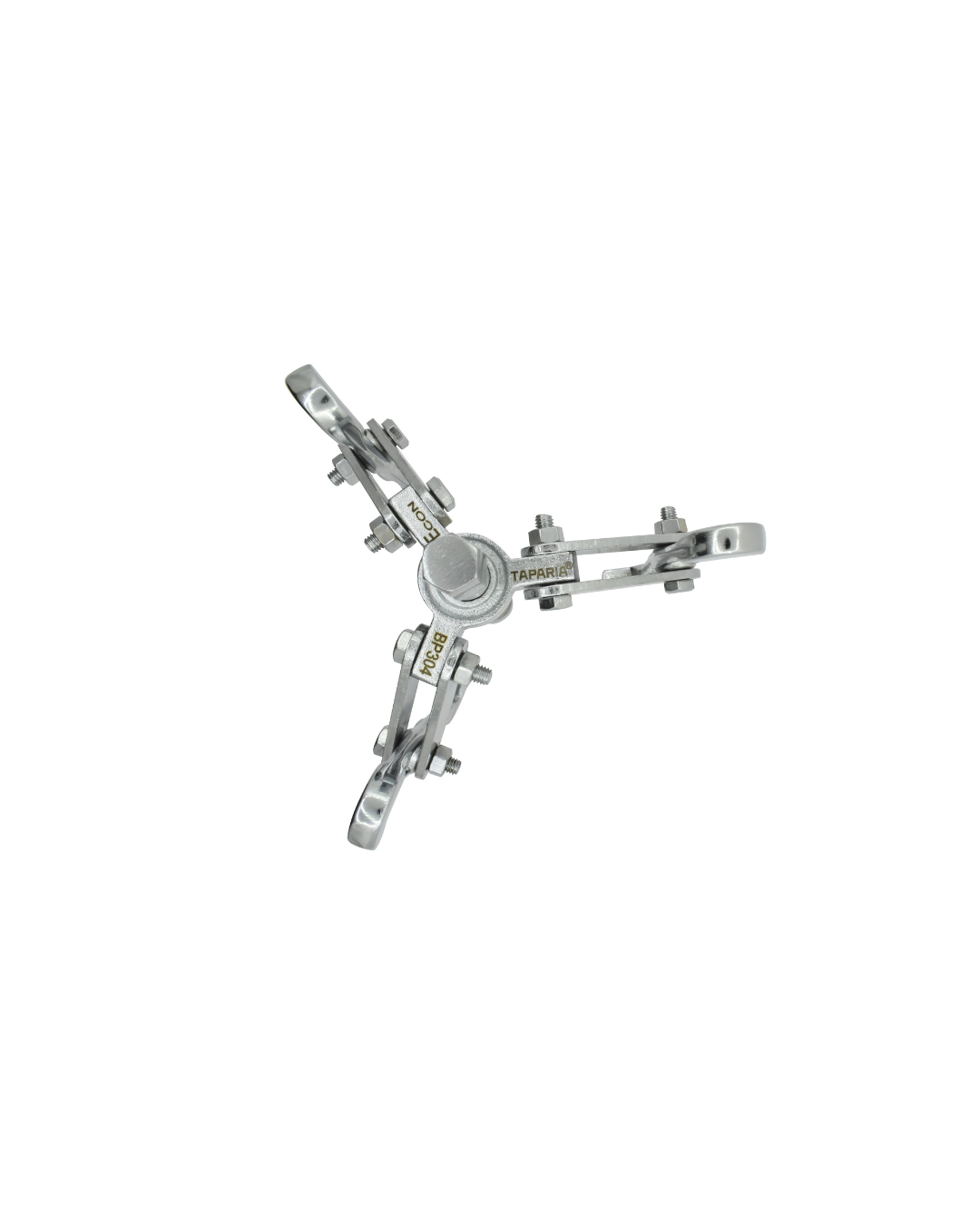

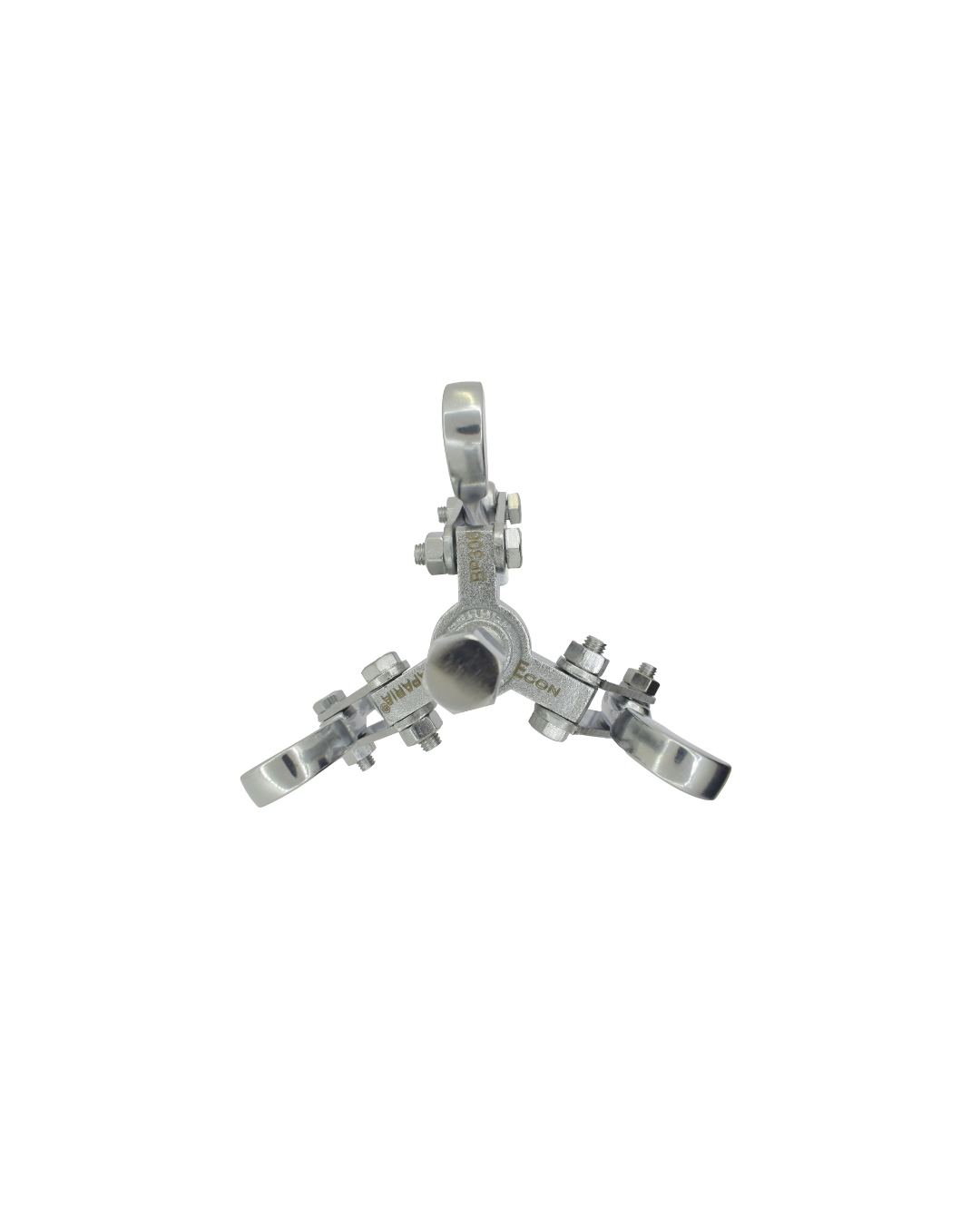

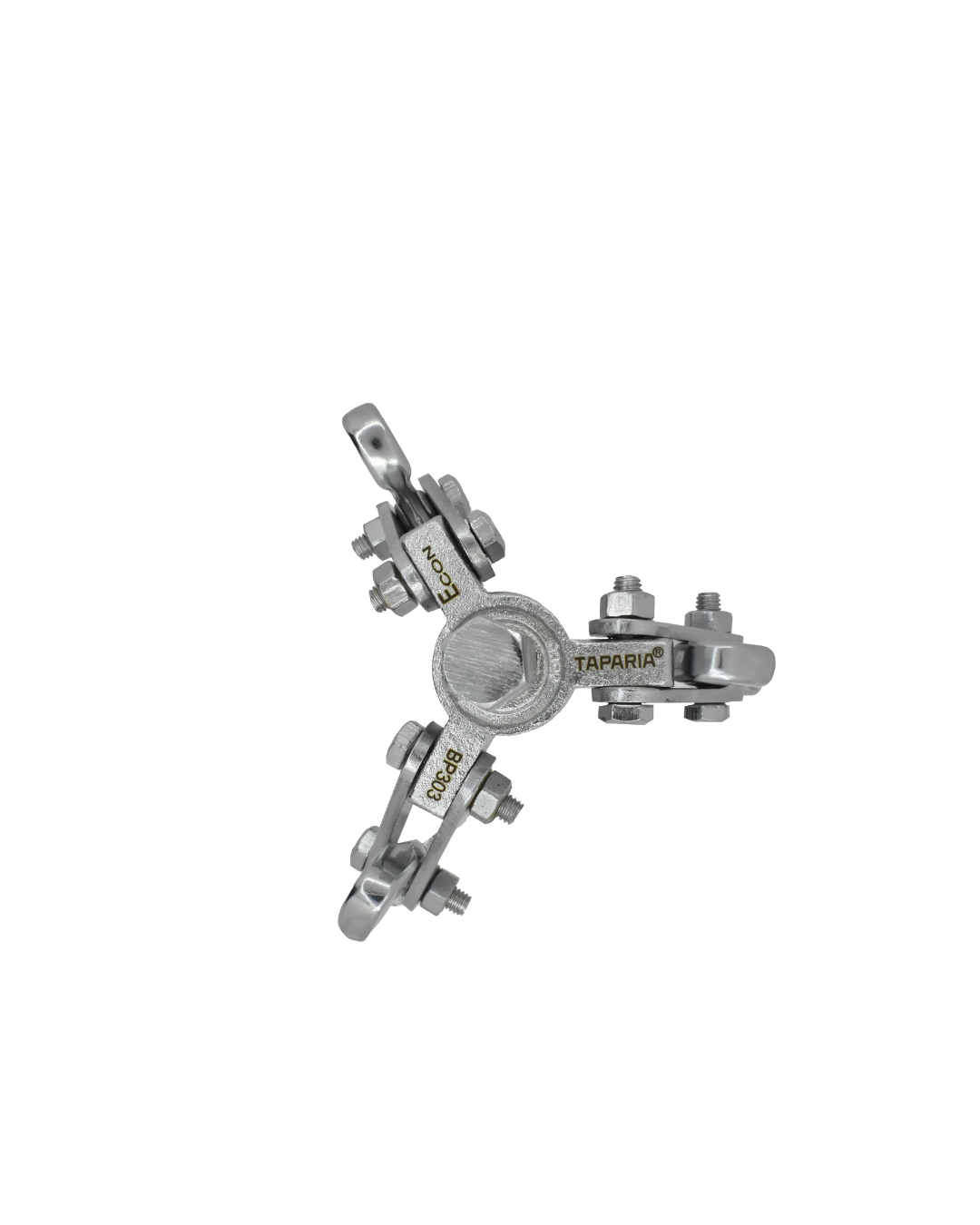

Bearing Puller

Bearing Puller

Product Overview

BEARING PULLER



PRODUCT NO.SIZENO OFF LEGSLEG LENGTH L1CENTRAL SCREW L2WEIGHT GRAMS
BP 30333100120560
BP 30443130145740
BP 306632101951400
BP 308832752602080

Special Features


Salient Features

  • Drop forged jaws are made from Carbon steel.
  • cientifically hardened components to give maximum strength and wear resistance.
  • The reversible Jaw design enables inside and outside operation.
  • Specially designed Jaws make it flexible for use in both shallow or deep space
  • Centre bolt threads are precision machined for smooth movement in both directions.
  • In three Jaw design, the pulling force is distributed evenly on the bearing or gear which facilitates smooth and fast operation without any damage to the bearing or gear.
  • Protective cap on the centre bolt end increases the life of tip and enables easy operation.
  • Ni-Cr plated Jaws and Link plates provide anti rusting property.

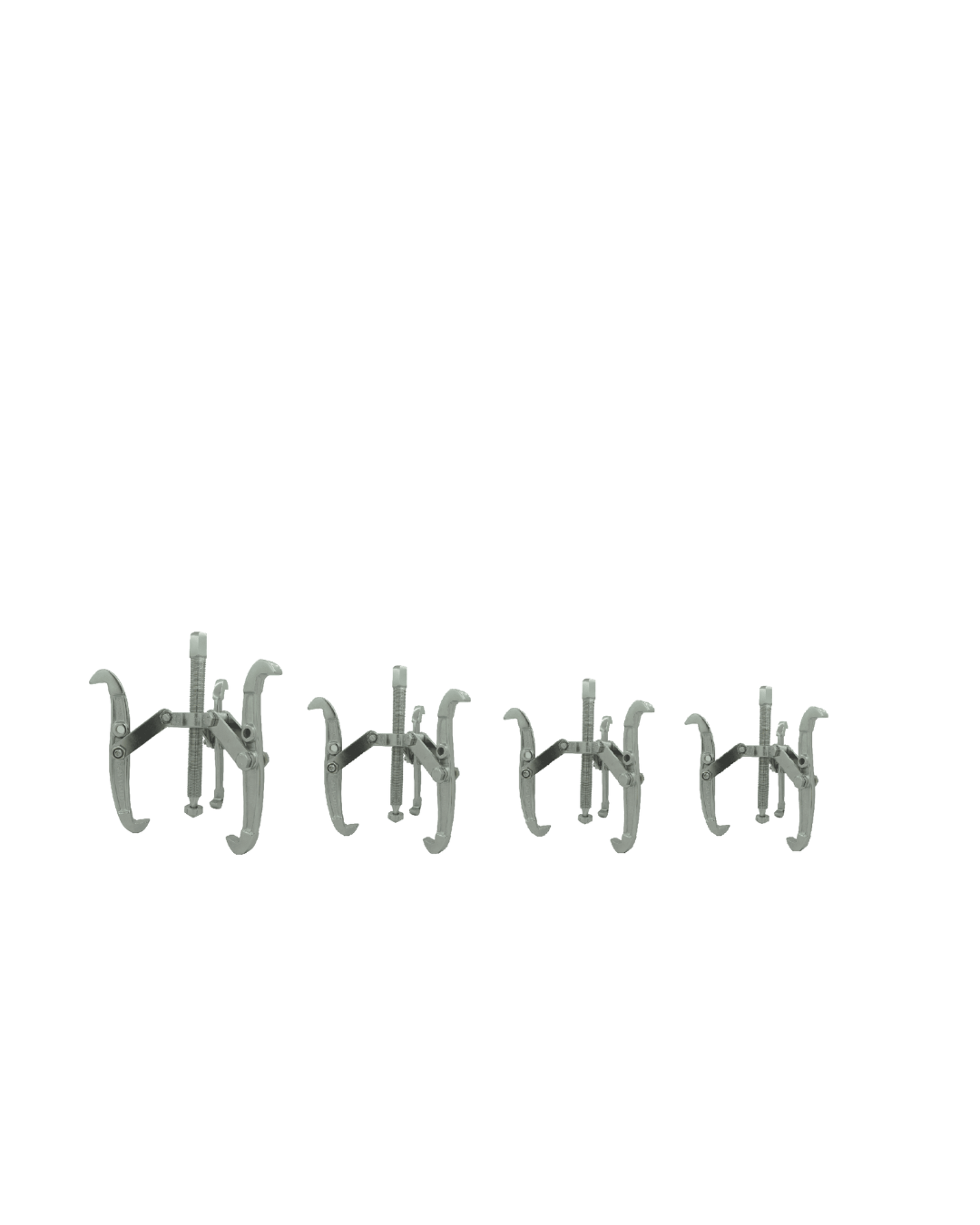

Available in following sizes.


Product No.
Nominal size
Twisting torque in Kgm
BP 303
75
3.82
BP 304
100
5.1
BP 306
150
10.19
BP 308
200
20.38

TAPARIA Bearing Pullers generally Conform to I.S. 9193-1988
