RING SPANNER (INCH SET)
| PRODUCT NO. | CONTENTS |
| 1806 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 |
| 1808 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 18 x 19, 20 x 22 |
| 1810 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 18 x 19, 20 x 22, 21 x 23, 24 x 27, |
| 18010 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18X19 20 X 22, 24 X 27 , 30 X 32 |
| 1812 | 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32 |

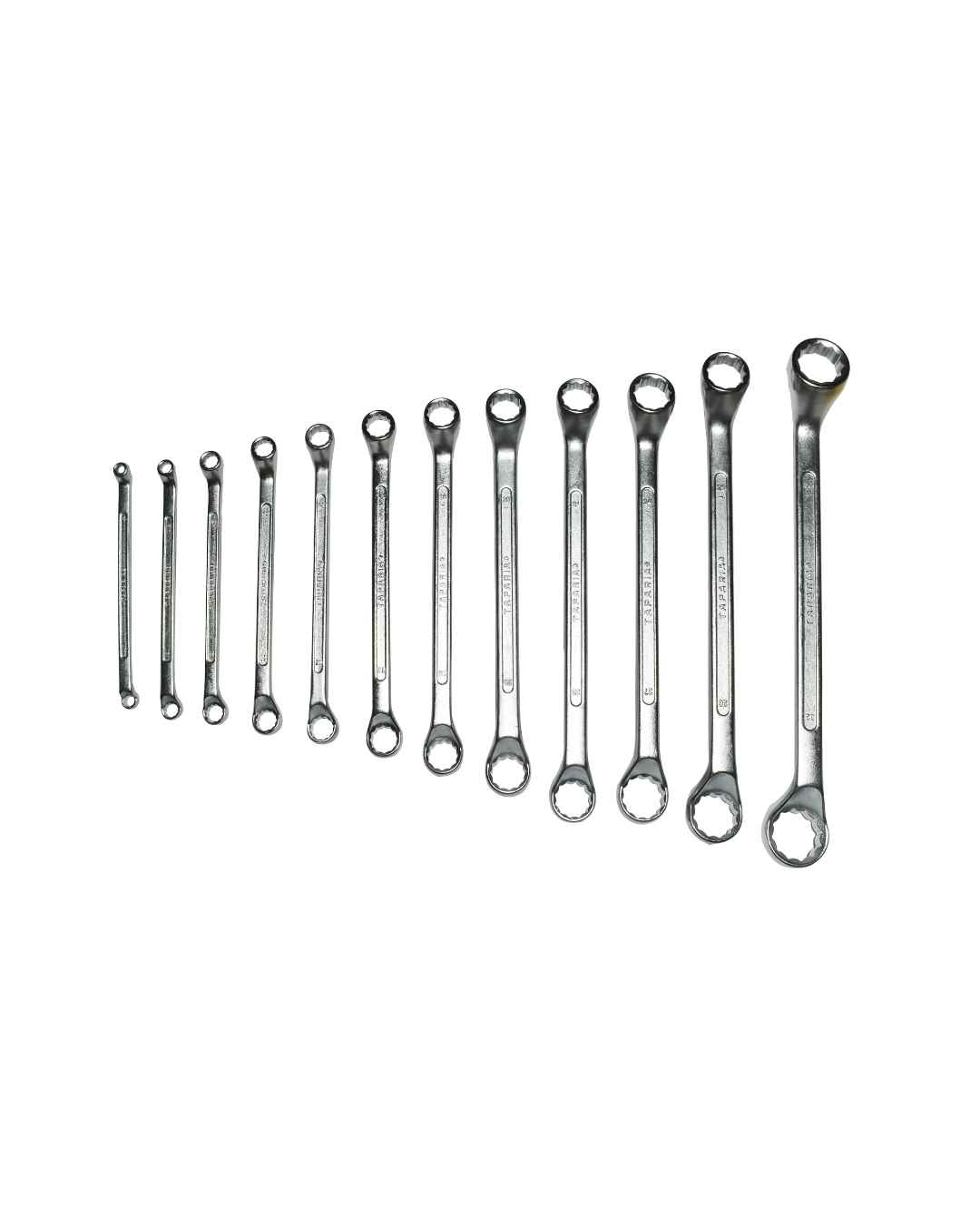

RING SPANNER SET
| PRODUCT NO. | CONTENTS |
| RW 06 | 1/8 X 3/16, 3/16 X 1/4, 1/4 X 5/16, 5/16 X 3/8, 3/8 X 7/16, 7/16 X 1/2 |
| RW 09 | 1/8 X 3/16, 3/16 X 1/4, 1/4 X 5/16, 5/16 X 3/8, 3/8 X 7/16, 7/16 X 1/2, 1/2 X 9/16, 9/16 X 5/8, 5/8 X 3/4 |
RING SPANNER SET Drop forged from high grade Chrome - Vanadium Steel.
Scientifically heat-treated to give maximum strength and wear resistance.
Slightly rounded handles-sand blasted -fit snugly in the hand and gives comfortable grip.
Clearly marked -facilitates choice of right size.
Precised across flat on each end avoids Nut damage.
I-section design of spanners gives strength with low weight.
Thoroughly corrosion protected with Nickel-Chrome & black phosphate finish.
Available in Metric, Inch & WW series with various sizes & sets.
Minimum Torque Value in Kg.m:
| Nominal Size A/F | Torque Value in Kg.m |
| 6 | 1.8 |
| 7 | 2.6 |
| 8 | 3.4 |
| 9 | 4.6 |
| 10 | 5.9 |
| 11 | 7.4 |
| 12 | 9.1 |
| 13 | 10.9 |
| 14 | 13 |
| 15 | 15.3 |
| 16 | 17.8 |
| 17 | 20.5 |
| 18 | 23.4 |
| 19 | 26.6 |
| 20 | 30 |
| 21 | 33.6 |
Minimum Torque Value in Kg.m:
| Nominal Width A/F | Torque value in Kg.m |
| 22 | 37.5 |
| 23 | 41.6 |
| 24 | 46 |
| 25 | 50.6 |
| 26 | 55.5 |
| 27 | 60.6 |
| 28 | 66 |
| 30 | 77.5 |
| 32 | 90.1 |
| 36 | 118.8 |
| 41 | 161 |
| 46 | 201.7 |
| 50 | 256 |
| 55 | 320 |
| 60 | 392 |
| 65 | 410 |
| 70 | 475 |
