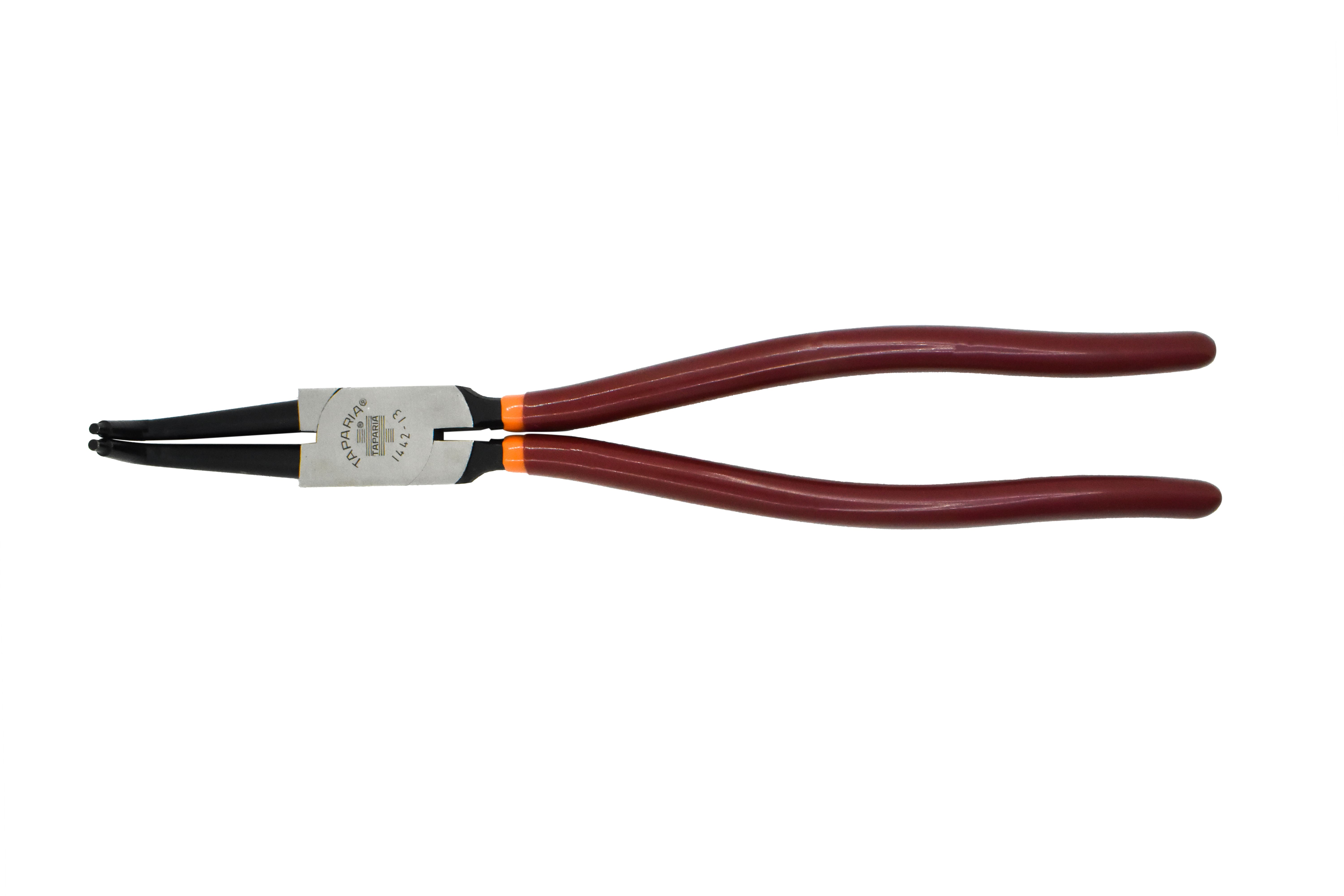

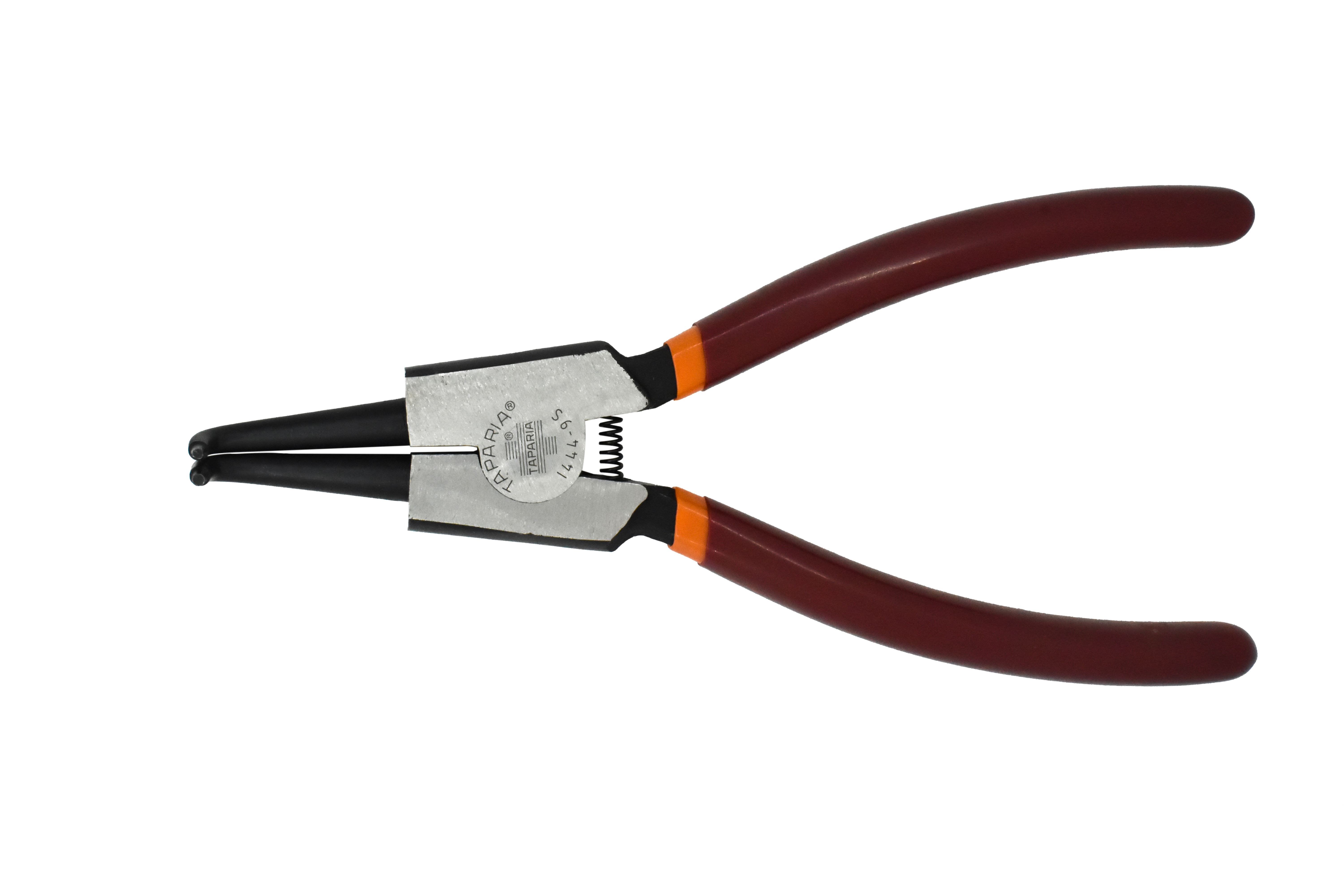

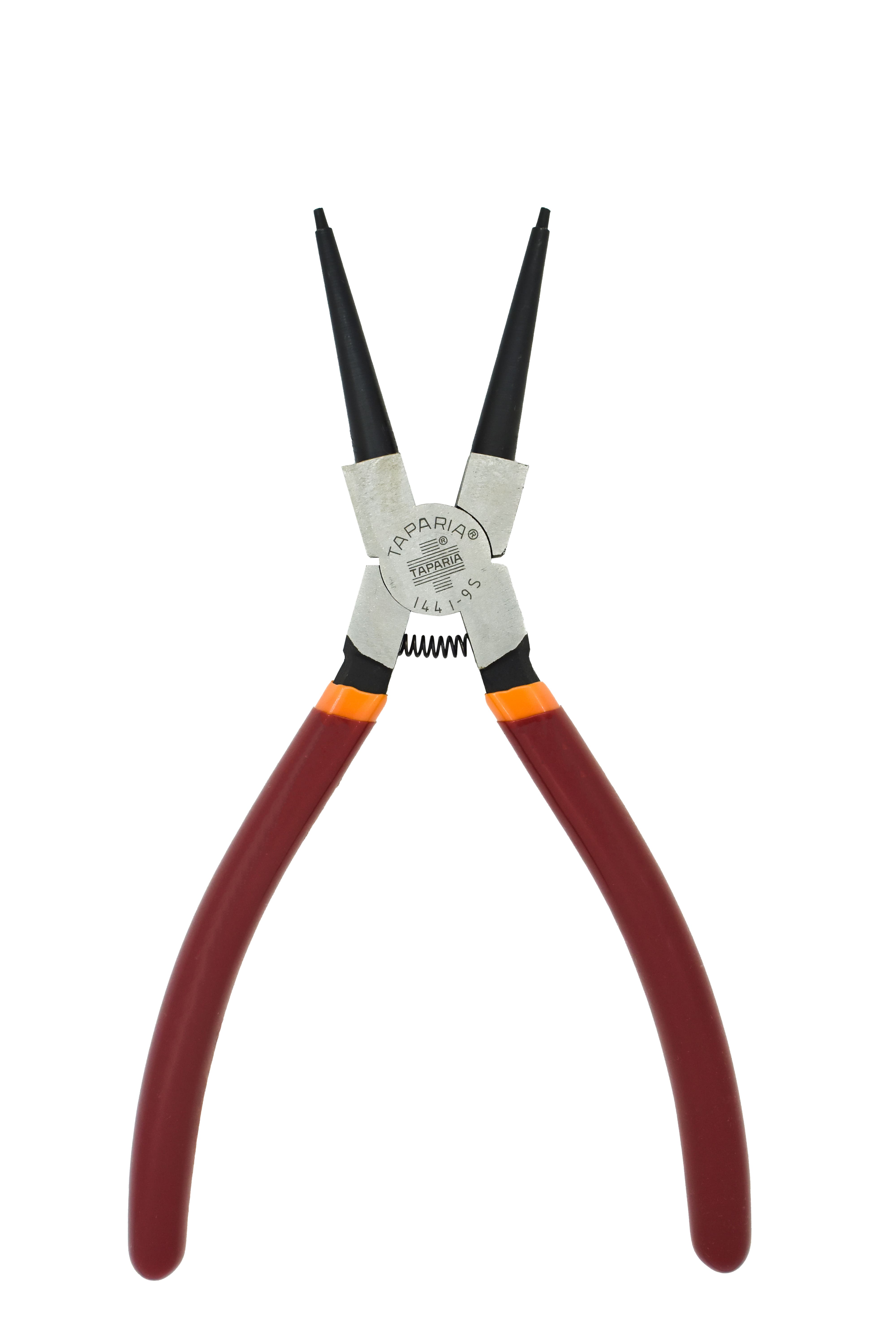

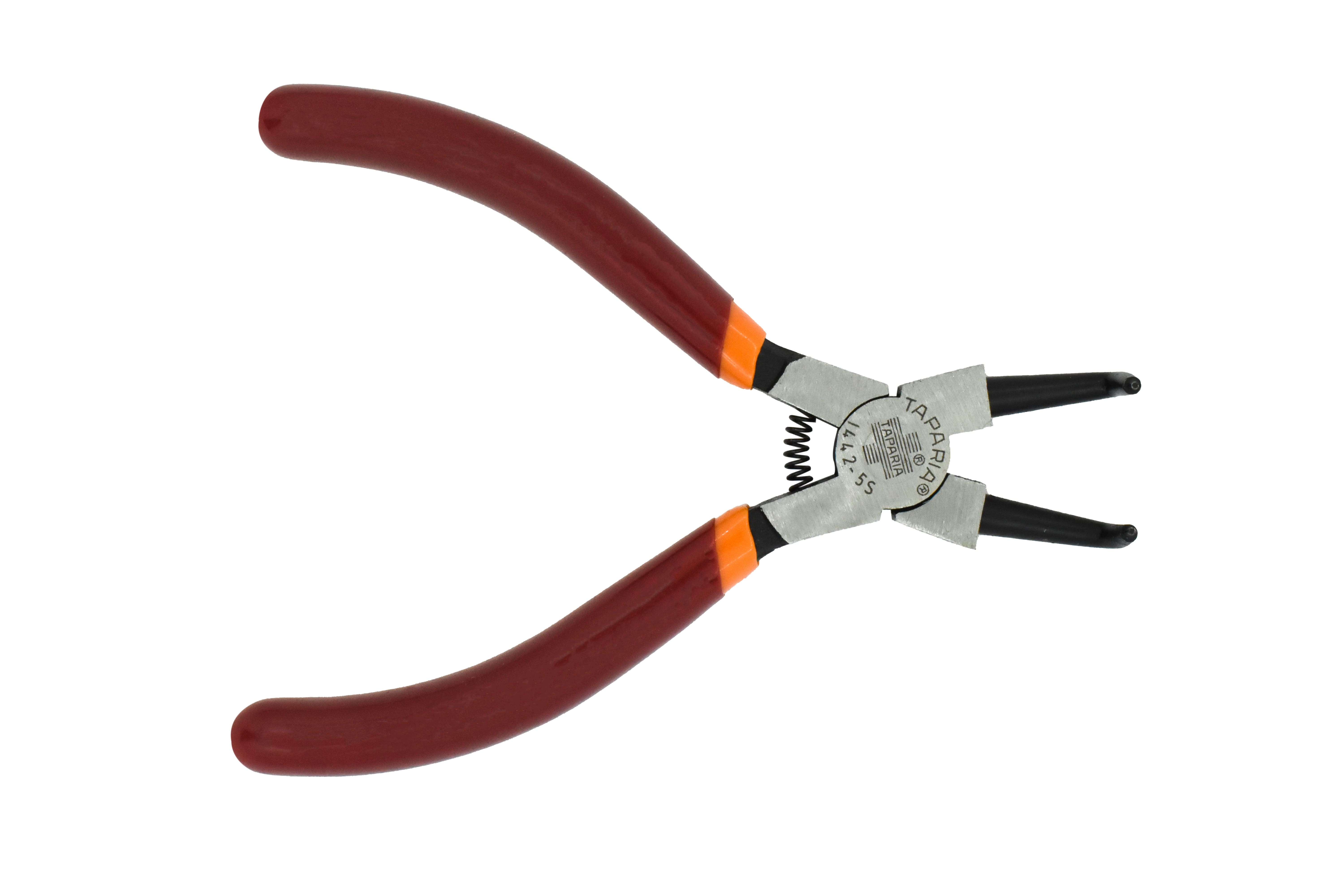

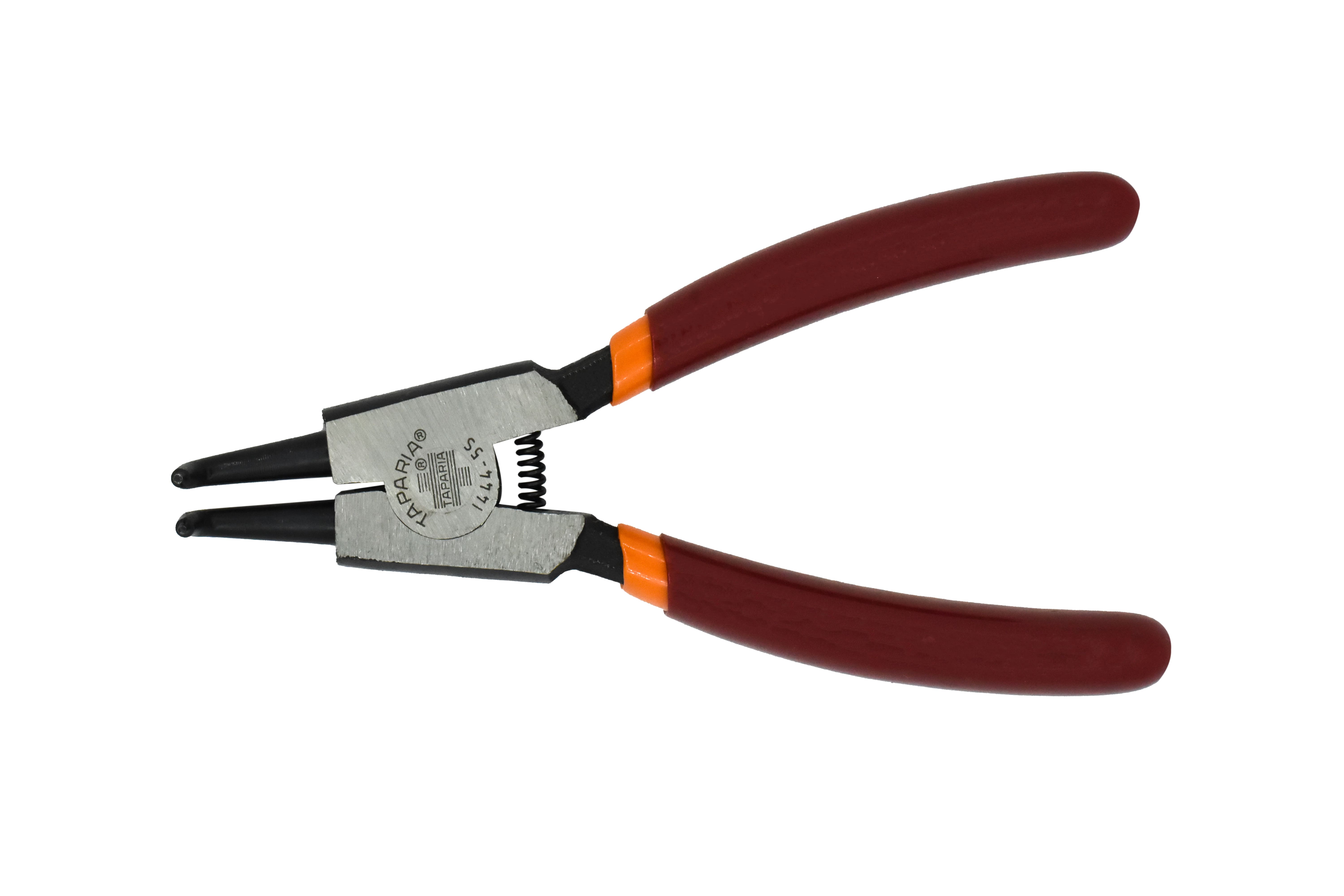

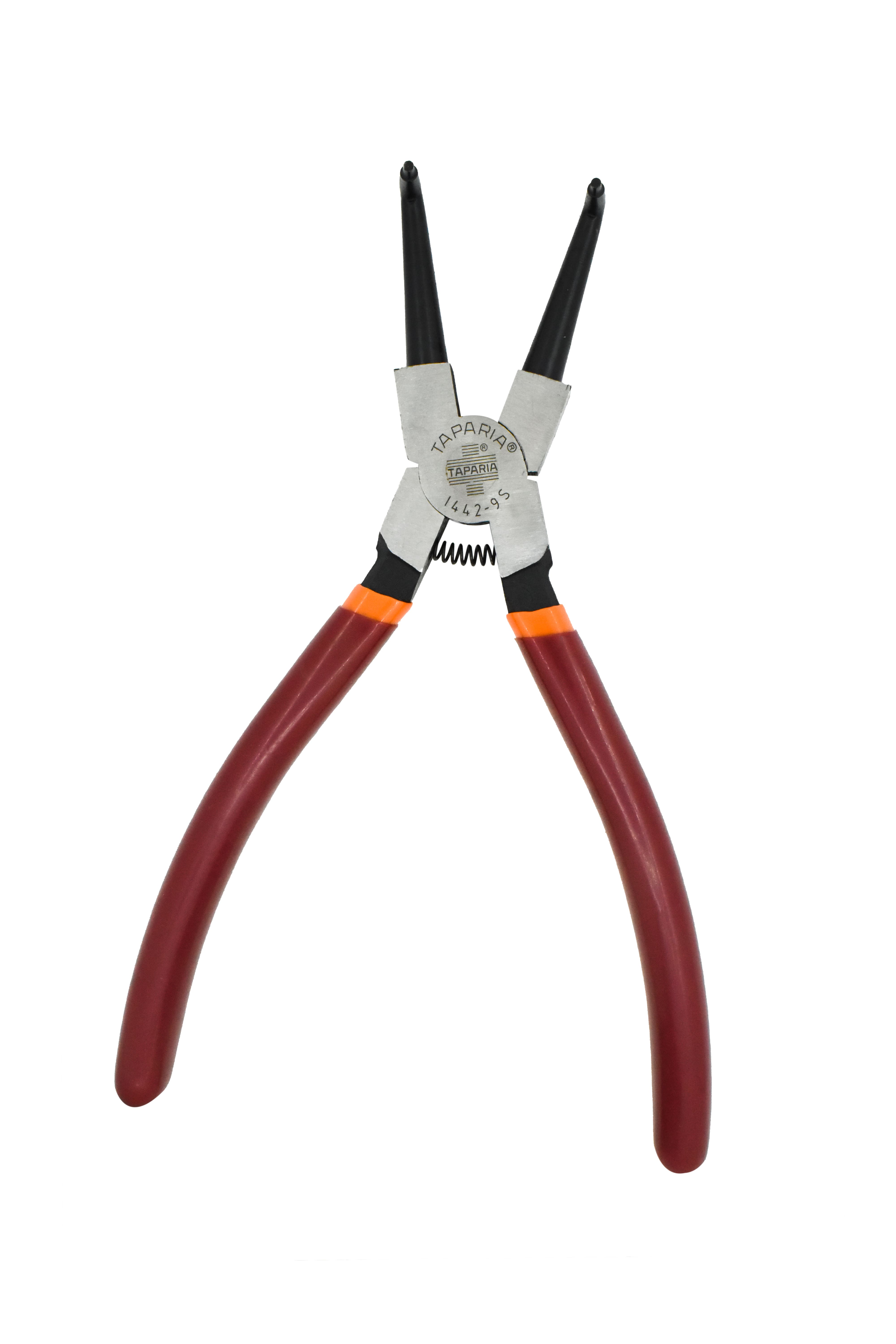

Circlip Pliers P V C Dip Coated Sleeve

Circlip Pliers P V C Dip Coated Sleeve

Product Overview

CIRCLIP PILER (PVC SLEEVE)

PRODUCT NO.ABØC
DEWEIGHT GRAMS
1441-5S (Internal Straight Nose)130401.016898

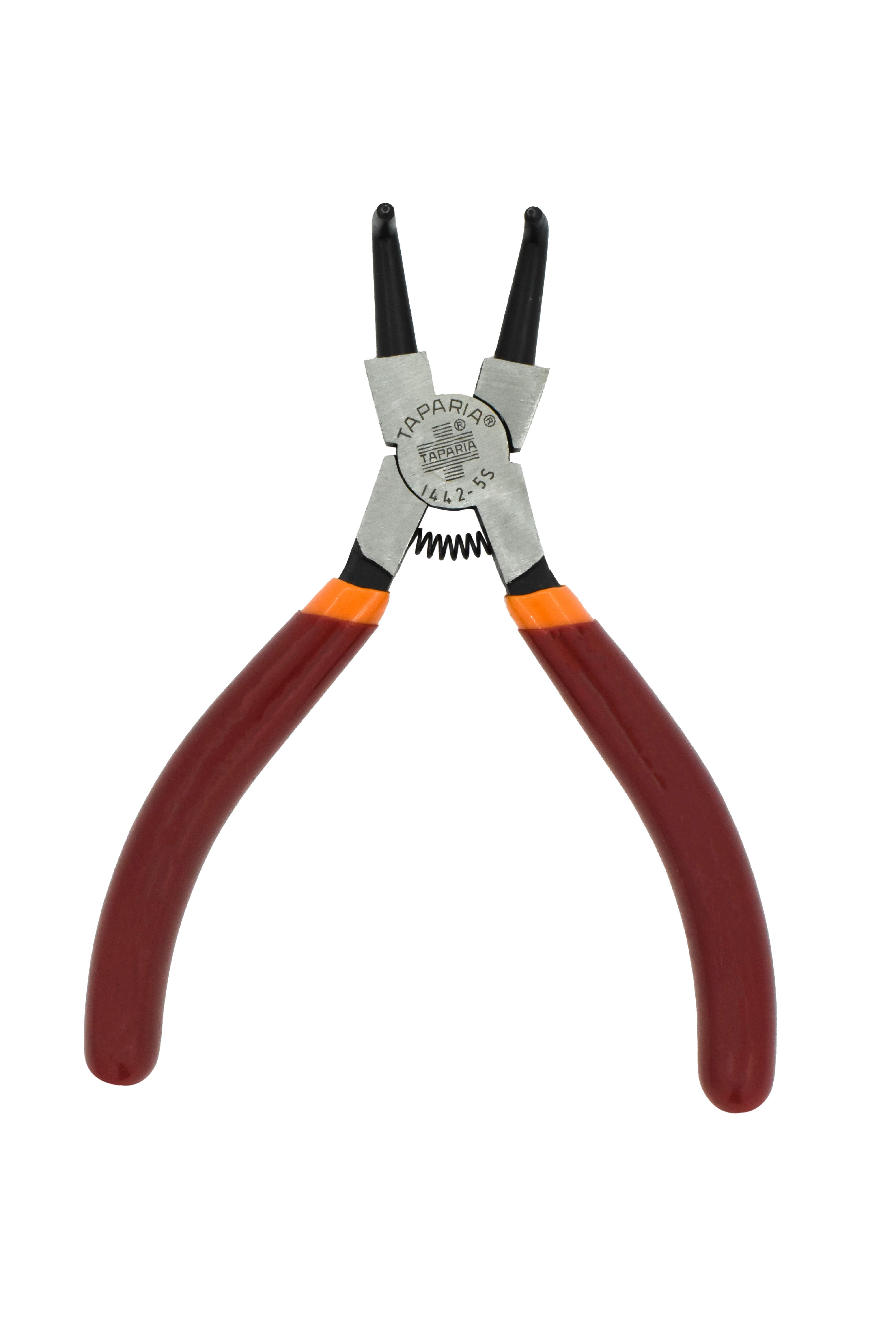

1442-5S (Bent Nose)120321.0168101
1443-5S (External Straight Nose)125381.0138102
1444-5S (Bent Nose)120301.013895
1441-9S (Internal Straight Nose)230752.32612370
1442-9S (Bent Nose)220622.32622353
1443-9S (External Straight Nose)230752.32012375
1444-9S (Bent Nose)220622.32012377
1441-13 (Internal Straight Nose)320903.02712482
1442-13 (Bent Nose)300553.02712485
1443-13 (External Straight Nose)320903.03314608
1444-13 (Bent Nose)300553.03330621


Special Features


Salient Features

  • Drop forged from high grade steel
  • The rivet is made from carbon steel, prevents play even after considerable long use.
  • Scientifically heat–treated to give maximum strength and wear resistance.
  • Tips are precisely machined to prevent the circlip “flying away” during usage.
  • More leverage due to its special and unique design.
  • The pliers are fitted with a return spring between the shanks to facilitate smooth operation except for the 13" internal pliers.
  • Sleeves made from CA plastics & PVC are long lasting & gives comfort feeling during usage.
  • Available in straight and bent version. It includes Pliers for internal and external Circlips from 8 mm to 165 mm shaft and hole respectively.

Product No
Size
Circlip Capacity
1441-5S
130
 8-25
1442-5S
120
 8-25
1443-5S
130
 8-25
1444-5S
120
 8-25
1441-9S
230
40-100
1442-9S
220
40-100
1443-9S
230
40-100
1444-9S
220
40-100
1441-13
320
85-165
1442-13
300
85-165
1443-13
320
85-165
1444-13
300
85-165

TAPARIA Circlip Pliers (Internal  & External)  generally Conform to I.S. 7989-1976 and I.S. 7990- 1976 respectively.
