C Clamp

DOWNLOAD CATALOGUE

Product Overview

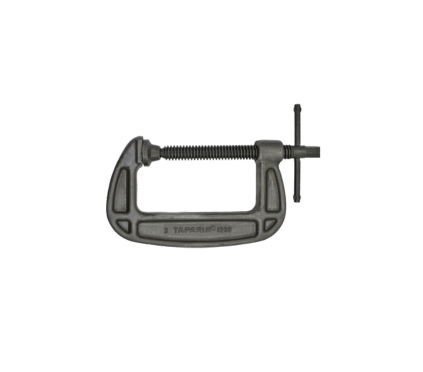

C Clamp

Drop Forged from high-grade carbon steel. Withstands load test as specified in relevant “I.S.” even exceeds U.S., Federal specifications of load test.

PRODUCT NO.	A	B	C	WEIGHT GRAMS
1259-2	200	55	49	360
1260-3	260	80	62	570
1261-4	330	105	75	1060
1263-6	440	155	93	1700
1264-8	565	205	106	2840

Special Features

Salient Features

Drop Forged from high grade carbon steel

Withstands load test as specified in relevant “I.S.” even exceeds U.S., Federal specifications of load test.

Normal Features:

Scientifically heat treated body and screw to give maximum strength.
I-Section frame for strength and toughness.
Swivel head on ball end of operating screw ensures a good clamp on angle work pieces.
Serrations provided on PAD and C-Clamp body for better gripping.
Acme thread on screw provides higher as well as quicker/easier movement for clamping/unclamping.
Hex head on screw facilitates use of spanners for tightening as and when required.\
Available in following sizes.

Product No	Sizes	Tension load test
1259-2	55 mm	1225
1260-3	80 mm	1450
1261-4	105 mm	1675
1263-6	155 mm	2125
1264-8	205 mm	2350
1265-10	255 mm	2575
1266-12	305 mm	2800
