F Clamp

F Clamp

Product Overview

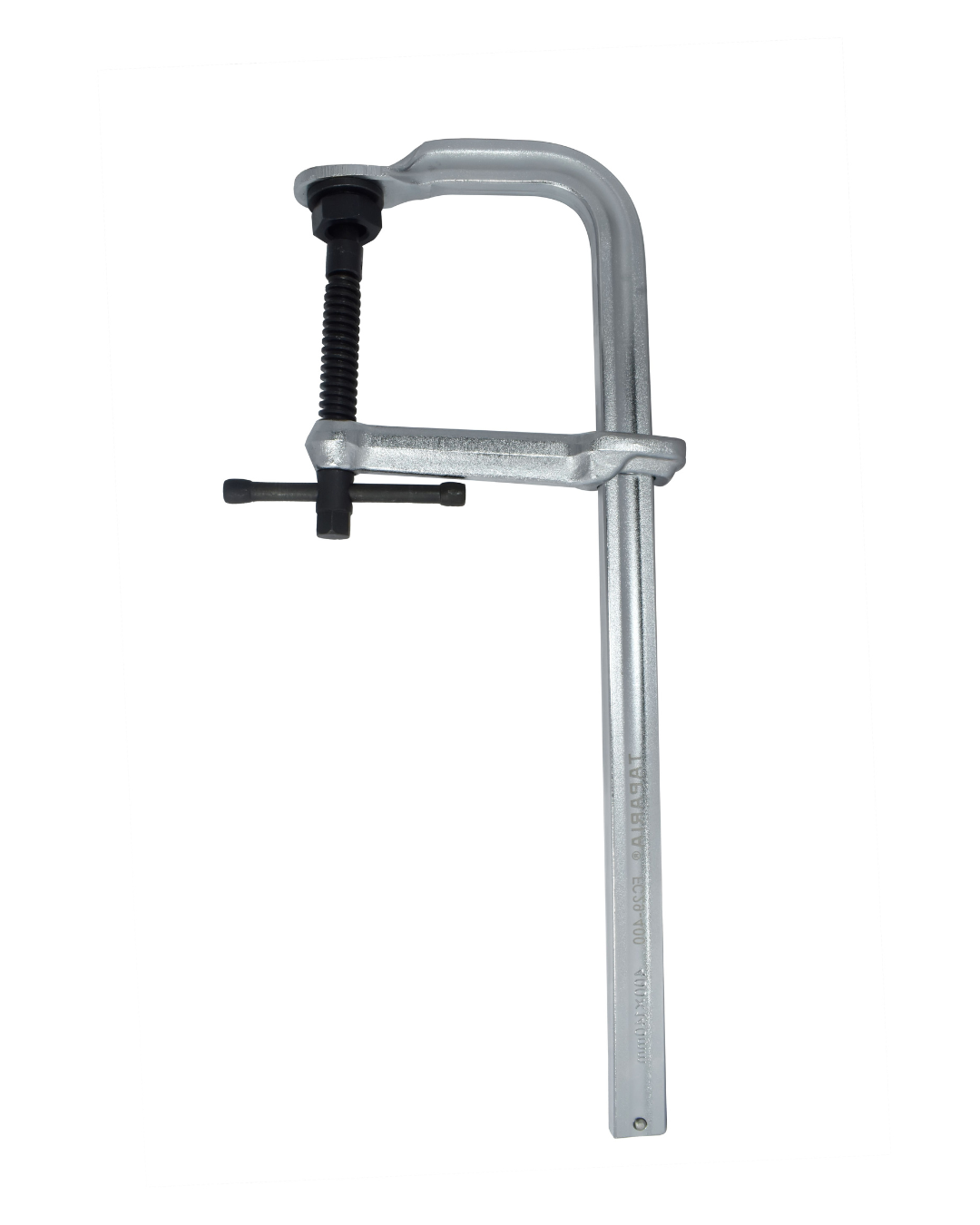

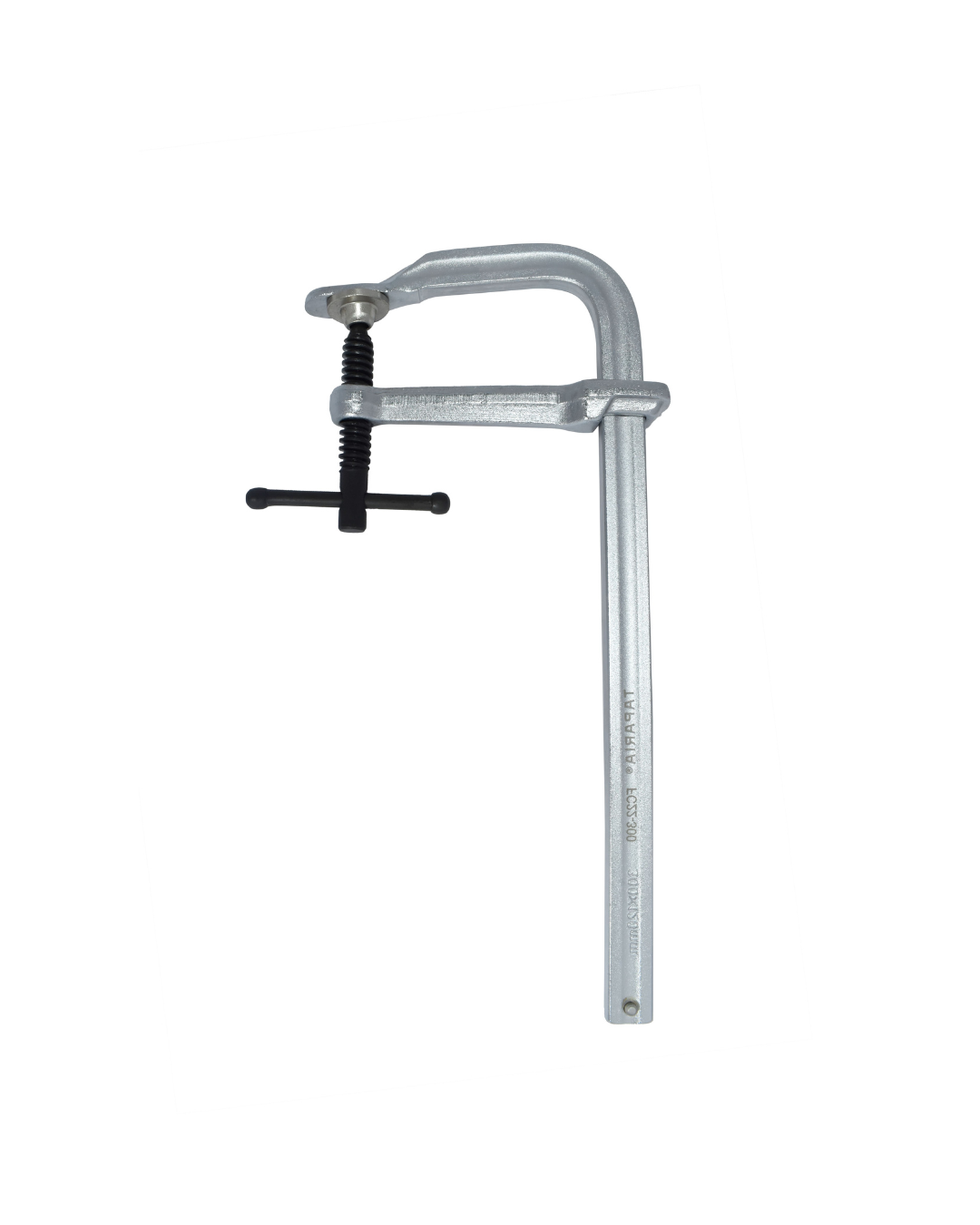

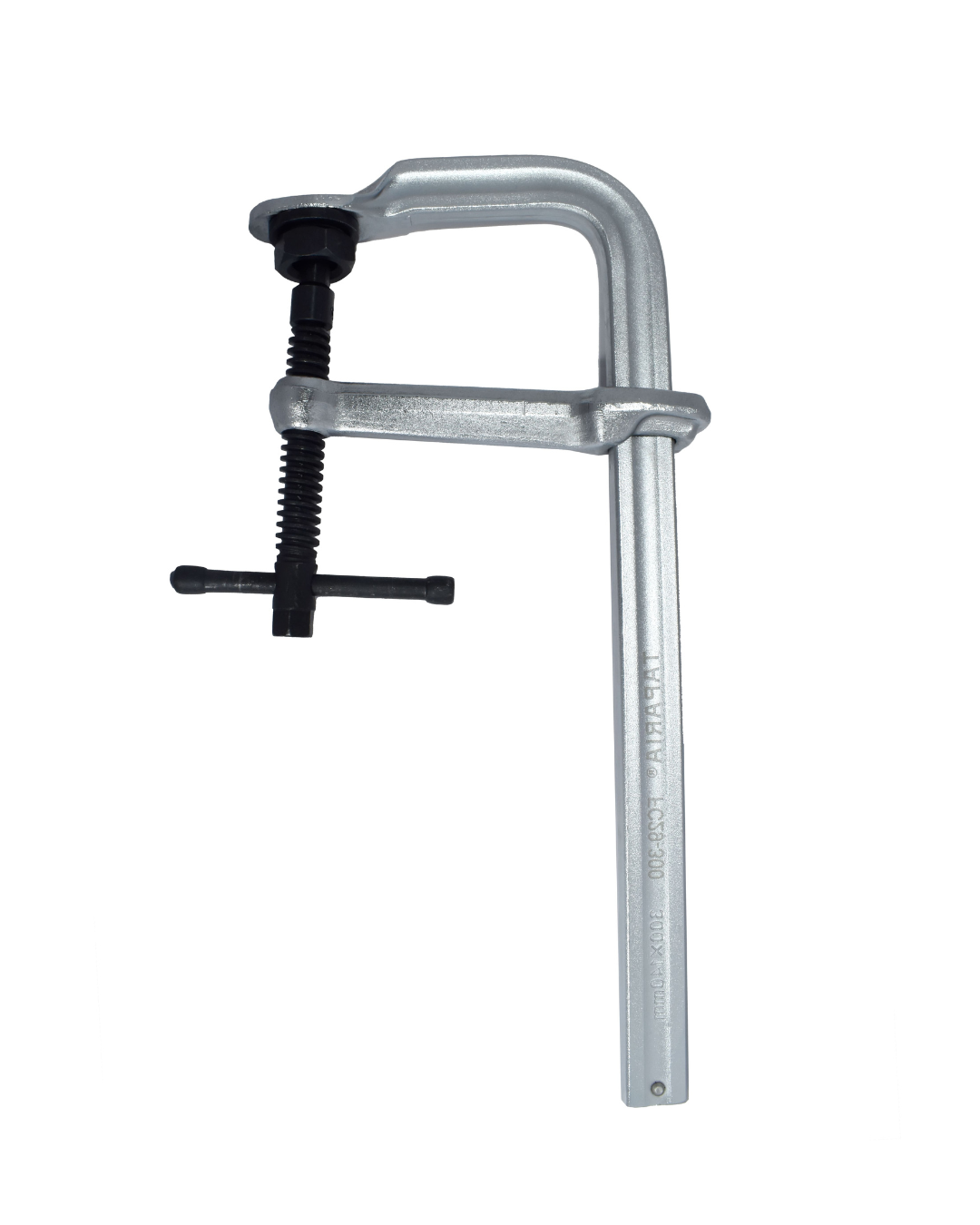

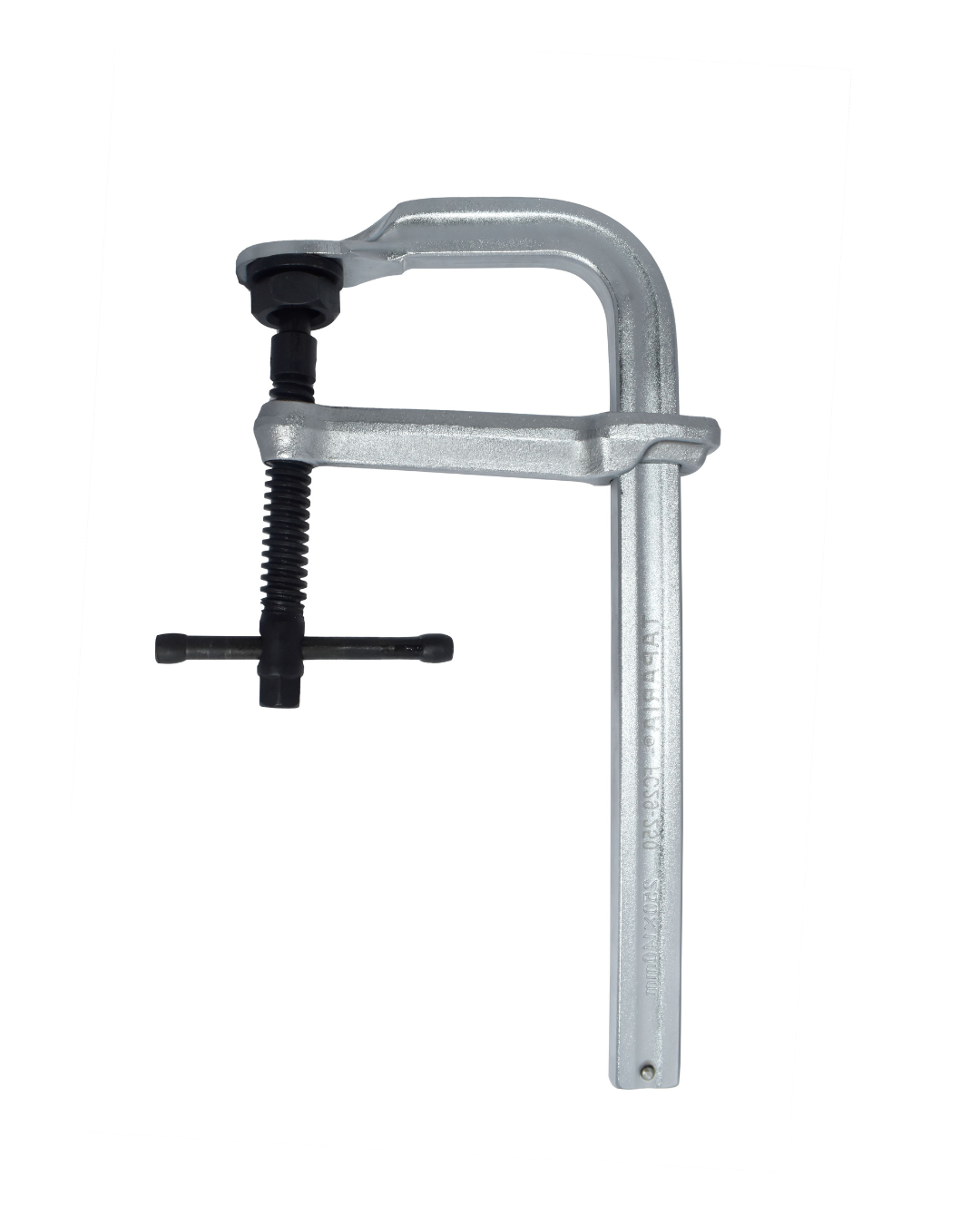

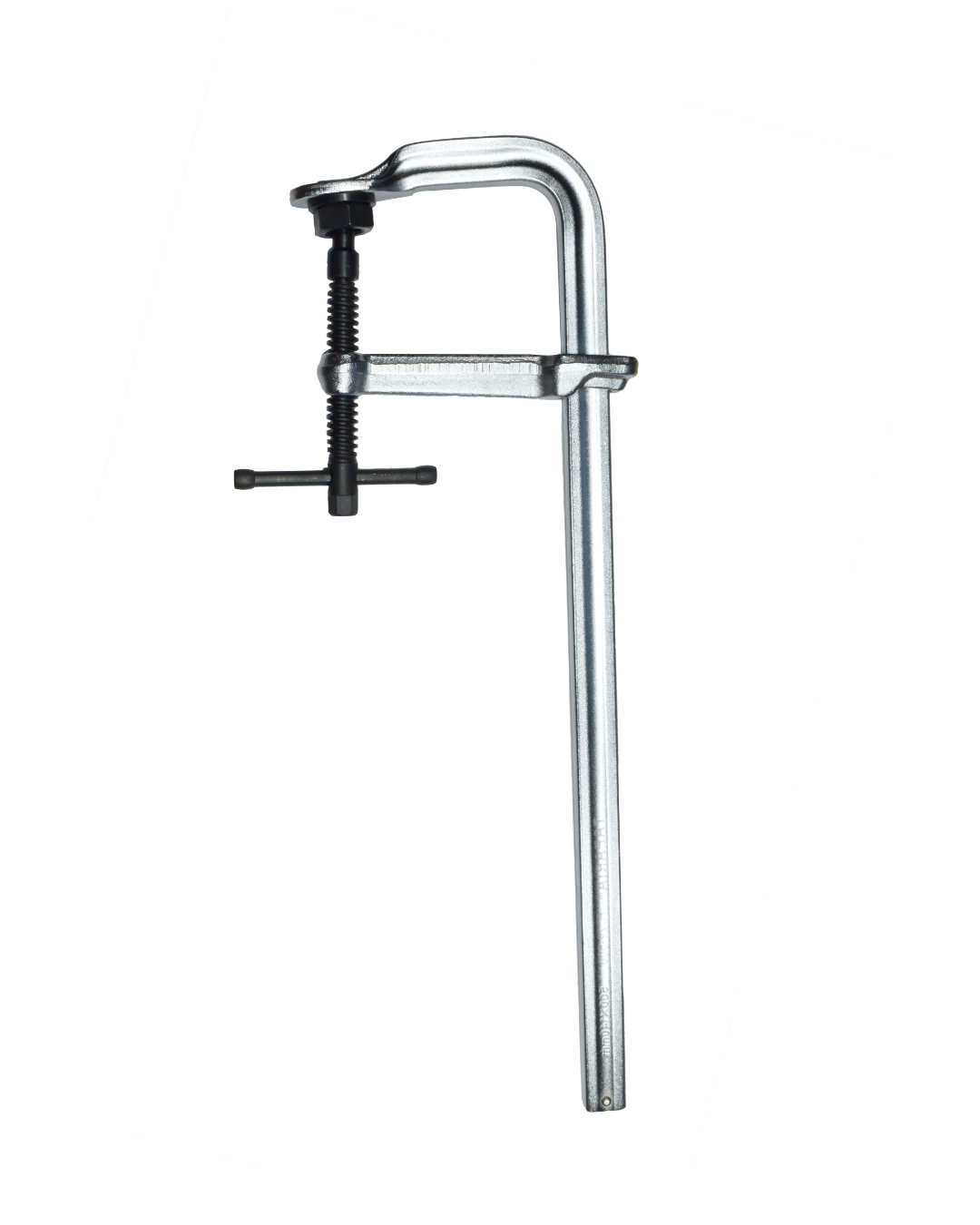

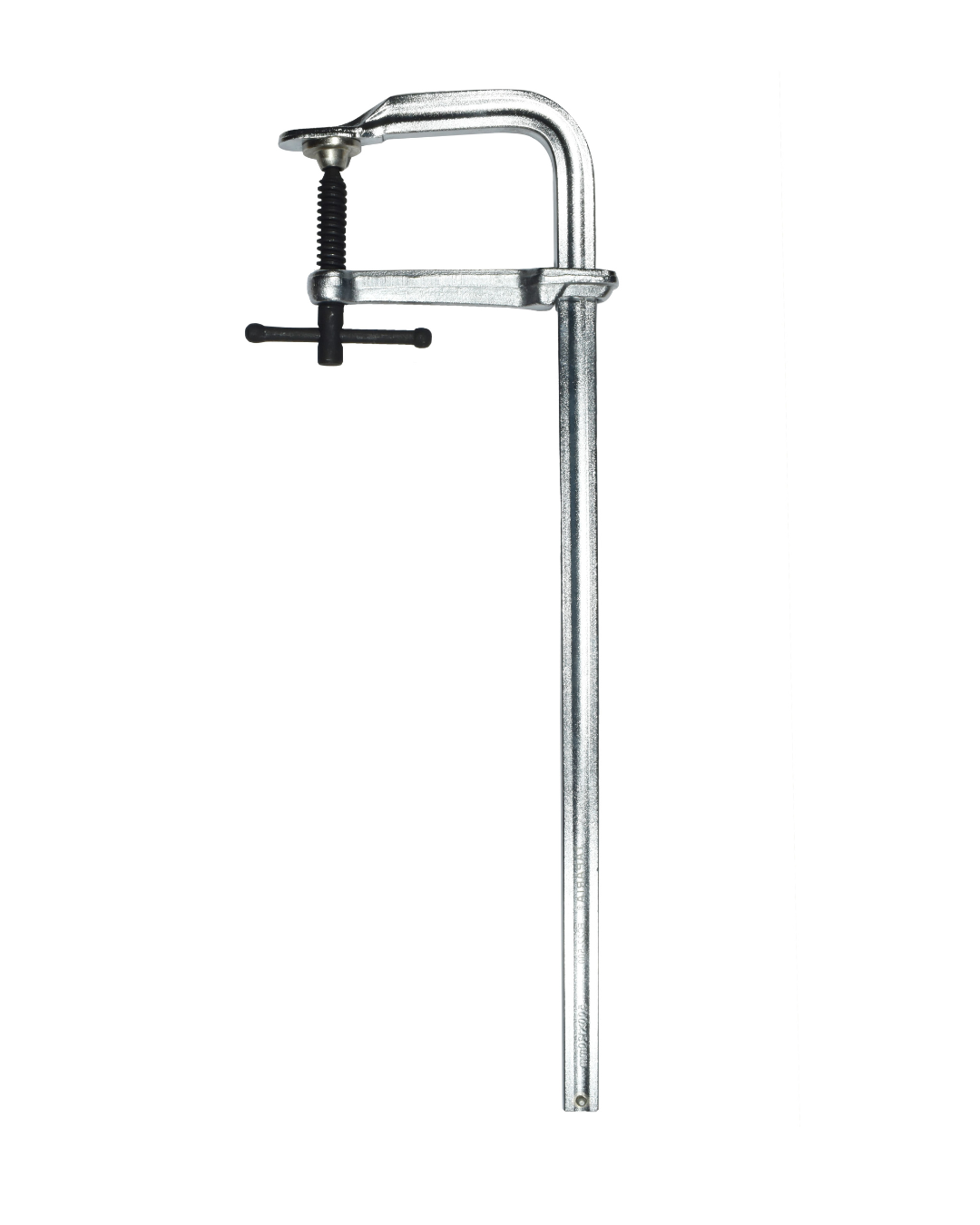

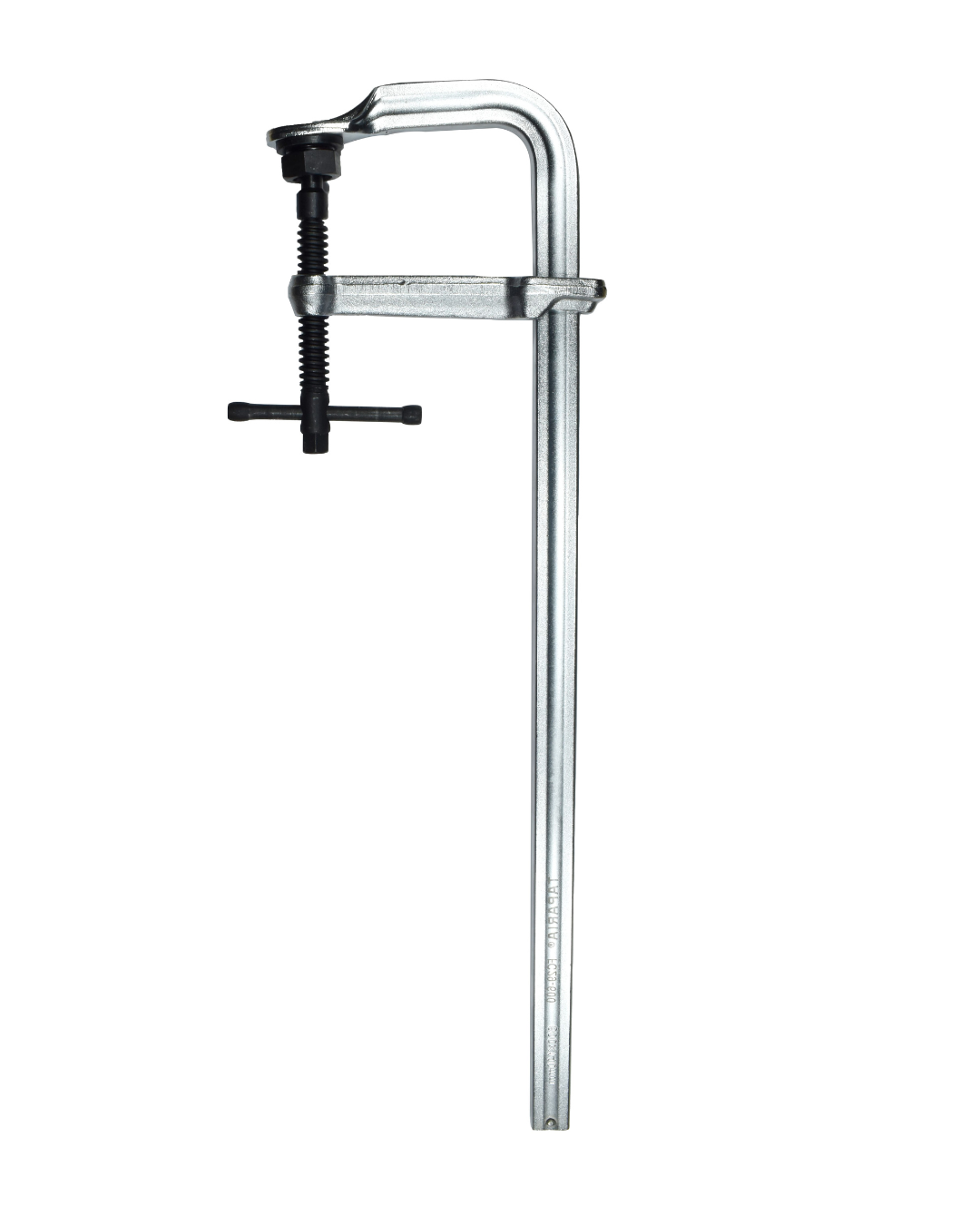

F - CLAMPS ( HEAVY DUTY )

PRODUCT NO.	A	B	C	D	E	WEIGHT GRAMS
FC29-250	380	250	120	29.7	14.3	2700
FC29-300	430	300	120	29.7	14.3	2880
FC29-400	530	400	120	29.7	14.3	3180
FC29-500	630	500	120	29.7	14.3	3500
FC29-600	730	600	120	29.7	14.3	3800

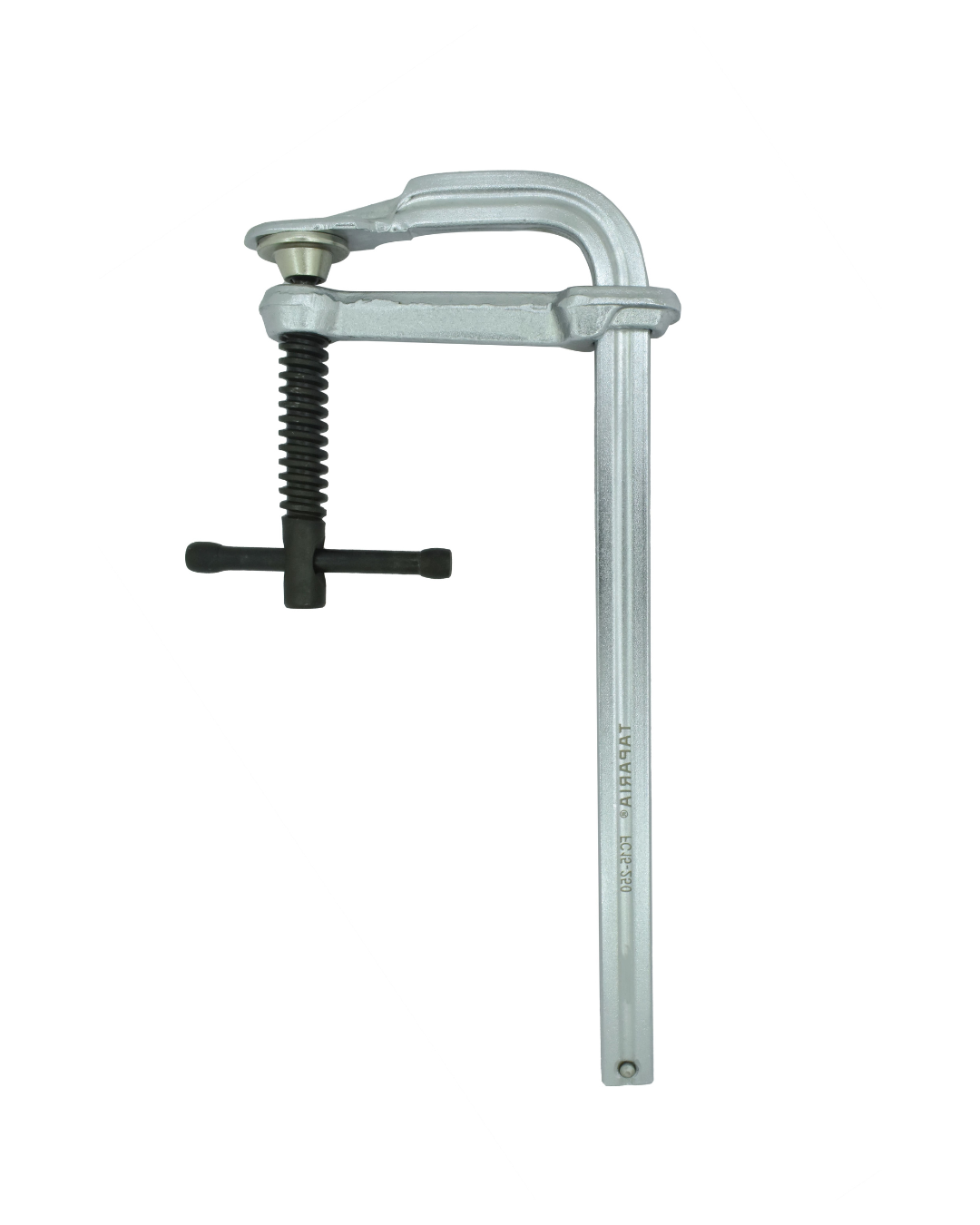

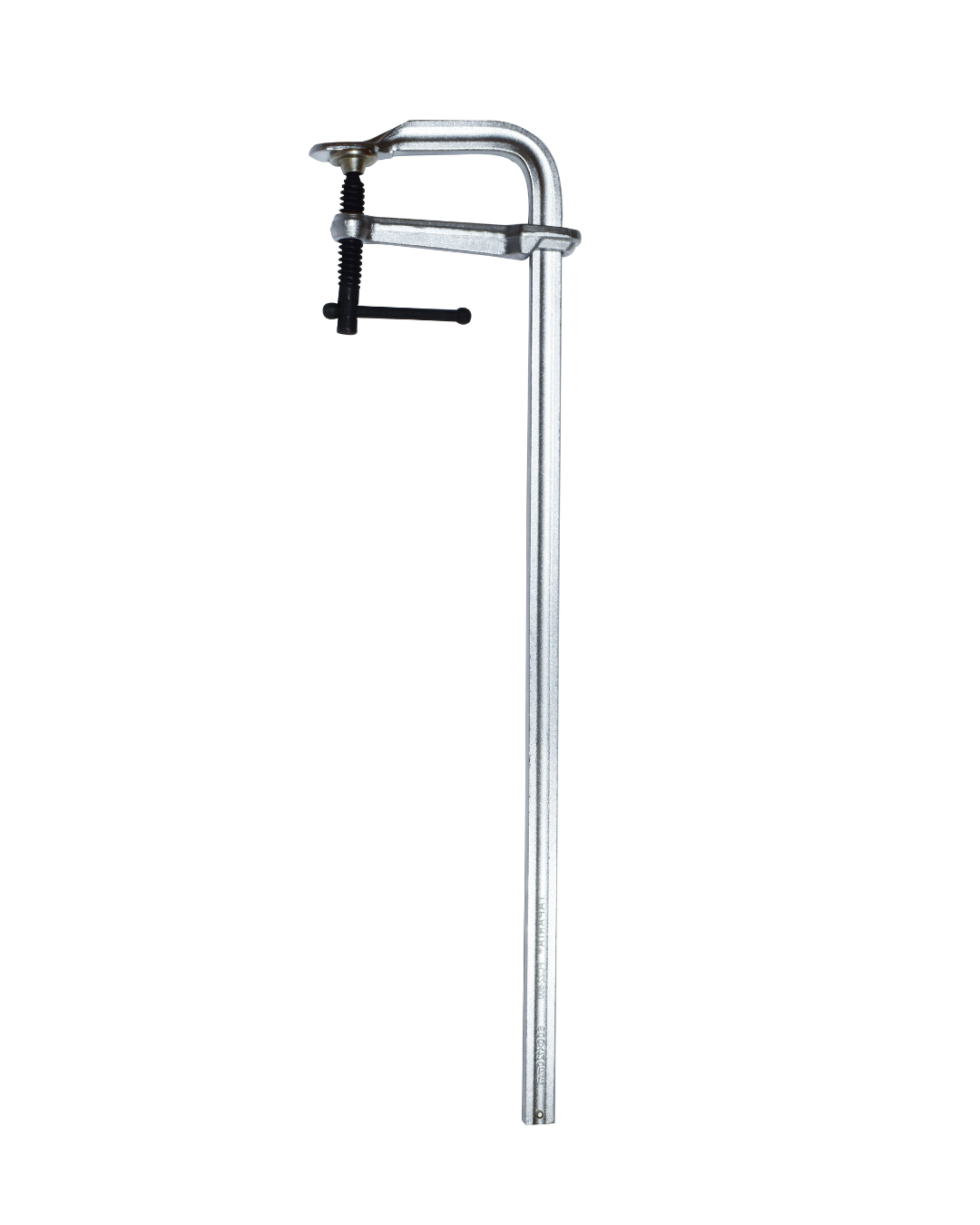

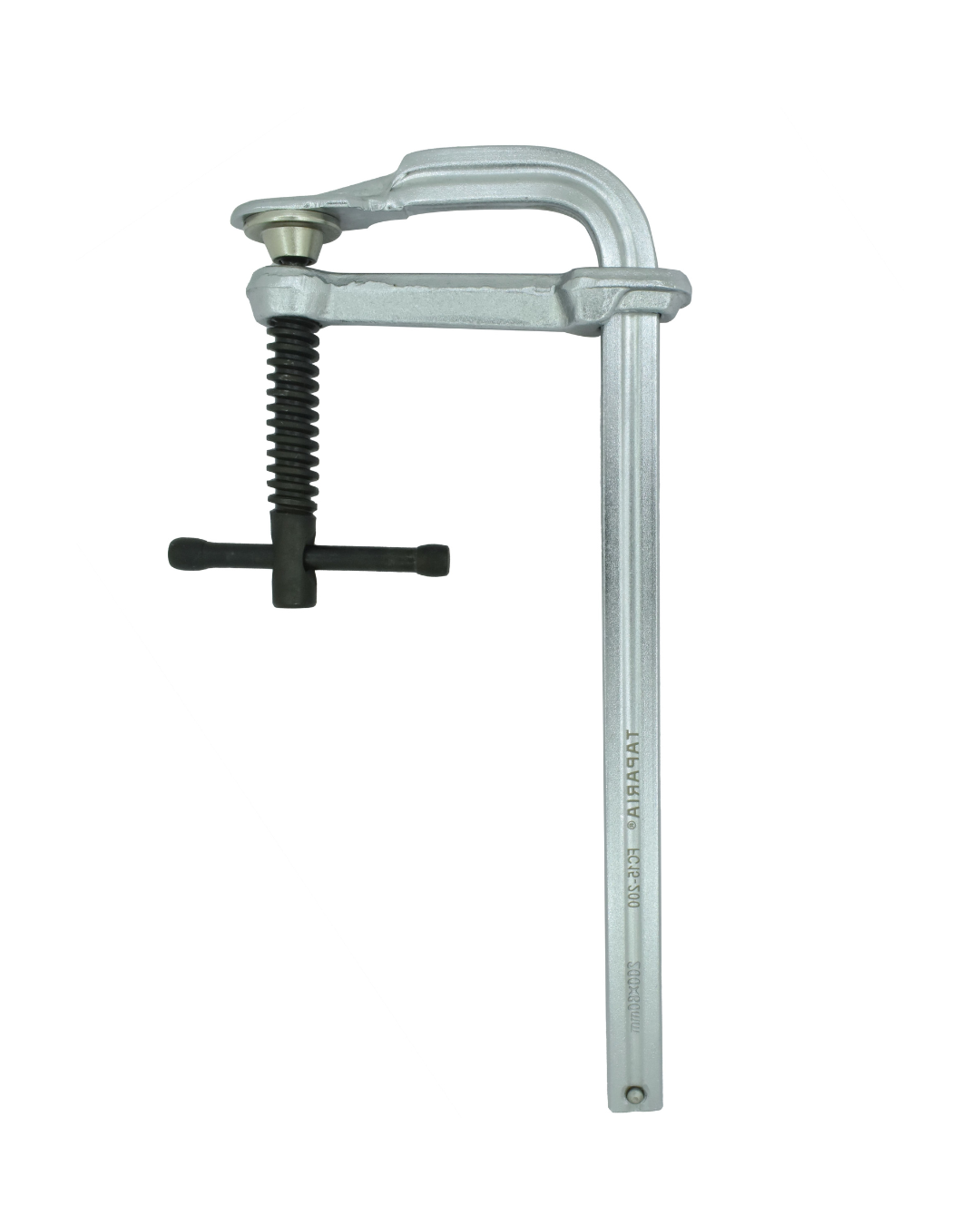

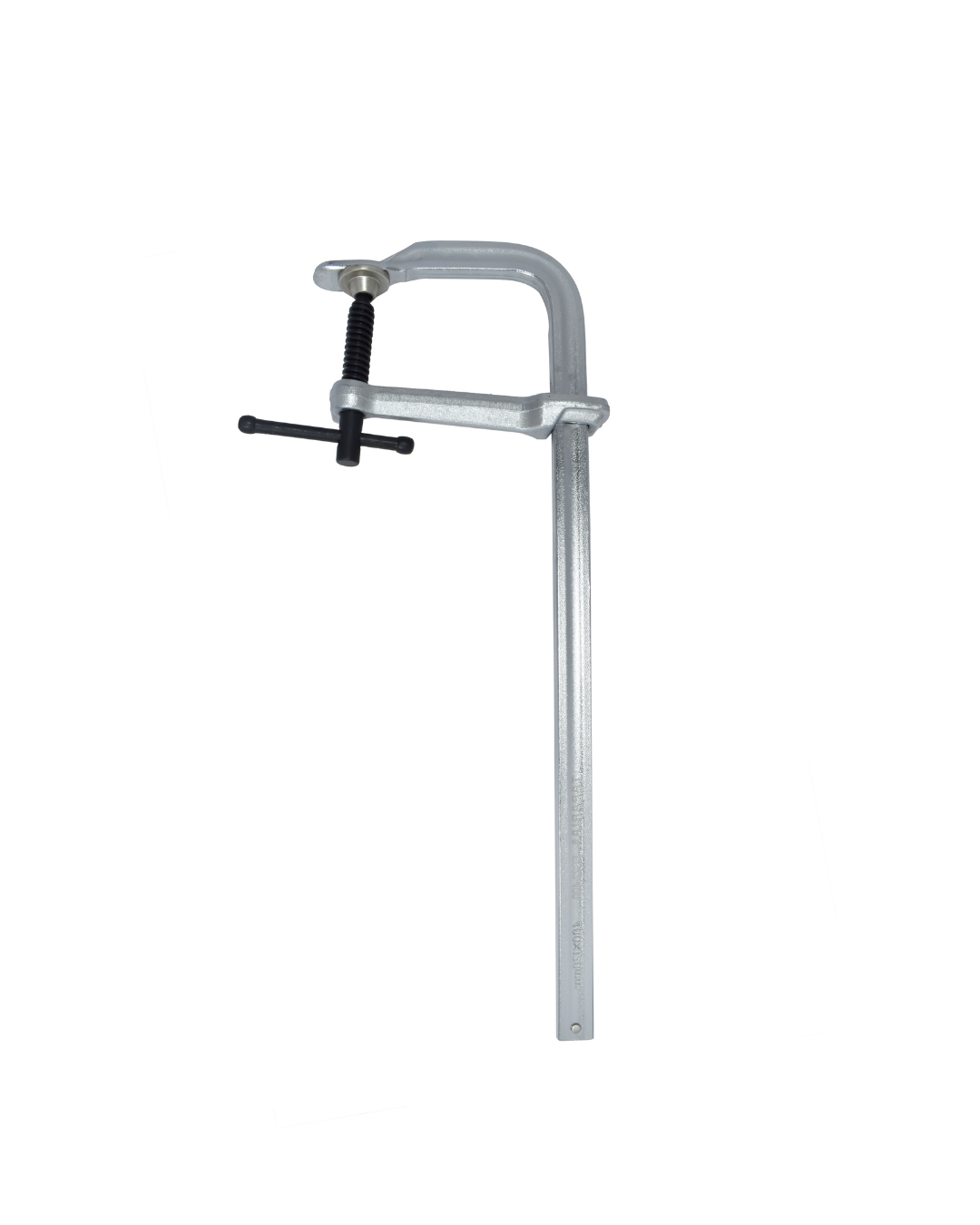

F - CLAMPS ( LIGHT DUTY)

PRODUCT NO.	A	B	C	D	E	WEIGHT GRAMS
FC15-200	270	200	80	15.5	7.5	525
FC15-250	320	250	80	15.5	7.5	575
FC22-300	390	300	120	22.0	10.6	1330
FC22-400	490	400	120	22.0	10.6	1495
FC22-500	590	500	120	22.0	10.6	1660
FC22-600	690	600	120	22.0	10.6	1835

Special Features

Salient Features

F-Clamps are made from high grade quality steel.
Scientifically hardened and tempered to give tough body.
Steel slide rail for fast clamping with smooth action.
I – section frame for more strength.

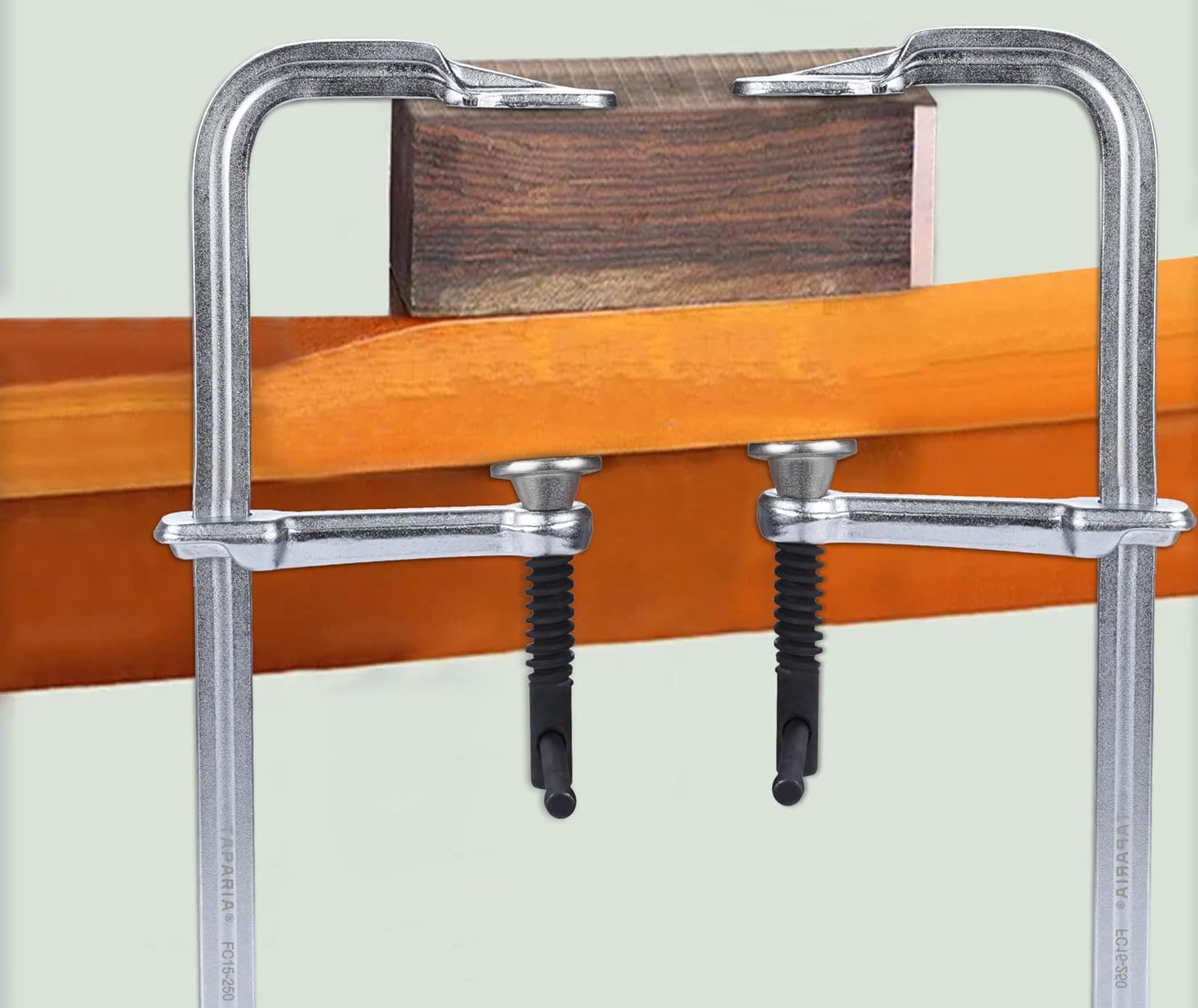

Swivel head on ball end of operating screw ensures a secure and easily clamping of odd / irregular shapes.
Available in two types i.e. Light Duty and Heavy Duty with different sizes.

A] Light Duty:

Product No.	Max.opening	Throat / Depth	Rail Size
FC15-200	200 mm	80 mm	15.5 X 7.5 mm
FC15-250	250 mm	80 mm	15.5 X 7.5 mm
FC22-300	300 mm	120 mm	22.0 X10.6 mm
FC22-400	400 mm	120 mm	22.0 X10.6 mm
FC22-500	500 mm	120 mm	22.0 X10.6 mm
FC22-600	600 mm	120 mm	22.0 X10.6 mm

B] Heavy Duty:

Product No.	Max.opening	Throat / Depth	Rail Size
FC29 -250	250 mm	120\140 mm	29.7X14.3 mm
FC29-300	300 mm	120\140 mm	29.7X14.3 mm
FC29-400	400 mm	120\140 mm	29.7X14.3 mm
FC29-500	500 mm	120\140 mm	29.7X14.3 mm
FC29-600	600 mm	120 \140mm	29.7X14.3 mm
