| PRODUCT NO | FIG NO | A | B | D | O | E | WEIGHT GRAMS |
| B 6 H | 1 | 28 | 12 | 10.3 | 17 | 6 | 25 |
| B 7H | 1 | 28 | 12 | 11 | 17 | 7 | 25 |
| B 8H | 1 | 28 | 12 | 12 | 17 | 8 | 25 |
| B 9H | 1 | 28 | 12 | 13.3 | 17 | 9 | 25 |
| B 10H | 1 | 28 | 12 | 14.5 | 17 | 10 | 25 |
| B 11H | 2 | 28 | 12 | 16 | 17 | 11 | 25 |
| B 12H | 2 | 28 | 16 | 17 | 15.5 | 12 | 25 |
| B 13H | 2 | 28 | 16 | 17.8 | 16.5 | 13 | 25 |
| B 14H | 2 | 28 | 16 | 19.7 | 17 | 14 | 25 |
| B 17H | 2 | 30 | 18 | 23.7 | 20 | 17 | 45 |
| B 19H | 2 | 30 | 18 | 26 | 23 | 19 | 60 |
| B 21H | 2 | 30 | 18 | 28 | 25 | 21 | 70 |
| B 22H | 2 | 30 | 18 | 29.7 | 26 | 22 | 80 |

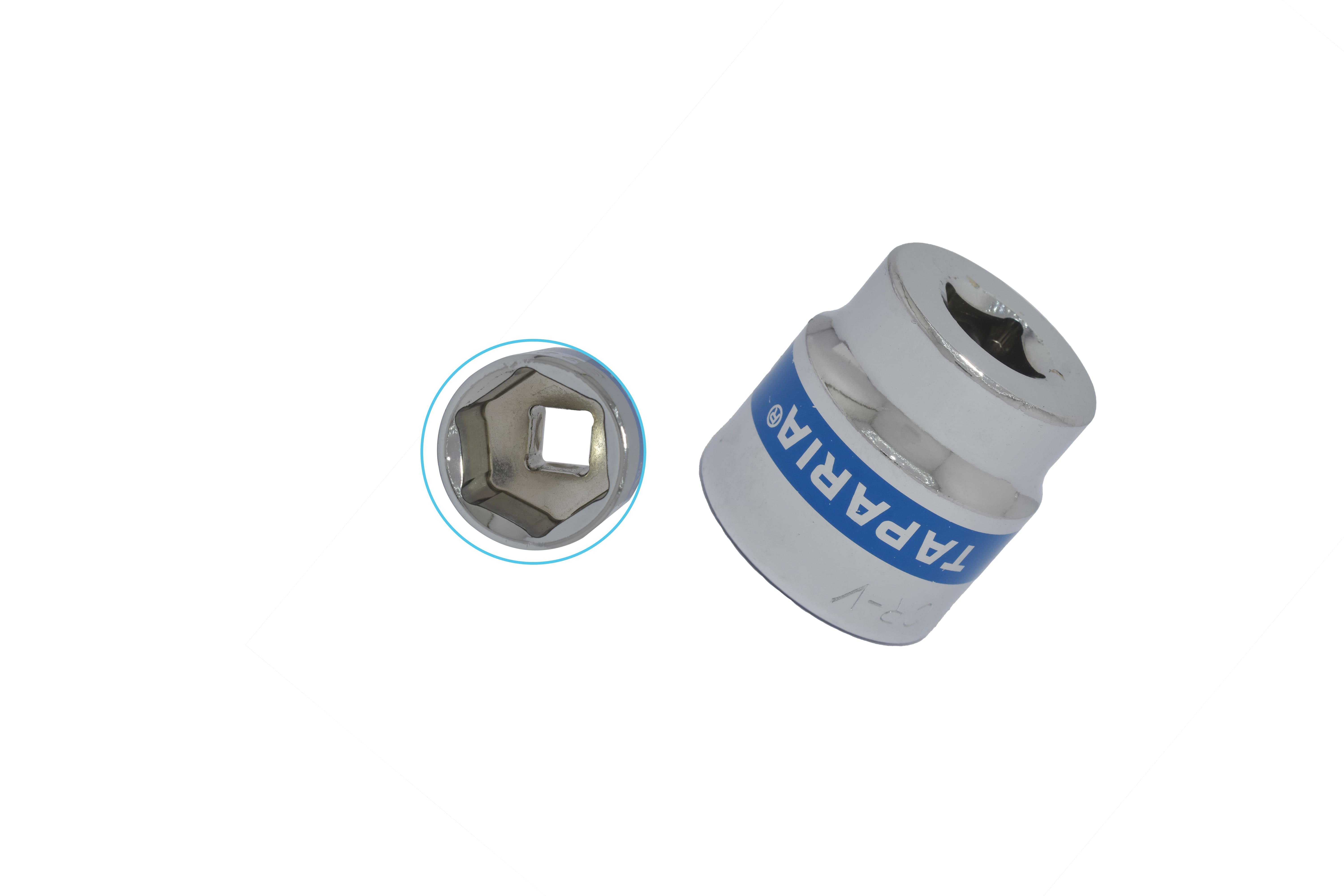

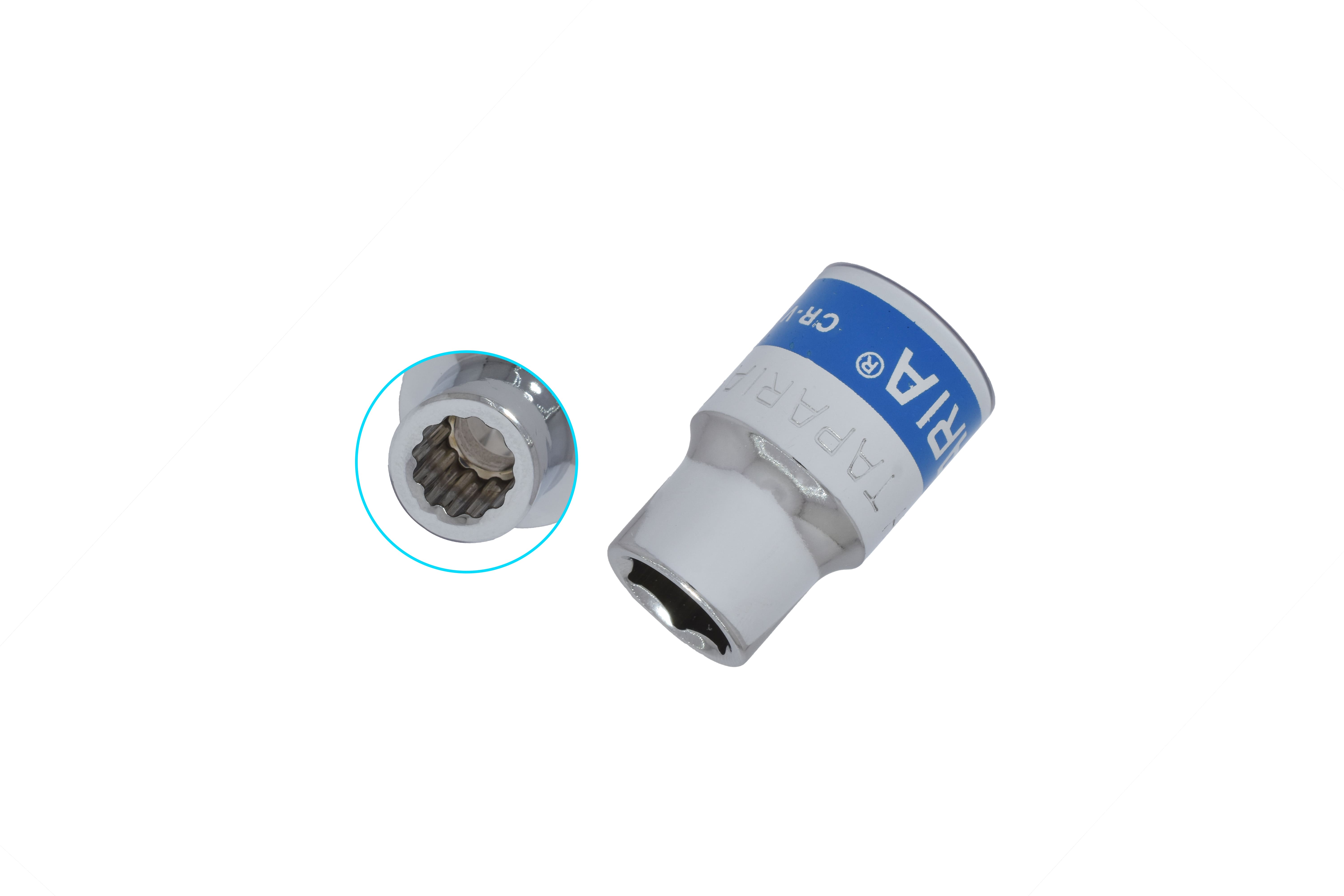

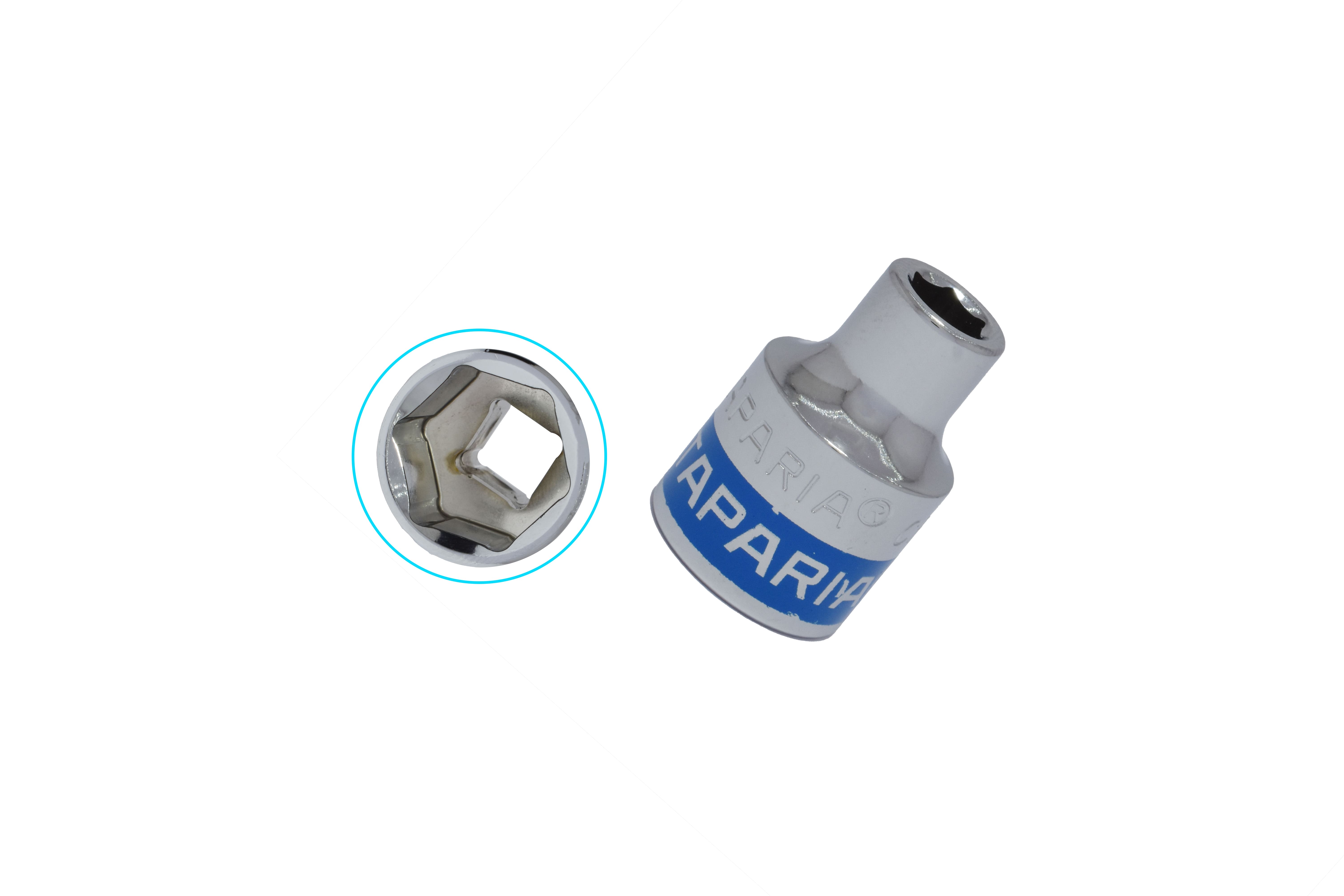

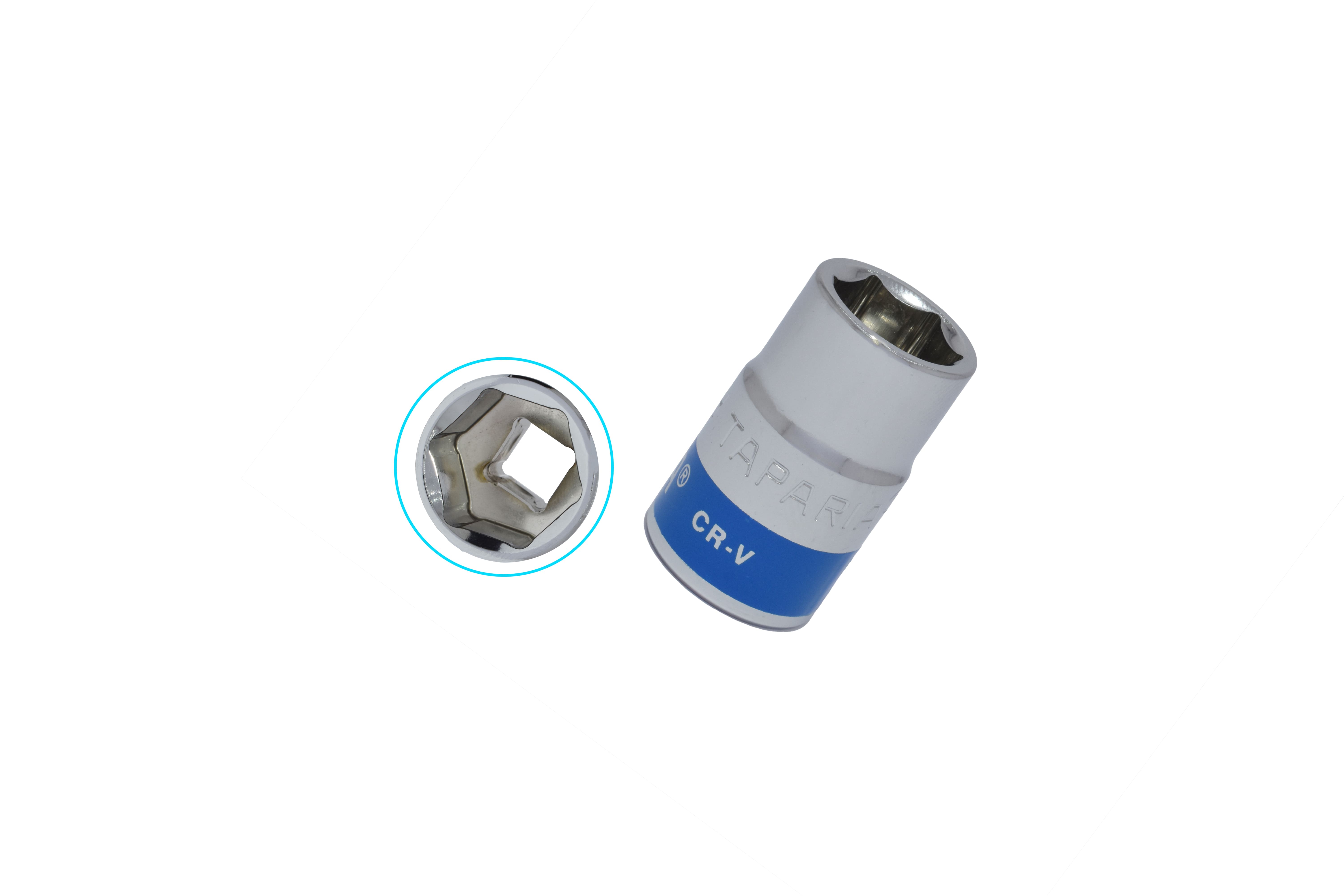

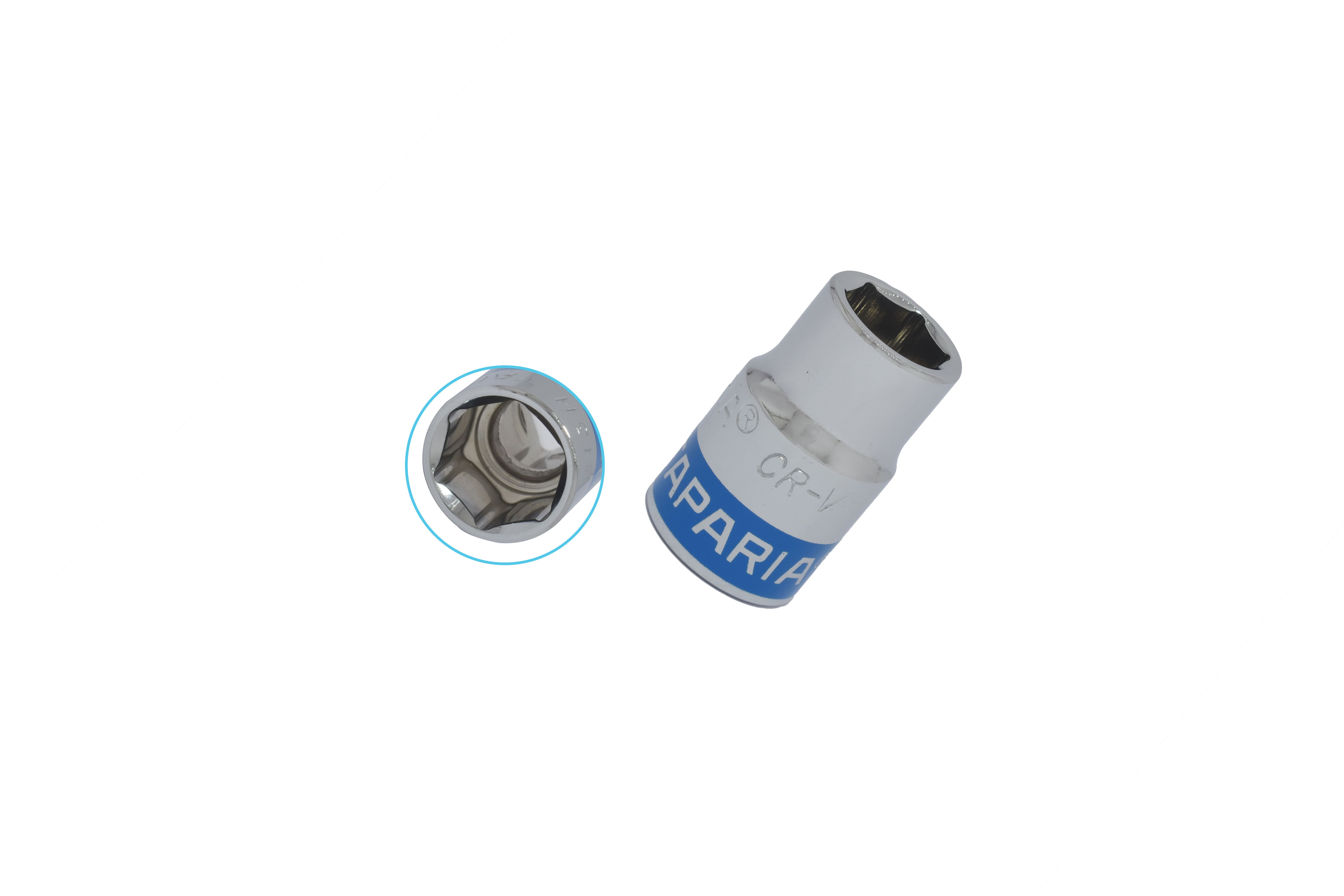

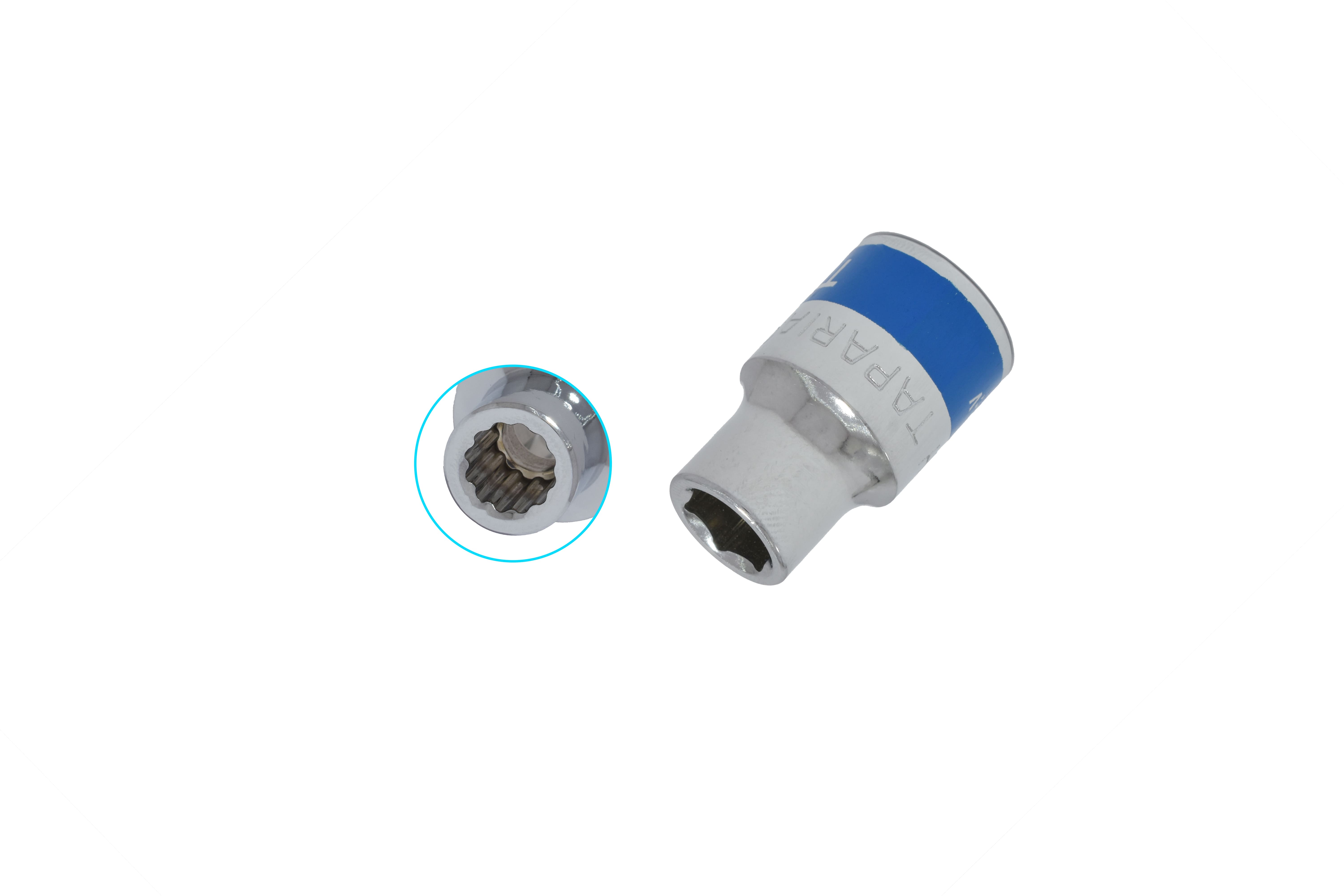

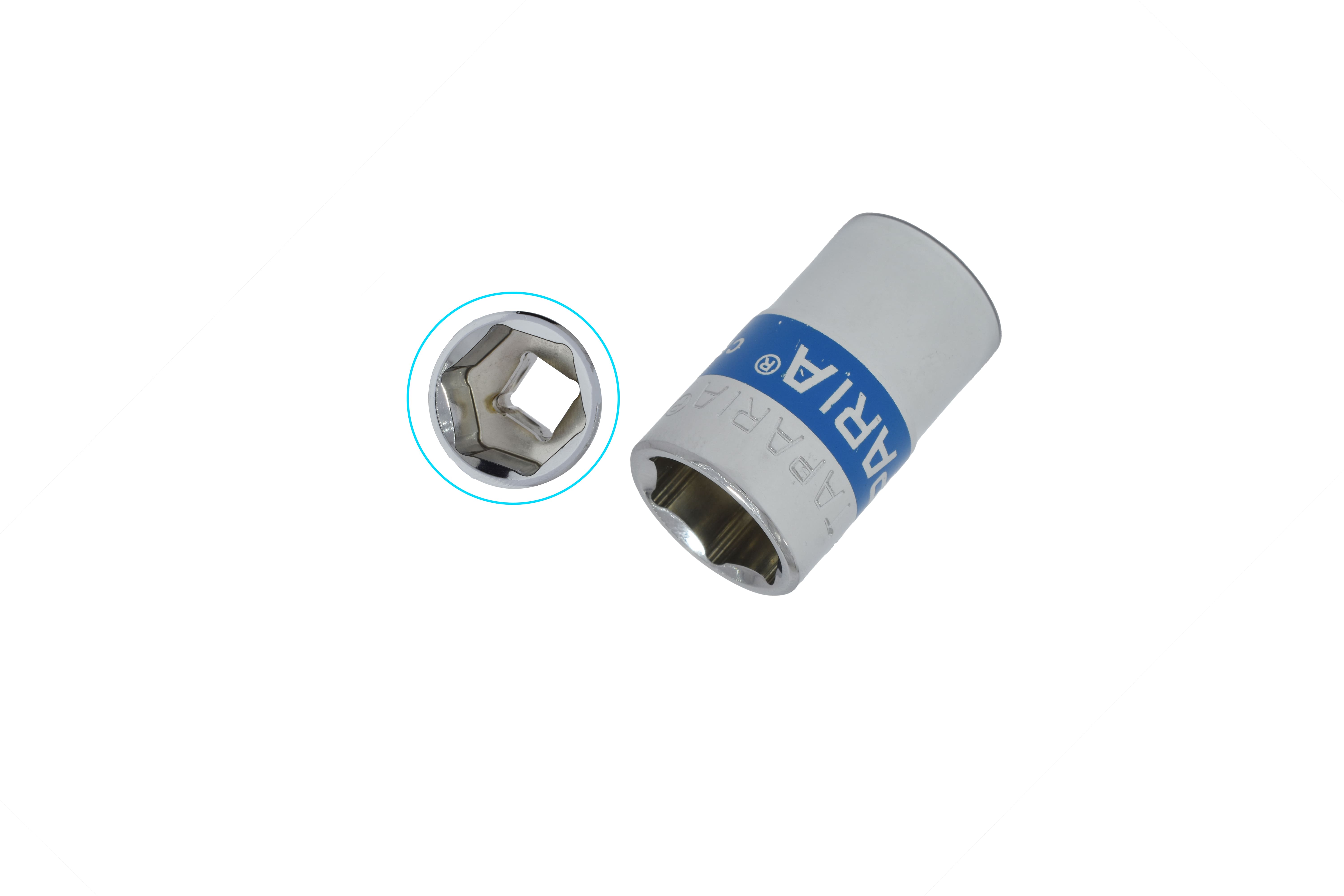

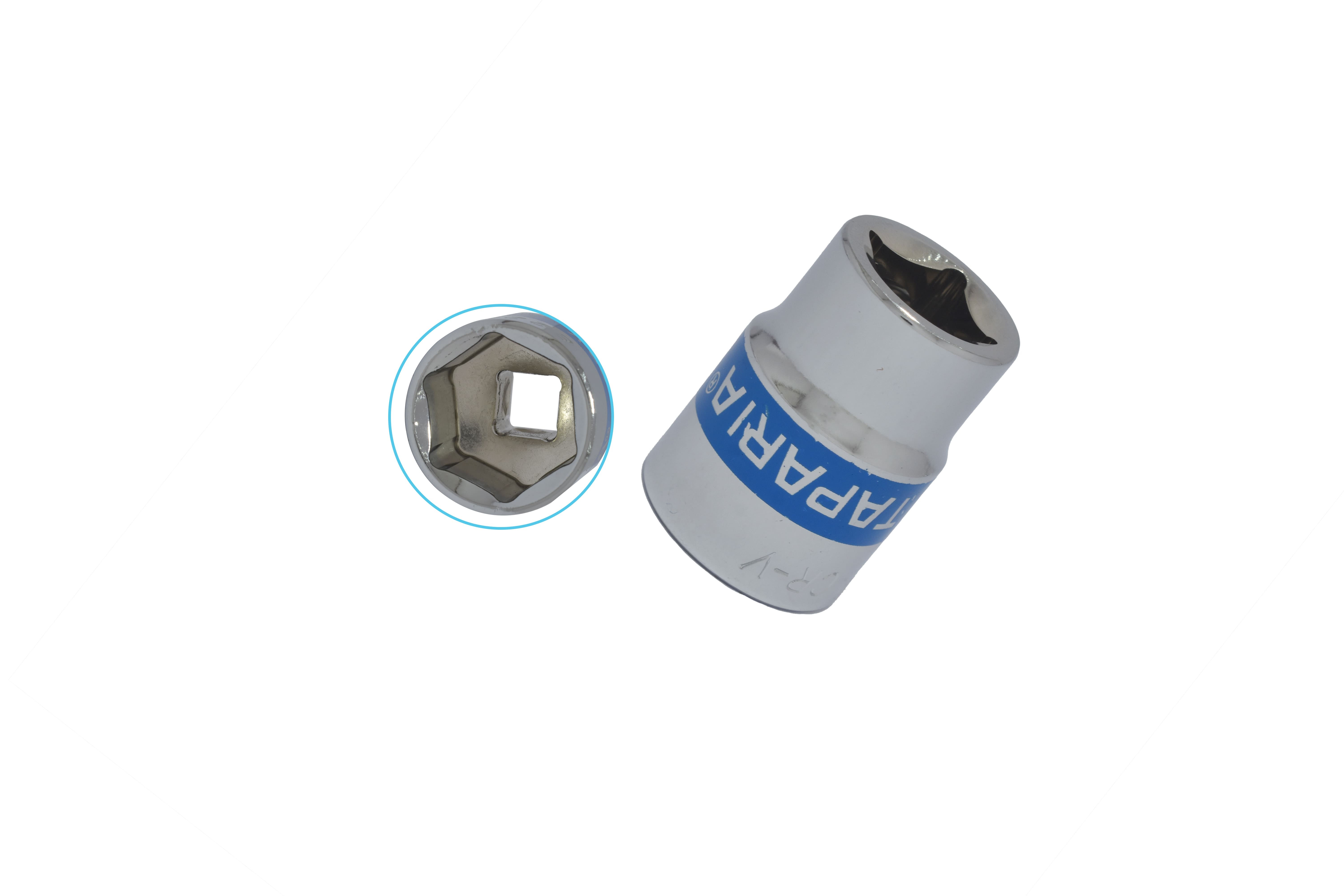

Socket
Sockets are forged from high grade Chrome Vanadium steel & Impact sockets from Cr-Mo steel.
Socket bits are made from High grade alloy steel.
Scientifically heat treated Sockets & Bits to give maximum strength and wear resistance.
Special rubber ring in spark plug socket to prevent damage of plug.
Extra-long design of spark plug socket for easy operation without any damage to plug.
Bit is press fitted in sockets adequately.
Special flower type profile drive in E sockets.
Nickel Chrome plating & phosphate finish to enable rust prevention and good looks.
Socket bits are specially coated and oiled for rust prevention.
Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive with E socket, hexagonal / Bi-hexagonal patterns in different sizes.
| Bit Sockets are available in | available in |
| Hex | 3, 4, 5, 6, 7, 8, 10, 12, 14, 17 mm. |
| Torx | T10, T20, T25, T30, T40, T45, T50, T55, T60 & T70. |
| Philips | Tip No 1, 2 & 3. |
| Flat | 4, 5.5 & 7 mm. |
| Pozy | PZ1, PZ2 & PZ3. |
Minimum Torque Value in Kg.m for Spark plug
| A/F | Torque Value in Kg.m |
| 16 mm | 38.4 |
| 21 mm | 58 |
TAPARIA sockets generally Conform to I.S. 7381 - 1986 & 7993 - 1988.
