| PRODUCT NO | FIGURE NO | A | B | C | D | E | TORX BIT SIZE | WEIGHT GRAMS |
| AH 3 | 1 | 38 | 20 | 18 | 11 | 12 | - | 7 |
| AH 4 | 1 | 38 | 20 | 18 | 11 | 12 | - | 8 |
| AH 5 | 1 | 38 | 20 | 18 | 11 | 12 | - | 10 |
| AH 6 | 1 | 38 | 20 | 18 | 11 | 12 | - | 8 |
| AH 7 | 1 | 38 | 20 | 18 | 11 | 12 | - | 10 |
| AH 8 | 2 | 38 | 20 | 18 | 11 | 12 | - | 10 |
| AH 8 | 2 | 38 | 20 | 18 | 11 | 12 | T8 | 20 |
| AH 10 | 2 | 38 | 20 | 18 | 11 | 12 | T10 | 20 |
| AH 15 | 2 | 38 | 20 | 18 | 11 | 12 | T15 | 20 |
| AH 20 | 2 | 38 | 20 | 18 | 11 | 12 | T20 | 20 |
| AH 25 | 2 | 38 | 20 | 18 | 11 | 12 | T25 | 20 |
| AH 30 | 2 | 38 | 20 | 18 | 11 | 12 | T30 | 20 |
| AH 40 | 2 | 38 | 20 | 18 | 11 | 12 | T40 | 10 |
Socket
Sockets are forged from high grade Chrome Vanadium steel & Impact sockets from Cr-Mo steel.
Socket bits are made from High grade alloy steel.
Scientifically heat treated Sockets & Bits to give maximum strength and wear resistance.
Special rubber ring in spark plug socket to prevent damage of plug.
Extra-long design of spark plug socket for easy operation without any damage to plug.
Bit is press fitted in sockets adequately.
Special flower type profile drive in E sockets.
Nickel Chrome plating & phosphate finish to enable rust prevention and good looks.
Socket bits are specially coated and oiled for rust prevention.
Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive with E socket, hexagonal / Bi-hexagonal patterns in different sizes.
| Bit Sockets are available in | available in |

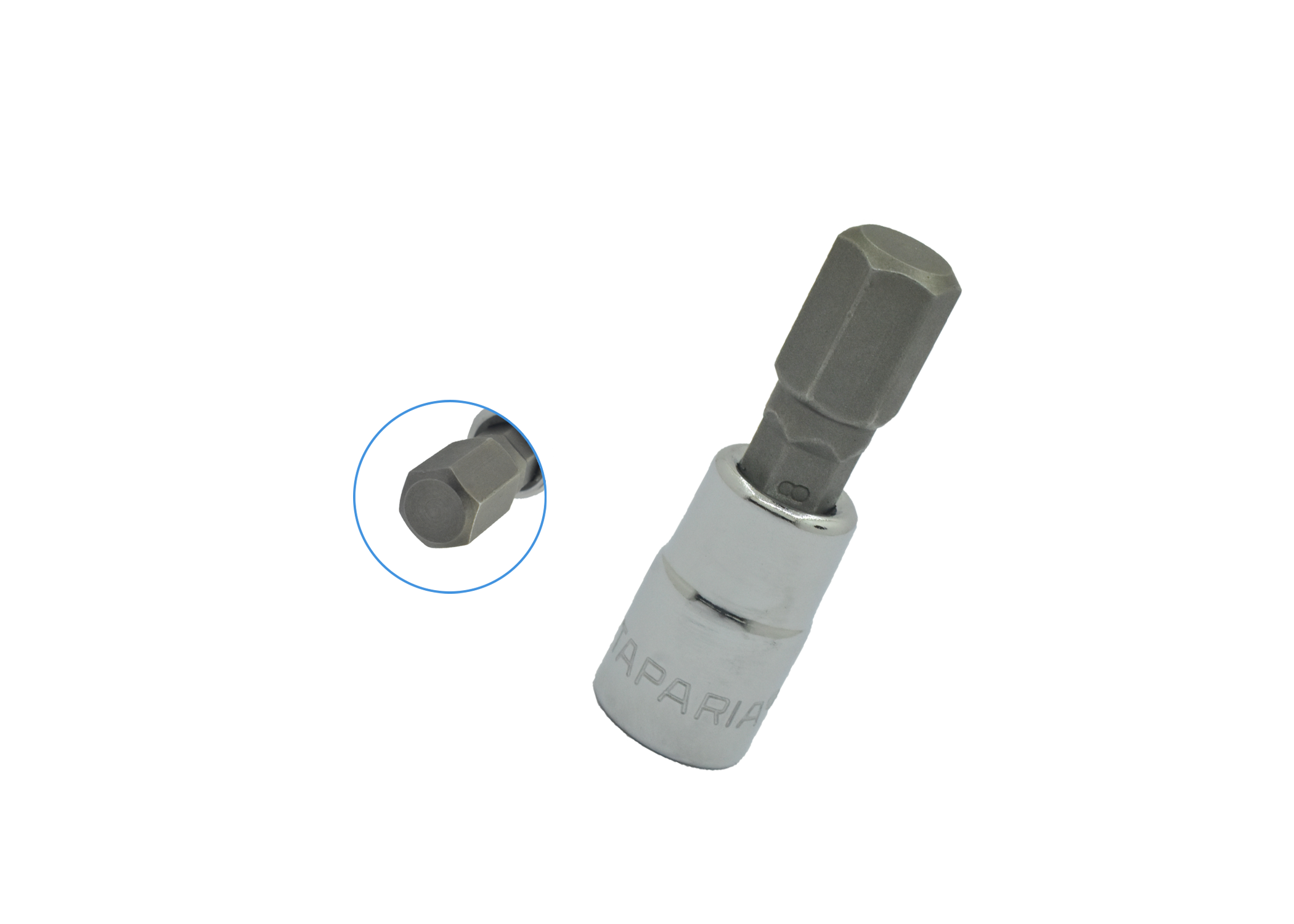

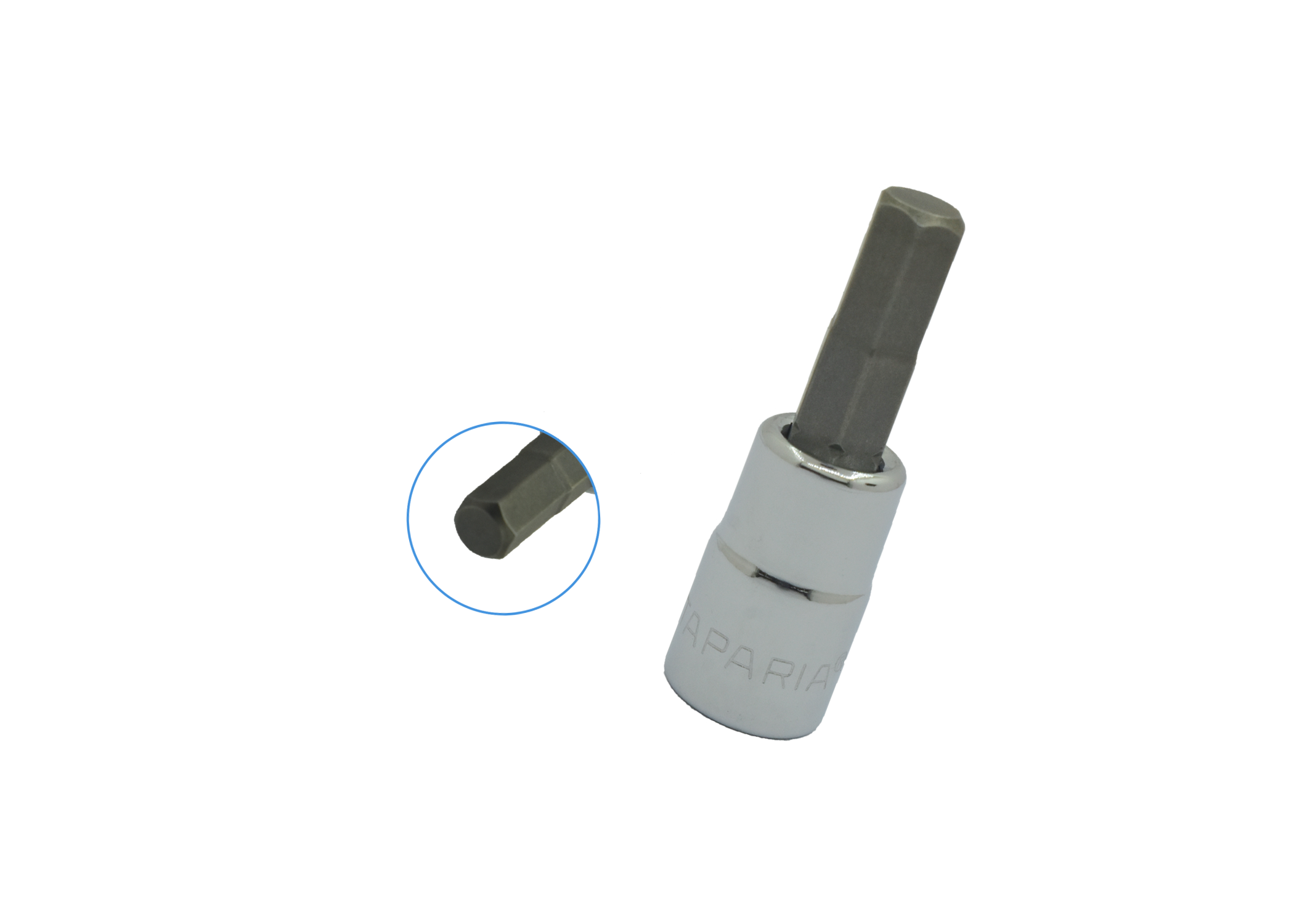

| Hex | 3, 4, 5, 6, 7, 8, 10, 12, 14, 17 mm. |

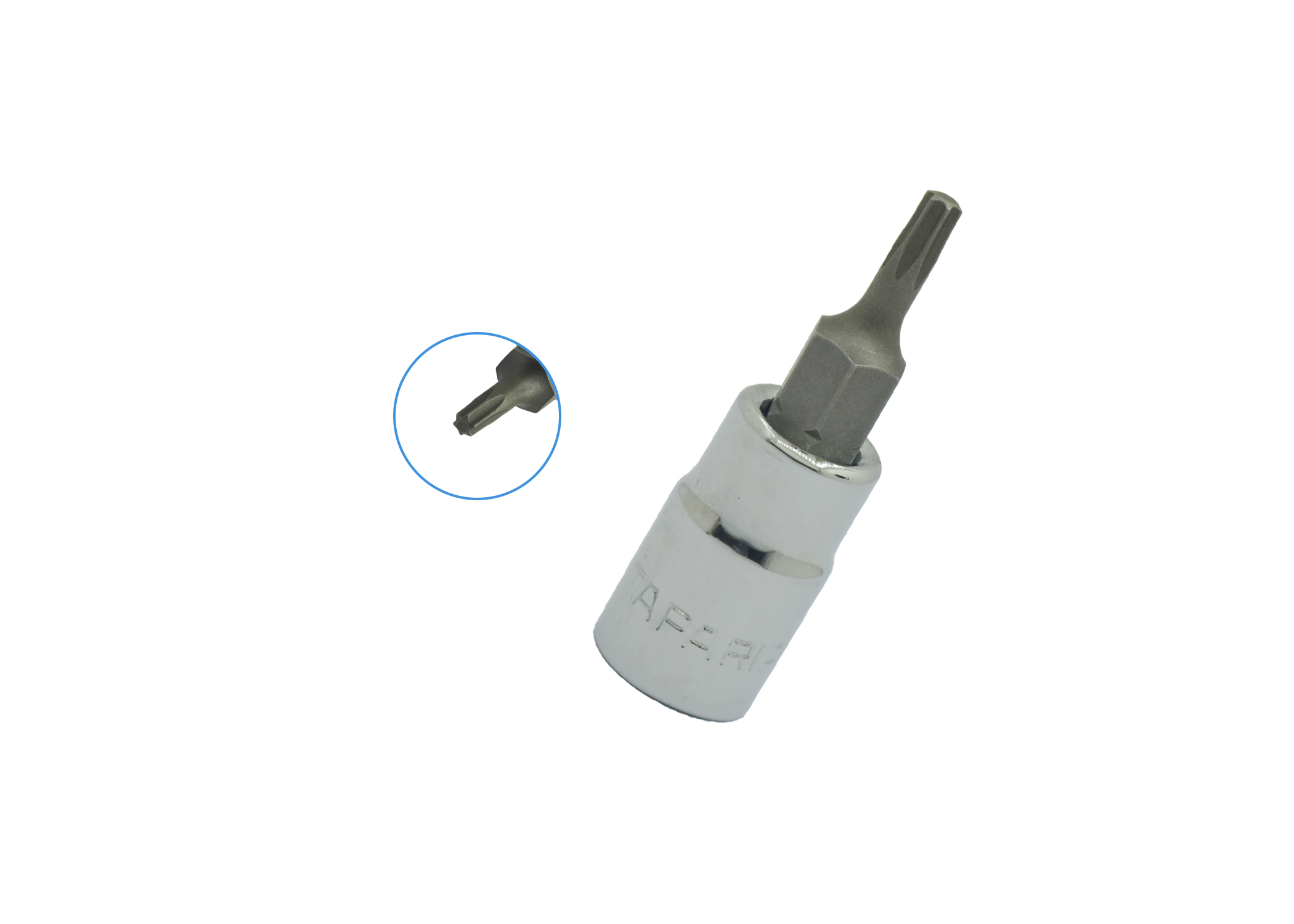

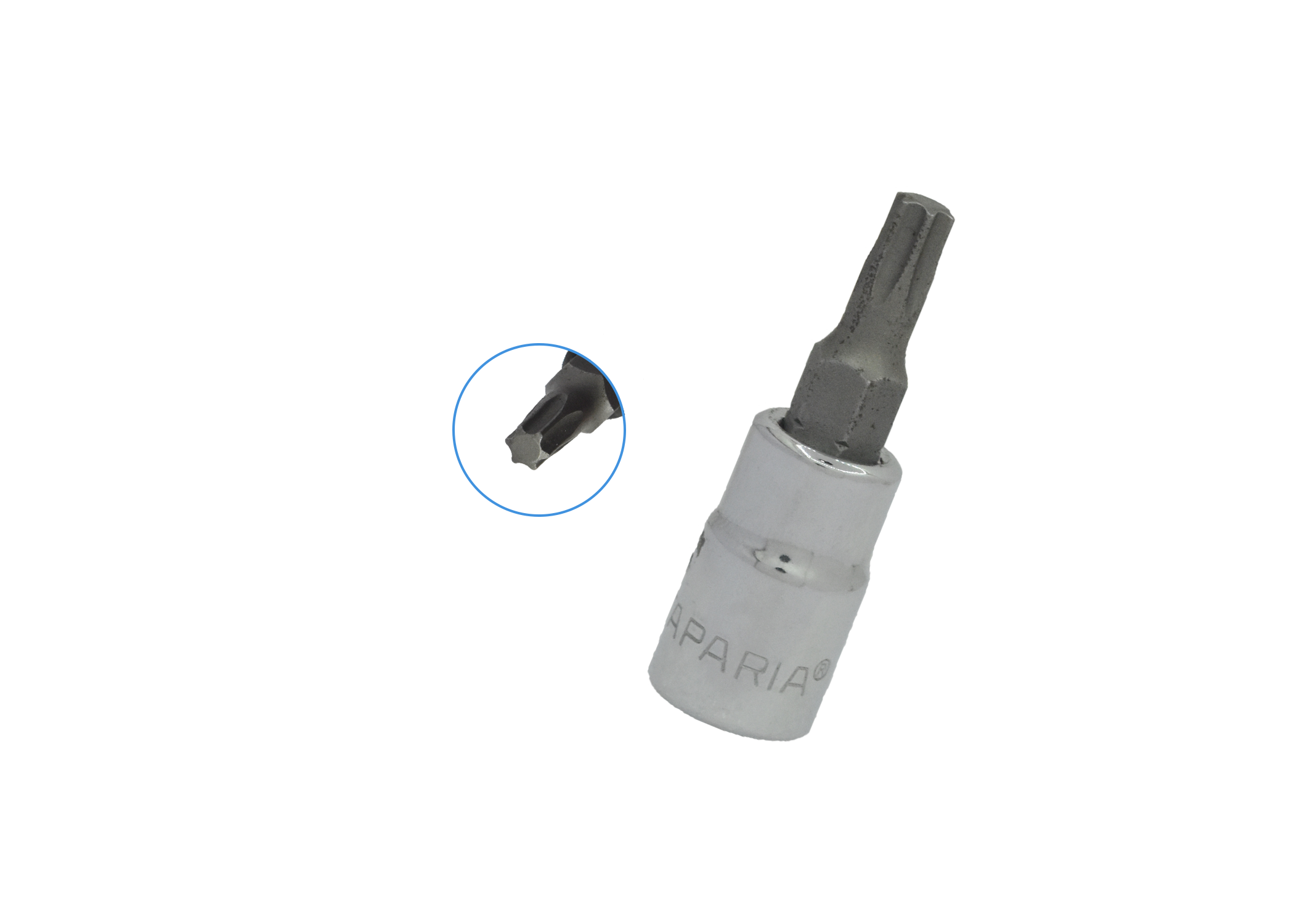

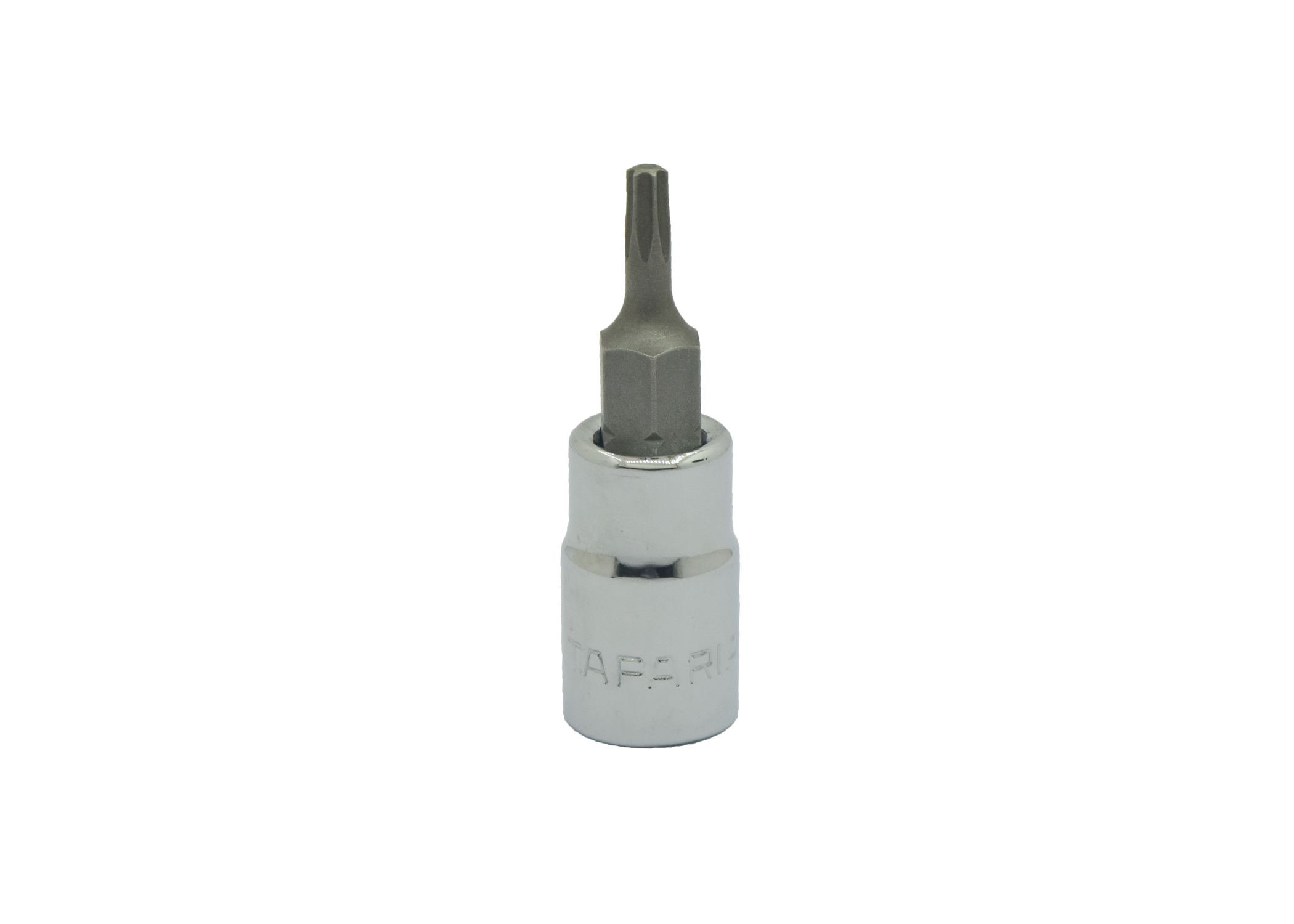

| Torx | T10, T20, T25, T30, T40, T45, T50, T55, T60 & T70. |

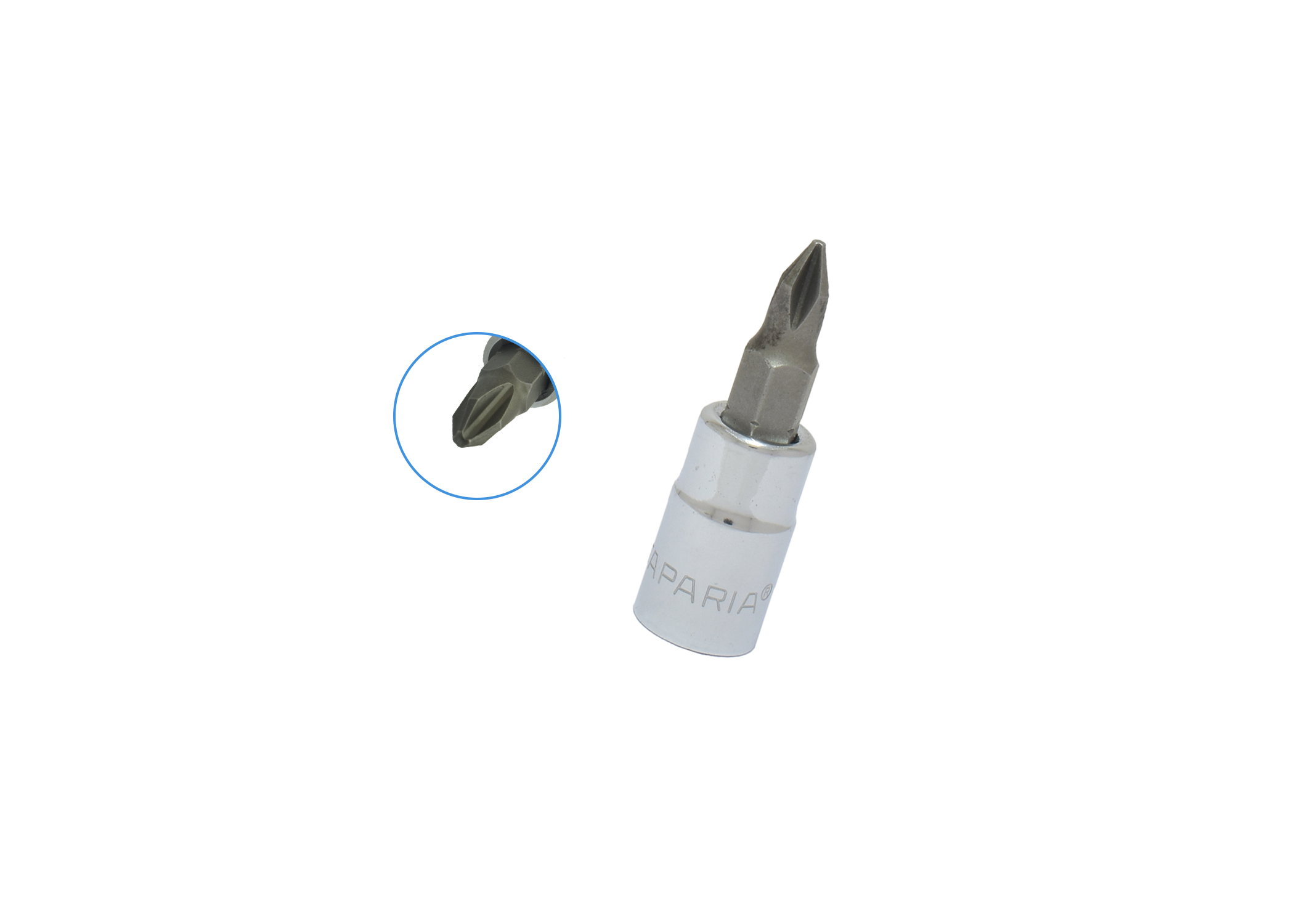

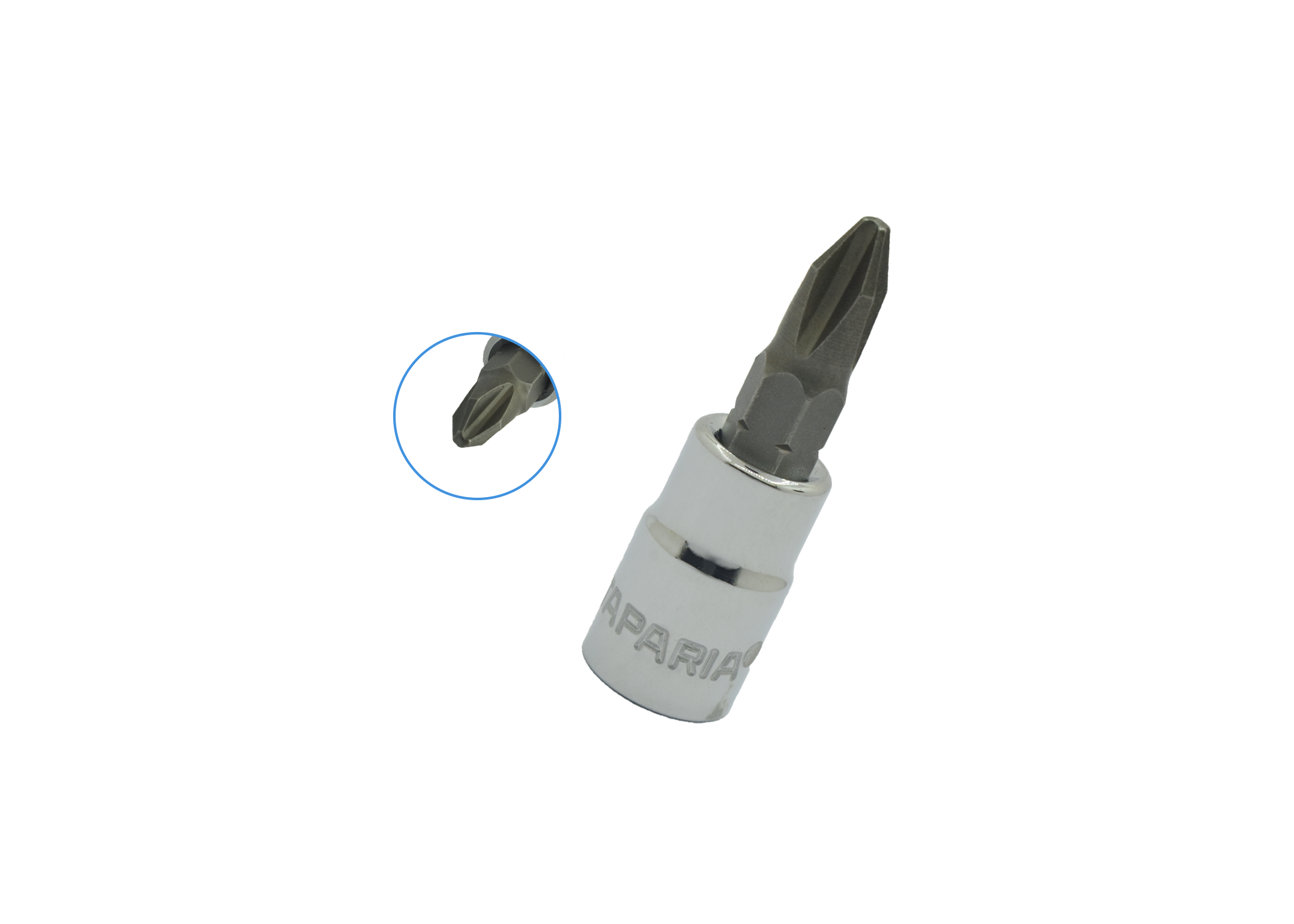

| Philips | Tip No 1, 2 & 3. |

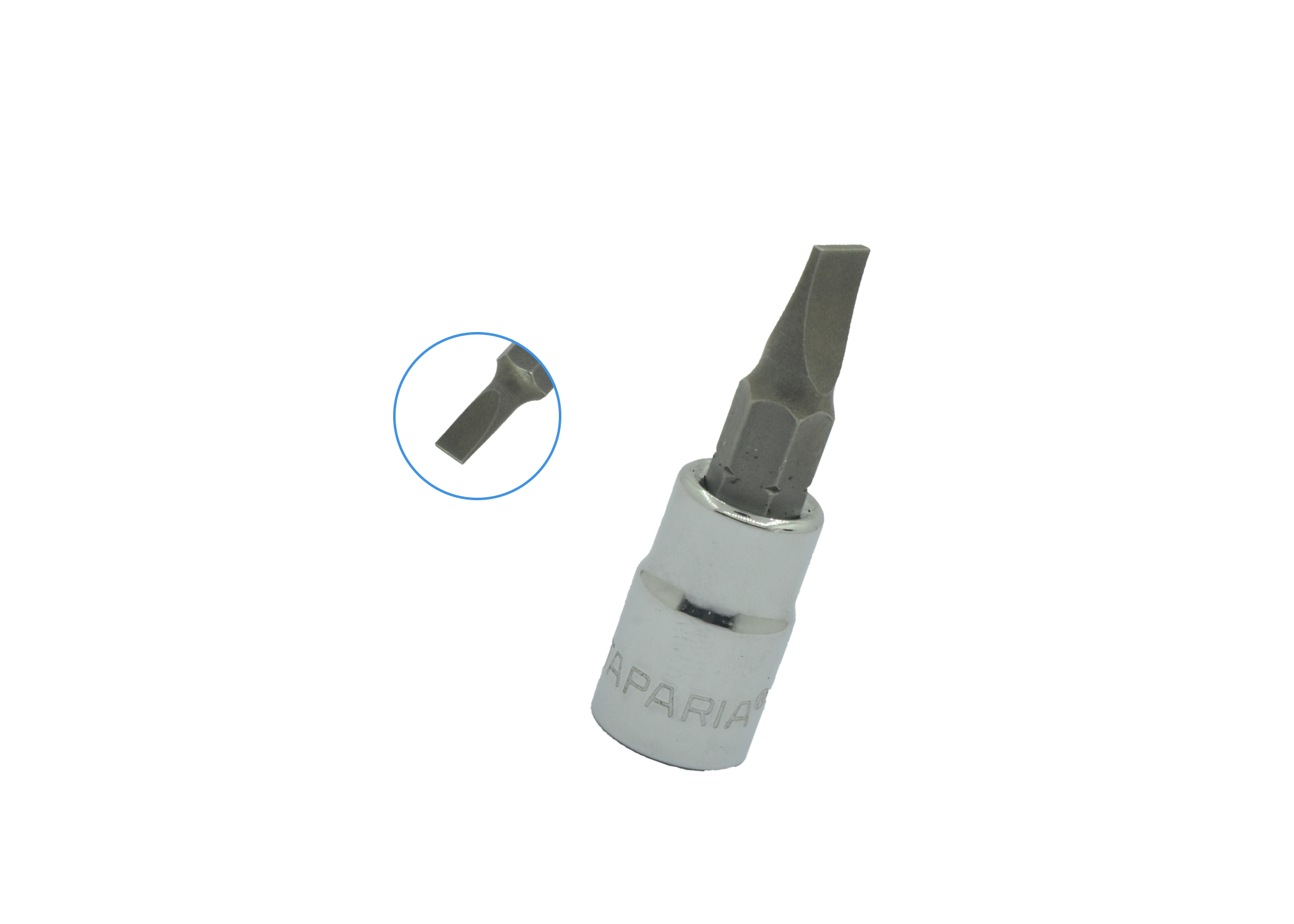

| Flat | 4, 5.5 & 7 mm. |
| Pozy | PZ1, PZ2 & PZ3. |
Minimum Torque Value in Kg.m for Spark plug
| A/F | Torque Value in Kg.m |
| 16 mm | 38.4 |
| 21 mm | 58 |
TAPARIA sockets generally Conform to I.S. 7381 - 1986 & 7993 - 1988.
