| PRODUCT NO | FIGURE NO | MIN | MAX | A | B | C | D | L | Weight Grams |
| AL4H | 1 | 4.02 | 4.12 | 7 | 12 | 10 | 8.5 | 25 | 10 |
| AL4.5H | 1 | 4.52 | 4.62 | 7.5 | 12 | 9.5 | 8.5 | 25 | 10 |
| AL5H | 1 | 4.02 | 5.12 | 8 | 12 | 10 | 9 | 25 | 10 |
| AL5.5H | 1 | 5.52 | 5.62 | 8.5 | 12 | 10 | 9 | 25 | 10 |
| AL6H | 1 | 6.03 | 6.15 | 9 | 11.5 | 10 | 10.5 | 25 | 10 |
| AL7H | 1 | 7.03 | 7.15 | 10.5 | 12 | 10 | 10 | 25 | 10 |
| AL8H | 3 | 8.03 | 8.15 | 12 | 11 | 15 | 10 | 25 | 10 |
| AL10H | 3 | 10.04 | 10.19 | 15 | 12.5 | 15 | 10 | 25 | 16 |
| AL11H | 3 | 11.04 | 11.19 | 16 | 14 | 15 | 11 | 25 | 20 |
| AL12H | 3 | 12.04 | 12.24 | 17 | 14.5 | 15 | 11.5 | 25 | 22 |
| AL13H | 3 | 13.04 | 13.24 | 18 | 15.5 | 15 | 11 | 25 | 25 |
| AL14H | 3 | 14.05 | 14.27 | 20 | 17.6 | 14.5 | 12.5 | 25 | 30 |

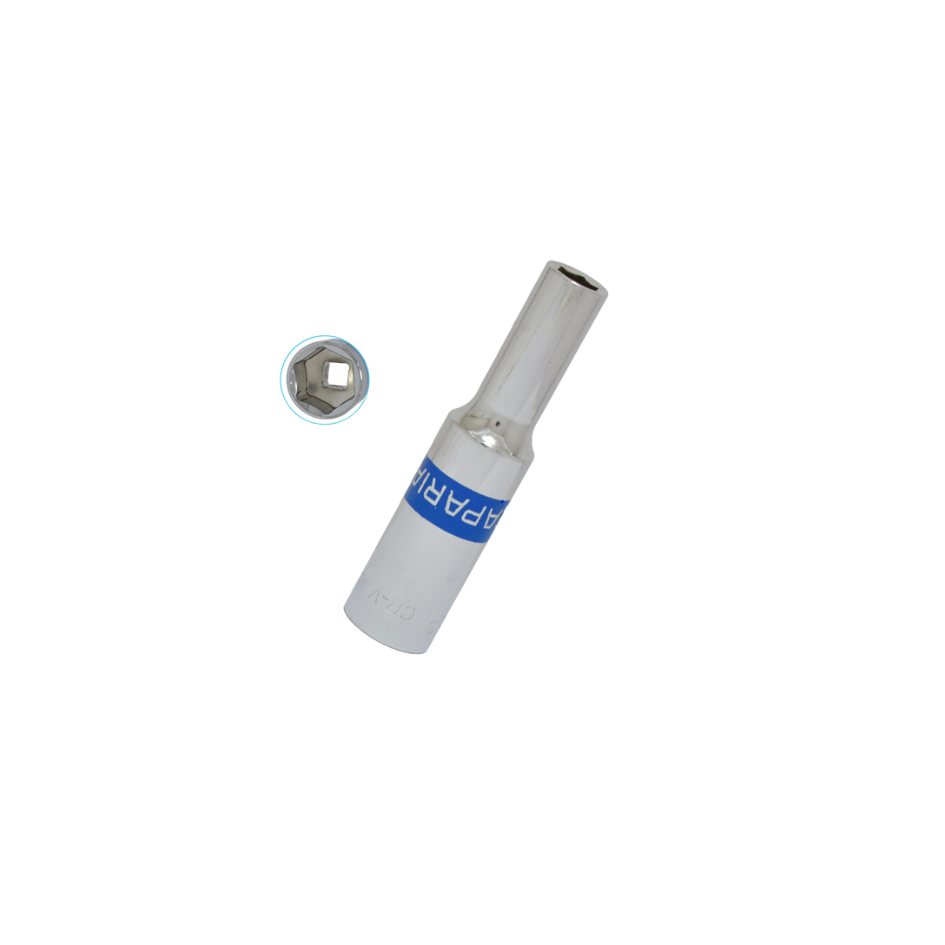

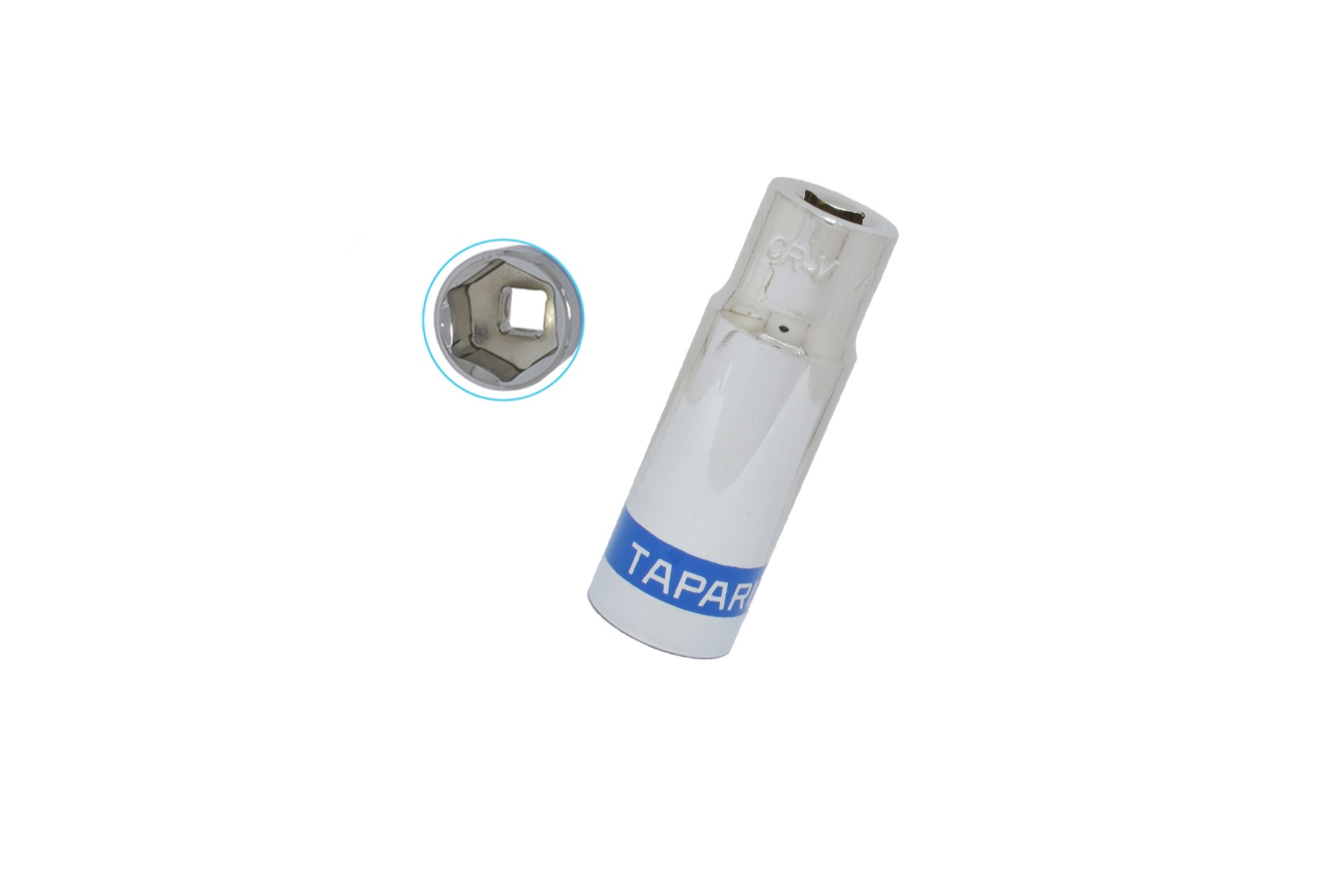

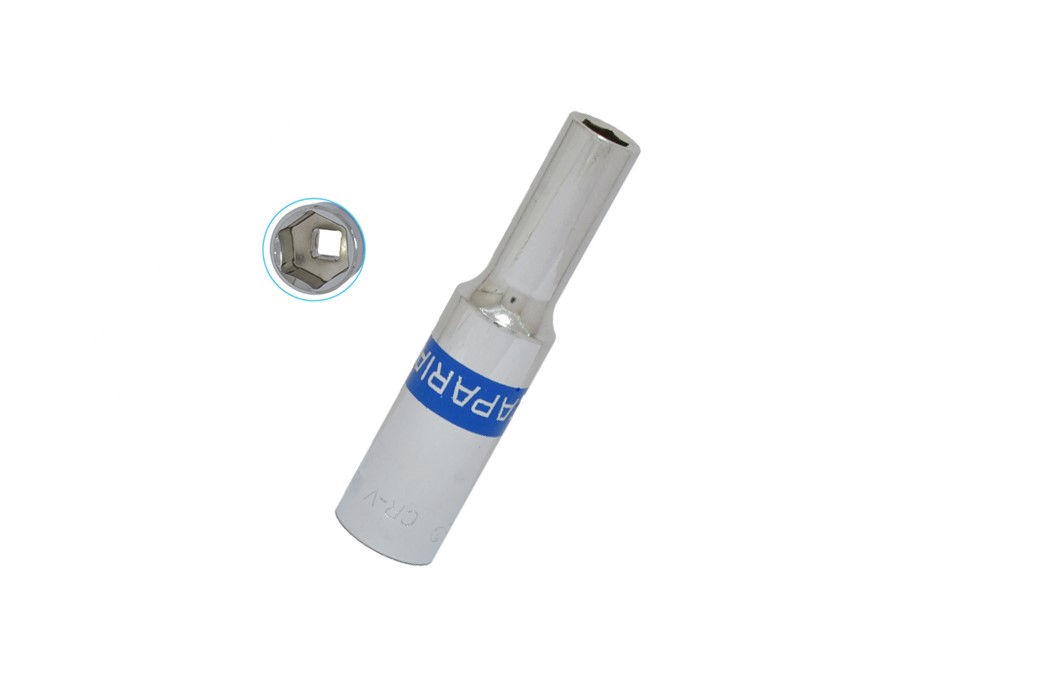

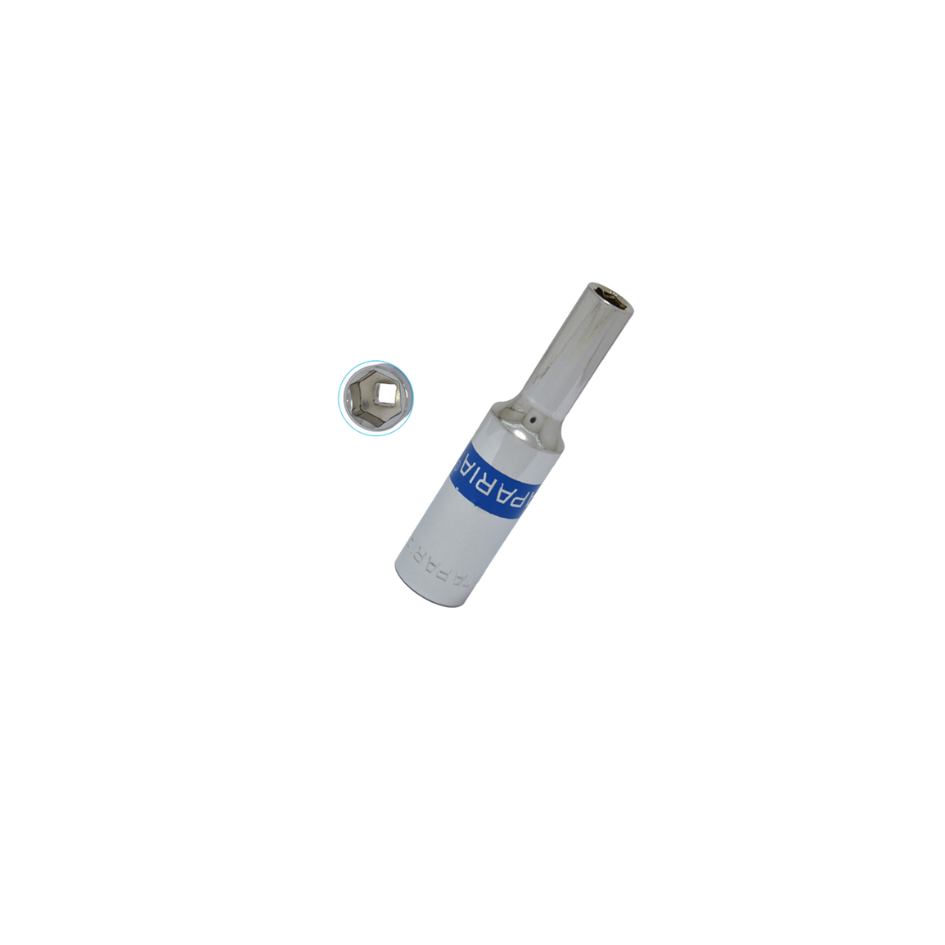

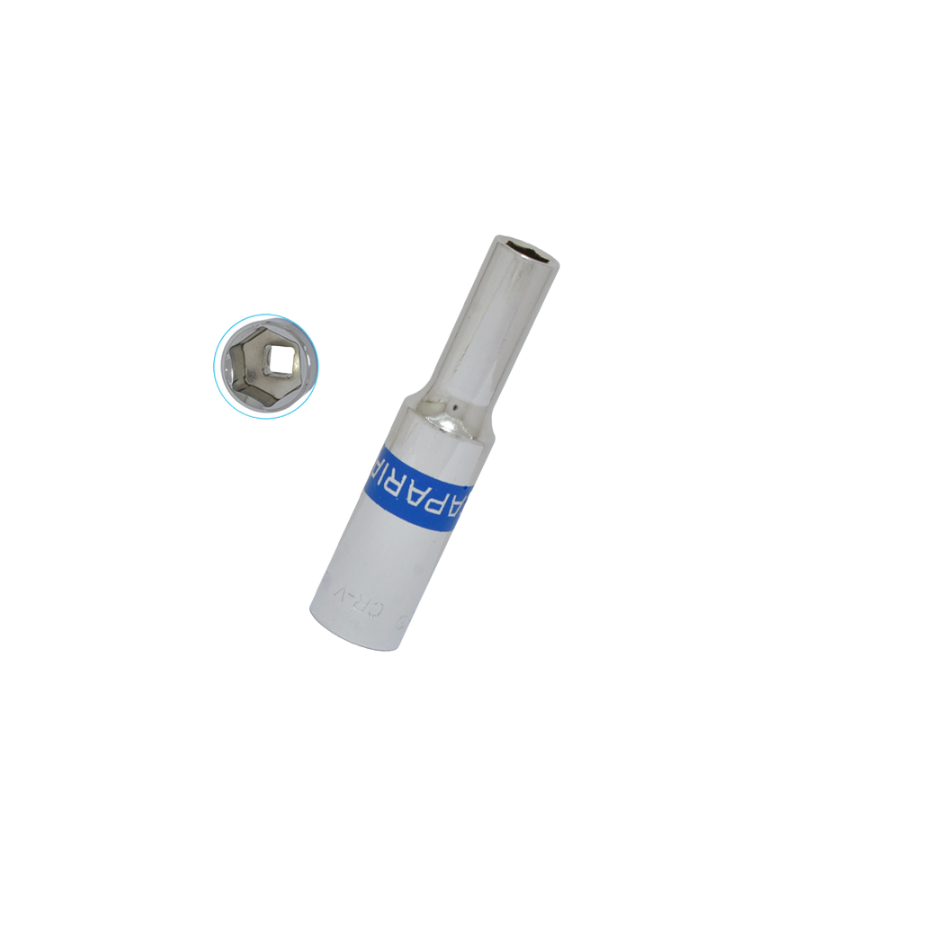

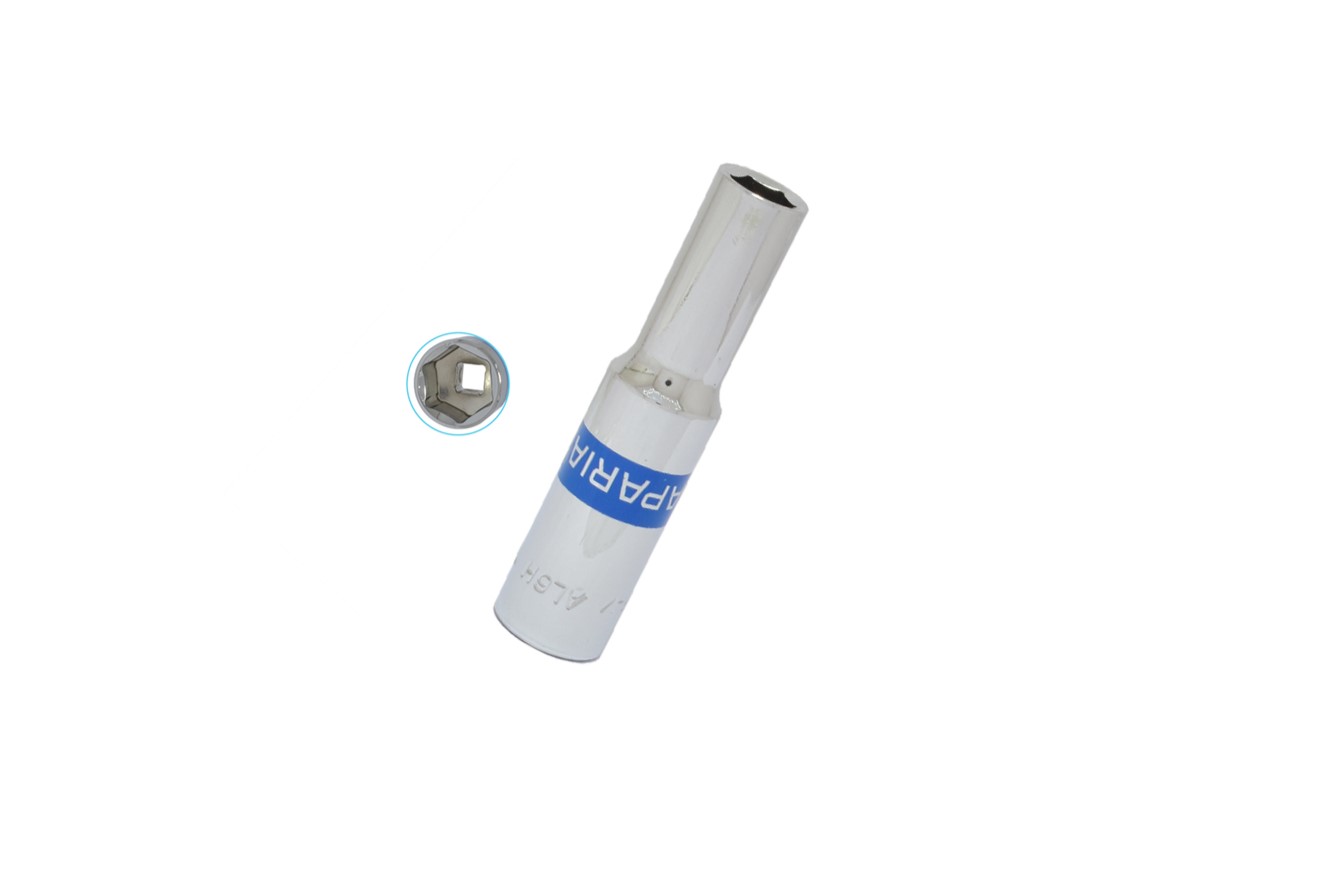

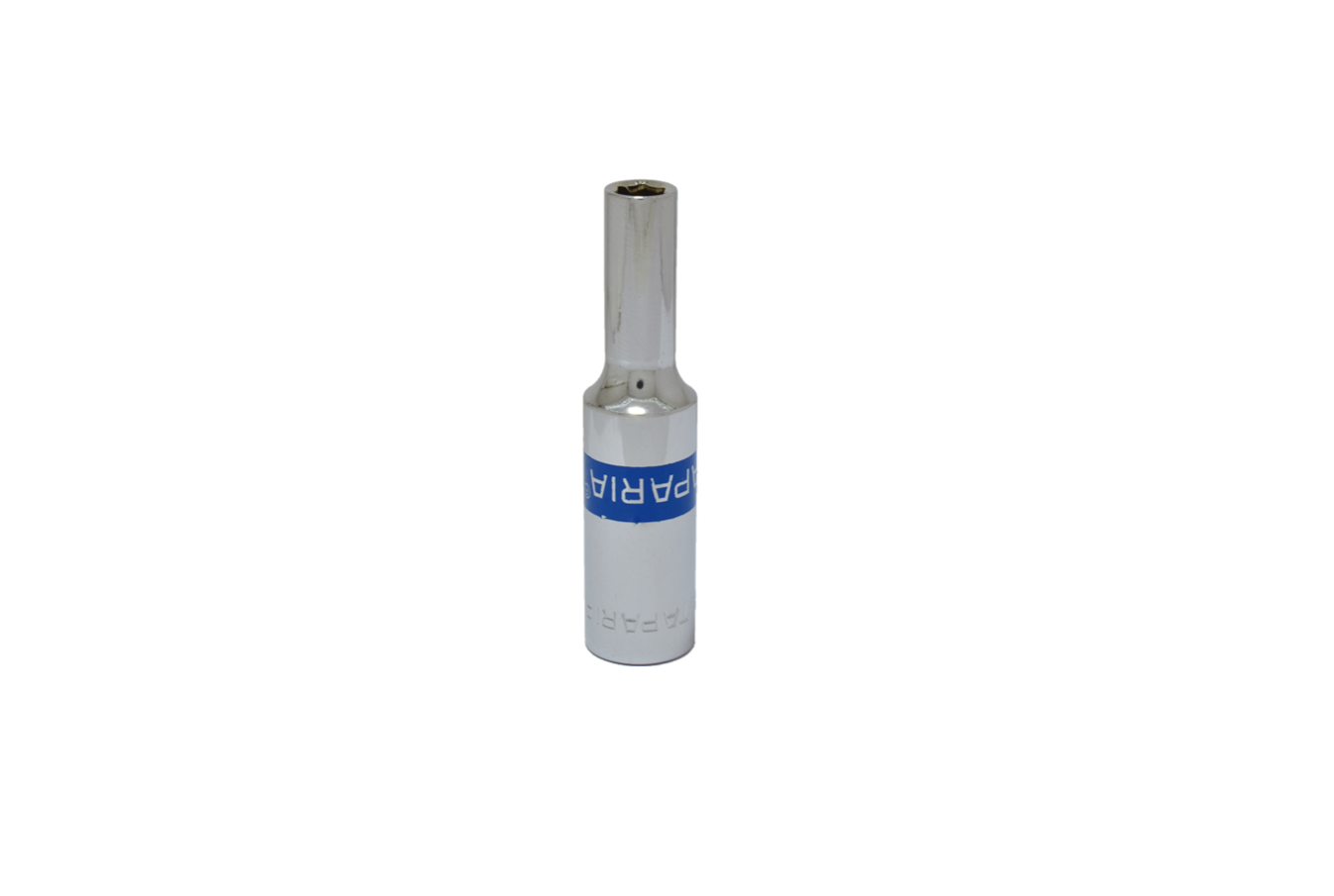

Socket
Sockets are forged from high grade Chrome Vanadium steel & Impact sockets from Cr-Mo steel.
Socket bits are made from High grade alloy steel.
Scientifically heat treated Sockets & Bits to give maximum strength and wear resistance.
Special rubber ring in spark plug socket to prevent damage of plug.
Extra-long design of spark plug socket for easy operation without any damage to plug.
Bit is press fitted in sockets adequately.
Special flower type profile drive in E sockets.
Nickel Chrome plating & phosphate finish to enable rust prevention and good looks.
Socket bits are specially coated and oiled for rust prevention.
Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive with E socket, hexagonal / Bi-hexagonal patterns in different sizes.
| Bit Sockets are available in | available in |
| Hex | 3, 4, 5, 6, 7, 8, 10, 12, 14, 17 mm. |
| Torx | T10, T20, T25, T30, T40, T45, T50, T55, T60 & T70. |
| Philips | Tip No 1, 2 & 3. |
| Flat | 4, 5.5 & 7 mm. |
| Pozy | PZ1, PZ2 & PZ3. |
Minimum Torque Value in Kg.m for Spark plug
| A/F | Torque Value in Kg.m |
| 16 mm | 38.4 |
| 21 mm | 58 |
TAPARIA sockets generally Conform to I.S. 7381 - 1986 & 7993 - 1988.
