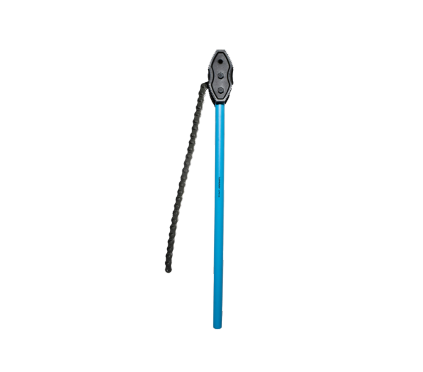

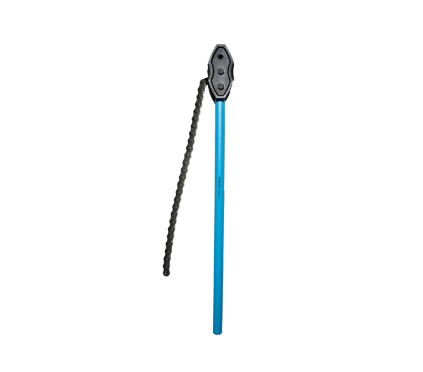

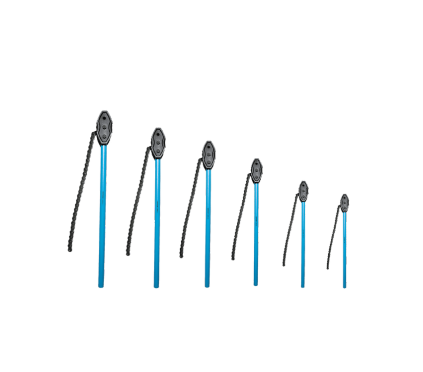

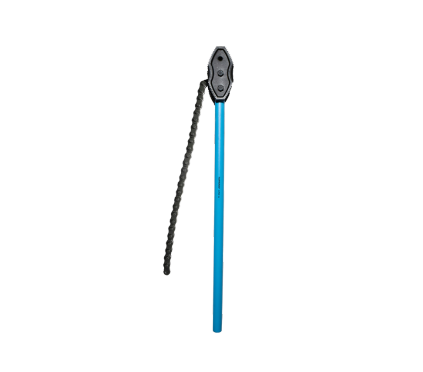

Chain Pipe Wrenches

Chain Pipe Wrenches

Product Overview

CHAIN PIPE WRENCHES


PRODUCT NO.ABCWEIGHT GRAMS
CPW 0370057

11.7

3760
CPW 0490080138000
CPW 06100090149500
CPW 081200901511800
CPW 1013001001613500
CPW 1214001001614500
CPW 1615851001616500


Special Features


Salient Features

  • Drop forged jaws with high - grade carbon steel.
  • Scientifically heat - treated to give maximum strength and wear resistance
  •  accurately machined jaw teeth on both sides of the jaw provides firm gripping and are easy for reverse operation.
  • Jaw teeth provided on both sides for easy change of direction.
  • Provided with stronger leaf chain with suitable lengths, which ensures high torque values for different sizes as under without breaking.

Product No

Size
Chain Length in mm
Suitable to pipe size (mm

Torque Value in Kg.m

CPW 03
3 ( 75mm )
700
80
56
CPW 04
4 ( 100mm )
900
100
92
CPW 06
6 ( 150mm )
1000
150
158
CPW 08
8 ( 200mm )
1200
200
184
CPW 10
10 (250mm
1300
250
192
CPW 12
12 ( 300mm )
1400
300
214
CPW 16
16 (400mm )
1585
400
244
