Taparia Tools | Offset Ring Spanner with Round Handle

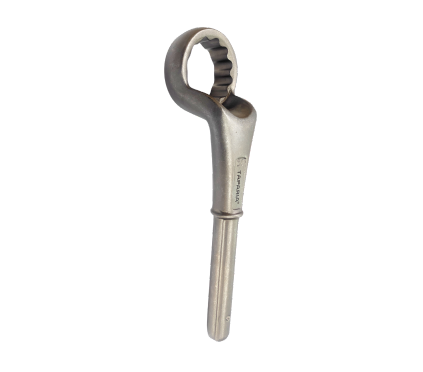

Offset Ring Spanner with Round Handle

SLOGGING SPANNER WITH ROUND HANDLE

Drop forged from high-grade Chrome Vanadium steel.
Scientifically heat-treated to give maximum strength and wear resistance.
Thoroughly rust / corrosion protected with sand blast & black phosphate finish.
Straight & offset handle, Short and strong profiled handle and striking ends for heavy-duty operations in shipyards, railways, heavy industries etc.
Available in Open Jaw and Ring patterns in different sizes as,

A) Open ended spanners :- SSO 27 to SSO 150

B) Ring Spanners :

1. Straight handle : SSR 27 to SSR 160
2. Offset with box handle : SSROB 32 to SSROB 115
3. Offset with round handle : SSROR 24 to SSROR 105

Minimum Torque Values in Kg.m

Across Flat Sizes	Minimum Torque values (in Kg.m) :- Open Jaw	Minimum Torque values (in Kg.m) :- Ring
24 mm	-------	46
27 mm	41	61
30 mm	55	78
32 mm	66	90
34 mm	81	104
36 mm	91	119
38 mm	101	135
41 mm	118	161
46 mm	148	211
50 mm	175	256
55 mm	212	320
60 mm	252	392
70 mm	290	410
75 mm	343	475
80 mm	394	550
85 mm	448	630
90 mm	506	710
95 mm	567	800
100 mm	632	850
105 mm	700	1296
110 mm	772	1453
115 mm	847	1620
120 mm	1008	1986
