Double Ended Spanner Ribbed CP

Double Ended Spanner Ribbed CP

Product Overview

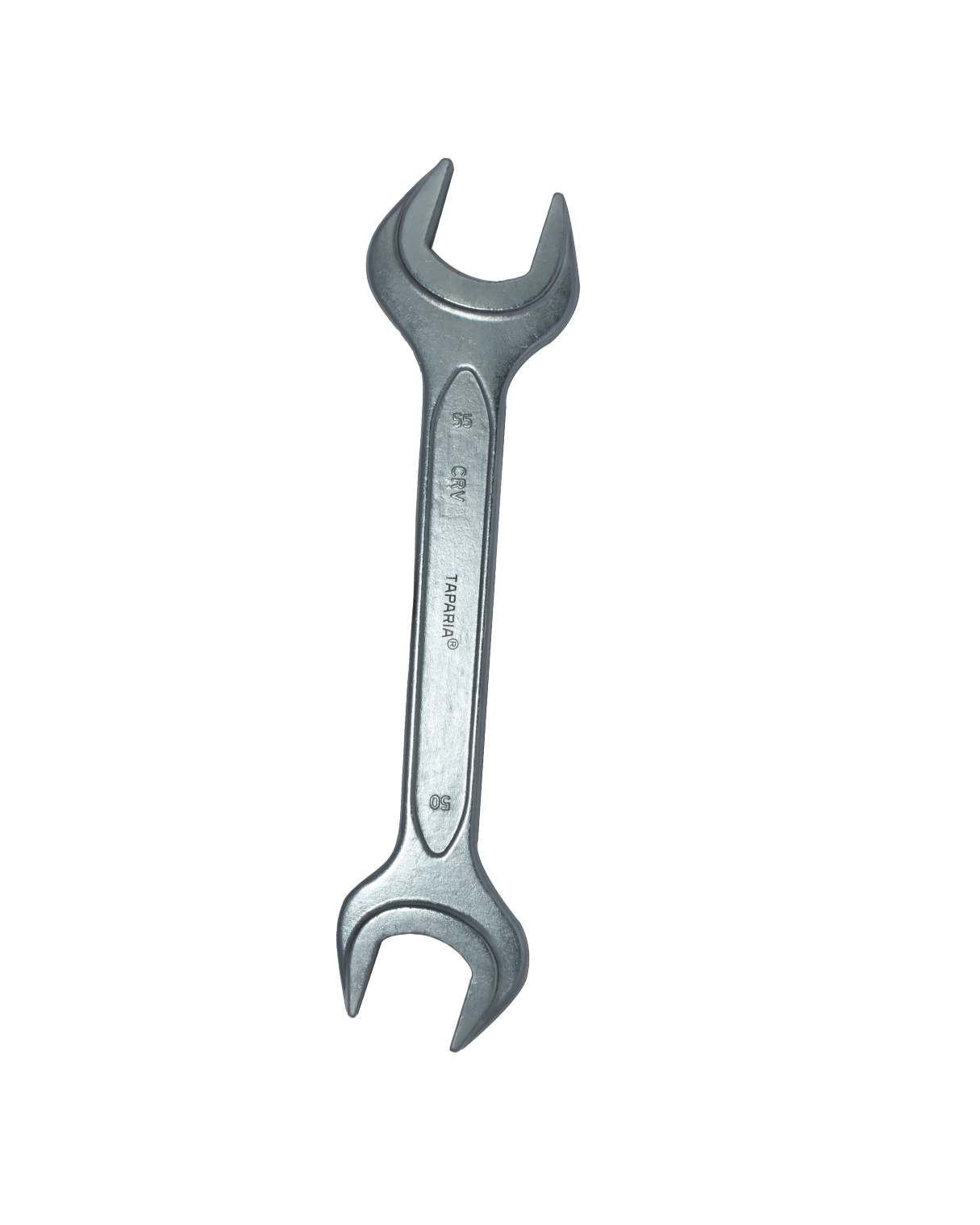

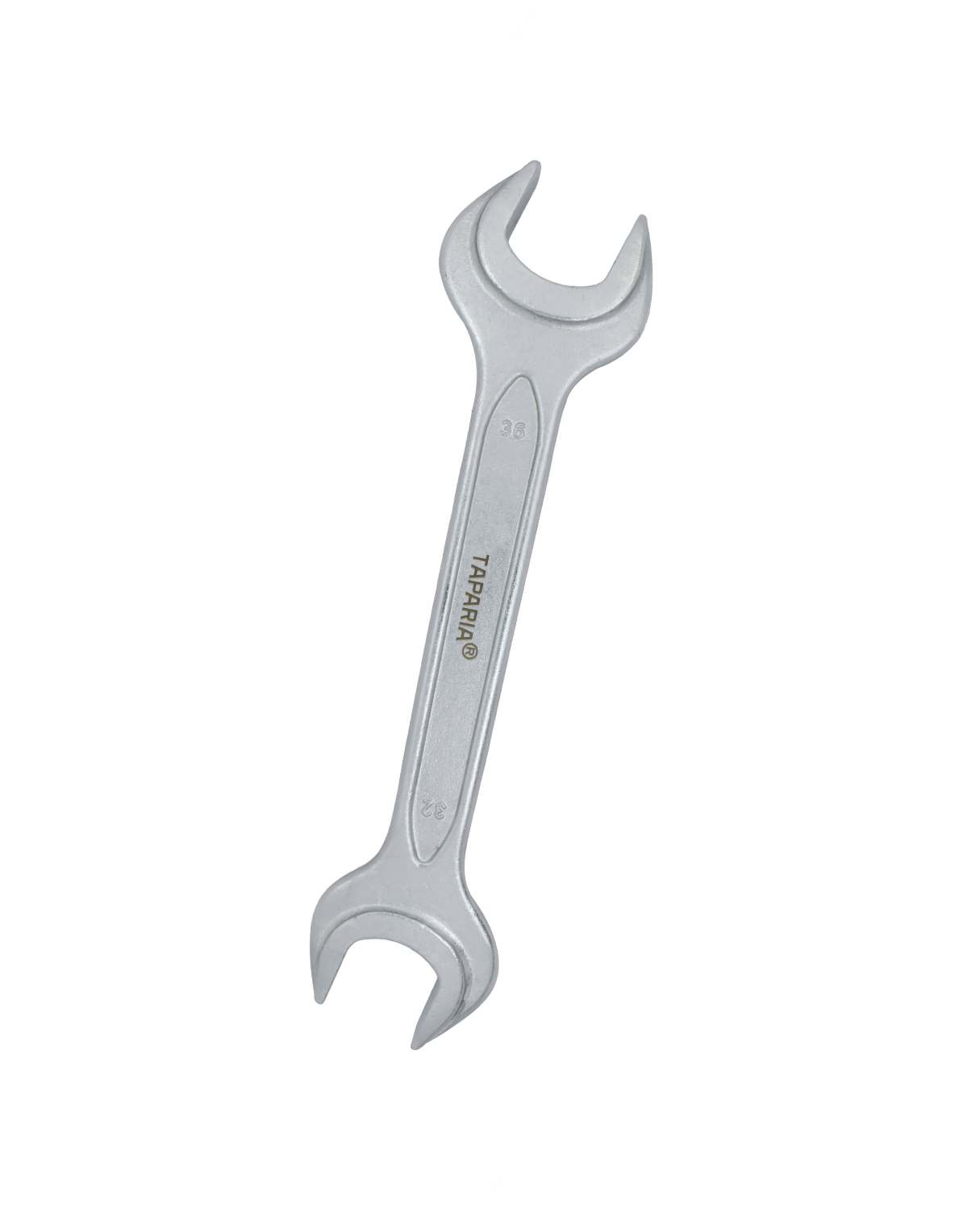

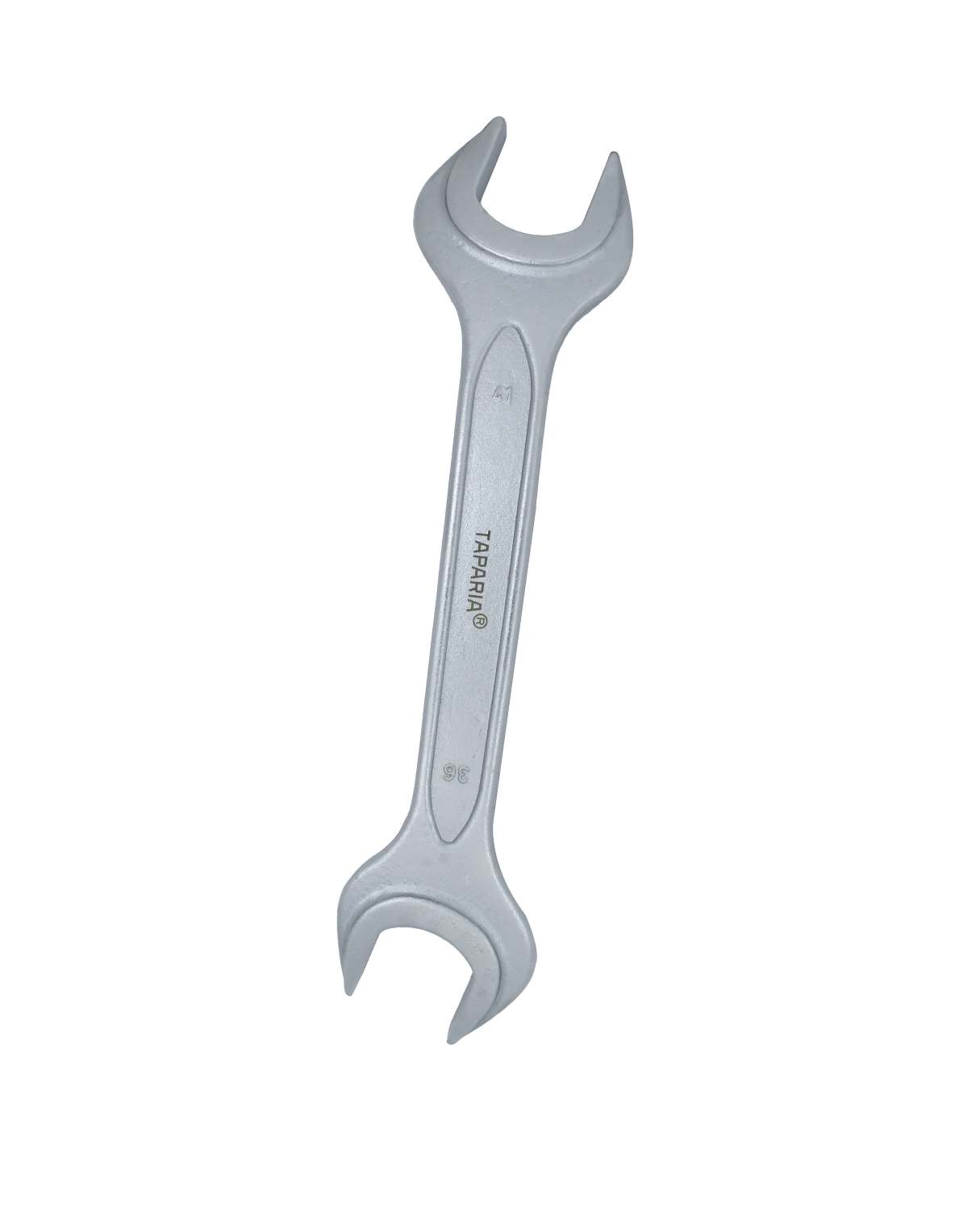

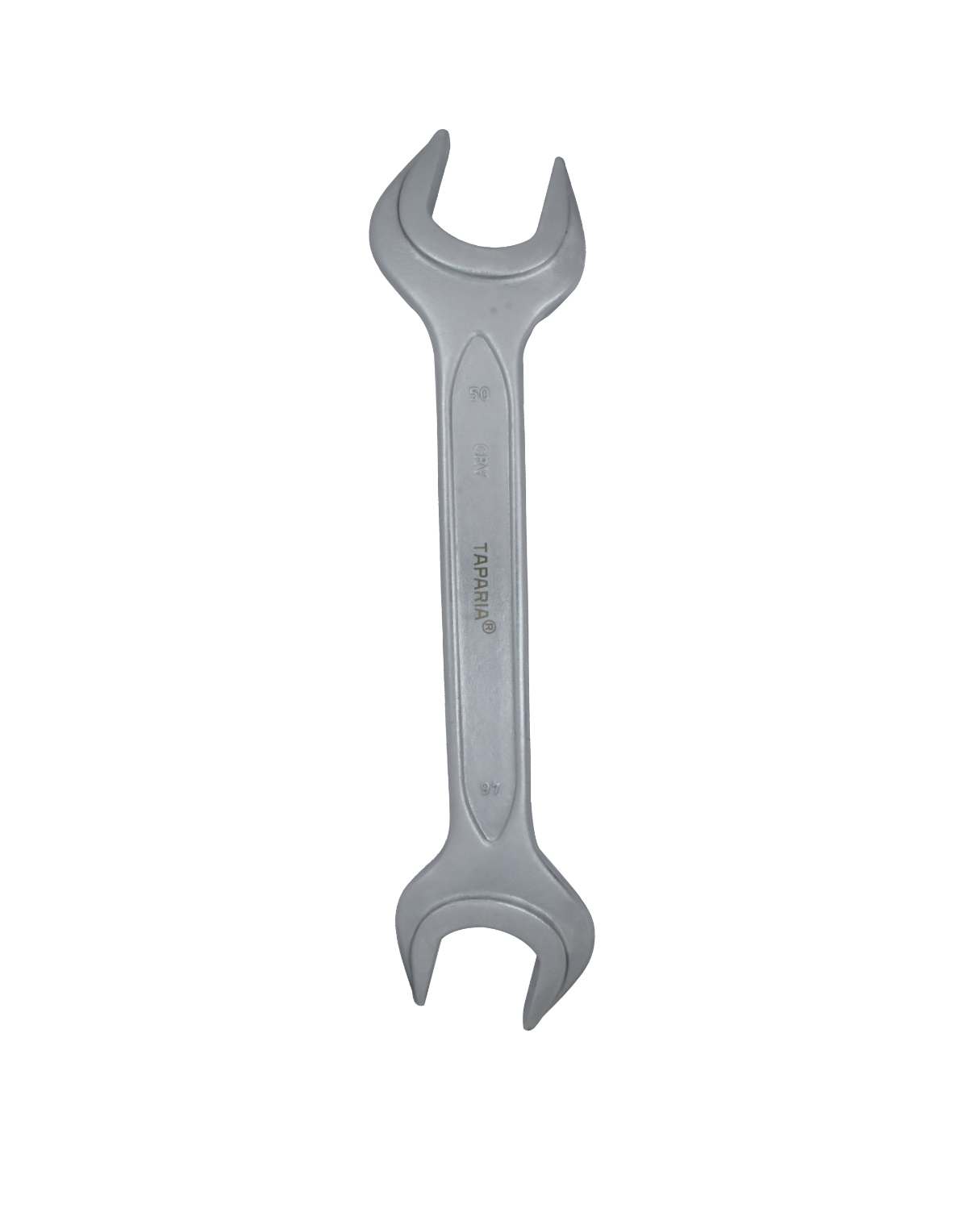

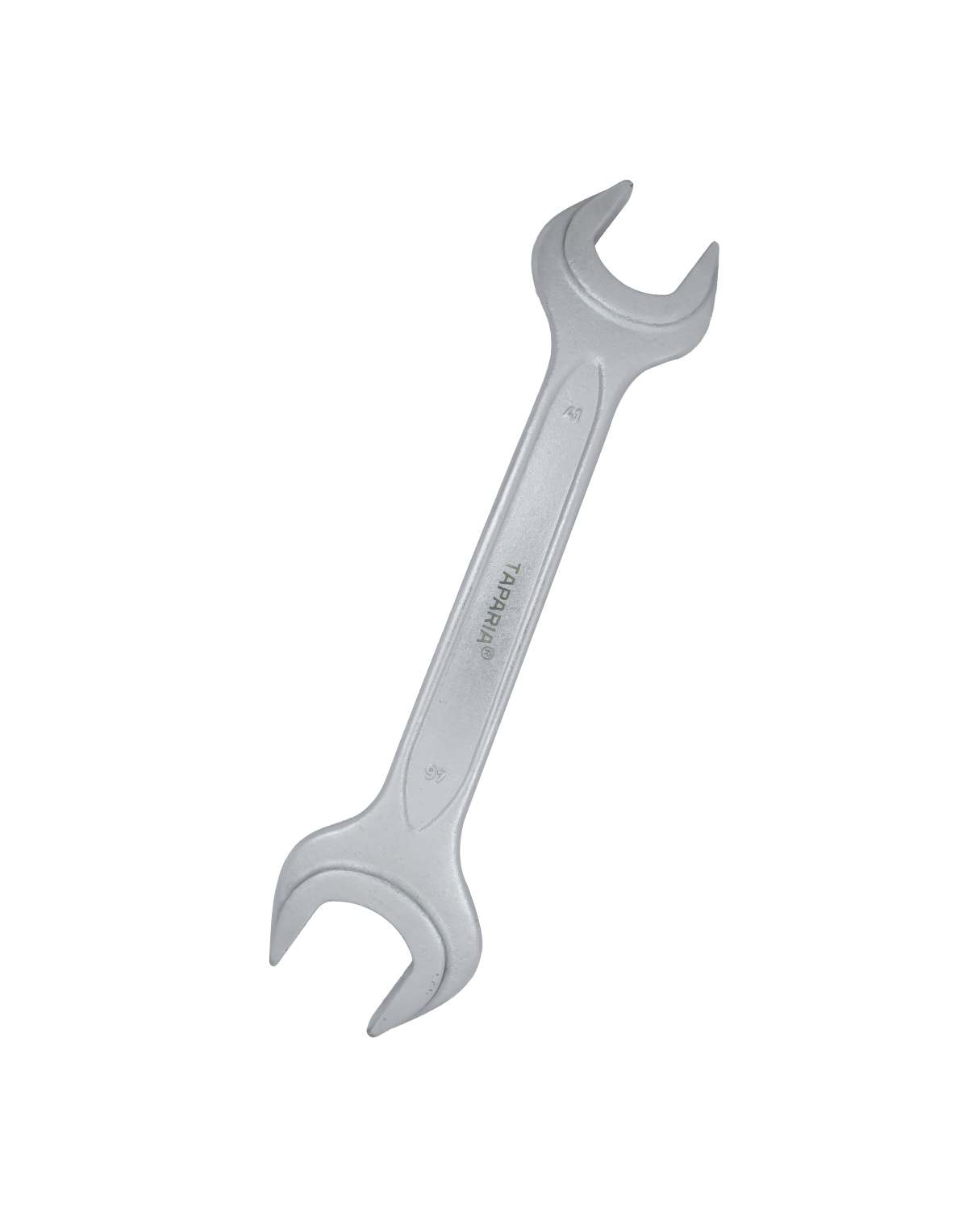

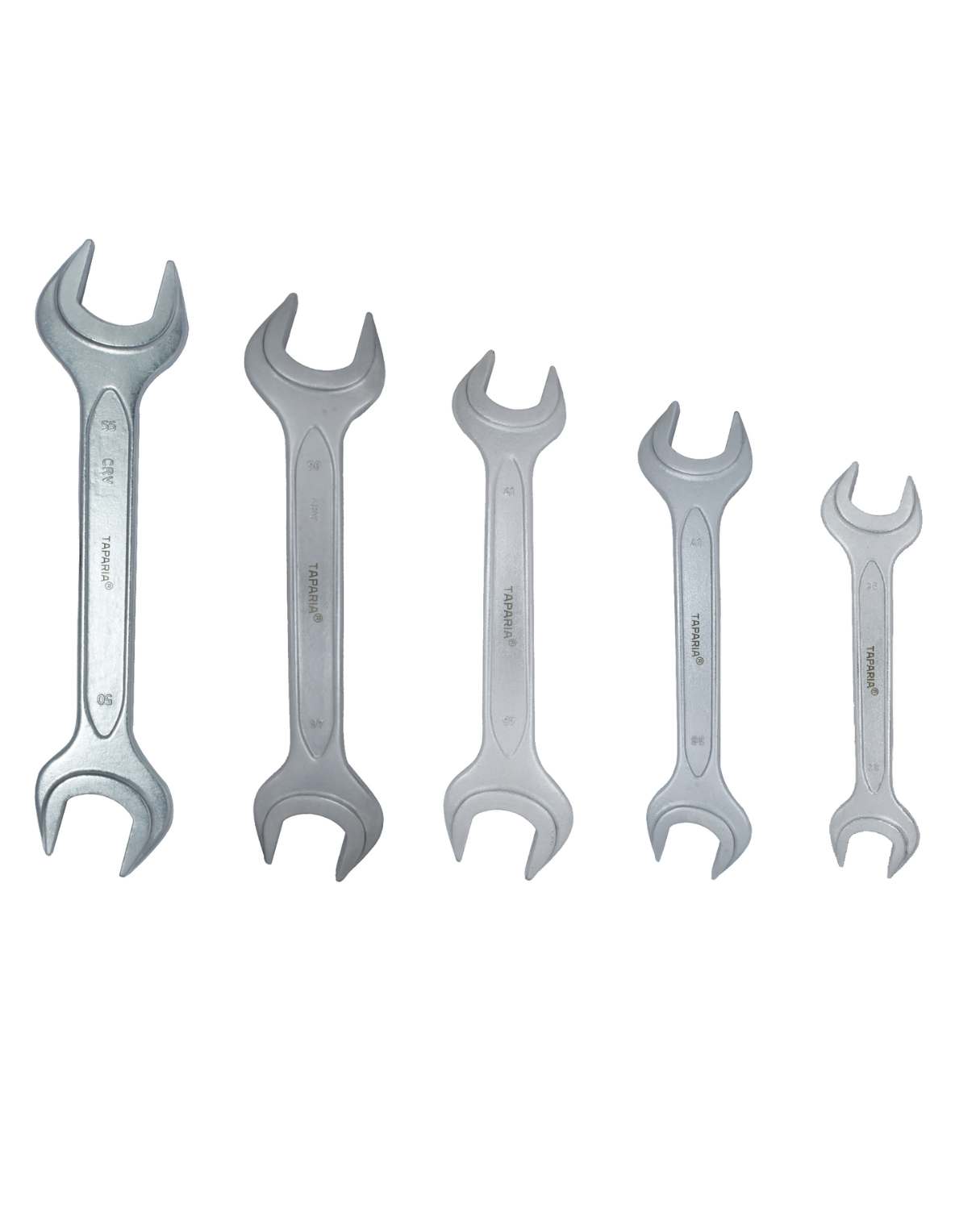

DOUBLE ENDED SPANNER


PRODUCT NO.D1D2TLWEIGHT GRAMS
DER - 32X36667413.53001153
DER - 36X41748414.53401620
DER - 41X46849415.53802119
DER - 46X509410016.54202747
DER - 50X5510011017.54601900

Special Features


Salient Features

  • Drop forged from high grade Chrome – Vanadium Steel.
  • Scientifically heat - treated to give maximum strength and wear resistance.
  • Head at each end are of different sizes and 150  head angle permits use in confined spaces.
  • Slightly rounded shank sand blasted- fit snugly in the hand and give a comfortable grip.
  • Clearly marked –facilitates choice of right size.
  • Precised across flat avoids Nut damage.
  • I-section design of spanners gives strength with low weight.
  • Thoroughly corrosion protected with Nickel-Chrome & black phosphate finish.
  • Jaw cheek portion is mirror polished gives rich feel.
  • Available in Metric, Inch & WW series with various sizes & sets.

    Minimum Torque Value in Kg.m
Nominal Width A/F in mm & W/W
Torque Value in Kg.m
60.6
70.9
81.3
91.9
102.5
113.3
124.2
135.3
146.5
157.8
169.4
1710.9
1813
1915.2
2017.5

Minimum Torque Value in Kg.m



Nominal Width A/F
Torque Value in Kg.m
21
20.2
22
22.9
23
26
24
29.3
25
32.8
26
36.6
27
40.7
28
45
30
54.6
32
65.5
36
91
41
118
46
148
50
175
55
212
60
252
65
290
70
343
75
394
80
448

TAPARIA double ended open jaw spanners generally Conform to I.S. 2028-2004
