Taparia Tools | Socket Regular

Socket Regular

DOWNLOAD CATALOGUE

Product Overview

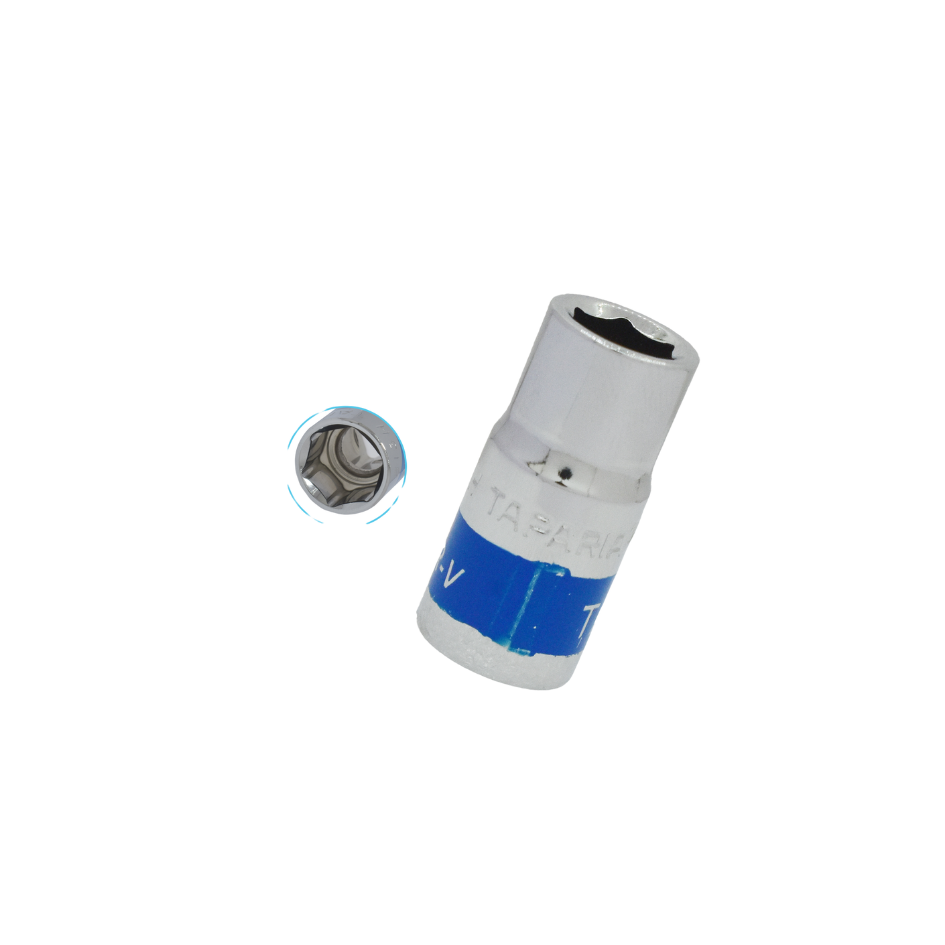

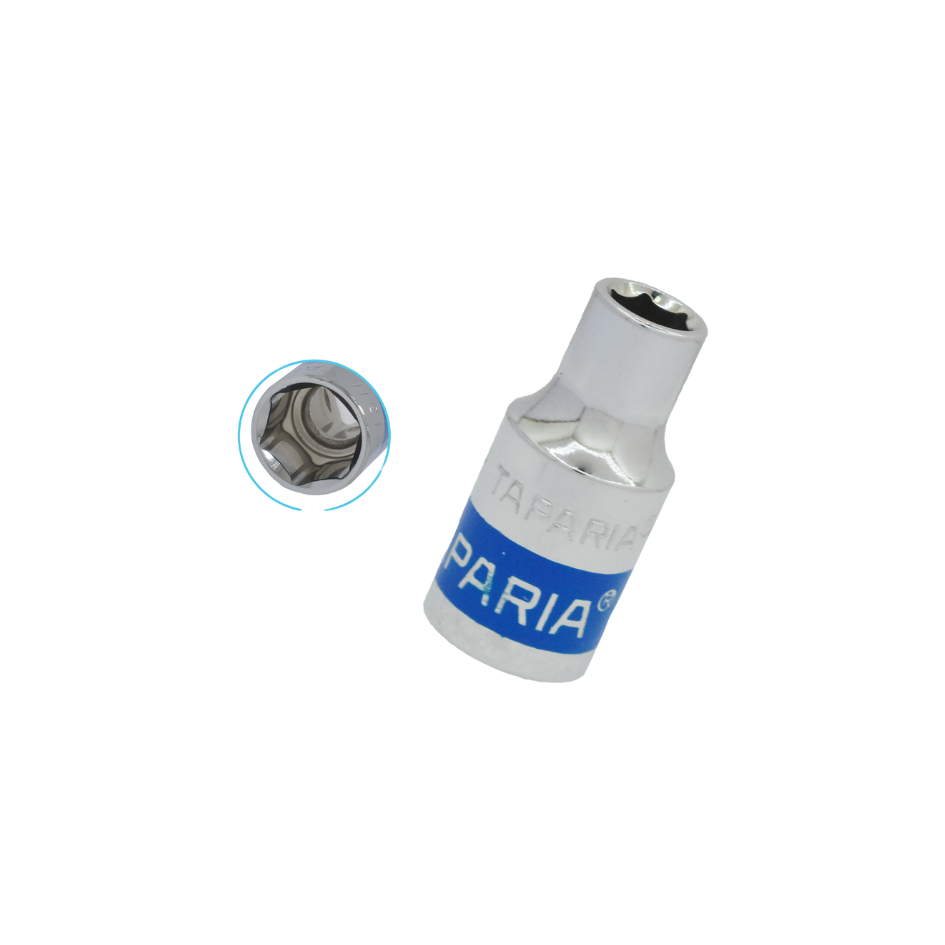

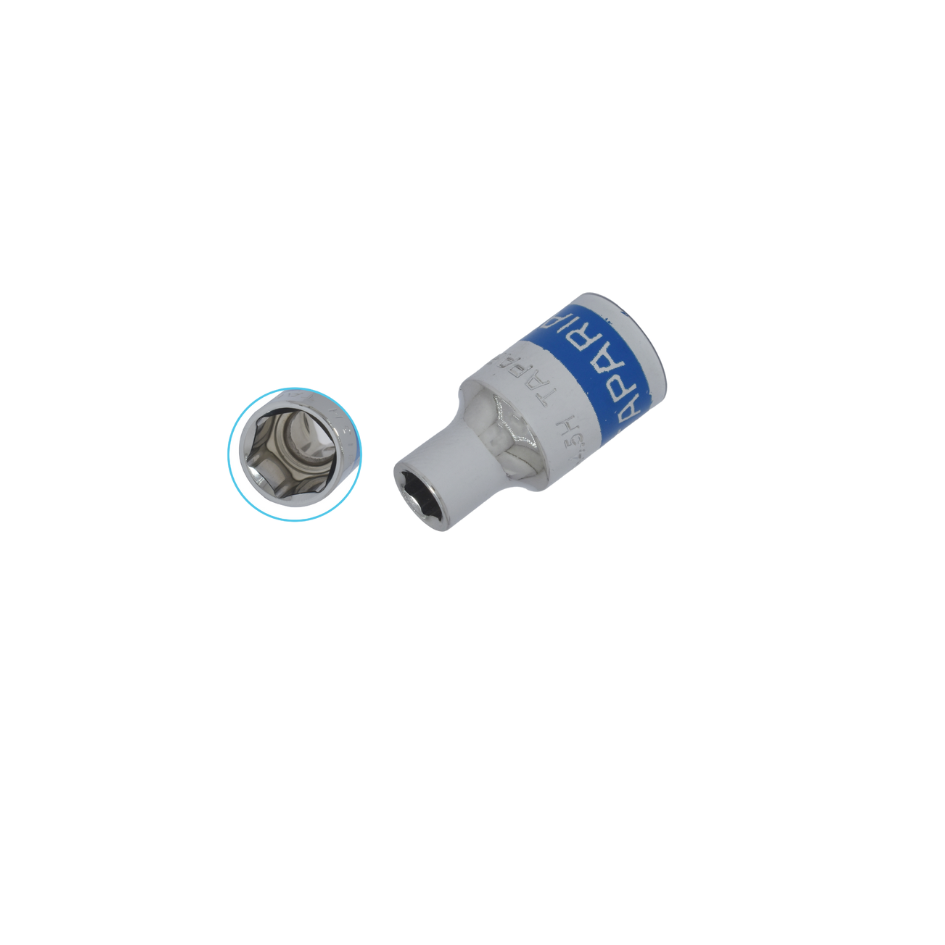

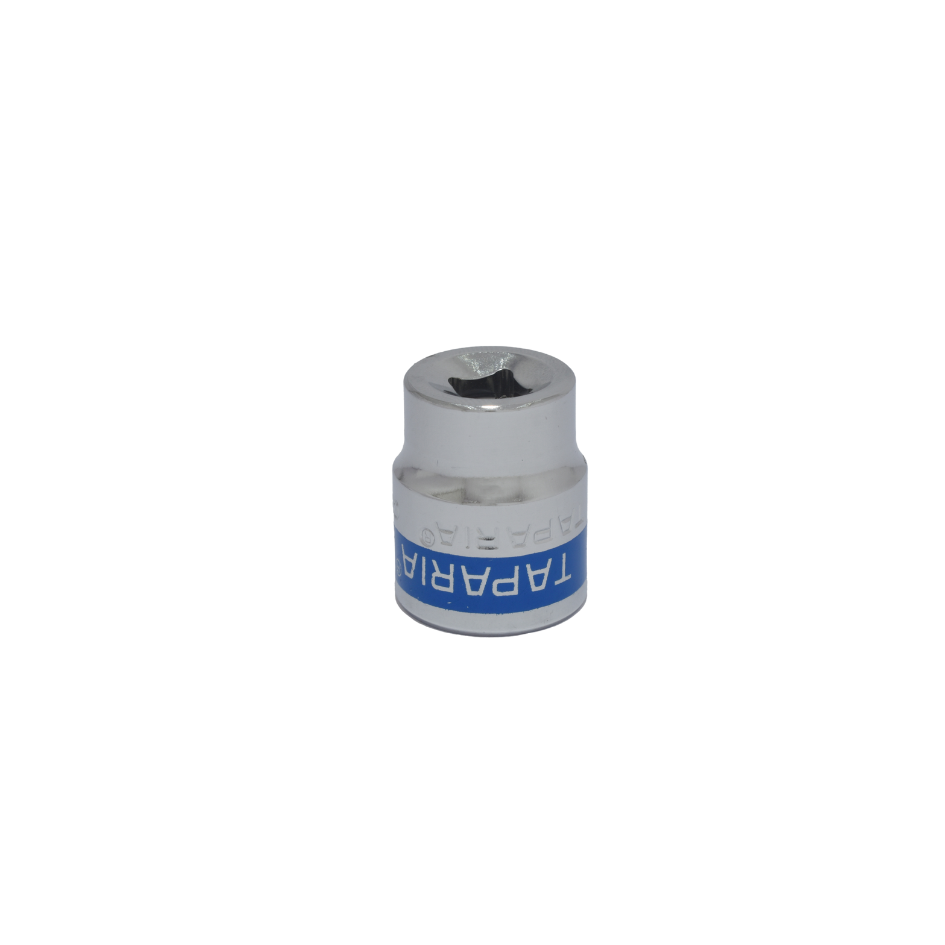

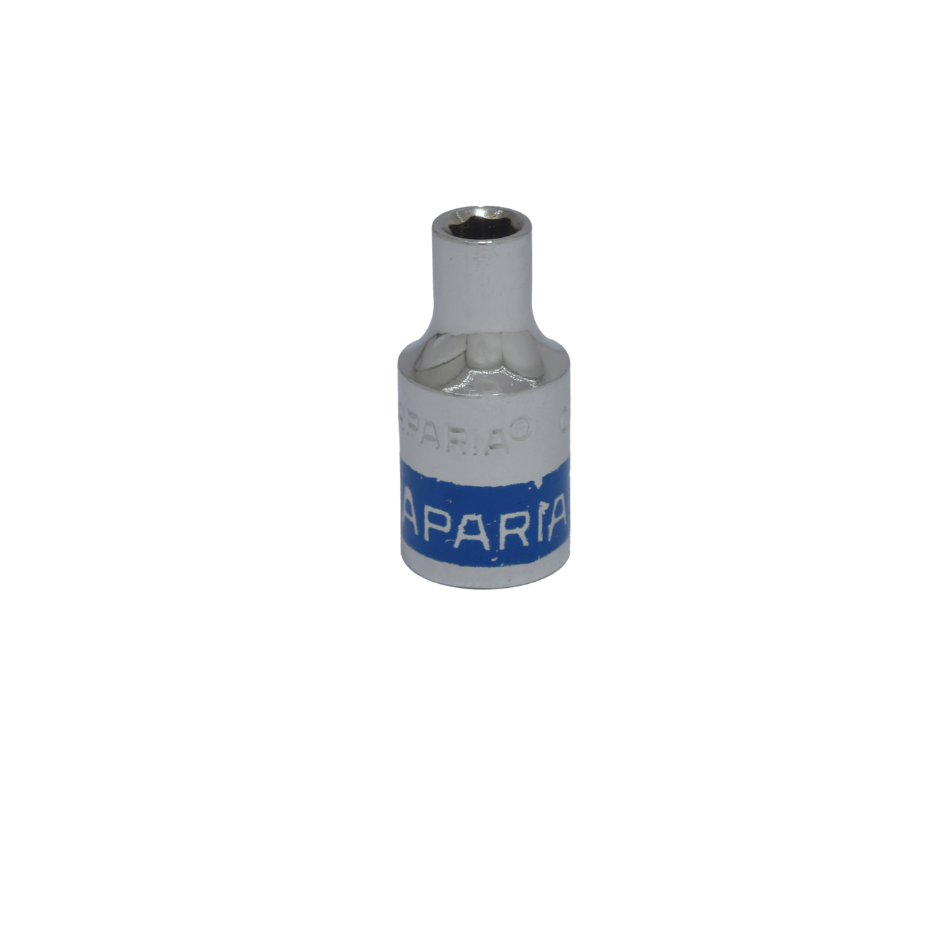

Socket Regular

PRODUCT NO	FIG NO	A	B	D	E	A/4	WEIGHT GRAMS
A 4 H	1	25	13	6.8	12	4	10
A 4.5 H	1	25	13	7.3	12	4.5	10
A 5 H	1	25	13	8.0	12	5	10
A 5.5 H	1	25	13	8.5	12	5.5	10
A 6 H	1	25	13	9.0	12	6	10
A 7 H	1	25	13	10.5	12	7	10
A 8H	1	25	13	11.7	11	8	10
A 10H	2	25	11	14	12	10	101
A 11H	2	25	11	16	11	11	20
A 12H	2	25	11	17	12	12	20
A 13H	2	25	11	18	13	13	25
A 14H	2	25	11	20	14	14	30

Special Features

Salient Features

Socket Regular

Sockets are forged from high grade Chrome Vanadium steel & Impact sockets from Cr-Mo steel.
Socket bits are made from High grade alloy steel.
Scientifically heat treated Sockets & Bits to give maximum strength and wear resistance.
Special rubber ring in spark plug socket to prevent damage of plug.
Extra-long design of spark plug socket for easy operation without any damage to plug.
Bit is press fitted in sockets adequately.
Special flower type profile drive in E sockets.
Nickel Chrome plating & phosphate finish to enable rust prevention and good looks.
Socket bits are specially coated and oiled for rust prevention.

Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive with E socket, hexagonal / Bi-hexagonal patterns in different sizes.

Bit Sockets	available in
Hex -	3, 4, 5, 6, 7, 8, 10, 12, 14, 17 mm.
Torx -	T10, T20, T25, T30, T40, T45, T50, T55, T60 & T70.
Philips-	Tip No 1, 2 & 3.
Flat -	4, 5.5 & 7 mm.
Pozy -	PZ1, PZ2 & PZ3.
